An electric folding bike sounds like the perfect urban solution until you try hauling a 75-pound steel frame up a flight of stairs or discover its “80-mile” range drops to 20 miles in cold headwinds. The gap between marketing claims and real-world performance is the biggest trap in this category, and most buyers fall into it headfirst.

I’m Mo Maruf — the founder and writer behind The Tools Trunk. Over years of tracking this market, I’ve analyzed hundreds of spec sheets, battery chemistries, motor ratings, and folding hinge designs to separate genuine engineering from creative advertising.

The result is this forensic breakdown of the electric folding bike market, ranked by real torque, usable battery energy, and portability that actually works in daily life.

How To Choose The Best Electric Folding Bike

The electric folding bike market is flooded with identical-looking 20-inch fat tire models that differ wildly in actual ride quality. To pick the right one, you need to look past the flashy color options and focus on four core metrics that define real-world performance.

Battery Voltage and Watt-Hours Over Mileage Claims

Every manufacturer inflates range numbers. A 48V 10Ah battery (480 watt-hours) will never deliver 60 miles unless you weigh 120 pounds and pedal furiously on flat ground. Look at the watt-hour (Wh) rating instead. For commuting under 15 miles round trip, 400-500 Wh suffices. For anything over 25 miles, target 700+ Wh. A 52V system provides noticeably less voltage sag under load, meaning consistent power up hills even when the battery is half empty.

Motor Continuous Rating Versus Peak Number

The “peak 1000W” sticker is nearly meaningless — it reflects a burst for a few seconds before the controller throttles down. The continuous rated wattage (usually 500W or 750W in this class) determines how the bike handles a long incline. A 500W continuous hub motor on a 65-pound bike will struggle on any grade above 10%. If your route includes hills, prioritize a true 750W+ continuous rating or a mid-drive motor that leverages the bike’s gears.

Folded Dimensions and Carry Weight

A folding bike that weighs 70+ pounds is not truly portable despite the hinge. Check the folded size against your actual storage space — trunk, closet, train overhead rack. Also examine the hinge mechanism: double-latch hinges with a locking ring are safer than single-pin designs that can loosen over time. If you need to carry it up stairs, subtract the battery weight first (typically 7-10 lbs removable) to get the real carry weight.

Braking System for Heavy Riders

An electric folding bike with a 300-pound total load traveling at 20 mph requires serious stopping power. Mechanical disc brakes work but require frequent adjustment. Hydraulic disc brakes self-adjust and provide consistent bite in wet conditions. For any bike over 60 pounds, hydraulic disks on 180mm rotors should be non-negotiable for safety.

Quick Comparison

On smaller screens, swipe sideways to see the full table.

Model Category Best For Key Spec Amazon
FREESKY Swift Horse Ultra Premium Extreme range & power 48V 35Ah (1440 Wh) Samsung Amazon
Wildeway SummitX Premium Dual motor hill climbing 2000W peak dual motors Amazon
Jasion X Hunter ST Mid-Range All-terrain with hydraulic brakes 1400W peak / hydraulic disc Amazon
Aipas F3 Mid-Range Full suspension comfort 48V 12.8Ah / dual suspension Amazon
SASIKEIBIKE 1500W Mid-Range 52V system for power 52V 20Ah / 1500W peak Amazon
LECTRIC XP Lite 2.0 Mid-Range Lightest folding option 49 lbs aluminum frame Amazon
CroSight 2.0 Electric Trike Mid-Range Stability for seniors 3-wheel / 48V 20.8Ah Amazon
EUYBIKE F6-F Mid-Range Long range value 48V 20Ah / 80 miles PAS Amazon
KEBIKO F6F Mid-Range Step-through convenience 48V 20Ah / step-through frame Amazon
Jasion EB6 Budget-friendly Lightweight aluminum frame 59 lbs / 1200W peak Amazon
EUYBIKE F6-F Black Budget-friendly Large battery on a budget 48V 20Ah / 63 lbs Amazon
Gotrax R1 Budget-friendly Entry-level commuter 500W peak / 48V 7.8Ah Amazon
Wooken 20″ Fat Tire Budget-friendly Tall rider fit (5’7-6’9) 48V 10Ah / 500W continuous Amazon

In‑Depth Reviews

Premium Pick

1. FREESKY Swift Horse Ultra

3500W Bafang Motor48V 35Ah Samsung Cells

The FREESKY Swift Horse Ultra sits in a performance class of its own among folding electric bikes, pairing a genuine 3500W peak Bafang motor with a 48V 35Ah Samsung cell battery — that is 1440 watt-hours of capacity, more than triple most entry-level competitors. The 140 Nm of torque translates to effortless 40-degree slope climbing, and the unlocked PAS mode delivers 38 mph on flat pavement without the motor sounding strained. The dual 4-piston hydraulic disc brakes with 180mm rotors provide the stopping power needed for a bike that can hit those speeds while carrying a 400-pound load.

The full suspension system featuring a double crown fork and rear shock makes this feel closer to a dirt-ready e-mountain bike than a typical folder. Owners report 85 miles of range with 34% battery remaining, pushing real-world total toward 100+ miles under moderate pedal assist. The 26×4-inch fat tires offer superior rollover capability on gravel, sand, and snow compared to the standard 20-inch wheels found on almost every other folding model. The swipe-to-lock key card system and integrated turn signals add premium touches that feel genuinely useful rather than gimmicky.

The primary downside is weight — this is a heavy machine, even with the aluminum frame, and folded dimensions are substantial. The 26-inch wheels make the folded package much larger than a 20-inch model, and riders under 5’7″ may find mounting and dismounting tight. A few units have reported intermittent power cutoffs that required customer support intervention, though response times improved after initial complaints. This bike is not for casual apartment storage, but for anyone needing genuine motorcycle-level performance in a folding form factor, there is nothing close at this price point.

What works

  • Unmatched 1440 Wh battery delivers 85-140 mile real range
  • 3500W Bafang motor with 140 Nm torque climbs anything
  • Dual 4-piston hydraulic brakes provide confident stopping
  • UL 2849 certified with Samsung cells for safety

What doesn’t

  • Extremely heavy, bulky folded package
  • Short riders may struggle with step-over height
  • Occasional power cutoff issues reported
  • Premium pricing may exceed casual budgets
Dual Motor

2. Wildeway SummitX 32Ah

2000W Peak Dual Motors32Ah / 90 Miles Range

The Wildeway SummitX takes a unique approach by pairing independent 1000W front and rear hub motors, creating an effective all-wheel-drive system that excels on loose terrain and steep grades up to 40 degrees. The 40A controller distributes power intelligently, and the 32Ah battery provides enough capacity for 60 miles on throttle alone or 90 miles with pedal assist — figures that hold up better than most under real load. The dual-motor setup also means if one motor encounters an issue, the other keeps you moving, a redundancy no single-motor folding bike offers.

The hydraulic disc brakes and suspension seatpost make the ride notably more comfortable than similarly priced single-motor competitors, especially over potholes and gravel. The step-through frame design with a dual-seat rear configuration and expandable front/rear baskets transforms this into a practical cargo or delivery machine capable of handling 350 pounds total. Owners who have put 600 miles on the bike report excellent battery retention with no range anxiety, praising the hill-climbing capability as transformative for hilly urban environments.

At 65+ pounds, this is not a bike you want to carry up stairs, and the dual motors add complexity that could mean more potential failure points over time. Some units shipped with minor assembly issues like loose brake sensors or kickstand screws, though Wildeway support addressed replacements quickly. The folding mechanism works but the bike does not fold as compactly as single-motor designs. For riders who prioritize raw climbing power and range over portability, the SummitX is the best dual-motor value available.

What works

  • True dual-motor AWD for steep hills and loose terrain
  • 32Ah battery provides exceptional real-world range
  • Hydraulic brakes with 180mm rotors stop confidently
  • Cargo-ready with front/rear baskets included

What doesn’t

  • Very heavy, not practical for carrying folded
  • Dual motors increase mechanical complexity
  • Folded size is larger than single-motor competitors
  • Minor assembly issues reported on some units
Best Value

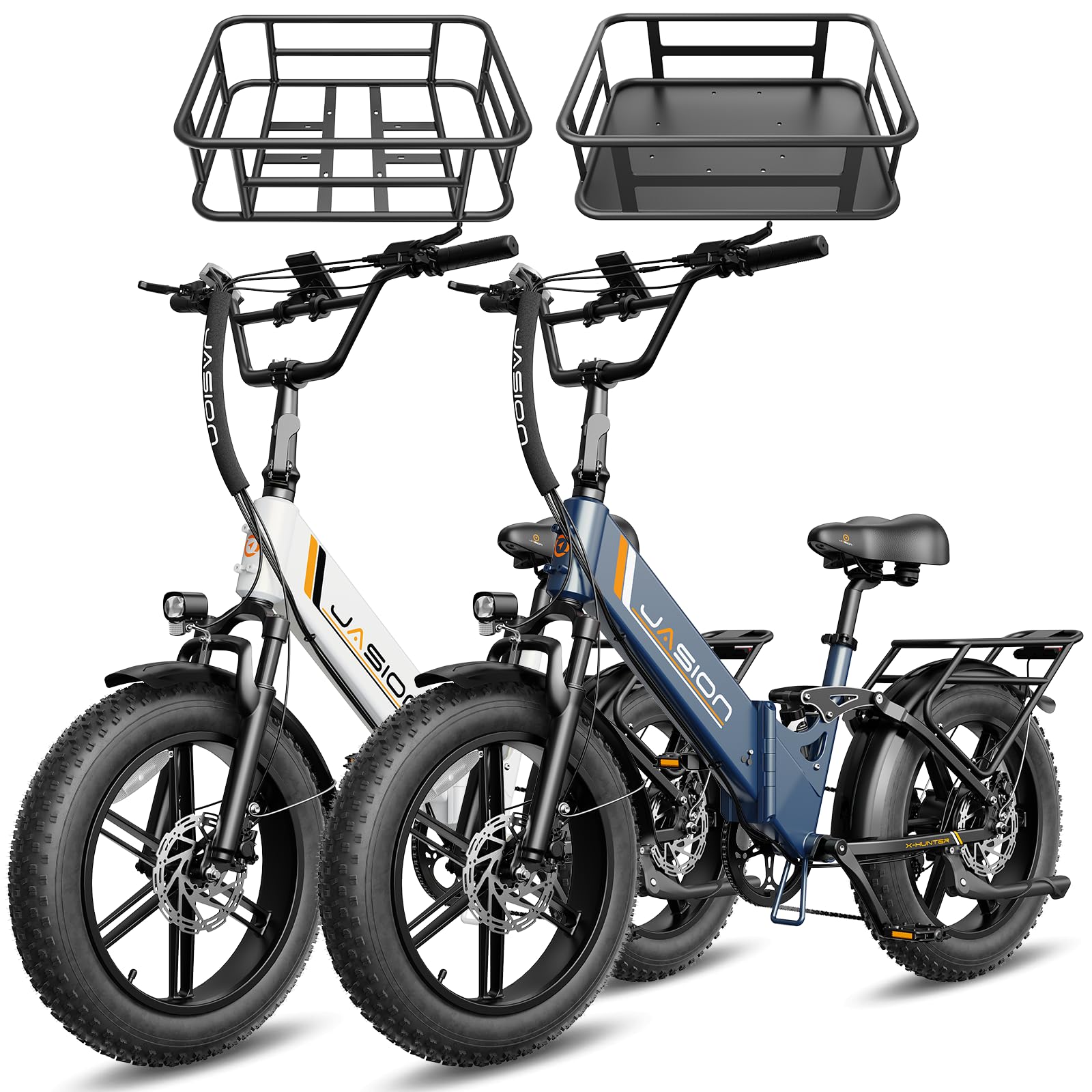

3. Jasion X Hunter ST

1400W Peak / Hydraulic Brakes48V 13Ah Removable Battery

The Jasion X Hunter ST strikes a rare balance in the folding e-bike market by offering genuine hydraulic disc brakes and a 4-link rear suspension system at a mid-range price point. The temperature-controlled 750W continuous motor (peaking at 1400W) delivers 85 Nm of torque, enough to handle 30-degree slopes without overheating on longer climbs. The 48V 13Ah battery is rated for 55-70 miles, and while real-world range falls closer to 40 miles under mixed throttle/PAS use, that figure still beats most similarly priced competitors.

The 20×4-inch fat tires paired with both front suspension and the multi-link rear setup absorb bumps impressively well, making this one of the most comfortable folding bikes for riders who deal with uneven pavement or light trail sections. The low-step frame design accommodates riders from 5’4″ to 6’5″, and the folding mechanism collapses the bike into a size that fits most SUV trunks without removing the battery. Owners consistently praise the easy assembly and solid build quality at this price tier.

One notable frustration involves the battery removal process — the bike requires folding to access the battery lock, which adds inconvenience if you need to remove the battery for charging in a shared living space. The folding hinge has also been reported to develop creaking over time, requiring periodic lubrication. The rider step-over height, while lower than many competitors, still sits at 28 inches, which may be challenging for shorter riders. Despite these issues, the X Hunter ST offers the best combined package of suspension, braking, and folding convenience under this price ceiling.

What works

  • Hydraulic disc brakes provide excellent stopping power
  • 4-link rear suspension absorbs bumps effectively
  • Low-step frame suits a wide height range
  • Good value for the feature set

What doesn’t

  • Battery removal requires unfolding the bike
  • Hinge can develop creaking with use
  • Step-over height still high for shorter riders
  • Battery key replacement is expensive and slow
Premium Build

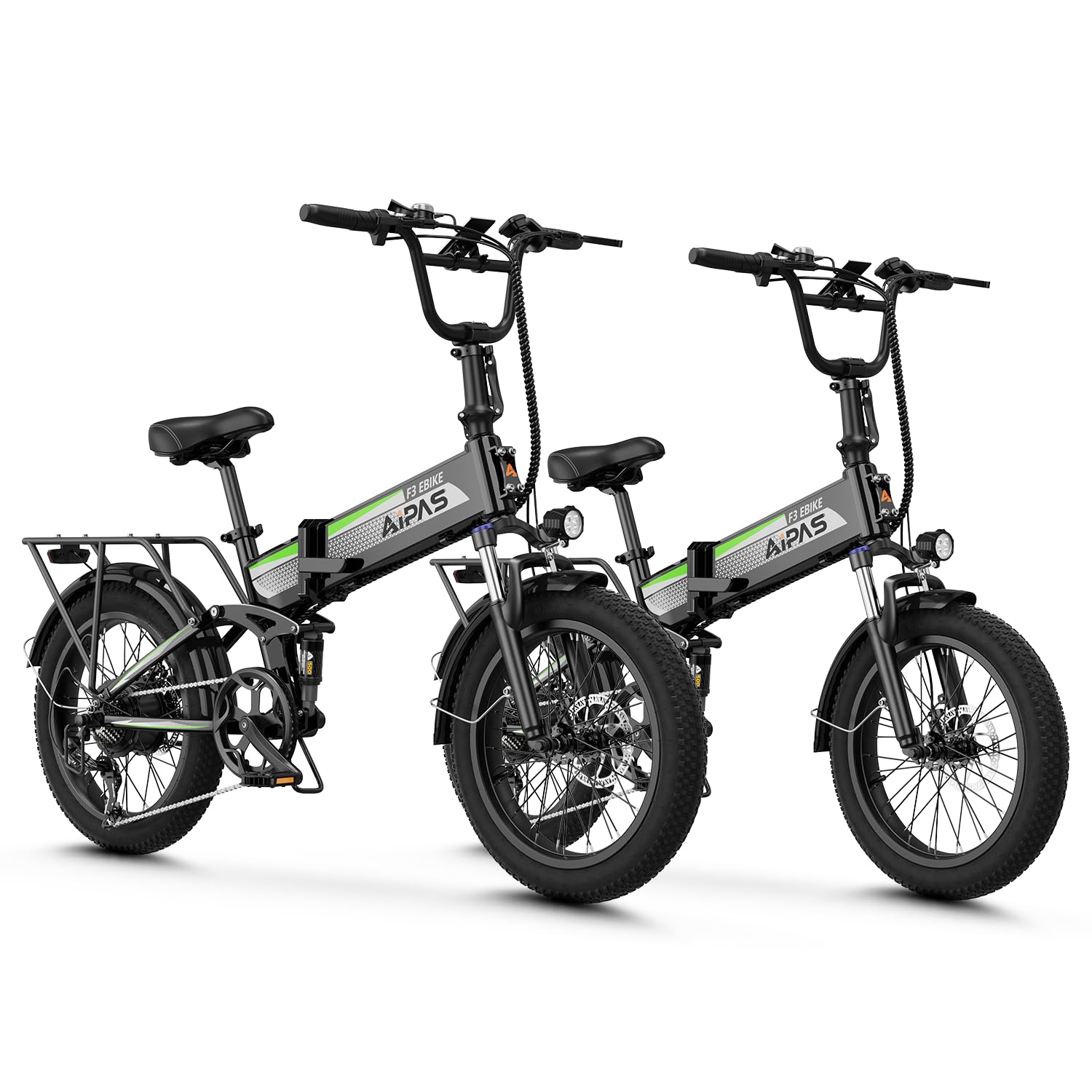

4. Aipas F3

1500W Peak / Full Suspension48V 12.8Ah IP65 Battery

The Aipas F3 differentiates itself through a multi-link full suspension system that connects the rear triangle to the frame through four intermediate links, creating a ride quality that rivals much more expensive mid-drive bikes. The 1500W peak motor provides 100 Nm of torque at level 1 PAS, and the bike accelerates smoothly to 28 mph in higher assist levels without the jarring lurch common in cheaper hub motor controllers. The IP65-rated battery is truly waterproof, not just splash-resistant, which matters for year-round commuters in wet climates.

The 20×3.0-inch fat tires strike a useful middle ground between the standard 2.0-inch tires and the extreme 4.0-inch balloons, offering lower rolling resistance on pavement while still providing enough grip for packed gravel and hardpack trails. The folding mechanism uses a locking lever with a secondary safety catch, and the folded package is compact enough for a small car trunk or apartment closet. The 48V 12.8Ah battery capacity yields about 25-30 miles of throttle-only range or 50+ miles with careful pedal assist.

Buyers should be aware that the warranty explicitly voids coverage for off-road use, despite the bike being marketed as trail-capable in Amazon listings. The controller limits actual peak power to 1100 watts rather than the advertised 1500W peak — a discrepancy that matters for hill climbing. The stock seat is universally described as uncomfortable and most owners replace it immediately. The rear suspension also tends to be too stiff from the factory and requires adjustment to improve small-bump compliance. Still, for paved commuting where suspension comfort is the priority, the F3 delivers an impressively plush ride.

What works

  • Multi-link suspension delivers exceptional comfort
  • IP65 battery rating handles real wet weather
  • Smooth acceleration without hub motor jerkiness
  • Compact folded size for storage

What doesn’t

  • Warranty voids any off-road use
  • Actual peak power lower than advertised
  • Stock seat is uncomfortable
  • Rear suspension requires factory adjustment
Power Pick

5. SASIKEIBIKE 1500W

52V 20Ah Battery1500W Peak Motor

The SASIKEIBIKE 1500W stands out for its 52V electrical system, which provides a meaningful advantage over the standard 48V architecture found in most folding e-bikes. The higher voltage means less current draw for the same power output, reducing heat buildup in the motor and wiring, and delivering more consistent torque as the battery depletes. The 20Ah battery provides 1040 watt-hours of capacity, and the 1500W peak motor pushes this fat tire bike to 32 mph on throttle alone.

The dual suspension system with front fork and rear shock, combined with 20×4.0-inch tires, creates a cushioned ride that handles potholes, gravel, and even light single-track without jarring the rider. The 180mm dual disc brakes provide adequate stopping power, and the 600-lumen headlight is genuinely useful for night riding rather than being just a cosmetic feature. Owners report that assembly takes under an hour with the video guide and the battery arrives partially charged, allowing for an immediate test ride.

The main drawbacks center on weight and hinge quality. At approximately 70 pounds, this is one of the heavier folding bikes in its class, and the folding latch does not feel as confidence-inspiring as more expensive designs — some owners note play developing in the hinge after several hundred miles. The key-activation system for the battery and display can be confusing, with several reports of the bike not powering on because the key was not inserted fully. Despite these flaws, the 52V system performance per dollar spent is the strongest in the mid-range tier.

What works

  • 52V system delivers consistent power as battery drains
  • Dual suspension provides comfortable ride
  • 600-lumen headlight for actual night visibility
  • Strong acceleration and hill-climbing torque

What doesn’t

  • Very heavy at ~70 pounds
  • Hinge latch can develop play over time
  • Key activation system can confuse new owners
  • Battery removal requires careful key alignment
Lightest Pick

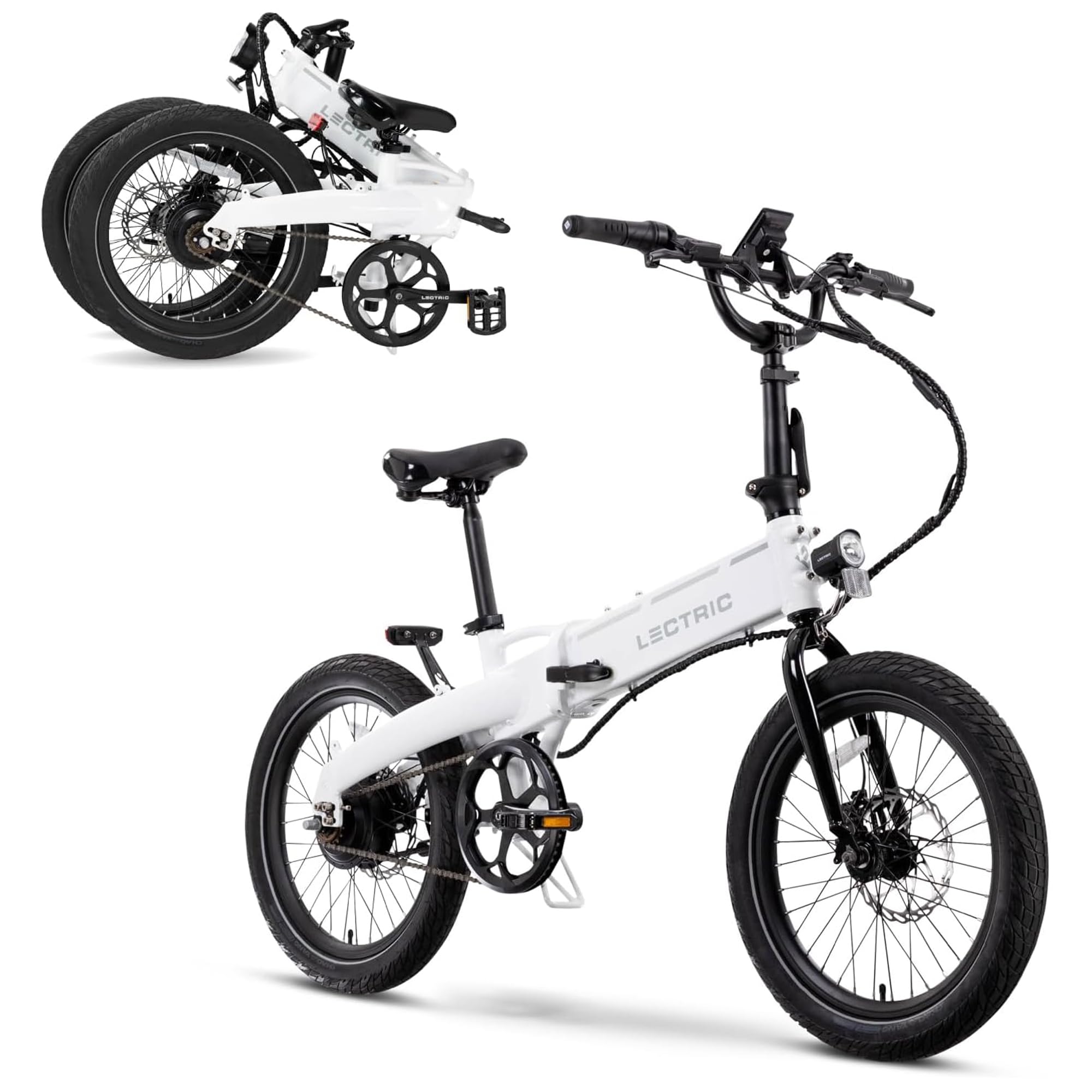

6. LECTRIC XP Lite 2.0

49 lbs Aluminum Frame300W Hub / 819W Peak

The LECTRIC XP Lite 2.0 weighs just 49 pounds, making it the lightest folding electric bike in this lineup by a significant margin — that is 20+ pounds less than most competitors. The weight savings come from a smaller 300W hub motor (819W peak) and a single-speed drivetrain, but the 48V battery still delivers up to 45 miles of range with pedal assist. The 28 Nm torque figure sounds low on paper, but the bike’s lighter weight makes it feel more responsive than the numbers suggest, especially from a standstill.

The hydraulic disc brakes with 180mm rotors are a surprising inclusion at this weight class, providing controlled stops even when carrying near the 275-pound rider limit. The bike ships fully assembled in the box — simply unfold, attach the pedals, charge, and ride. The folding mechanism collapses the bike to 36 inches in seconds, making it the most practical option for train commuters or apartment dwellers who genuinely need to carry the folded bike. The single-speed drivetrain eliminates derailleur maintenance and chain slap during folding.

The tradeoff for the low weight is obvious: the 300W motor will struggle on extended hills, especially with heavier riders. The single-speed gearing offers no mechanical advantage for steep grades, so if your commute includes any sustained climb, you will drain the battery quickly using PAS level 5. The rigid frame provides no suspension, so rough pavement transmits directly to the rider’s hands and lower back. Owners have reported occasional quality control issues with tire seating and power delivery on arrival. For flat urban environments where weight and foldability are the primary concern, however, the XP Lite 2.0 is unmatched.

What works

  • 49-pound weight is genuinely carryable
  • Hydraulic brakes for confident stopping
  • Ships fully assembled, zero build time
  • Compact 36-inch folded size

What doesn’t

  • 300W motor struggles on sustained hills
  • No suspension, rides harsh on rough pavement
  • Single-speed limits climbing ability
  • Quality control issues reported on arrival
Stability Focus

7. CroSight 2.0 Electric Trike

3-Wheel Stability48V 20.8Ah / 750W Motor

The CroSight 2.0 trike breaks the folding mold entirely by offering three-wheel stability for riders who cannot balance on a standard two-wheeler. The 20×4-inch fat tires on all three wheels provide exceptional grip and stability on sand, gravel, and uneven pavement, and the rear differential allows the trike to turn without dragging the inside wheel. The 48V 20.8Ah battery delivers 75 km (approximately 47 miles) of range, and the 750W motor provides enough power for moderate hills even with the added weight of the third wheel.

The ultra-wide seat with high-density padding and adjustable backrest height is clearly designed for comfort over long rides, and the built-in sound system with a phone holder and USB charging port adds practical utility for riders who use GPS navigation or enjoy music while riding. The folding mechanism collapses the trike to a size that fits in an SUV, and the aluminum alloy frame keeps the weight manageable given the three-wheel configuration. The upgraded LED lighting system with brake-activated taillights improves visibility significantly.

The steering geometry requires learning — the front basket can interfere with tight turns, especially for new trike riders who are not used to the wider turning radius. Several owners reported rear axle bearing failures within the first four months, requiring replacement through customer support. The build quality is generally good, but the shipping packaging has resulted in scratched fenders and cracked baskets on multiple units. For riders with balance issues, knee problems, or those who simply want the stability of a three-wheel platform, the CroSight provides a folding option that few competitors offer.

What works

  • Three-wheel design provides unmatched stability
  • Ultra-wide seat with adjustable backrest is very comfortable
  • Built-in speaker and USB port add utility
  • Fat tires provide traction on loose terrain

What doesn’t

  • Wide turning radius requires learning
  • Rear axle bearing durability concerns
  • Shipping damage reported on multiple units
  • Front basket can interfere with steering
Long Range

8. EUYBIKE F6-F Step-Thru

48V 20Ah / 80 Miles PASUL Certified

The EUYBIKE F6-F in step-through configuration solves a major ergonomic problem for riders who struggle with high top tubes — the low step-over height makes mounting and dismounting effortless, especially when carrying cargo or wearing non-cycling clothing. The 750W continuous motor (peaking at 1000W) handles 30-degree inclines without issue, and the 48V 20Ah battery provides genuine 40-mile range on throttle-only operation, with 80 miles achievable in the lower pedal assist settings. The UL certification provides peace of mind that the electrical system has passed safety testing.

The front suspension fork and 180mm dual disc brakes deliver a controlled ride, and the 7-speed Shimano-compatible drivetrain allows for efficient pedaling when the battery runs flat. The colored LCD display shows speed, battery level, and assist mode clearly in direct sunlight, and the USB charging port keeps a phone topped up during long rides. Owners praise the smooth throttle response and the bike’s ability to handle long steep hills without overheating, with one owner reporting climbing a 4-mile grade using only a quarter of the battery.

The high-carbon steel frame adds durability but pushes the weight to approximately 65 pounds, and the folding mechanism does not lock as securely as some aluminum-frame competitors — the hinge can develop slight play over time. The stock seat is adequate for short rides but uncomfortable for anything over an hour, and the included instructions lack detailed guidance on the pedal assist modes and gear shifting strategy for optimal range. The step-through design also means the frame flexes slightly more under heavy load than a traditional diamond frame. Still, for range and ease of access, this is the best step-through value in the mid-range tier.

What works

  • Step-through frame for easy mounting
  • 48V 20Ah battery delivers exceptional range
  • UL certified for electrical safety
  • Handles long hills without overheating

What doesn’t

  • Heavy high-carbon steel frame
  • Hinge can develop play over time
  • Stock seat uncomfortable for long rides
  • Instructions lack detail on PAS optimization
Best Value

9. KEBIKO F6F

48V 20Ah / Step-Through1000W Peak Motor

The KEBIKO F6F shares DNA with the EUYBIKE models but arrives at a lower price point while maintaining the same 48V 20Ah battery platform and 1000W peak motor. The step-through frame with fat tires provides easy access and stable handling on varied terrain, and the 7-speed drivetrain gives riders mechanical options for extending range when the battery runs low. The aluminum alloy frame keeps the weight manageable, and the foldable design collapses to a size that fits most car trunks without requiring battery removal.

The LCD display with USB charging port provides all essential ride data, and the 3 riding modes (pure electric, pedal assist, and manual) cover the full range of commuting scenarios. The front suspension fork and seat suspension combine for a ride that absorbs most road imperfections, and the dual disc brakes stop the bike confidently even in wet conditions. Owners report that the bike arrives 90% pre-assembled with installation tools included, making setup straightforward even for first-time e-bike buyers.

The primary compromise comes in frame stiffness — the step-thru design on this budget model flexes noticeably under hard pedaling or heavy loads, particularly when climbing. The battery mounting bracket has been reported to develop a slight rattle over time, and the twist-grip shifter feels less precise than trigger shifters found on more expensive models. The seller provides responsive customer support and has been known to send complimentary accessories like bike locks and baskets, which helps offset the minor build quality compromises. For budget-conscious buyers who prioritize range and step-through convenience, this is a strong contender.

What works

  • Exceptional value for 48V 20Ah battery capacity
  • Step-through frame with easy mounting
  • Seller provides responsive support and accessories
  • Dual suspension provides reasonable comfort

What doesn’t

  • Frame flexes noticeably under load
  • Battery mount can develop rattle
  • Twist-grip shifter lacks precision
  • Heavier than aluminum-frame competitors
Lightweight

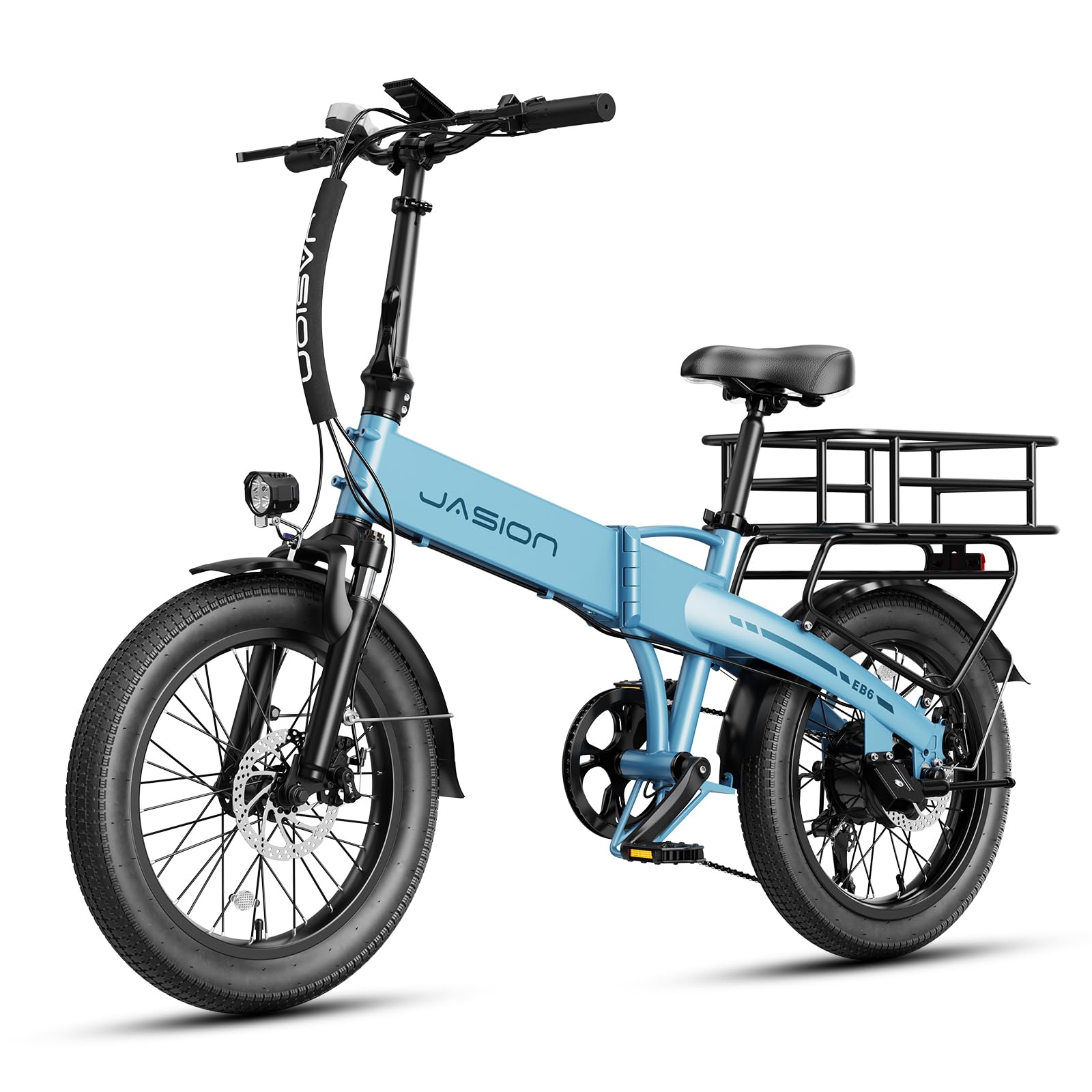

10. Jasion EB6

59 lbs Aluminum Frame1200W Peak Motor

The Jasion EB6 is one of the few folding electric bikes in the budget-friendly tier that uses an aluminum alloy frame rather than heavy carbon steel, keeping the total weight at a manageable 59 pounds. The 1200W peak motor provides enough power for 25 mph top speed, and the 48V 375Wh battery delivers approximately 50 miles of range in optimal pedal assist conditions. The central LCD display is easy to read in various lighting conditions, and the 3+1 riding modes offer flexibility for different terrain and battery conservation strategies.

The shock absorption system effectively reduces vibration from rough pavement and light trails, making the EB6 more comfortable than its price point suggests. The 20-inch fat tires provide adequate grip on packed gravel and grass, and the folding mechanism locks securely with a secondary safety latch. Assembly takes approximately one hour with the included tools, and owners report that the bike ships well-packaged without damage. The motor provides responsive acceleration and maintains speed well on flat terrain.

The 48V 504Wh battery (375Wh usable) is smaller than the 20Ah options found on mid-range competitors, resulting in a practical range of approximately 20-25 miles on throttle-only mode. The motor, while adequate for flat commuting, struggles noticeably on hills with heavier riders — the 500W continuous rating limits climbing ability. The seat clamp has been reported to slip unless tightened significantly, and some units shipped with the headlight wiring routed too short, requiring careful re-routing to avoid pinching. For flat urban commuters who value the weight savings of an aluminum frame, the EB6 offers solid fundamentals.

What works

  • Aluminum frame keeps weight at 59 lbs
  • Shock absorption system improves ride comfort
  • Clean LCD display with essential data
  • Good value for aluminum construction

What doesn’t

  • Smaller battery limits throttle-only range
  • Motor struggles on hills with heavier riders
  • Seat clamp requires overtightening
  • Headlight wiring routing issues reported
Budget Pick

11. EUYBIKE F6-F 48V 20Ah

48V 20Ah Battery1000W Peak Motor

The EUYBIKE F6-F in the standard frame configuration delivers the same 48V 20Ah battery and 1000W peak motor as its step-thru sibling but at a lower entry price point. The high-carbon steel frame provides a solid, durable platform that handles the weight of the large battery and motor without excessive flex. The 20×3.0-inch puncture-resistant fat tires offer a good balance of rolling resistance and off-road capability, and the 7-speed twist-grip drivetrain provides enough gear range for moderate hills.

The front suspension fork and dual disc brakes provide adequate ride quality and stopping power for urban commuting, and the LCD display is bright enough for daytime reading. The bike arrives 90% pre-assembled and includes all necessary tools, with most owners reporting completion in under 45 minutes. The throttle response is smooth and predictable, and the pedal assist levels provide a natural-feeling boost that does not surge unexpectedly. The high step-over height is manageable for most average-height riders.

The 63-pound weight makes this difficult to carry when folded, and some owners report the seat clamp failing to hold the seat post at the desired height during rides. The handlebars have been reported to arrive slightly misaligned with the fork on some units, and adjusting this requires loosening the stem bolts — a task not documented in the included manual. The battery weight at 10 pounds is noticeable when removing for charging, and the new battery casing design is incompatible with accessories from the previous model year. For buyers who prioritize battery capacity over frame material and weight, this is a reliable budget option.

What works

  • Large 48V 20Ah battery for extended range
  • Smooth throttle and pedal assist response
  • Puncture-resistant tires reduce flat risk
  • Good value for battery capacity

What doesn’t

  • Heavy at 63 pounds, hard to carry folded
  • Seat clamp fails to hold height
  • Handlebar alignment issues on some units
  • Incompatible battery casing with previous accessories
Entry Level

12. Gotrax R1

500W Peak / 48V 7.8AhUL2849 Certified

The Gotrax R1 is designed as a true entry point to electric folding bikes, with a 500W peak motor and a 48V 7.8Ah battery that keeps both weight and cost low. The 20×2.6-inch tires are narrower than the fat tire standard, which reduces rolling resistance on pavement but limits off-road capability. The bike folds to 37.4 x 17.7 x 27.5 inches, making it one of the more compact folded options, and the UL2849 certification confirms the electrical system meets fire safety standards.

The 5 pedal-assist levels provide predictable power delivery, and the dual disc brakes stop the bike reliably even at the 20 mph top speed. The LCD display shows speed, battery level, and odometer clearly, and the integrated headlight and rear reflector provide basic visibility for night riding. Assembly takes approximately 10-15 minutes, and the bike fits easily in most car trunks. Owners report that the bike handles hills surprisingly well for its motor size, maintaining 7 mph on moderate grades with a 230-pound rider.

The small 7.8Ah battery (approximately 374 watt-hours) limits practical range to about 15 miles on throttle-only mode and 25 miles with pedaling — adequate for short commutes but insufficient for longer trips. The rigid frame has no suspension, so rough pavement transmits directly to the rider, which becomes uncomfortable on rides over 30 minutes. The battery key mechanism can be finicky — the key must be fully turned clockwise to engage, and several owners have been confused by the bike not powering on due to incomplete key rotation. For dedicated short-distance commuters on a tight budget, the R1 provides a reliable, safe starting point.

What works

  • Low entry price with UL2849 certification
  • Compact folded size for storage
  • Simple 10-15 minute assembly
  • Handles moderate hills for its power class

What doesn’t

  • Small battery limits range to ~15 miles throttle-only
  • No suspension results in harsh ride
  • Battery key mechanism can be confusing
  • Narrow tires limit off-road capability
Tall Rider

13. Wooken 20″ Fat Tire

500W Continuous Motor48V 10Ah Battery

The Wooken folding electric bike addresses a specific niche that most competitors ignore: riders between 5’7″ and 6’9″. The adjustable handlebar range from 46 to 51 inches and the seat post extending to 40.5 inches provide the leg extension and reach that taller riders need for comfortable pedaling geometry. The 20×4.0-inch fat tires provide stability on snow, sand, and loose gravel, making this a viable option for riders in rural or coastal areas where pavement quality varies.

The dual shock absorber system with a lockable front fork and rear seat suspension absorbing about 1000 pounds creates a ride that minimizes fatigue on longer commutes. The 48V 10Ah battery delivers approximately 25-30 miles in pure electric mode and up to 60 miles in pedal assist, figures that are realistic for a 480Wh battery. The Shimano 7-speed drivetrain is a genuine upgrade over budget twist-grip shifters, providing crisp gear changes, and the intelligent LCD display tracks all essential metrics clearly. The 85% pre-assembled delivery means setup takes about an hour with the included video guide.

The 500W continuous motor is underwhelming for the bike’s weight and size, providing adequate flat-ground acceleration but struggling significantly on hills — one owner reported the battery dropping to 60% after just 12 miles of full-throttle hill riding. The claimed 50-60 mile PAS range is only achievable on flat ground in the lowest assist level with a lightweight rider. Several units arrived with cosmetic scratches, and while Amazon made good on damages, the packaging could be improved. For tall riders who cannot fit standard folding bikes, the Wooken provides a workable solution with acknowledged performance limitations.

What works

  • Exceptional fit for tall riders up to 6’9″
  • Shimano 7-speed drivetrain shifts cleanly
  • Dual suspension reduces fatigue on long rides
  • Fat tires handle sand and snow well

What doesn’t

  • 500W motor struggles on sustained hills
  • Real-world battery range lower than advertised
  • Cosmetic damage during shipping reported
  • Performance lags behind similarly priced alternatives

Hardware & Specs Guide

Motor Types: Hub vs Mid-Drive

Nearly all folding electric bikes in this price range use geared hub motors in the rear wheel. These are simpler, cheaper, and require less maintenance than mid-drive motors, but they place the weight of the motor in the rear wheel, which can affect handling. Mid-drive motors mount at the bike’s bottom bracket and drive the chain, offering better hill-climbing by leveraging the bike’s gears — but they are rare in folding designs due to frame complexity and higher cost. For most urban folding bike users, a 500W-750W continuous hub motor with 80+ Nm torque provides sufficient performance for moderate hills.

Battery Voltage and Capacity

The industry standard for folding e-bikes is 48V, which provides a good balance of power delivery and component availability. A 48V 10Ah battery holds 480 watt-hours (Wh), typically delivering 20-30 miles of throttle-only range. A 48V 20Ah battery (960 Wh) doubles that to 40-60 miles. The 52V systems found on premium models provide a meaningful advantage — less voltage sag as the battery drains means more consistent hill-climbing power in the last 20% of charge. Battery weight ranges from 7 to 11 pounds, and all recommended models use removable batteries for indoor charging and theft reduction.

Folding Hinge and Frame Materials

The folding hinge is the single most stressed component on any folding e-bike. Quality hinges use a double-latch mechanism with a locking collar that prevents accidental folding during riding. Aluminum alloy frames are lighter (typically 50-60 lbs total bike weight) but can develop hinge play over time. High-carbon steel frames are heavier (60-75 lbs) but provide more rigidity at the hinge joint. The folded dimensions vary significantly: 20-inch wheel bikes typically fold to approximately 30-40 inches in the longest dimension, while 26-inch wheel bikes like the FREESKY require much more space when folded.

Brake Systems and Safety

Folding e-bikes weighing 60+ pounds at speeds of 20+ mph require serious braking. Hydraulic disc brakes with 180mm rotors provide the best stopping power with self-adjusting calipers that maintain consistent feel. Mechanical disc brakes are more common at lower price points — they stop adequately but require periodic cable adjustment as the pads wear. Rim brakes should be avoided entirely on electric folding bikes. UL 2849 certification indicates the entire electrical system has passed fire and electrical safety testing, a feature increasingly important as lithium battery fires in e-bikes make headlines.

FAQ

How much real-world range can I expect from a 48V 20Ah folding e-bike?
With a 48V 20Ah battery (960 Wh), expect approximately 35-45 miles in throttle-only mode on flat ground with a 180-pound rider. In pedal assist level 1 or 2, range extends to 60-80 miles. Cold weather (below 40°F) reduces lithium battery capacity by 20-30%, and sustained hills can cut range by half. Always subtract 25% from manufacturer claims for a realistic expectation.
What does UL 2849 certification mean for an electric folding bike?
UL 2849 is a safety standard that tests the entire e-bike electrical system — battery, charger, motor controller, and wiring — for fire and electric shock hazards. Bikes without this certification may use uncertified battery cells that lack thermal runaway protection. For indoor charging or apartment storage, UL 2849 certification significantly reduces fire risk.
Can I ride a folding e-bike in the rain?
Most folding e-bikes have an IPX4 or IPX5 water resistance rating, meaning they handle light rain and splashes. The battery compartment is usually the weakest point — ensure the battery is fully seated and the locking mechanism is secure before riding in wet conditions. Avoid submerging the bike or using high-pressure water jets for cleaning. Hydraulic disc brakes perform better than mechanical discs in wet conditions.
How do I maintain the folding hinge on my e-bike?
Apply a lithium-based grease or dry chain lubricant to the hinge pivot points every 100 miles or monthly. Check the latch locking collar for tightness before every ride — if you feel play when wiggling the folded joint, tighten the hinge bolt. If creaking develops, disassemble the hinge, clean old grease, and reapply fresh lubricant. Never ride with a loose hinge.
Is a 500W motor enough for hilly urban commuting?
A 500W continuous motor on a 60+ pound folding bike will maintain approximately 7-10 mph on a 10% grade with a 200-pound rider. If your commute includes sustained grades over 8% or you weigh over 220 pounds, a 750W continuous motor or higher is strongly recommended. The lighter the bike, the more effective a 500W motor will feel — which is why the 49-pound LECTRIC XP Lite handles better than heavier 500W competitors.

Final Thoughts: The Verdict

For most users, the electric folding bike winner is the Jasion X Hunter ST because it combines genuine hydraulic disc brakes, a 4-link rear suspension, and a low-step aluminum frame at a mid-range price that outperforms the build quality of budget-focused alternatives. If you want the absolute longest range for extended tours or heavy cargo use, grab the FREESKY Swift Horse Ultra with its 1440 Wh Samsung battery and 3500W Bafang motor. And for riders who genuinely need to carry their folded bike up stairs and onto trains, nothing beats the LECTRIC XP Lite 2.0 at 49 pounds with hydraulic brakes and a single-speed drivetrain that eliminates maintenance headaches.
