Walking up to your project car with a spray gun dripping solvent and a compressor rattling the garage walls is a rite of passage most weekend painters want to skip. An electric paint sprayer for cars cuts out the air compressor entirely, delivering a consistent fan pattern straight from a 110V outlet, but choosing the wrong one means fighting tip clogs, uneven coats, and cleanup that takes longer than the paint job itself. The difference between a showroom finish and a textured mess often comes down to how the atomizer handles the paint’s viscosity at the nozzle.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing the internal engineering of HVLP and airless systems, breaking down how piston pumps, needle sets, and nozzle geometries translate into real-world finish quality for automotive panel work.
This guide reviews six models that represent the current market spectrum, from gravity-feed kits to high-efficiency airless units, each chosen for its ability to handle the specific demands of automotive coatings. After comparing build materials, airflow requirements, and pattern consistency, we’ve narrowed the field to the models that deliver reliable results for the best electric paint sprayer for cars.
How To Choose The Best Electric Paint Sprayer For Cars
Automotive painting is a different beast from spraying furniture or fences. The coatings are more reactive, the film-build tolerance is thinner, and the surface demands a level of atomization that budget handheld sprayers simply cannot produce. Here are the four specs that separate a tool that can lay a factory-like base from one that will leave you sanding for days.
Nozzle and Needle Set Selection
For automotive work, you need interchangeable needle/nozzle sets in the 1.3mm to 1.8mm range. A 1.3mm nozzle is the sweet spot for solvent-based basecoats and single-stage urethanes, delivering fine atomization without starving the pattern. A 1.4mm or 1.5mm set works for heavier primers and clearcoats, while anything above 1.8mm is better suited for high-build primers and industrial coatings. A gun that ships with multiple brass or stainless steel sets gives you the flexibility to switch between stages of a paint job without buying another tool.
Transfer Efficiency and Overspray Control
HVLP (High Volume Low Pressure) guns are the gold standard for automotive finishing because they push a high volume of air at low pressure to atomize paint, reducing bounce-back and wasted material. A well-tuned HVLP system should achieve 65% to 80% transfer efficiency, meaning more paint lands on the panel and less floats into the air. Airless systems, while faster for large surface area jobs, produce more overspray and are harder to control for the thin, wet coats required on car bodies.
Cup Design and Material Delivery
Gravity-feed cups sit on top of the gun, using gravity to feed paint into the fluid tip. This design allows you to use nearly every drop of paint in the cup, which matters when mixing expensive automotive urethanes. The cup should be made from nylon or anodized aluminum — plastic cups can degrade with solvent exposure over time. A 600ml to 1000ml cup capacity is ideal for painting a panel or two without constant refills.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| BEETRO HVLP Gravity Feed | HVLP Gravity | Full Panel Refinishing | 1.3/1.4mm Nozzle Set | Amazon |
| Eastwood Concours 2 | HVLP Gravity | Beginner Auto Painting | 1.3/1.7mm Nozzle Sets | Amazon |
| Graco TrueCoat 360 | Airless Handheld | Touch-Ups & Small Parts | Stainless Steel Piston Pump | Amazon |
| Iwata IWA-9276 | HVLP Gravity | Premium Base/Clear | 1.3mm Needle/Nozzle | Amazon |
| Tilswall Shark 800 | HVLP Side Feed | Budget Garage Use | 800W Motor 4 Nozzles | Amazon |
| Wagner Control Pro 170 | Airless Cart | Large Car Side Panels | 0.60 HP HEA Pump | Amazon |
In‑Depth Reviews
1. BEETRO HVLP Professional Gravity Feed Air Spray Gun
The BEETRO HVLP delivers a 280-320mm fan width that covers a car door in two even passes, a pattern size typically reserved for guns costing twice as much. Its forged alloy body and stainless steel internal components hold up to continuous solvent exposure, and the 1.3mm and 1.4mm nozzle set covers the full automotive workflow from basecoat to clear. The grip is ergonomic and well balanced, reducing wrist fatigue during long painting sessions.
What separates this gun from similarly priced competitors is the absence of rubber O-rings in the fluid path. Without O-rings, you can soak the gun in acetone or lacquer thinner for deep cleaning without worrying about seal degradation. The 600ml gravity cup sits stable and does not drip from the thread seal, even when tilted for tight panel access. The three independently adjustable knobs for fluid, pattern, and air give you the micro-control needed to tune out orange peel.
Real-world user reports confirm this gun sprays primers and single-stage urethanes without modification, and experienced painters have used it daily in custom restoration shops for epoxy primer and sealer work. Some users note that metallic paints can separate slightly in the cup, so frequent agitation is recommended. Overall, this is the strongest mid-range contender for serious automotive refinishing.
What works
- Wide fan pattern covers large panels quickly without sacrificing atomization
- No rubber O-rings simplifies solvent-based cleaning and maintenance
- Three independent adjustment knobs give professional-level pattern control
What doesn’t
- Metallic paint pigments can separate in the cup without frequent stirring
- 1.4mm nozzle may require additional thinning for lower-viscosity clearcoats
2. Eastwood Concours 2 HVLP Paint Gun Kit
The Eastwood Concours 2 is purpose-built for the first-time automotive painter who wants a complete kit in a carrying case. It ships with both 1.3mm and 1.7mm needle/nozzle sets, letting you switch from a fine basecoat atomization to a higher-flow setup for primers without buying additional parts. The lightweight alloy body keeps the gun nimble in the hand, and the stainless steel internal components resist corrosion from waterborne and solvent coatings alike.
This gun requires only 4.25 CFM at 30 PSI to operate, meaning it works with most home-shop air compressors in the 5 to 6 CFM range. The pattern quality is good for primer and basecoat application, and beginner users report that with some practice reading the dials, they achieved a decent finish on their first panel. The included aluminum case keeps the gun, nozzles, and cleaning accessories organized and protected.
Experienced users note that the Concours 2 performs admirably as a dedicated primer or sealer gun, but for clearcoat work, some prefer a higher-end sprayer with finer atomization control. The 3.0 out of 5 star average on the pattern fan adjustment means you may need to experiment with fluid knob settings to eliminate streaking. For someone entering automotive painting at a reasonable entry point, this kit provides everything needed to learn and improve.
What works
- Two complete needle/nozzle sets (1.3mm and 1.7mm) included for different coating stages
- Low CFM requirement works with most home-shop air compressors
- Lightweight alloy body reduces fatigue during extended use
What doesn’t
- Clearcoat atomization may not match dedicated premium spray guns
- Dial markings can be confusing for absolute beginners without trial runs
3. Graco TrueCoat 360 Dual Speed Paint Sprayer
The Graco TrueCoat 360 is a corded airless handheld that uses a stainless steel piston pump to spray paint and stain at up to 1500 PSI without requiring a compressor. The dual-speed trigger lets you toggle between a low setting for small detail work and a high setting for covering larger areas, making it a versatile tool for automotive touch-ups, fender repairs, and small parts. The FlexLiner bag system keeps paint contained and minimizes cleanup time.
Users consistently praise the TrueCoat 360 for its ease of cleanup — simply detach the tip and hose the unit off with water for latex paints. The finish quality is noticeably better than a brush and roller, laying down a smooth film on automotive body panels when the paint is properly thinned. The included four tips (two paint, two stain) let you adjust the fan width for the specific panel size, from a narrow 4-inch pattern for door jambs to a wider 12-inch pattern for hoods and roofs.
This sprayer has a documented limitation: it does not perform well with certain oil-based enamels, including Rust-oleum, which can cause the pump to lock up or the motor to overheat. Users who stick to latex, acrylic, or water-based automotive paints report excellent reliability. For quick color changes or small-area work where setup and cleanup time matters more than full-panel efficiency, this handheld airless is a practical choice.
What works
- Stainless steel piston pump sprays unthinned latex and water-based paints easily
- Dual-speed trigger provides control for both detail work and broad coverage
- FlexLiner bag system and hose-off cleanup reduce post-painting chores
What doesn’t
- Does not work reliably with common oil-based enamels like Rust-oleum
- Overspray is harder to manage than an HVLP system on low setting

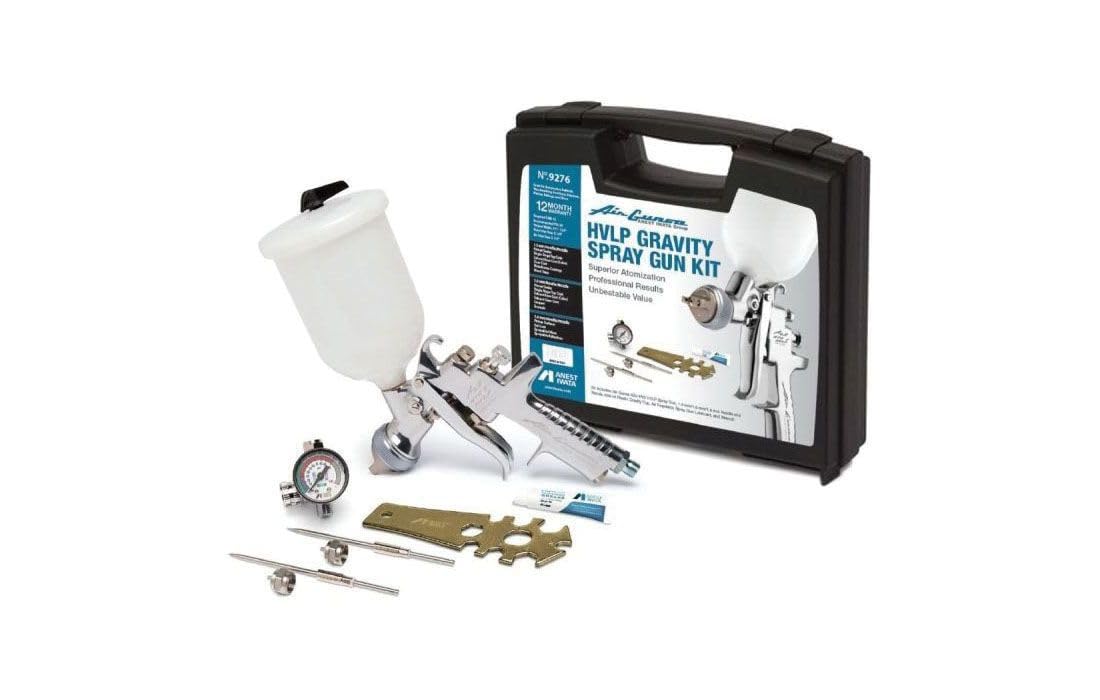

4. Iwata IWA-9276 HVLP Gravity Spray Gun Kit
The Iwata IWA-9276 is the most recognizable brand name in this lineup, and it earns that reputation through consistent atomization and build quality. The 1.3mm needle/nozzle set is engineered for solvent-based basecoats, delivering a fine, even mist that lays down without orange peel when the fluid and air adjustments are dialed in. The kit includes a cleaning kit, lubricant, measuring cap, and multiple strainers, making it a turnkey solution for the painter who values precision over experimentation.
Users with professional experience note that this gun sprays single-stage topcoats and urethane clears with minimal flaring at the edges of the fan pattern. The gravity cup design uses a positive seal thread that does not leak when the gun is tilted for reaching low panels or tight engine bay areas. The included three nozzle sizes (the kit is often bundled with additional sets) provide flexibility, though the stock 1.3mm is the go-to for most automotive work.
Some buyers point out that the fan pattern is relatively small compared to industrial HVLP guns, meaning you will cover a hood or roof in more passes. This is a deliberate trade-off for finer atomization quality. At this price tier, you are paying for Iwata’s quality control and material consistency, which matters when you cannot afford a run in a final clearcoat layer over a multi-thousand-dollar paint job.
What works
- Superior atomization produces consistent, even coats with minimal orange peel
- Complete kit includes cleaning tools, lubricant, and multiple strainers
- No-leak gravity cup design holds seal during angled spraying
What doesn’t
- Fan pattern is narrower than some competitors, requiring more passes per panel
- Premium price tag may not be justified for occasional hobbyist use
5. Wagner Control Pro 170 Paint Sprayer
The Wagner Control Pro 170 is a cart-mounted airless sprayer designed for covering large automotive surfaces like side panels, roofs, and full-body shells without stopping to refill a cup. Its 0.60 HP HEA pump generates up to 1500 PSI and can draw paint directly from a 5-gallon bucket, making it the fastest option in this list for overall coverage speed. The 30-foot hose lets you walk around the vehicle without moving the cart, and the all-metal gun feels durable in the hand.
HEA (High Efficiency Airless) technology reduces overspray by up to 55% compared to conventional airless sprayers, meaning less paint ends up on your garage floor and more lands on the panel. Users report that latex and water-based automotive paints spray unthinned with a 515 or 517 tip, producing a smooth finish on primed surfaces. The inlet and outlet valves are replaceable, which extends the pump’s service life beyond what a sealed handheld unit can offer.
This sprayer is not without its quirks. Some users experienced weak output with certain thick paints, requiring a wider tip (521) to achieve proper flow. Another common complaint is that the pump can be difficult to prime with cold, highly viscous paints, and cleanup requires running several gallons of water or mineral spirits through the system. This is a higher-maintenance tool, but for painters who value speed and volume over portability, the Control Pro 170 delivers.
What works
- Draws from 5-gallon buckets for uninterrupted coverage of large vehicle surfaces
- HEA technology significantly reduces overspray compared to conventional airless
- Replaceable inlet/outlet valves extend the pump’s usable lifespan
What doesn’t
- Heavy and bulky cart setup is impractical for small garages or quick touch-ups
- Some thick paints may require a wider tip or thinning to prevent weak output
6. Tilswall Paint Sprayer 800W HVLP Spray Paint Gun
The Tilswall Shark 800 is the most affordable entry in this lineup, but it brings a feature set that punches above its price point. The 800W motor drives an HVLP system that handles viscosities up to 120 din-S, meaning it can spray automotive-grade basecoats and primers without immediate clogging. The side-feed cup design is the standout innovation here — you can refill without removing the cup from the gun, reducing downtime during a multi-coat job.
This sprayer comes with four brass nozzles (1.0mm, 1.5mm, 2.0mm, and 3.0mm) and three spray patterns, giving you more options than many mid-range competitors. The 2.5-meter hose and 3-meter power cord provide a decent working radius, and the split head/body design with an auxiliary strap takes some weight off the handpiece during extended spraying. Users report painting a 5x6x5 foot shed in roughly one hour despite being inexperienced, which speaks to the learning curve being manageable.
The plastic body and brass nozzles will not survive the same chemical abuse that an all-metal gun would, and the 43.96 fluid ounce tank is on the smaller side for full-panel automotive work. Cleanup requires disassembling the nozzle and running thinner through the system, which takes time. This is a capable tool for the weekend garage user painting a project car’s interior components, trim pieces, or small body panels, but it is not built for daily professional refinishing.
What works
- Side-feed cup allows quick refills without detaching the cup assembly
- Four brass nozzle sizes and three spray patterns offer wide application range
- Low price point makes it accessible for first-time automotive painters
What doesn’t
- Plastic construction and brass nozzles are less durable than all-metal guns
- Small tank capacity requires frequent refills for full car panel painting
Hardware & Specs Guide
Nozzle and Needle Geometry
The nozzle size determines paint flow rate and atomization quality. Automotive basecoats typically require a 1.3mm or 1.4mm nozzle to lay down a fine, consistent mist without causing runs. Larger nozzles (1.7mm to 1.8mm) are better suited for higher-viscosity primers and clearcoats. The needle/nozzle set must be precision-ground to maintain a consistent fluid pattern; cheaper brass sets wear faster than hardened stainless steel options. Interchangeable sets allow you to switch between coating types without owning multiple complete guns.
Air Volume and Pressure Demand
HVLP spray guns require a steady supply of compressed air at a specific volume and pressure. A gun like the Eastwood Concours 2 needs 4.25 CFM at 30 PSI, which is achievable with a standard 20-gallon or larger compressor. Airless systems bypass this entirely by using an electric piston pump to pressurize paint directly, making them independent of compressor capacity. The trade-off is that airless systems produce higher overspray and less refined atomization compared to well-tuned HVLP guns.
FAQ
Can I spray automotive clearcoat with an electric HVLP gun?
What is the minimum compressor size for a gravity-feed automotive spray gun?
Why does my paint sprayer produce an uneven fan pattern on car panels?
Final Thoughts: The Verdict
For most users, the best electric paint sprayer for cars winner is the BEETRO HVLP Gravity Feed because it delivers a professional-grade fan pattern and robust stainless steel internals at a mid-range price that suits both hobbyists and restoration shops. If you want a complete beginner-friendly kit with multiple nozzle sets for learning, grab the Eastwood Concours 2. And for maximum coverage speed on full-panel jobs without a compressor, nothing beats the Wagner Control Pro 170.
