Few things sour a weekend project faster than watching an electric paint sprayer sputter, clog, or splatter your hard work into a runny mess. A proper HVLP or airless unit should atomize material into a fine, even mist that lays down smooth—not pulse out globs that require a roller chase. The difference between a tool that fights you and one that disappears into the task often comes down to motor architecture, nozzle selection, and the quality of the spray tip.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. Over years of drilling into power tool specifications and analyzing user failure patterns, I’ve found that nozzle material, container design, and how a unit handles unthinned paint separate the serious sprayers from the frustrating ones.
This guide breaks down seven models ranging from entry-level handhelds to a professional-grade airless system, helping you identify which electric paint sprayer actually matches the scope and material demands of your next project.
How To Choose The Best Electric Paint Sprayer
Selecting the right sprayer hinges on three factors: your project size, the paint types you use most, and how much you value cleanup speed. A fence staining job and a furniture refinishing project demand very different nozzle ranges and motor behavior.
Match Motor Power to Material Viscosity
A 600 to 800 watt motor is standard for mid-range HVLP units and handles thinned latex, stains, and primers well. But if you intend to spray unthinned latex or thick exterior paints, you need either a higher wattage motor (850W or more) or an airless design like the Graco TrueCoat that pulls material directly without atomizing it through a nozzle. Low-wattage units force you to thin paint excessively, which can compromise color depth and adhesion.
Nozzle Material and Size Range
Brass or copper nozzles resist corrosion from water-based paints and hold their aperture shape longer than plastic alternatives. A set spanning 1.0mm to 2.5mm or 3.0mm gives you the flexibility to spray thin stains through small apertures and thicker wall paints through larger ones. If your set includes only 1.0mm and 1.5mm nozzles, expect to thin most latex paints significantly.
Container Design and Refill Frequency
Top-mounted containers between 800ml and 1400ml are common, but side-feed designs let you top off without removing the cup. If you are spraying a fence or large wall, a side-feed or direct-from-can system saves you ten minutes every refill. Pay attention to whether the container is detachable for quick cleaning—stuck paint residue is the primary cause of nozzle clogs in the second and third uses.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Graco TrueCoat One 26DTC1 | Airless | Unthinned paint on large surfaces | Airless pump, 25 ft hose, reversible tip | Amazon |
| Tilswall Shark 800 | HVLP | Side-feed convenience, furniture | 800W motor, 4 brass nozzles, 120 Din-S | Amazon |
| Uniqwamo Cordless (Ryobi) | Cordless HVLP | Auto spray, low-light projects | 70000 RPM brushless, 4 nozzles, LED | Amazon |
| LIVIVISTA Cordless (DeWalt) | Cordless HVLP | DeWalt 20V platform users | 850W motor, 6 brass nozzles, 1400ml | Amazon |
| Gisam KL004 Cordless | Cordless HVLP | Portable kit with two batteries | Brushless, 2×4000mAh, 5 brass nozzles | Amazon |
| VLAIAN Cordless (Makita) | Cordless HVLP | Kit with batteries, LED night light | 2×4Ah batteries, 6 copper nozzles, 1400ml | Amazon |
| PaintMax Portable 650W | HVLP | Entry-level, small DIY projects | 650W motor, 800ml cup, 3 patterns | Amazon |
In‑Depth Reviews
1. Graco TrueCoat One Airless Sprayer 26DTC1
The Graco TrueCoat One skips the HVLP approach entirely and uses an airless pump that draws unthinned paint directly from a gallon can. This is the single biggest advantage for anyone spraying latex or thick exterior paints—no thinning required, no viscosity guessing. The 25-foot hose and reversible TrueCoat 360 tip mean you can move around a room without dragging the pump assembly and clear a clog in seconds by flipping the tip, not disassembling the nozzle.
Finish quality is noticeably more consistent than HVLP units at this tier because the airless delivery pushes material at controlled pressure rather than relying on atomization air. The variable pressure dial lets you dial down for trim and cabinetry or open up for broad wall and fence coverage. Users note that the pressure adjustment is less granular than pro-grade Graco units, but for a DIY-focused machine, the range is entirely adequate.
Cleanup is straightforward with the included PowerFlush adapter, though the plastic tips are a point of concern for buyers expecting the metal tips found on contractor models. If you routinely spray unthinned latex or tackle entire rooms in one session, the lack of material prep and the direct-from-can speed make this the most efficient option on the list. The trade-off is a bulkier setup and a higher entry point than handheld HVLP units.
What works
- Sprays unthinned latex and thick paints directly from the can
- Reversible tip clears clogs without disassembly
- 25-foot hose provides solid reach for rooms and fences
What doesn’t
- Plastic spray tips instead of metal
- Pressure control is less precise than professional models
- Heavier and less portable than handheld units
2. Tilswall Shark 800 HVLP Spray Gun
The Tilswall Shark 800 tackles one of the most annoying aspects of HVLP spraying—topping off the cup mid-project. Its side-feed design lets you pour in more paint without flipping the gun upside down or removing the container, which keeps the nozzle oriented correctly and reduces air bubbles. The 800W motor supports paint up to 120 Din-S viscosity, meaning you can spray unthinned latex or thick stains without fighting constant clogging.
It ships with four brass nozzles (1.0mm, 1.5mm, 2.0mm, 3.0mm) and three spray patterns. The 3.0mm nozzle is notably useful for exterior staining where coverage speed matters more than fine atomization. The split head design with a 2.5-meter hose removes the motor weight from your hand, reducing fatigue during longer sessions on fences or cabinets. Users who upgraded from cheaper handhelds report a marked improvement in spray consistency and reduced overspray.
Some reviewers found the unit underpowered when spraying thick primers even after thinning per instructions. The plastic construction of the main body is functional but does not feel as durable as the Graco unit. For a mid-range HVLP option that prioritizes refill speed and viscosity range, the Shark 800 delivers real workflow advantages over traditional top-cup designs.
What works
- Side-feed cup allows refills without tilting the gun
- 800W motor handles high-viscosity paint (120 Din-S)
- Split design with hose reduces hand fatigue
What doesn’t
- Thick primers still require careful thinning
- Plastic body feels less rugged than premium alternatives

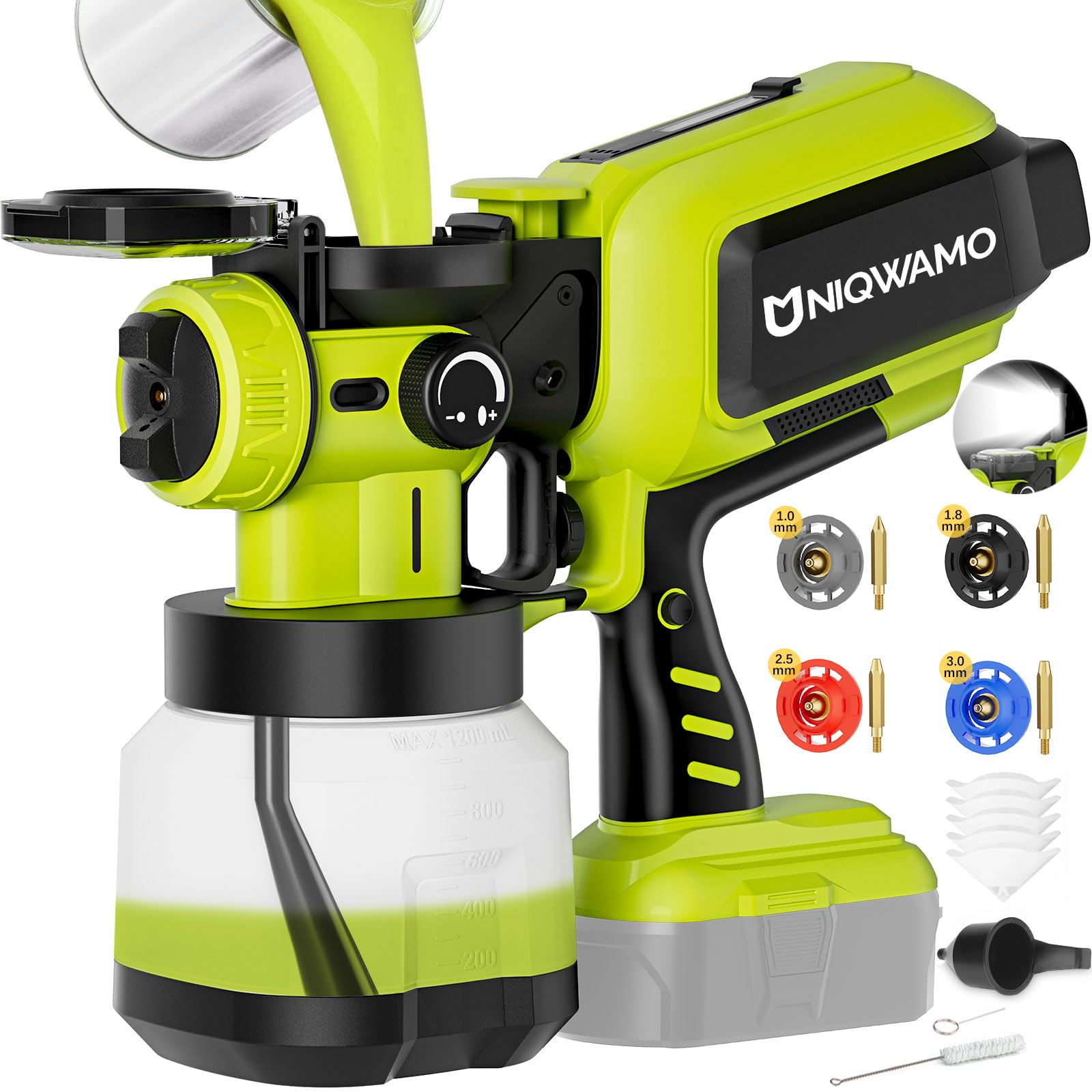

3. Uniqwamo Cordless Paint Sprayer (Ryobi Compatible)
The Uniqwamo cordless sprayer runs on Ryobi 18V batteries (sold separately) and packs a 70,000 RPM brushless motor that atomizes material surprisingly well for a battery-powered unit. Its standout feature is the auto-spray self-locking trigger—press once and it maintains flow rate without holding the trigger, which reduces hand strain during extended wall or fence jobs. The 1200ml container sits in a standard top-feed position.
Four copper nozzles (1.0mm, 1.8mm, 2.5mm, 3.0mm) cover the range from fine furniture work to broad coverage, and the three spray patterns are standard horizontal, vertical, and circular. The motor unit separates from the nozzle half, making cleanup easier—users report soaking the front half in a bucket while keeping the electronics dry. The built-in LED light is a thoughtful addition for basements and garages, though several reviewers note it is not blindingly bright.
Battery compatibility with Milwaukee M18 batteries (via adapter, not officially supported) has been confirmed by multiple users who achieved consistent coverage on truck beds and fences. The spray quality requires some thinning trial and error, especially with thick latex. For the price, it is a surprisingly capable cordless option that outperforms expectations if you already own 18V batteries from the Ryobi platform.
What works
- Auto-spray trigger lock reduces hand fatigue
- Detachable front half simplifies cleaning
- High RPM brushless motor for fine atomization
What doesn’t
- Battery not included
- Thick latex still needs significant thinning
- LED light is dim for large dark rooms

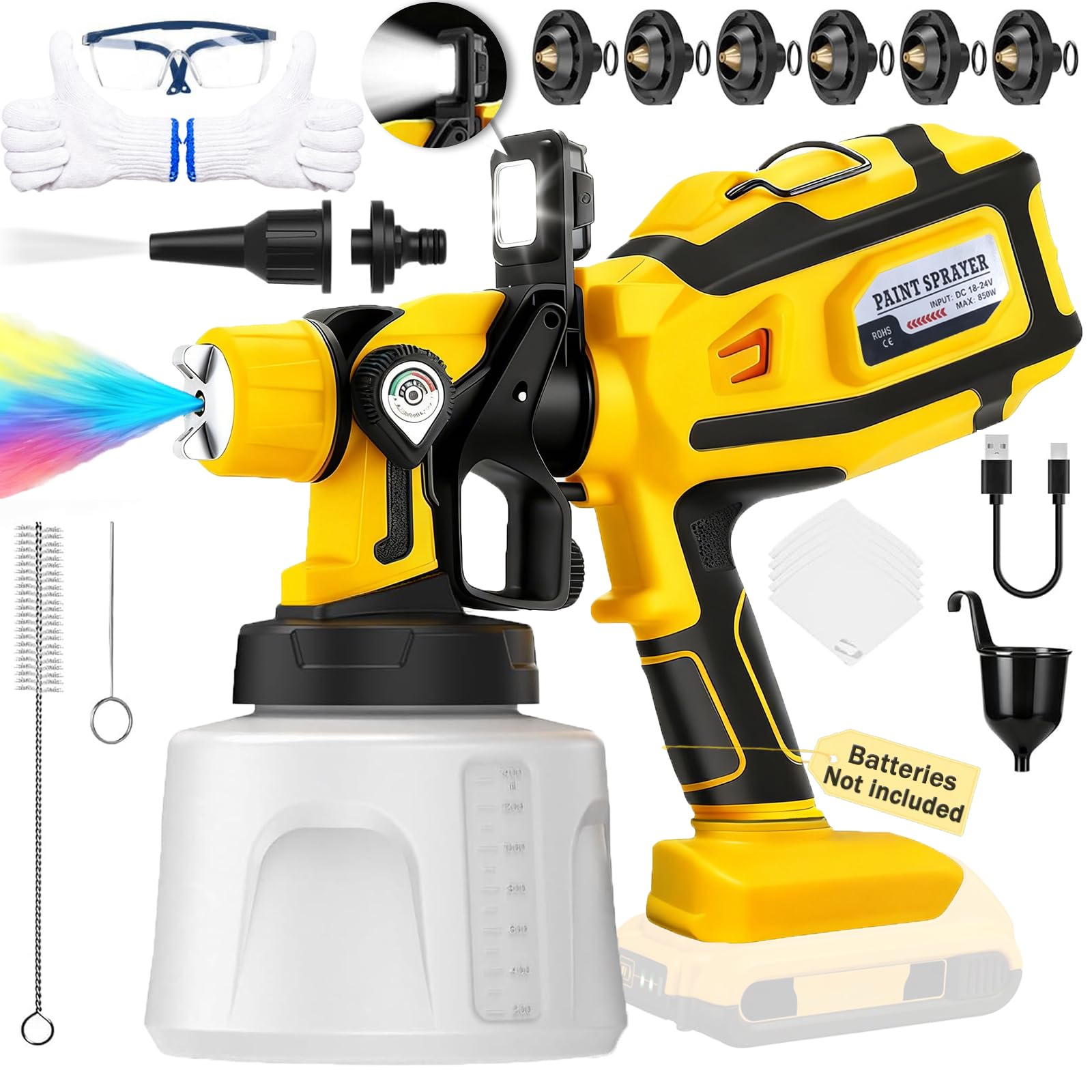

4. LIVIVISTA Cordless Paint Sprayer (DeWalt Compatible)
The LIVIVISTA cordless sprayer is built for the DeWalt 20V ecosystem and uses an 850W motor that delivers a 1200ml/min flow rate—higher than most cordless units at this price point. It includes six brass nozzles (0.8mm through 2.5mm), giving you more granular control over material delivery than the standard four-nozzle kits. The 1400ml tank is the largest among the handheld battery-powered options here, reducing refill frequency on larger projects.
Three brightness levels on the LED light plus a strobe mode are more sophisticated than the single-LED setups on competitors. The adjustable straw angle ensures the pickup stays submerged even as the tank drains, preventing the sputtering that happens when a fixed straw loses contact. Users who paired it with DeWalt 20V batteries report seamless compatibility and solid runtime for medium-sized fence or wall jobs.
Spray pattern consistency is the main caveat. Some reviewers experienced puddling and uneven coverage even after thinning paint properly. The unit also includes blowing and cleaning functions—blow dust off surfaces before spraying and rinse the nozzle with the included cleaning tool—which is a thoughtful addition that most bare-bones sprayers skip. It is a strong option for DeWalt users who want a cordless solution and are willing to dial in their technique.
What works
- 850W motor with high 1200ml/min flow rate
- Six brass nozzles for fine-tuning material delivery
- Adjustable straw angle prevents sputtering as tank drains
What doesn’t
- Spray pattern can be inconsistent and prone to puddling
- Battery not included
- Heavy when full due to large 1400ml tank
5. Gisam KL004 Cordless HVLP Paint Sprayer
The Gisam KL004 is the only cordless option here that ships with two 4000mAh batteries, giving you a combined runtime around one hour of continuous spraying. The brushless motor runs at 90,000 RPM and uses HVLP tech to reduce overspray by roughly 30 percent compared to older turbine designs. Adjustable flow from 500 to 1000ml/min allows you to switch between thin coats for furniture and thicker layers for fences without changing nozzles.
Five brass nozzles (size details are less explicitly documented than competitors, but the range covers thin to thick materials) and three spray patterns give reasonable versatility. The tool-less disassembly is a genuine time-saver—twist the container off, press a release button, and the nozzle assembly comes apart for rinsing. Users report the entire cleaning process takes under five minutes if you rinse immediately after spraying.
The biggest complaint is that some units spray too slowly and in pulses, especially when using thicker latex. A few buyers found the instructions practically nonexistent, leading to frustration with setup and thinning ratios. The compatibility with Makita 18-24V batteries adds flexibility if you already own Makita tools, but the included batteries should cover most small to medium projects without needing spares.
What works
- Two high-capacity batteries included for extended runtime
- Tool-less disassembly makes cleaning fast
- Brushless motor reduces overspray noticeably
What doesn’t
- Some units spray slowly and in pulses with thick paint
- Poor documentation for setup and thinning guidance
- Inconsistent performance out of the box for some users

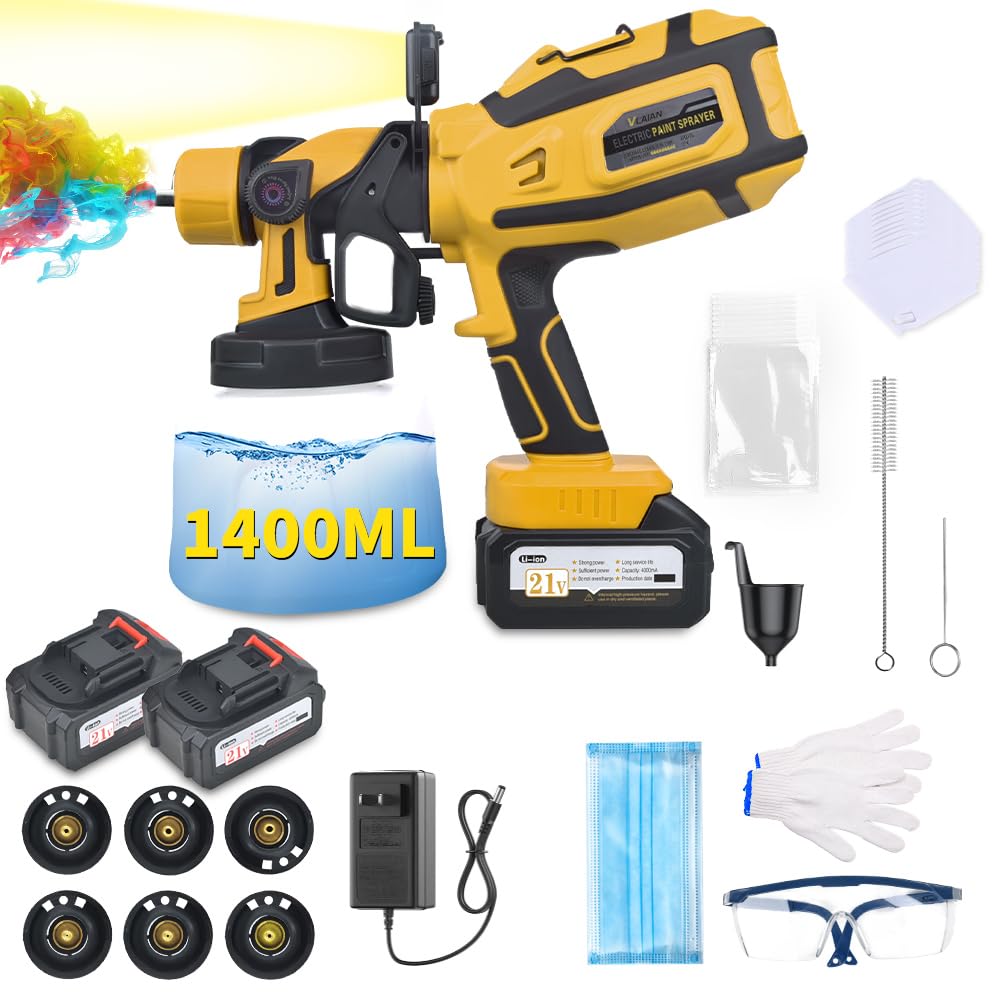

6. VLAIAN Cordless Paint Sprayer (Makita Compatible)
The VLAIAN cordless sprayer comes as a complete kit: two 4Ah Makita-compatible batteries, a charger, six copper nozzles from 0.8mm to 2.5mm, ten paint bags, a funnel, and safety accessories including goggles, mask, and gloves. The paint bags are a clever inclusion—you place them inside the container so cleanup means tossing the bag rather than scrubbing the cup. The 1400ml container is generous for a battery-powered unit.
Its 600W brushless motor (claimed 1000ml/min flow rate) supports up to 100 Din-S viscosity, which is slightly lower than the Tilswall or LIVIVISTA options. For latex paints, thinning is still required. The LED night light with strobe and steady modes adds visibility for dark crawl spaces and garages. Users consistently praise the spray pattern quality for stains and thin paints on fences and furniture.
Battery life per pack is around 30-40 minutes, which is adequate for a single wall or a small shed but may require swapping packs for larger fences. The plastic build feels less premium than the Gisam or Graco units, but the all-inclusive accessory package reduces the total cost of ownership if you do not already own batteries. Avoid using this sprayer with automotive paint—the solvents can damage the internal seals and motor.
What works
- Complete kit with batteries, charger, and accessories included
- Paint bags inside the container simplify cleanup
- Six copper nozzles cover thin to thick material ranges
What doesn’t
- Not suitable for automotive paint or harsh solvents
- Plastic build feels less durable than mid-range options
- Battery runtime requires swapping for larger projects
7. PaintMax Portable 650W HVLP Sprayer
The PaintMax 650W HVLP sprayer is the most affordable option in this roundup and serves as a solid entry point for occasional DIYers who stain a piece of furniture or paint a small shutter project once or twice a year. It offers three spray patterns (horizontal, vertical, circular) and an 800ml detachable container that is easy to disassemble for cleaning. The HVLP system reduces overspray compared to old turbine units, keeping more paint on the surface.
It handles oil-based paints, latex, stains, sealers, and primers, though the 650W motor requires thinning latex significantly to avoid clogging. The all-plastic construction keeps weight low but raises concerns about longevity with frequent use. One long-term owner reported wearing out the first unit after three years of regular use, which is respectable for the entry tier.
The biggest drawback is inconsistent build quality. Several buyers received units that delivered very low paint output and failed to cover adequately even after following thinning instructions. If you get a good unit, it is a functional starter sprayer. But the gamble on quality control, combined with the small cup that requires constant refills, makes it a better fit for low-stakes projects than for anything time-sensitive or finish-critical.
What works
- Very accessible price point for occasional DIY use
- Detachable container and tool-less disassembly for easy cleaning
- HVLP system reduces overspray vs older turbine sprayers
What doesn’t
- Inconsistent quality control; some units have low paint output
- 650W motor requires heavy thinning of latex paints
- 800ml cup needs constant refills for larger jobs
Hardware & Specs Guide
HVLP vs Airless Delivery
High Volume Low Pressure (HVLP) systems atomize paint by mixing it with a stream of air, giving you fine control and less overspray for detailed work like cabinets and trim. Airless systems (like the Graco TrueCoat One) use a hydraulic pump to push paint through a tiny tip at high pressure, allowing you to spray unthinned latex at a much faster rate. HVLP is better for finish quality on small surfaces; airless is better for speed on large walls, fences, and decks.
Nozzle Size and Material
Nozzle diameter determines the viscosity of paint the sprayer can handle. A 1.0mm nozzle is for thin stains and lacquers; 1.8mm works for most thinned latex; 2.5mm and 3.0mm are for thick primers and exterior paints. Brass and copper nozzles resist corrosion and hold their shape longer than plastic or aluminum. A wider range of included sizes gives you more flexibility to switch materials without buying additional tips.
Motor Power and RPM
Measured in watts (600-850W for most handheld units) and RPM (up to 90,000 for brushless motors). Higher wattage supports thicker materials and maintains consistent flow without bogging down. Brushless motors run cooler, last longer, and deliver more torque at lower RPM compared to brushed motors. For spraying latex without thinning, look for at least 800W paired with an airless pump design instead of HVLP.
Container Capacity and Design
Container size ranges from 800ml to 1400ml on handheld units. Larger tanks reduce refill frequency but add weight to the gun. Side-feed designs let you pour paint in without removing the cup, saving time and reducing spills. Direct-from-can systems (Graco) eliminate the container entirely by drawing paint straight from the gallon bucket, which is ideal for large projects but less maneuverable for tight spaces.
FAQ
Can I spray unthinned latex paint with an HVLP sprayer?
What does the nozzle size number mean for my paint sprayer?
How do I clean an electric paint sprayer properly?
Are cordless paint sprayers as powerful as corded models?
Final Thoughts: The Verdict
For most users, the electric paint sprayer winner is the Graco TrueCoat One 26DTC1 because its airless pump handles unthinned latex and thick paints without the viscosity headaches of HVLP units, and the reversible tip keeps you spraying through clogs in seconds. If you want cordless freedom and own DeWalt batteries, grab the LIVIVISTA cordless sprayer for its powerful 850W motor and six-nozzle range. And for a budget-friendly introduction to HVLP spraying on small furniture and trim projects, nothing beats the PaintMax 650W unit.
