An electric radiator cooling fan is the difference between a daily driver that shrugs off summer gridlock and a vehicle stranded on the shoulder with steam billowing from the hood. Whether you are swapping out a failed clutch fan on a truck, adding a pusher to an off-road rig, or building a custom cooling system for a project car, the right 12V fan keeps your engine’s temperature locked where it belongs—without robbing horsepower or eating up precious bay space.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing automotive cooling hardware, cross-referencing CFM claims against real bench data, and helping DIYers match fan specs to specific vehicle loads and radiator core thickness.
After sorting through slim-profile pushers, vehicle-specific assemblies, and high-flow puller units, the following guide breaks down the electric radiator cooling fan market to help you find the right airflow, blade design, and mounting style for your setup without guessing at compatibility.
How To Choose The Best Electric Radiator Cooling Fan
Selecting the right fan means balancing physical dimensions, airflow volume, and power draw against your vehicle’s cooling demand. A fan that is too thick may hit the water pump pulley, while one that moves too little air will leave you hunting for an operating temperature sweet spot. Here are the three specs that separate a successful install from a headache.
Physical Dimensions and Blade Clearance
The first hard stop is thickness. Slim fans—typically 2.5 to 3.3 inches deep—clear tight engine bays where a mechanical clutch fan or a bulky aftermarket unit won’t fit. Measure the distance between the radiator face and the nearest obstacle (pulley, shroud, AC line). A fan that is too deep forces you to space the radiator forward, which can mess with your core support and hood latch alignment. Always confirm both the overall diameter and the motor housing depth before ordering.
CFM and Blade Design
CFM (cubic feet per minute) is the standard airflow metric, but not all CFM is created equal. Straight-blade fans tend to be louder and less efficient than S-curved or variable-pitch designs, which pull air more evenly across the core. A 16-inch fan claiming 3000 CFM may sound impressive, but real-world bench testing often shows a gap between rated and delivered flow—especially through a dense radiator core. Look for fans with sealed ball bearings and balanced blades, as these maintain consistent airflow and resist vibration over years of thermal cycling.
Pusher vs. Puller Configuration
Pusher fans mount in front of the radiator and blow through the core toward the engine; puller fans mount behind the radiator and draw air through it. Puller placement is generally more efficient because it works with the natural low-pressure zone behind the radiator once the vehicle is moving. Pushers, however, are easier to install in tight bays and are common for auxiliary cooling on trucks and off-road rigs. Many slim fans are reversible—you flip the blade orientation and swap the power leads to switch modes. Just remember that pushing air through a condenser and a radiator stack adds resistance that lowers effective CFM.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| A-Team Performance 16″ | Premium | High-flow street/track use | 3000 CFM / 2500 RPM | Amazon |
| SPAL 30100400 16″ | Premium | Thin puller for tight bays | 1298 CFM / 3″ depth | Amazon |
| TYG Honda Odyssey Assembly | OE Replacement | 1999-2004 Odyssey cooling | 2258 RPM / 49 dB | Amazon |
| Dorman 621-410 | OE Replacement | Dodge/Ram e-fan conversion | 2500 RPM / 4-Pin | Amazon |
| FSBCGT 14″ (2-Pack) | Mid-Range | Dual-fan setups / SxS roof | 1750 CFM / 2250 RPM | Amazon |
| Auto Dynasty 10″ (2-Pack) | Entry-Level | Compact pusher / aux cooling | 1250 CFM / 2250 RPM | Amazon |
| GESEXI 16″ Slim | Mid-Range | Large-diameter budget puller | 1000+ CFM / 2000 RPM | Amazon |
In‑Depth Reviews
1. A-Team Performance 16″ Electric Radiator Cooling Fan Kit
This 16-inch puller-pusher hybrid from A-Team Performance combines an S-curved 10-blade wheel with a sealed ball-bearing motor rated for 3000 CFM at 2500 RPM. In real-world use, owners report consistent 180-185°F operating temps even in Florida summer traffic and towing loads, which suggests the airflow claim holds up far better than most budget universals when installed as a puller behind the radiator.
The kit arrives with a full mounting set including a thermostat probe set to activate at 200°F and deactivate at 180°F. That temperature spread is tight enough to avoid rapid cycling, which eats brushes and relay contacts. The 3.5-inch overall depth is manageable for most full-size engine bays, though it may be tight in compact cars or late-model trucks with zero-clearance radiator-to-pulley spacing.
Noise measures around 49 dB on the spec sheet, which is whisper-quiet for a fan moving this much air. A few buyers noted a harmonic whine at certain RPMs, but the sealed bearings and balanced blade set keep vibration low. For a street-driven vehicle or a moderately built off-road rig that needs reliable cooling without constant electrical load, this is the goldilocks pick.
What works
- True high CFM output maintains low temps under load
- Integrated thermostat simplifies wiring
- S-curved blades run quieter than straight-blade competitors
What doesn’t
- 3.5-inch depth may not fit all engine bays
- Some units produce slight harmonic noise at specific speeds

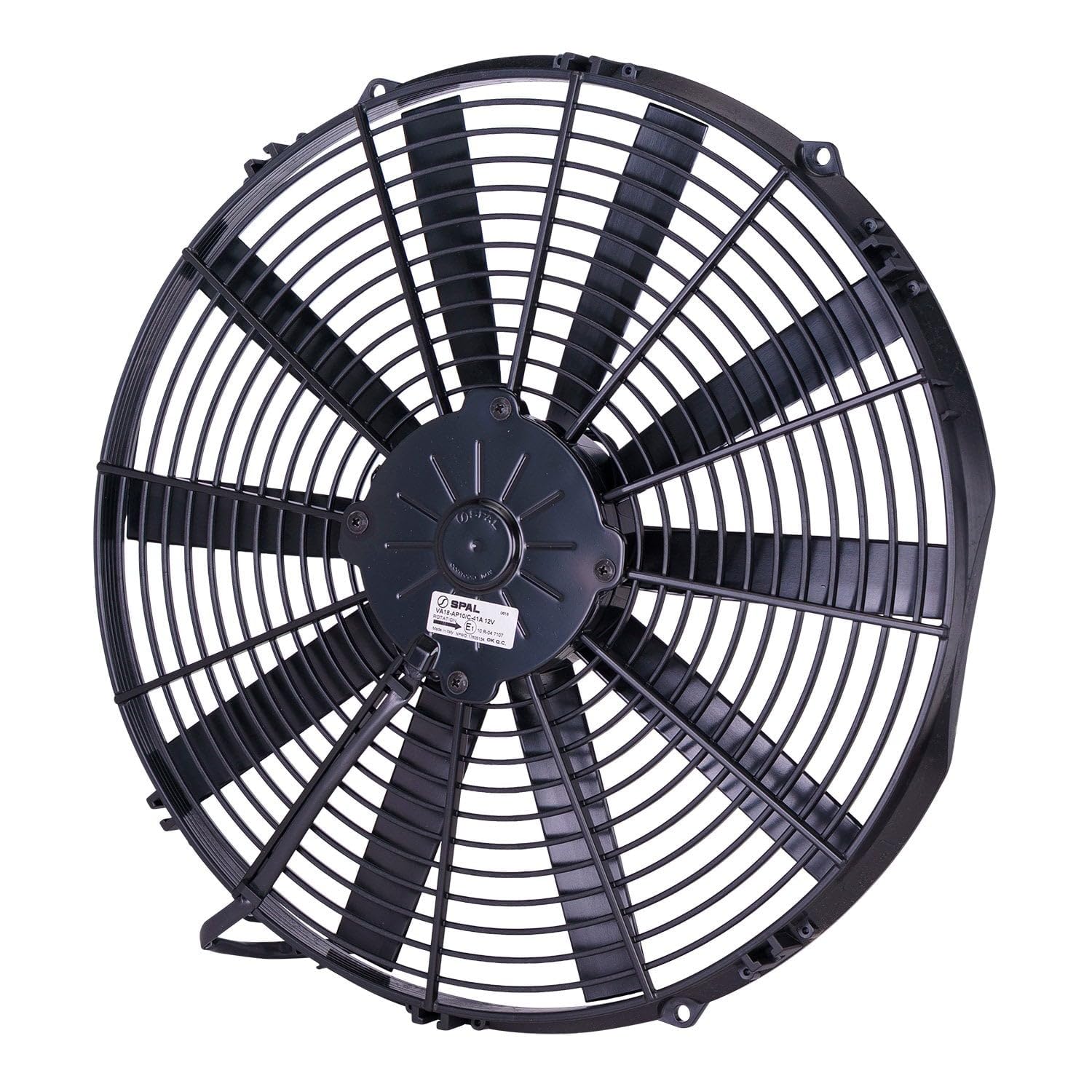

2. SPAL 30100400 16in Fan
The SPAL 30100400 is a dedicated puller fan with a profile just three inches deep, making it the slimmest high-quality option in this roundup. That shallow motor housing clears obstacles that would otherwise force you to move the radiator or skip electric cooling entirely. It is rated at 1298 CFM—lower than many larger universals, but the blade pitch is optimized for pressure, so it moves air through a dense core more effectively than a high-CFM fan with shallow blade angle.
Owners consistently praise the quiet operation and lack of vibration, even at full speed. The sealed bearing assembly is a step above typical aftermarket units, and the blade balance is tested out of the box. One catch: the power lead is short and terminates in a male spade connector. You will need a separate pigtail for power and ground, which adds a minor wiring step but also lets you fuse and relay the circuit to your exact spec.
For engine swaps, classic car retrofits, or any build where bay space is the primary constraint, this fan solves the clearance problem without selling out on build quality. It will not out-blast a 3000 CFM unit, but it will reliably pull enough air to keep a V8 cool in normal driving and light traffic.
What works
- Ultra-thin 3-inch profile fits in tight spaces
- Quiet sealed-bearing motor stays smooth
- Blade pitch moves air under pressure
What doesn’t
- Lower raw CFM than larger competitors
- Requires separate pigtail for wiring

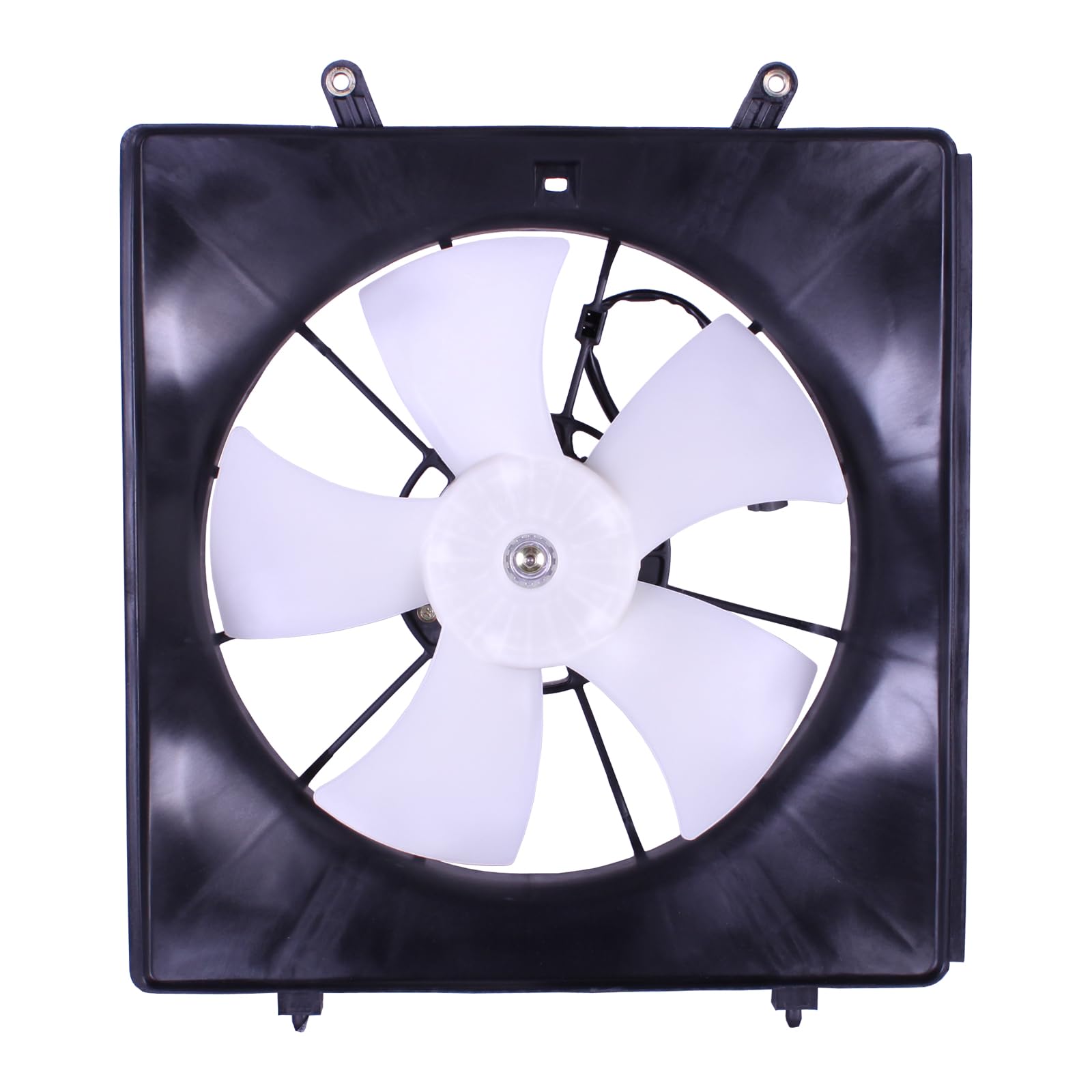

3. TYG Upgraded Radiator Cooling Fan Assembly for Honda Odyssey
This TYG assembly is a direct OE replacement for the 1999-2004 Honda Odyssey 3.5L, using the same mounting points, connector layout, and shroud geometry as the factory unit. It is not a universal fan—you bolt it in, plug the 2-pin connector, and it matches the factory cooling curve. The motor is built to 13.5V with balanced blades tested to about 49 dB, which is right at the threshold of acceptable cabin noise.
Real customers report straightforward installation that restores AC performance and normal temp gauge behavior in summer traffic. The upgraded motor design adds a bit of overhead compared to the original Denso-style unit, which helps if your Odyssey has an aftermarket transmission cooler or a condenser that adds heat load. A couple of buyers received units with minor shipping damage to the electrical connector housing, so inspect the plug before bolting everything together.
For anyone trying to keep a first-gen Odyssey or similar Honda-platform van on the road without chasing parts-bin solutions, this fan assembly eliminates the guesswork. You pay a premium over a universal, but the time saved on bracketry, wiring, and shroud modification makes it worthwhile.
What works
- Direct bolt-in for Odyssey; no fabrication needed
- Balanced blades keep noise low
- Upgraded motor handles extra heat load
What doesn’t
- Connector housing can suffer shipping damage
- Only fits 1999-2004 Odyssey 3.5L vehicles
4. Dorman 621-410 Engine Cooling Fan Assembly
The Dorman 621-410 is purpose-built for the clutch-fan delete swap on select Dodge and Ram trucks—specifically the 2012-2016 Ram 1500 with the 5.7L Hemi. It bolts directly into the factory radiator support and plugs into the existing 4-pin harness, which means no custom bracketry, no relay panel wiring, and no chasing leaks from a parasitic mechanical fan hub. The motor spins up to 2500 RPM and the shroud is shaped to match the Ram’s core exactly.
Users who have completed this conversion see a 1-3 MPG bump on highway drives because the engine no longer spins a heavy steel fan clutch full time. Cooling remains adequate even in Texas heat while towing, which suggests the fan pulls enough air through the condenser and radiator at idle. The main gotcha is the harness length: 2013 and newer trucks may need a pigtail extension or re-routing, and some units arrive with broken mounting tabs due to thin packaging.
For owners of the 5.7L Hemi looking to clean up the front of the engine, gain bay space, and improve daily efficiency, this Dorman assembly is the most straightforward way to complete the transition. Check your specific year and trim in the compatibility tool before ordering, as connector pins differ between model years.
What works
- True plug-and-play for Ram 1500 Hemi
- Improves fuel economy on highway drives
- Frees engine bay space for modifications
What doesn’t
- Harness length varies by model year
- Packaging can result in broken mounting tabs
5. FSBCGT 14 Inch Slim Fan Push Pull (2-Pack)
This FSBCGT twin-pack delivers two 14-inch reversible fans rated at 1750 CFM each, with a slim 2.5-inch thickness per unit. That makes them ideal for side-by-side buggy roofs, tractor cab coolers, or custom dual-fan shrouds on large aftermarket radiators. The 90W brushed motors pull about 7.5 amps each, which is manageable with a standard 30A relay and 12-gauge wiring.
Owners have used them in mini excavators, automotive training simulators, and even continuous-duty HVAC applications at reduced voltage. The reversible push-pull design is simple: flip the blade and swap the power leads. A few users noted brush noise when running in reverse, usually fixed by repositioning the brush pack. The included mounting kit uses metal brackets and zip ties, which is adequate for stationary or low-vibration mounts but may feel flimsy for high-shake off-road use.
For anyone building a dual-fan setup on a budget—whether it is a mid-engine swap needing two pullers or a desert truck adding pushers in front of the condenser—this pack covers a lot of radiator surface area for the cost. The motors are not sealed as well as premium units, but with a speed controller to reduce voltage, they survive mud, submersion, and pressure washing surprisingly well.
What works
- Two 14-inch fans for large coverage
- Reversible push-pull configuration
- Slim 2.5-inch profile fits tight gaps
What doesn’t
- Brushed motors can develop noise
- Mounting kit is basic for heavy vibration
6. Auto Dynasty 10″ Universal Slim Radiator Cooling Fan (2-Pack)
Auto Dynasty’s 10-inch twin-pack is the entry point for adding auxiliary cooling to small radiators, intercoolers, or transmission coolers. Each fan moves a claimed 1250 CFM at 2250 RPM on an 80W, 6.67-amp motor, which is roughly equivalent to the factory single-speed fan on many compact cars. The 2.5-inch blade depth and ABS plastic housing make them light and easy to zip-tie into nearly any position.
Real bench testing from a buyer with measurement tools showed actual output closer to 542 CFM per fan at 12.25V, so the advertised volume likely reflects free-air flow without the resistance of a radiator core. That gap matters if you are depending on these as your primary engine fan, but as pushers supplementing a mechanical fan or cooling a low-heat app like a fuel injection conversion, they get the job done. Build quality is solid for the tier—48-year veteran tech reviews confirm they match pricier units in function.
The set includes zip ties and mounting tabs but no wiring harness or relay. Factor in a separate relay kit and fuse holder if you do not already have a trigger circuit. For golf cart cooling, light-off-road pusher setups, or cost-effective intercooler fans, this two-pack is hard to beat.
What works
- Two fans for a very low entry cost
- Lightweight and easy to mount
- Matches build quality of pricier universals
What doesn’t
- Real-world CFM is well below advertised
- No relay or wiring included
7. GESEXI 16 Inch Slim Fan Push Pull
At 16 inches with a 3.27-inch depth, this GESEXI fan is one of the largest-diameter options that still fits a slim profile. The 120W motor delivers at least 1000 CFM at 2000 RPM, though like many budget universals the actual pressure through a radiator is hard to confirm without a bench test. The 10-blade design uses a moderate pitch that favors quiet operation over raw velocity—owners call it “not too loud.”
Installation is straightforward with the included metal brackets and mounting bolts. The fan is reversible, and the instructions show how to flip the blade and swap power leads to switch between push and pull. Some buyers ran it on a solar panel for a golf cart roof and reported good airflow without draining the battery—a testament to the reasonable 80W actual draw. A few units shipped with minor packaging damage that dented the motor housing, but functionality was unaffected.
For someone who needs a big 16-inch fan to cover a wide radiator core on a tight budget, this GESEXI unit is a viable candidate. It lacks the bearing quality and balancing of a SPAL or A-Team fan, but for low-duration street driving or as a secondary pusher, the cost savings are hard to argue with.
What works
- Large 16-inch diameter for wide cores
- Quiet operation for its size
- Reversible push-pull design
What doesn’t
- Flimsy packaging risks shipping damage
- True pressure CFM is lower than larger competition
Hardware & Specs Guide
CFM vs. Static Pressure
Free-air CFM—measured with no restriction—is the number brands advertise, but the moment you bolt a fan to a radiator core, airflow drops because the core resists flow. A fan with steep blade pitch and high RPM may push more air against that resistance than a thinner fan with higher free-air CFM. If you are cooling a dense 4-row radiator, look for fans that spec their airflow at a given static pressure (often listed as inches of water gauge). Fans with sealed ball bearings and S-curved blades tend to hold their curve better under load.
Blade Count and Noise Profile
More blades do not always mean more airflow—blade area and pitch angle matter more. A 10-blade fan running at 2500 RPM often produces a lower-pitched hum than an 8-blade fan spinning the same speed, because the blade-pass frequency is higher and partially cancels. Straight blades are cheaper to mold but create more turbulence and noise. S-curved or variable-pitch blades pull air more evenly across the blade surface and reduce the audible whine at cruising RPM. If cabin noise matters, prioritize fans with tested decibel ratings at or below 50 dB.
FAQ
What size fan do I need for my radiator?
Should I wire the fan to a thermostat or a manual switch?
Can I use a single 16-inch fan instead of a dual-fan setup?
Final Thoughts: The Verdict
For most users, the electric radiator cooling fan winner is the A-Team Performance 16″ because it balances genuine high CFM, quiet S-curved blades, and a built-in thermostat in a single kit without requiring a separate relay harness. If you are working with a tight engine bay where every millimeter counts, grab the SPAL 30100400 16″ for its class-leading 3-inch depth and smooth sealed motor. And for anyone completing a clutch-fan swap on a Ram 5.7L Hemi, nothing beats the Dorman 621-410 for true plug-and-play fitment.
