The moment your electric trolling motor fails to push your boat against wind or current, you realize that buying one is not about brand loyalty — it is about matching pounds of thrust to the actual weight of your boat, the length of your shaft, and the voltage your battery bank can deliver. A mismatch here turns a day on the water into a frustrating drift.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. My research into electric trolling motors involves cross-referencing real-world customer amp draws, shaft flex reports, and battery drain data across hundreds of freshwater and saltwater setups.
Whether you fish from a kayak, a 14-foot jon boat, or an 18-foot bass rig, finding the right electric trolling motor depends on understanding the specific relationship between thrust rating, shaft length, and intended water conditions.
How To Choose The Best Electric Trolling Motor
Selecting a trolling motor involves more than picking the highest thrust number. You must consider your boat size, typical wind exposure, whether you fish shallow or deep water, and how you prefer to control the motor — with your hand, your foot, or a wireless remote.
Thrust vs. Boat Weight
The golden rule is one pound of thrust per 100 pounds of fully loaded boat weight. For a 14-foot jon boat with gear and two anglers at roughly 800 pounds, a 55-pound thrust motor provides safe headroom. A 30-pound thrust motor works for lightweight kayaks and canoes under 400 pounds total.
Shaft Length and Hull Freeboard
Measure from the mounting point straight down to the waterline. Add at least 12 inches to that measurement. A shaft that is too short will cavitate in waves or when turning. A 30-inch shaft fits most jon boats and kayaks. V-hulls and pontoon boats typically need 36 to 48 inches to keep the propeller submerged in chop.
Mount Type: Transom vs. Bow
Transom mount motors are easier to install and work well on smaller boats where the battery sits at the back. Bow mount motors offer better steering authority because they pull the boat from the front rather than push from behind, which is preferred for bass fishing and precise positioning.
Speed Control and Battery Draw
Stepped speed settings provide five forward speeds and three reverse on most budget and mid-range motors. Premium units offer stepless variable speed for finer control at slow trolling passes. Higher thrust motors draw more amps at full speed, so match your battery amp-hour rating to the max amp draw of the motor to avoid early shutdown.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| AQUOS Haswing CaymanB Bow Mount | Premium Bow Mount | Wireless remote control on boats up to 18 ft | 55 lb thrust, 48 in shaft, 12V | Amazon |
| AQUOS Haswing CaymanT Transom Mount | Premium Transom Mount | Kayak and small skiff with wireless foot control | 55 lb thrust, 26 in shaft, 12V | Amazon |
| Black Haswing Cayman Bow Mount | Premium Bow Mount | Bass boats needing quiet variable speed | 55 lb thrust, 48 in shaft, 12V | Amazon |
| Minn Kota Edge Bow Mount Foot Pedal | Mid-Range Bow Mount | Heavy vegetation with cable-steer foot pedal | 45 lb thrust, 36 in shaft, 12V | Amazon |
| Minn Kota Edge Bow Mount Hand/Tiller | Mid-Range Bow Mount | Anglers who prefer twist-grip tiller control | 45 lb thrust, 45 in shaft, 12V | Amazon |
| Newport X-Series 55lb Transom Mount | Mid-Range Transom Mount | Saltwater use with LED battery meter | 55 lb thrust, 36 in shaft, 12V | Amazon |
| BODIOO 55lb Thrust Transom Mount | Budget Transom Mount | Light freshwater boats needing 55 lb thrust | 55 lb thrust, 30 in shaft, 12V | Amazon |
| Minn Kota Endura C2 Transom Mount | Budget Transom Mount | Ultralight kayaks and small jon boats | 30 lb thrust, 30 in shaft, 12V | Amazon |
| PEXMOR 8 Speed Transom Mount | Budget Transom Mount | Entry-level use on inflatables and rowboats | 26 lb thrust, 30 in shaft, 12V | Amazon |
In‑Depth Reviews
1. AQUOS Haswing CaymanB Bow Mount 55lb
The Haswing CaymanB is the strongest all-around value in the bow mount category, combining a 55-pound thrust motor with a 48-inch aluminum alloy shaft that reaches deep into the water even on larger V-hulls. The 2.4 GHz wireless remote works reliably up to 164 feet and the wireless foot pedal allows hands-free steering. Users with 16- to 18-foot boats report excellent control in wind at 10 percent speed for slow trolling.
Variable speed control reduces amp draw compared to stepped-speed motors, and the sacrificial anode protects against galvanic corrosion in saltwater. The quick-release bracket makes removal simple, and the ergonomic lifting handle eases transport. The foot pedal is large and takes practice to use smoothly, but the remote compensates well when casting.
The two-year warranty on the motor and three-month warranty on accessories is reasonable, though the foot pedal issues reported by a few owners — including pairing failures — mean the wireless remote is the more dependable control method for daily use.
What works
- True 55 lb thrust handles 18 ft boats with crew
- Variable speed for precise low-amp trolling
- Wireless remote works at 164 ft range
- Sacrificial anode for saltwater corrosion protection
What doesn’t
- Foot pedal is large and has pairing reliability concerns
- Unit overhangs the bow on smaller boats
- Warranty on accessories is only three months
2. AQUOS Haswing CaymanT Transom Mount 55lb
The CaymanT transom mount version packs the same 55-pound thrust and stepless speed control as the bow mount sibling but with a shorter 26-inch shaft that suits kayaks and small skiffs where mounting height is low. The encapsulated electronics and sacrificial anode make this unit fully saltwater-capable, which is rare at this price tier from a transom-mounted design.
The wireless hand remote fits on a lanyard and recharges via USB, lasting over 20 hours per charge in real-world use. The wireless foot pedal provides an alternative control method, though it is large and requires deliberate foot placement. The stepless speed control lets you dial in exactly the right speed for slow trolling without the jump between steps.
Some users report difficulty pairing the foot pedal out of the box, and the 26-inch shaft limits the boat types that can use it. For a bare-hull kayak or a 12-foot jon boat, the CaymanT delivers premium features at a cost below established brand equivalents.
What works
- Fully saltwater-ready with encapsulated electronics
- Stepless variable speed for precise trolling
- USB rechargeable remote with long battery life
What doesn’t
- Foot pedal pairing can be problematic
- Short 26 in shaft limits boat size
- Foot pedal requires large deck space
3. Black Haswing Cayman Bow Mount 55lb
This black bow mount version is identical in thrust and shaft length to the CaymanB but lacks the wireless foot control, coming instead with a wired foot pedal and a wireless remote. The variable speed control, quiet operation, and quick-release bracket remain the same, making this a solid option for anglers who prefer a simpler setup with less electronic complexity.
The remote works well for steering and cruise control, and the motor runs nearly silent — a feature experienced bass anglers appreciate. The 48-inch shaft provides deep water access for 17- to 18-foot aluminum hulls, and the amp draw is low enough that a group 27 deep-cycle battery lasts a full day at moderate speeds.
A known weak point is the locking mechanism for stowing the motor, as a few users reported the clamp failing during transport. Make sure to secure the unit with an additional strap before trailering. The missing hard plastic spacer in some shipments added a minor installation hassle, but the motor itself delivers strong, consistent thrust.
What works
- Very quiet operation for spook-free fishing
- Low amp draw for extended battery runtime
- Variable speed with cruise control function
What doesn’t
- Stow lock mechanism prone to failure in transport
- Mount overhangs bow on boats under 18 ft
- Missing spacer in some shipments reported
4. Minn Kota Edge Bow Mount Foot Pedal 45lb
The Minn Kota Edge with foot pedal control is the standard for anglers who want responsive cable-steer steering without electronics that can fail. The 45-pound thrust and 36-inch shaft handle 14- to 16-foot freshwater boats with authority, and the heel-toe pedal gives you speed control and momentary-on in one unit. The Power Prop design pushes through heavy vegetation where other props get tangled.
The Latch & Door bracket secures the motor during stowage and allows easy removal at the end of the day. The built-in directional indicator helps maintain orientation when fishing structure. Build quality is what you expect from Minn Kota — the composite shaft resists bending even when running in submerged timber.
The factory battery wires are only about three feet long, which often forces an extension for bow-mounted battery setups. The foot pedal requires some coordination to steer and adjust speed simultaneously, and the 45-pound thrust may feel underpowered on larger decks or in strong current.
What works
- Cable-steer foot pedal is reliable and responsive
- Power Prop cuts through heavy vegetation
- Composite shaft resists bending and UV damage
What doesn’t
- Short battery wires require extension for bow mount
- Foot pedal steering and throttle combo takes practice
- 45 lb thrust limits use on large boats
5. Minn Kota Edge Bow Mount Hand/Tiller 45lb
The tiller version of the Minn Kota Edge offers the longest shaft option in this lineup at 45 inches, which is ideal for deep-V hulls and pontoon boats where the bow sits high out of the water. The Tilt Twist Tiller combines speed and steering in one ergonomic grip, allowing one-handed control that feels natural after a short adjustment period.
The same Power Prop and Latch & Door bracket carry over from the foot pedal version. The 45-inch composite shaft provides excellent reach in chop, and the 45-pound thrust is sufficient for 14- to 16-foot aluminum boats. Installation is straightforward for a single person, and the motor runs quietly enough for casual fishing.
A few units arrived with undersized ring terminals that needed replacement, and the speed selector lacks positive detents, making it difficult to feel which speed you are on without looking. The motor also had isolated reports of early failure, though warranty service is available through local Minn Kota repair centers.
What works
- Extra-long 45 in shaft for deep-V boats
- Twist grip tiller gives intuitive one-hand control
- Renowned Minn Kota build quality and warranty network
What doesn’t
- Speed selector lacks positive click feel
- Some units shipped with small ring terminals
- Reports of early motor failure in rare cases
6. Newport X-Series 55lb Transom Mount 36 in
The Newport X-Series is one of the few transom-mounted motors in this price range explicitly rated for saltwater use. The 55-pound thrust and 36-inch fiberglass shaft provide solid performance on 12- to 14-foot boats, and the 10-LED battery meter on the head gives a real-time reading of remaining capacity — a feature absent from most transom motors at this tier.
The 8-speed control provides five forward and three reverse speeds, and the tri-blade propeller delivers strong low-end torque to get a loaded boat moving. The 50-amp circuit breaker included in the package protects against surges, and the telescoping tiller handle adjusts to fit the user. Users pushing 14-foot jon boats with two adults report noticeable wake at speed 5.
The motor runs louder than premium competitors, with vibration traveling through the handle and head at higher speeds. The jump from speed 4 to speed 5 is large, making fine-tuned speed control difficult at the top end. Still, for saltwater anglers on a budget, the Newport X-Series provides salt-ready durability no other option at this price can match.
What works
- Saltwater-rated with corrosion-resistant construction
- 10-LED battery meter for capacity awareness
- Included 50A circuit breaker for surge protection
What doesn’t
- Noisy operation with handle vibration at speed
- Large speed jump between settings 4 and 5
- Heavier than comparable freshwater motors

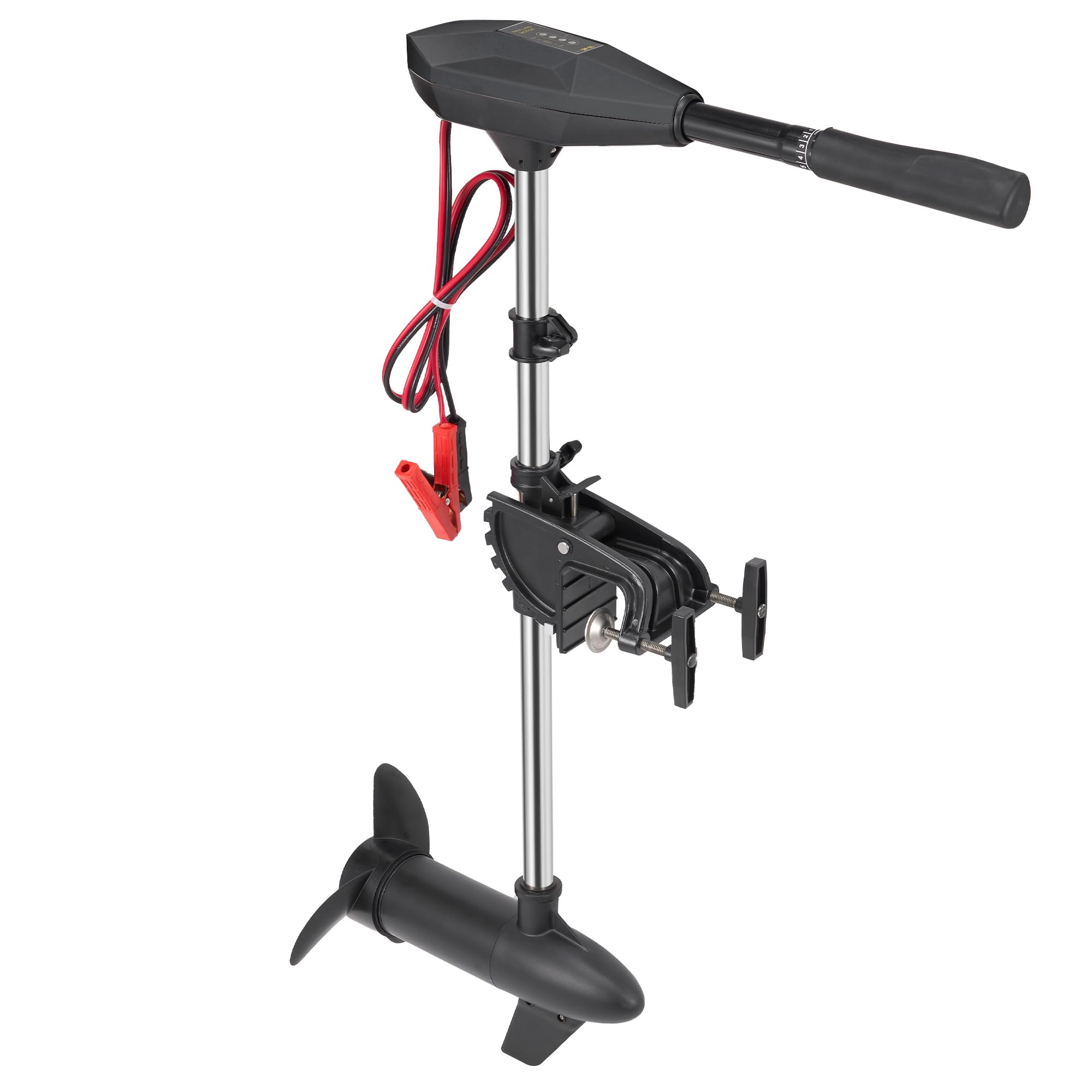

7. BODIOO 55lb Thrust Transom Mount 30 in
The BODIOO 55-pound transom mount offers the highest thrust-to-dollar ratio in this guide, making it appealing for anglers on a tight budget who need to move a 14-foot jon boat without spending premium money. The 30-inch composite shaft and die-cast aluminum head provide reasonable durability for freshwater use, and the LED battery indicator helps avoid unexpected shutdowns on the water.
The 8-speed control offers the standard five forward and three reverse pattern, and the 6-inch telescoping handle provides comfortable reach adjustment. The tri-blade propeller reduces drag and improves efficiency compared to two-blade designs. At 24 pounds, the motor is light enough for one person to carry and mount.
Independent testing suggests the actual thrust sits closer to 30 pounds than the advertised 55, and the motor produces a high-pitched ringing noise at full speed. The fiberglass composite shaft is less rigid than aluminum, and this unit is strictly freshwater only — saltwater exposure will damage the unprotected components quickly.
What works
- Aggressive price for 55 lb thrust claim
- Lightweight at 24 lb for easy handling
- LED indicator helps monitor battery charge
What doesn’t
- Actual thrust tests show closer to 30 lb
- High-pitched ringing noise at full speed
- Freshwater only, no saltwater protection
8. Minn Kota Endura C2 Transom Mount 30lb
The Minn Kota Endura C2 is the gold standard for ultralight setups where weight matters more than raw power. At 16 ounces, this motor barely adds any burden to a kayak or pedal boat, and the 30-pound thrust moves a 10-foot kayak effectively at speed 3 for hours without draining a 50Ah battery below one bar. The indestructible composite shaft has a reputation for surviving accidental bottom strikes that would bend aluminum.
The push-to-test battery meter built into the motor head gives a quick read on remaining power, and the 10-position lever lock bracket lets you adjust the motor angle without tools. The Power Prop design provides extra bite in vegetation despite the lower thrust rating. The 30-inch shaft is adequate for transom mounting on kayaks and small jon boats with low freeboard.
Reverse speed is noticeably weak and only effective at full throttle, making tight maneuvering in reverse difficult. The telescoping tiller handle is a nice feature, but some users wish it were longer for reach from a seated position. For paddletail kayaks and micro boats, this motor is the lightest reliable option that works out of the box.
What works
- Extremely lightweight at 16 oz for kayaks
- Indestructible composite shaft resists bending
- Power Prop provides good vegetation clearance
What doesn’t
- Weak reverse performance below full throttle
- Only 30 lb thrust limits boat size
- Short tiller handle reach from seated position
9. PEXMOR 8 Speed Transom Mount 26lb
The PEXMOR 26-pound thrust motor is the entry point for anyone who needs to move a rowboat, inflatable kayak, or lightweight pond boat at the lowest possible cost. The 8-speed control provides five forward and three reverse speeds, and the 6-inch telescoping handle adjusts to different seating positions. The LED battery indicator with red and green lights gives a simple read on battery health.
The three-bladed propeller provides decent efficiency and is sharp enough to cut through light weeds. The fiberglass composite shaft offers some flexibility, and the adjustable depth knob lets you set the propeller running depth in seconds. At 16 pounds, the motor is easy to carry and install alone.
The tilt mechanism uses plastic rather than aluminum, which reduces long-term durability if the motor is frequently tilted in and out. The 26-pound thrust is only suitable for boats under 300 pounds loaded, and the motor lacks any saltwater corrosion protection. For ultra-budget freshwater projects, this motor delivers functional performance that equals motors costing significantly more.
What works
- Lowest cost entry into electric trolling
- LED indicator prevents unexpected battery drain
- Lightweight and easy to carry and mount
What doesn’t
- Plastic tilt mechanism limits long-term durability
- 26 lb thrust only works on small, light boats
- No saltwater protection at all
Hardware & Specs Guide
Thrust and Amp Draw
Thrust is measured in pounds and directly correlates to the motor’s ability to push your boat against wind and current. A 55-pound thrust motor draws approximately 52 amps at full throttle on a 12-volt system. To calculate runtime, divide your battery’s amp-hour rating by the amp draw at the speed you typically use. For example, a 100Ah battery at 50 percent draw (26 amps) yields roughly 3.8 hours of continuous use.
Shaft Material and Length
Shaft length determines how deep the propeller sits below the waterline. Aluminum shafts are rigid and resist bending but can dent on impact. Composite fiberglass shafts flex on impact without permanent damage but can wander at high speeds. For transom mounts on jon boats, 30 inches is standard. For bow mounts on V-hulls, 45 to 48 inches keeps the prop submerged in waves.
Speed Control Types
Stepped-speed motors use a mechanical switch to select from a fixed number of forward and reverse speeds, typically five forward and three reverse. Variable-speed or stepless motors use an electronic controller to adjust power continuously, allowing precise speed matching for trolling without the sudden jump between steps. Variable speed is more efficient at low speeds and extends battery life.
Mounting Systems
Transom mounts clamp onto the rear of the boat and are simpler to install but provide less maneuverability. Bow mounts attach to the front deck and pull the boat from the front, offering better control in wind and for precise positioning. Bow mounts also accommodate longer shafts and typically include stow-and-deploy mechanisms and quick-release brackets.
FAQ
What size trolling motor do I need for a 14-foot jon boat?
Can I use a freshwater trolling motor in saltwater occasionally?
How long does a 100Ah battery run a 55-pound thrust trolling motor?
Is a bow mount trolling motor better than a transom mount?
Final Thoughts: The Verdict
For most users, the electric trolling motor winner is the AQUOS Haswing CaymanB Bow Mount because it combines true 55-pound thrust, a 48-inch shaft, variable speed control, and wireless remote operation at a cost that undercuts the major brands while still offering saltwater protection. If you need a premium transom mount with remote control, grab the AQUOS Haswing CaymanT Transom Mount. And for the ultralight kayak angler, nothing beats the Minn Kota Endura C2 for weight savings and reliability.
