Nothing disrupts a morning routine faster than a lukewarm shower halfway through, and for homes relying on a single aging tank, that moment is inevitable. The 40-gallon electric water heater sits at a critical sweet spot — large enough for a family of three to four, yet compact enough to fit standard utility closets — but the market has splintered between traditional storage tanks, space-saving lowboys, and high-output tankless units that challenge the very definition of a 40-gallon system.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I have spent years analyzing consumer appliance specifications, efficiency ratings, and real-world installation requirements to help buyers cut through the noise and find the unit that genuinely fits their home’s electrical service and usage patterns.
After combing through technical data sheets, warranty terms, and verified owner experiences across dozens of models, this guide breaks down the most competitive options in the electric water heater 40 gallon category to help you pick the right balance of recovery speed, physical footprint, and long-term reliability for your household.
How To Choose The Best Electric Water Heater 40 Gallon
Selecting the right 40-gallon electric water heater is a decision that balances physical size constraints, electrical capacity, and the recovery speed needed to keep up with your household’s peak demand. The wrong choice either leaves you waiting for hot water or forces a costly electrical panel upgrade.
Physical Dimensions vs. Replacement Fit
A 40-gallon tank from one manufacturer can be several inches taller or wider than another brand’s equivalent. If you are replacing an existing unit, measure the height and width of your current installation space — including clearance for water and electrical connections — before filtering by capacity. Lowboy models trade vertical height for a wider footprint, making them the only option for crawlspaces or alcoves with low ceilings.
Wattage, Voltage, and Recovery Speed
The heating element’s wattage directly determines how quickly the tank reheats after a heavy draw. A standard residential 40-gallon unit with a 4500-watt element on a 240-volt circuit recovers roughly 20 gallons per hour. Higher-wattage elements (5500W or dual-element configurations) cut recovery time significantly but require a dedicated 30-amp double-pole breaker. Always verify your panel has available breaker slots and sufficient ampacity before moving to a higher-wattage model.
The Anode Rod and Tank Longevity
The sacrificial anode rod is the single most important maintenance item affecting tank life. Rods made of aluminum-zinc alloy neutralize corrosive elements in the water but deplete over time, typically needing replacement every three to five years. Units with a powered anode rod use a low-voltage current to suppress corrosion without depleting material, extending tank life substantially in areas with hard or aggressive water chemistry. If your local water has high mineral content, prioritize a model with a long or powered anode rod.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Rheem RETEX-36 | Tankless | Whole-home endless hot water | 36 kW, 6 GPM, self-modulating | Amazon |
| Stiebel Eltron Tempra 36 Trend | Tankless | Premium German-engineered build | 36 kW, solid copper heating system | Amazon |
| Mizudo 36kW | Tankless | High flow rate at premium tier | 36 kW, 8.7 GPM, 98% efficiency | Amazon |
| Stiebel Eltron Tempra 12 Plus | Tankless | Point-of-use or small home | 12 kW, 3 GPM, 7-year warranty | Amazon |
| WINTEMP 36kW | Tankless | WiFi control and smart features | 36 kW, 8.7 GPM, WiFi-enabled | Amazon |
| Electrolux 18kW | Tankless | Smart WiFi and voice control | 18 kW, 4.4 GPM, Alexa compatible | Amazon |
| Fogatti 27kW | Tankless | Mid-range whole-home tankless | 27 kW, 6.7 GPM, LED display | Amazon |
| GE 18 Gallon Lowboy | Tank | Tight vertical spaces | 18 gal, 3.8 kW, floor mount | Amazon |
| CAMPLUX 18 Gallon | Tank | 120V installation flexibility | 18 gal, 1500 W, 120V hardwired | Amazon |
| ThermoMate 18 Gallon | Tank | Budget-friendly point-of-use | 18 gal, 1500 W, UL listed | Amazon |
In‑Depth Reviews
1. Rheem RETEX-36 Performance 36 kW
The Rheem RETEX-36 is a tankless unit that delivers endless hot water with a self-modulating system that adjusts power consumption in real time based on flow and incoming water temperature. With a maximum flow rate of 6 GPM and a 36 kW heating capacity on a 240-volt circuit, it can handle simultaneous shower and kitchen sink usage in moderate climates without the standby losses of a storage tank.
Installation requires substantial electrical infrastructure — four 240-volt double-pole breakers and 8-gauge wire on a 200-amp service minimum. Experienced DIYers report straightforward assembly, but those with older panels may need a service upgrade. The digital thermostatic controls allow precise temperature setting up to 140°F, and the UEF rating of 0.94 places it among the more efficient options in the tankless space.
Real-world owners in northern climates note that the unit delivers consistent 107°F water through a shower and dishwasher simultaneously, with a manageable increase in the electric bill compared to a previous tank. The compact wall-mount design frees up floor space, and while the unit produces an audible hum during operation, it is not disruptive in a utility room.
What works
- Endless hot water with no recovery wait
- Self-modulating power saves energy at low flow
- Compact footprint frees floor space
What doesn’t
- Requires 200-amp service and four breaker slots
- Audible hum during operation
- Refurbished units may arrive with cosmetic wear

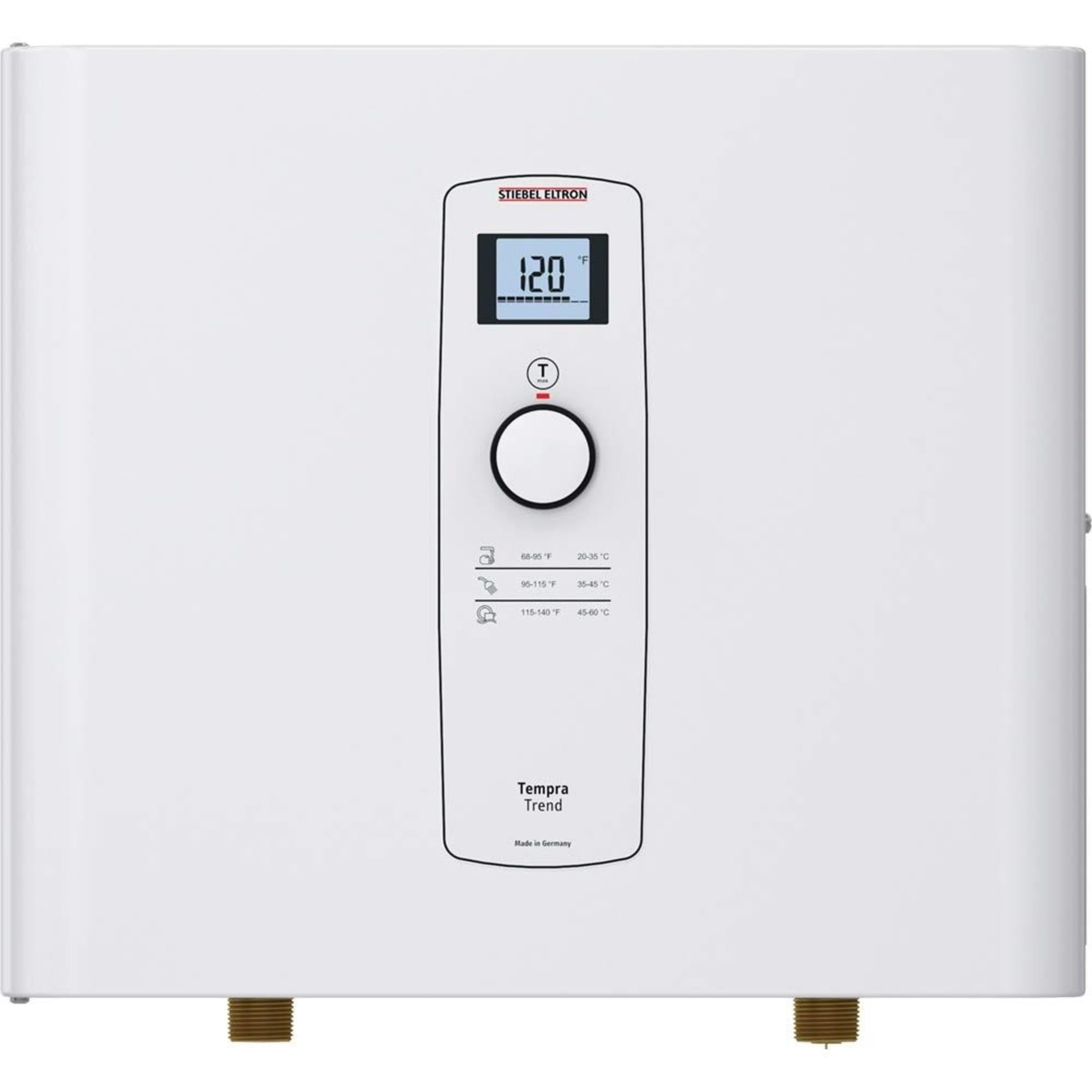

2. Stiebel Eltron Tempra 36 Trend
The Stiebel Eltron Tempra 36 Trend is a German-engineered tankless water heater built around a solid copper heating system that delivers exceptional heat transfer efficiency and corrosion resistance. The 36 kW output provides continuous hot water for whole-home use, and the patented Advanced Flow Control technology automatically reduces flow slightly when demand exceeds capacity, preventing cold bursts during high-use moments.
The unit’s white, low-profile enclosure measures 16.63 inches wide by 14.5 inches high, making it smaller than many competing tankless models. Stiebel Eltron backs the Tempra 36 Trend with a 7-year leakage warranty and a 3-year parts warranty, reflecting confidence in build quality. Installation requires a 300-amp service recommendation, though some owners have successfully run it on 200-amp panels with three 50-amp breakers and 6-gauge wire.
Long-term owners report flawless operation beyond five years, with no sediment buildup issues thanks to the copper heating block and minimal maintenance requirements. The digital temperature display and preset memory buttons simplify temperature selection. On the downside, the unique inlet and outlet connection design can make future brand-switching more expensive if replacement becomes necessary.
What works
- German build quality with solid copper heating block
- 7-year leakage warranty provides strong protection
- Silent operation during use
What doesn’t
- Requires 300-amp service for full output
- Unique connection design complicates brand swaps
- Some units arrive with missing accessories
3. Mizudo 36kW Tankless
The Mizudo 36kW tankless water heater targets households with high simultaneous water demand, advertising a maximum flow rate of 8.7 GPM — enough to supply five to six points of use at once. The copper cup heating element construction provides 98% thermal efficiency, and the built-in chip adjusts power 20,000 times per second to maintain temperature stability within ±1°F of the set point.
The wall-mounted chassis measures 17.1 inches wide by 18.5 inches high, consuming over 87% less space than a traditional 40-gallon tank. Electrical requirements are significant: four 40-amp double-pole breakers with four sets of 8 AWG wires. The LED touch display allows temperature adjustment from 86°F to 140°F, and multiple safety protections cover leakage, over-temperature, and dry-heating scenarios.
Early adopters praise the instant hot water delivery and consistent temperature even during back-to-back showers. However, the unit is best suited for interior living spaces because the electronics are not freeze-tolerant. Owners in cold coastal climates should verify the installation location stays above freezing to prevent damage.
What works
- 8.7 GPM supports multiple simultaneous uses
- ±1°F temperature stability is industry-leading
- Compact size fits tight wall spaces
What doesn’t
- Requires four 40-amp breakers and heavy wiring
- Not freeze-tolerant; must be indoors
- Brand has limited long-term reliability data
4. Stiebel Eltron Tempra 12 Plus
The Tempra 12 Plus is a 12 kW tankless unit from Stiebel Eltron designed for point-of-use applications or small homes with modest hot water needs. Its 3 GPM flow rate comfortably serves a single shower or sink, and the patented Flow Control ensures stable outlet temperatures by reducing flow when demand exceeds capacity. The unit operates silently and requires no venting, simplifying placement.
Electrical requirements are lighter than the larger Tempra models — a minimum 100-amp service with a dedicated 50-amp breaker is sufficient, making it a realistic option for homes with older panels. The interior solid copper heating system resists corrosion, and the digital display with preset temperature and memory buttons provides simple operation. Stiebel Eltron includes a 7-year leakage and 3-year parts warranty.
Owners who installed the Tempra 12 Plus under a kitchen sink report it delivers hot water within 30 seconds and automatically shuts off once the main heater’s hot water arrives, avoiding unnecessary energy use. The main limitation is insufficient capacity for three or more simultaneous showers, but for a dedicated bathroom or kitchen booster application, it is a reliable, long-lasting solution.
What works
- Lower electrical demand suits older panels
- Solid copper heating system resists corrosion
- Excellent warranty coverage
What doesn’t
- 3 GPM flow limits simultaneous use
- Short lifespan reported around 7 years by some owners
- Requires professional electrician/plumber for best results
5. WINTEMP 36kW Tankless
The WINTEMP WN36 is a 36 kW tankless water heater that brings WiFi control to the category, allowing users to adjust temperature remotely via smartphone or voice assistant without walking to the unit. It delivers up to 8.7 GPM for whole-home supply, and the self-modulating technology adjusts power consumption based on real-time flow and set temperature, claiming up to 99% energy savings at idle.
The unit requires a substantial 300-amp household service recommendation and four 40-amp double-pole breakers with four 8/2 AWG cables. Dimensions are 13.7 inches wide by 21.1 inches high, and the ETL certification confirms compliance with North American safety standards. Safety features include child lock, overheat protection, and dry-fire prevention, plus a 2-year return and exchange warranty.
User experiences are mixed: some report easy installation and stable performance for a full year with two showers and a kitchen sink, while others experienced random shutdowns or temperature spikes up to 165°F that triggered error codes. The plastic housing and snap-clip assembly feel less premium than metal-bodied competitors, but the price point undercuts many similarly specced units from established brands.
What works
- WiFi control allows remote temperature adjustment
- 8.7 GPM supports whole-home use
- Lightweight design at under 20 pounds
What doesn’t
- Reports of random shutdowns and temperature spikes
- Plastic housing feels less durable than metal
- Requires 300-amp service for full capacity

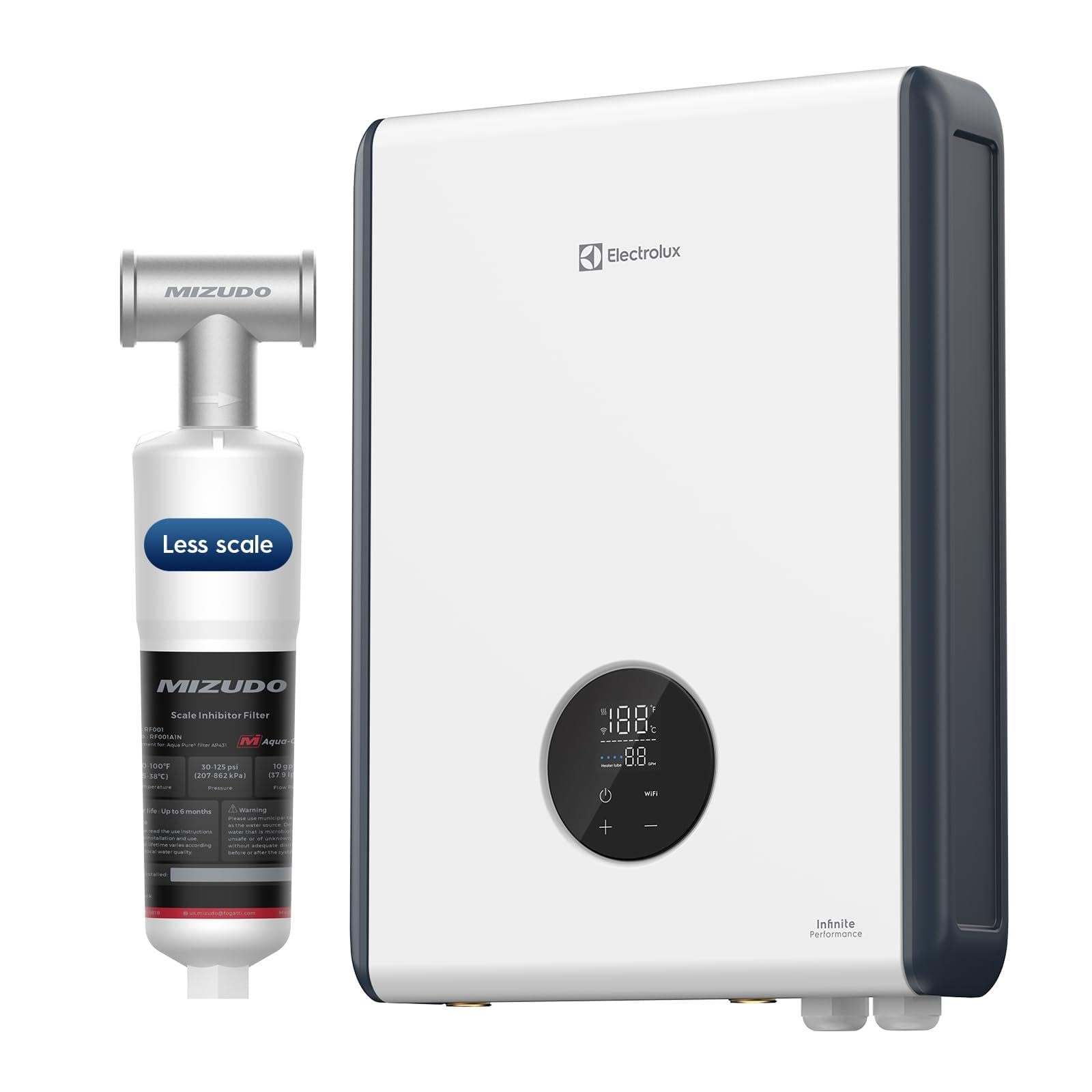

6. Electrolux 18kW Tankless
The Electrolux 18kW tankless water heater is a mid-capacity unit that provides up to 4.4 GPM of on-demand hot water, sufficient for two to three simultaneous fixtures. It stands out with built-in WiFi and voice control compatibility with Google Home and Alexa, plus a scale inhibitor that reduces mineral buildup and extends maintenance intervals in hard water areas.
Electrical requirements are moderate — two 240-volt/40-amp two-pole breakers with two sets of 8 AWG wires, and a household panel rated at least 150 amps. The compact white chassis measures 14.1 inches wide by 18.7 inches high and weighs just 15.4 pounds, making it one of the lighter tankless units available. The manufacturer provides a minimum one-year whole-machine warranty.
Users consistently note the instant hot water delivery and noticeable reduction in electric bills compared to previous tank heaters. The WiFi feature is described as a convenience for adjusting temperature mid-shower rather than a necessity. The primary drawback is the 3.4 to 4.4 GPM flow ceiling, which cannot handle a shower and dishwasher simultaneously without noticeable temperature drop, limiting the unit to homes with staggered usage patterns.
What works
- WiFi and voice control add modern convenience
- Scale inhibitor reduces descaling frequency
- Lightweight and easy to mount
What doesn’t
- Flow rate insufficient for simultaneous shower and dishwasher
- Annual descaling still recommended at -400
- Iron housing may be less corrosion-resistant than copper

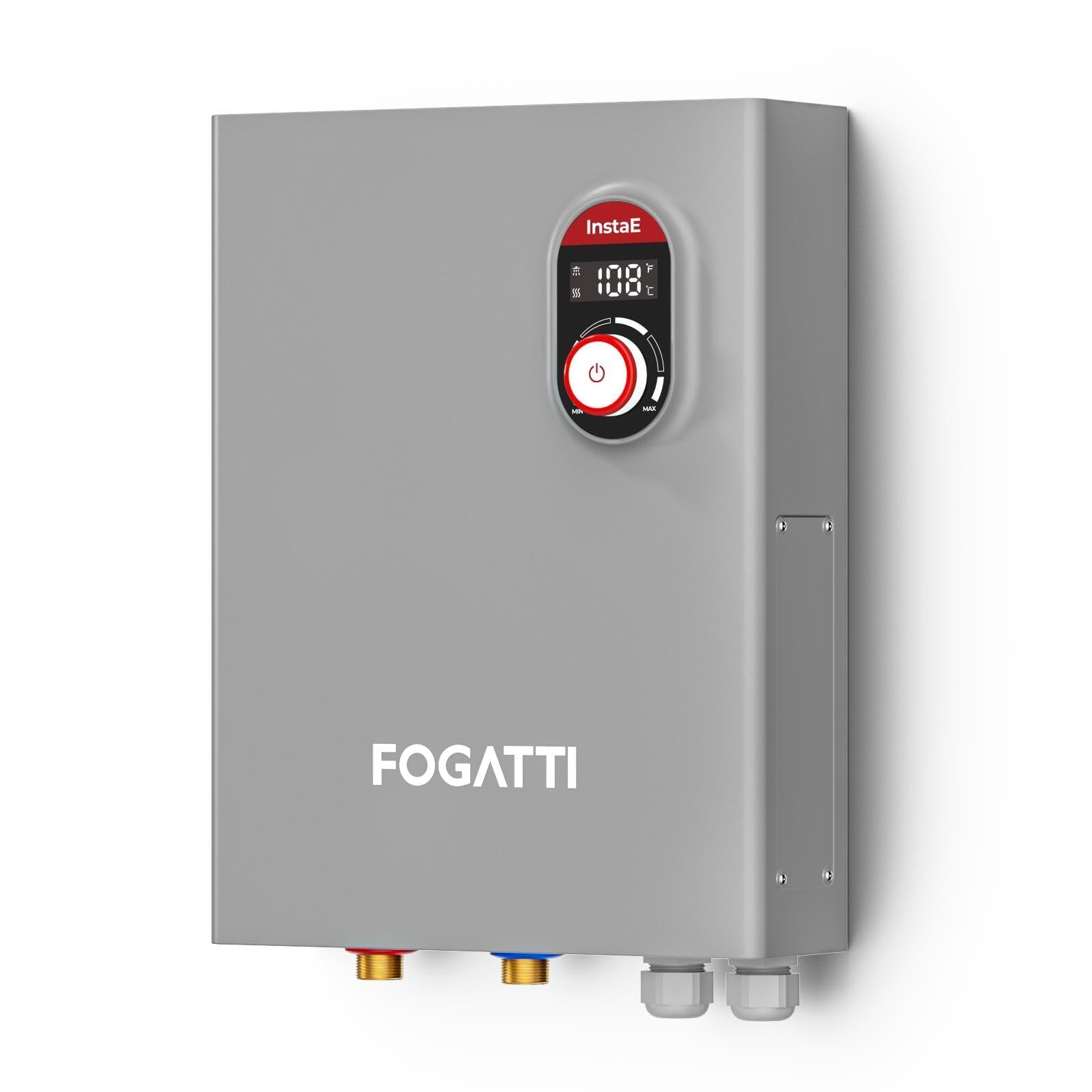

7. Fogatti 27kW Tankless
The Fogatti 27kW electric tankless water heater hits a practical middle ground between the lighter 18 kW units and the massive 36 kW models, offering up to 6.7 GPM of continuous hot water at 98% thermal efficiency. This flow rate supports three to four usage points simultaneously, making it a viable whole-home solution for moderate-sized households in warmer climates.
Installation requires three 40-amp breakers and three 8 AWG wire sets with 3/4-inch NPT water connections — a step down from the four-breaker demands of 36 kW units. The wall-mounted cabinet measures 17.1 inches high by 12.9 inches wide, fitting easily into tight mechanical spaces. The intuitive knob controls and LED display allow precise 1°F temperature adjustment from 86°F to 140°F, and the ETL certification covers key safety protections.
Early adopters report strong performance as a replacement for failed tank units, particularly in warm climates where incoming water temperatures stay above 65°F. Two senior sisters living alone found the unit easy to install and sufficient for all their needs. The 27 kW output does struggle in colder northern regions, where incoming groundwater can drop below 50°F, reducing effective flow rate considerably.
What works
- 6.7 GPM handles 3-4 simultaneous points of use
- Lower breaker requirement than 36 kW models
- Intuitive knob and LED temperature controls
What doesn’t
- Flow rate drops significantly in cold climates
- Limited long-term reliability data
- Not suitable for whole-home use with large families in cold regions
8. GE 18 Gallon Lowboy
The GE 18 Gallon Lowboy is a traditional tank-style electric water heater designed specifically for spaces where height is the limiting factor. The lowboy configuration trades vertical height for a wider base, fitting into crawlspaces, alcoves, and mechanical rooms where a standard-height 40-gallon tank simply will not stand. The 3.8 kW element on a 240-volt circuit provides decent recovery for one to two-person households.
Construction includes a durable anode rod for corrosion protection and a rust-proof drain valve for long-term serviceability. The inlet tube replenishes water from the bottom of the tank to maximize hot water delivery, and the Uniform Energy Factor of 0.93 indicates respectable efficiency for a storage tank. The standard water and electrical connections simplify replacement of an existing lowboy unit.
Owners confirm that this unit handles three water-using rooms — kitchen, bath, and laundry — without running out of hot water, provided they avoid running the dishwasher and clothes washer simultaneously. The unit does not support long showers without recovery time, but for compact homes and workshops, the space-saving footprint is the defining advantage. Some units arrive with superficial dents from shipping, though functionality is typically unaffected.
What works
- Lowboy design fits where height is restricted
- Anode rod extends tank life
- Straightforward replacement installation
What doesn’t
- 18 gallons limits simultaneous hot water usage
- Longer recovery time than 40-gallon tanks
- Some units arrive with cosmetic shipping damage
9. CAMPLUX 18 Gallon
The CAMPLUX 18-gallon electric water heater is built for installations where only a 120-volt circuit is available, drawing 1500 watts through a standard 15-amp hardwired connection. The 18-gallon tank provides enough hot water for short showers, dishwashing, and laundry for one to two people, with a full recovery time of approximately 60 minutes from cold start.
The tank features a triple-layer enameled inner liner for corrosion resistance and an INCOLOY 800 stainless steel heating element that outperforms copper at higher temperatures. The built-in adjustable thermostat allows setting between 91°F and 150°F. The UL listing ensures compliance with safety standards, and the included T&P relief valve provides overpressure protection. Water connections use standard 3/4-inch NPT fittings.
Real-world users report success in pool houses, RVs, and vacation cabins where 120-volt power is the only option. One owner simply plugged the hardwired unit into a regular wall outlet after connecting water lines and reported months of trouble-free operation. However, some owners experienced a sulfur smell after three months of use, indicating potential bacterial growth in the tank that requires periodic flushing and anode rod inspection.
What works
- Runs on standard 120-volt circuit
- Triple-layer enamel tank resists corrosion
- INCOLOY heating element lasts longer than copper
What doesn’t
- Slow recovery time at 1500 watts
- Some units develop sulfur smell within months
- Manual drain instructions are inaccurate
10. ThermoMate 18 Gallon
The ThermoMate 18-gallon electric water heater targets budget-conscious buyers who need a compact storage tank for point-of-use applications like a kitchen sink, bathroom vanity, or workshop. The 1500-watt, 120-volt heating element provides adequate recovery for hand washing and short showers, and the porcelain enamel glass inner coating resists rust and high-temperature degradation.
The unit measures 19.25 inches wide by 25.75 inches tall, fitting easily under a counter or on a shelf. The UL listing confirms compliance with ASME, ANSI, and CSA standards, and the included T&P relief valve, high-temperature limit protection, and adjustable thermostat provide basic safety coverage. The INCOLOY 800 stainless steel heating element is a durable upgrade over standard copper elements, especially in hard water conditions.
Users who installed the ThermoMate as a preheater for a distant bathroom report inconsistent output temperatures due to water stratification inside the tank, making it unsuitable as a primary shower water heater for those who demand precise temperature control. The unit works best for dedicated hand-washing stations or as a booster in line with an existing larger water heater. Annual cleaning and anode rod inspection are required to maintain performance.
What works
- Affordable entry price for point-of-use applications
- Porcelain enamel tank resists rust well
- UL certified with multiple safety protections
What doesn’t
- Inconsistent temperature output for showers
- Requires annual maintenance for best results
- Not suitable as a primary whole-home water heater
Hardware & Specs Guide
Uniform Energy Factor (UEF)
UEF measures the overall efficiency of a water heater under standardized test conditions. A higher UEF — typically 0.93 or above for electric tanks — means less standby heat loss and lower annual operating costs. Tankless units generally achieve UEF ratings above 0.98 because they eliminate standby losses entirely, but their actual savings depend heavily on usage patterns and incoming water temperature.
Sacrificial Anode Rods
Anode rods attract corrosive elements in the water so the tank steel does not rust. Standard aluminum-zinc rods last three to five years depending on water chemistry. Powered anode rods use a low-voltage current to suppress corrosion without depleting material, offering indefinite protection. Units without an accessible anode rod cannot be serviced, and the tank will eventually leak once corrosion breaches the liner.
FAQ
Can a 40-gallon electric water heater support a family of four?
How do I know if my electrical panel can handle a tankless unit?
Final Thoughts: The Verdict
For most users, the electric water heater 40 gallon winner is the Rheem RETEX-36 because it delivers endless hot water with self-modulating efficiency and a proven track record. If you want German engineering and a solid copper heating system, grab the Stiebel Eltron Tempra 36 Trend. And for tight spaces where a standard tank won’t fit, nothing beats the GE 18 Gallon Lowboy.
