Few things ruin a morning faster than stepping into a shower that goes from warm to icy without warning. Whether it’s the third person in line or the dishwasher kicking on, traditional tank technology often can’t keep up with real-world demand. The shift from bulky storage tanks to compact, high-efficiency electric units has changed the game, but picking the wrong size or type for your home’s plumbing and electrical setup can leave you frustrated and out hundreds of dollars in rework costs.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing electric water heater specs, studying installation requirements, and cross-referencing real owner reports to separate marketing claims from the actual performance buyers can expect.
This guide breaks down the nine best models on the market right now, from instant tankless units to durable storage tanks, covering the electrical demands, flow rates, and recovery times that actually matter. Whether you are replacing an old unit or building new, here is everything you need to pick the right electric water heater for your home.
How To Choose The Best Electric Water Heater
Choosing an electric water heater is less about brand loyalty and more about matching three variables: your home’s electrical service capacity, the number of simultaneous fixtures you need to supply, and your local ground water temperature. A unit that works perfectly in Florida may fail entirely in a Minnesota winter if the kW rating is too low to raise the incoming water temperature to a usable level.
Match kW to Incoming Water Temperature and Flow
Tankless heaters are rated in kilowatts (kW). The colder your incoming ground water, the more kW you need to achieve a given temperature rise. For a 4.4 GPM shower raising water from 50°F to 105°F, you need roughly 18 kW. If your ground water drops to 40°F in winter, that same 18 kW unit may only deliver 3.2 GPM — meaning one shower max, not two. Always calculate the temperature rise required for your climate, not just the peak GPM advertised on the box.
Breaker and Wire Size Requirements Cannot Be Ignored
Every tankless electric heater demands dedicated breakers and thick copper wire. An 18 kW unit at 240V pulls 75 amps, requiring two 40-amp double-pole breakers and 8 AWG wire. A 27 kW unit needs three 40-amp breakers and three sets of 8 AWG wire. If your electrical panel lacks open slots or headroom, you may need a costly service upgrade before the heater can even be installed. Tank heaters (120V or 240V) are far less demanding — most need only a single 15- or 20-amp circuit.
Recovery Rate vs. First Hour Rating for Tank Units
For storage tank heaters, two numbers matter more than tank size alone: recovery rate (how fast it reheats a full tank) and first hour rating (how much hot water it can deliver in the first hour of heavy use). A 30-gallon tank with two 5500W elements can deliver over 50 gallons in the first hour because it reheats quickly. A 40-gallon tank with a single 1500W element may deliver less than 30 gallons before running cold. Always check the first hour rating — it reveals true real-world capacity.
Point-of-Use vs. Whole-House
Point-of-use heaters (6 to 18 gallons) sit under a sink or in a cabinet and serve one or two fixtures. They eliminate long pipe runs and wait times but cannot support a whole household. Whole-house tankless units (18 kW to 36 kW) or large storage tanks (30+ gallons) feed the entire home. If your primary goal is to end cold showers for the whole family, skip the small point-of-use units and invest in a properly sized whole-house solution.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Ecosmart ECO 24 | Tankless | High-efficiency whole house | 24 kW, 5.8 GPM, 99.8% eff. | Amazon |
| GE 30 Gallon | Storage Tank | Small families, 1-3 people | 30 gal, 53 gal first hour | Amazon |
| Westinghouse 18kW WiFi | Tankless | Smart home integration | 18 kW, 4.2 GPM, IPX4 | Amazon |
| Mizudo 27kW | Tankless | High-demand, 3-4 fixtures | 27 kW, 6.3 GPM, ±1°F control | Amazon |
| ThermoMate 18kW | Tankless | Mid-size homes, 2 bathrooms | 18 kW, 4.4 GPM, self-modulating | Amazon |
| CAMPLUX 18 Gallon | Storage Tank | Point-of-use, RVs, cabins | 18 gal, 1500W, 120V | Amazon |
| FOGATTI HybridShower 10 Ultra | RV Hybrid | RV / off-grid hybrid use | 10 gal, 12000 BTU + 1440W | Amazon |
| Reliance 6 SOMS K | Storage Tank | Under-sink supplement | 6 gal, 1650W, 120V | Amazon |
| MIZUDO 10 Gallon | Storage Tank | Small point-of-use, 120V | 10 gal, 1500W, UL listed | Amazon |
In‑Depth Reviews
1. Ecosmart ECO 24
The Ecosmart ECO 24 is a benchmark in the tankless electric category, delivering 24 kW at 240 volts with a flow rate of up to 5.8 GPM. Its patented self-modulating technology adjusts power consumption in real time based on incoming water temperature and flow, achieving a claimed 99.8% energy efficiency.
Installation requires three 40-amp double-pole breakers and three sets of 8 AWG wire, which means a significant electrical panel commitment. Owners report that digital temperature display and simple controls make setup straightforward, though the unit’s performance in cold northern winters drops noticeably — incoming water at 40°F cuts the usable GPM by nearly half. The compact 17x17x3.5-inch footprint frees up substantial floor space compared to a tank heater.
Long-term reliability data from owners is mixed. Some report units running for years without issue in mild climates like Arizona, while others experienced leaking solder joints on heating tubes right out of the box. The 5-year spare parts availability from the manufacturer is reassuring, but the quality control variance means you should inspect the unit thoroughly before mounting it.
What works
- Very high efficiency rating; noticeably lower electric bills reported by owners
- Compact wall-mount design saves considerable floor space
- Digital temp display offers fine 1°F control
What doesn’t
- Requires three 40A breakers; heavy electrical demand
- Performance drops sharply with cold incoming water
- Some quality control issues with solder joints and heating elements
2. GE Appliances 30 Gallon Electric
The GE 30 Gallon electric storage heater is a straightforward, high-recovery tank unit designed for households of one to three people. Two 5500-watt heating elements operate at 240 volts, giving it a first hour rating of 53 gallons — meaning it can deliver well over its 30-gallon tank capacity in the first hour of heavy use. That recovery speed is the key difference versus smaller tank heaters that run cold mid-shower and take an hour to recover.
At just 30 gallons of actual storage, the unit is shorter than standard 40- or 50-gallon tanks, making it a viable replacement in tight utility closets or basements with low overhead clearance. The inlet tube feeds cold water to the bottom of the tank to maximize hot water draw from the top, a design detail that directly improves usable capacity. The anode rod provides corrosion protection, though owners in areas with hard water should still plan on inspecting it annually.
Installation uses standard 3/4-inch NPT water connections and a 240-volt hardwire, though the included clip connectors are poorly suited for 10-gauge wire — several owners reported loose connections that required soldering or replacement. A few isolated reports of units failing to produce any hot water after installation suggest checking the thermostat settings and breaker connections carefully before assuming the unit is defective.
What works
- Fast recovery with dual 5500W elements minimizes wait time between showers
- Compact short tank fits in low-clearance spaces
- Proven brand with widely available replacement parts
What doesn’t
- Included wire clip connectors are unreliable with 10 AWG wire
- Limited to 1-3 person households; larger families need 40+ gallons
- No smart home features or WiFi connectivity
3. Westinghouse Tankless 18kW WiFi
The Westinghouse 18kW tankless heater stands out for its integrated WiFi module, allowing you to adjust temperature and monitor usage remotely through an app compatible with Alexa and Google Home. At 4.2 GPM maximum flow, it is designed for 1-2 simultaneous fixtures — enough for a shower and a sink or dishwasher running together. The 0.66 GPM starting flow rate means it activates even on very low-flow fixtures like a trickling bathroom faucet.
The unit is ETL certified with four-layer protection (leakage, overheat, dry-fire, high voltage) plus an IPX4 water-resistant rating, which is uncommon for indoor-only tankless heaters. That IPX4 rating means it can handle splashing or humid environments better than most, but it is still not rated for outdoor or freeze-prone installations. The separate water-electricity pathway is designed to reduce scale buildup on the heating elements, which directly addresses a common failure point in tankless heaters.
Installation requires two 40-amp double-pole breakers and 8 AWG wire with 3/4-inch NPT connections. Owners in warmer climates like Arizona report the unit handles simultaneous shower and dishwasher use without temperature drop, though users in colder regions should expect reduced flow. The app control is a genuine convenience for pre-heating a shower from bed, but the front panel controls work identically if you prefer to skip the smart features.
What works
- WiFi and voice control via Alexa/Google Home is genuinely useful
- IPX4 rating offers extra protection in humid installations
- Separate water-electricity pathway reduces scale buildup
What doesn’t
- 4.2 GPM max may struggle with 2+ simultaneous showers in cold climates
- Requires 2x 40A breakers and 8 AWG wire; not a simple swap
- App control is redundant with front panel for most users
4. Mizudo 27kW Tankless
The Mizudo 27kW is one of the most powerful tankless electric heaters in this lineup, rated at 27 kW and 240 volts with a maximum flow of 6.3 GPM. That flow rate is enough to supply three to four points of use simultaneously — two showers, a dishwasher, and a washing machine — provided the incoming water temperature stays above 50°F. The self-modulating chip claims to make 20,000 adjustments per second to maintain the outlet temperature within ±1°F of the set point between 86°F and 140°F.
Installation is the most demanding in this review: three 40-amp double-pole breakers, three sets of 8 AWG wire, and 3/4-inch NPT water connections. The compact dimensions of 17.05 inches by 3.5 inches allow it to mount flush against a wall, but the electrical requirements mean this is not a casual DIY project unless your panel already has three open double-pole slots. The 98% energy efficiency rating is slightly below the Ecosmart’s 99.8%, but the gap has negligible impact on your monthly bill — proper sizing matters far more.
Owner feedback highlights the instant hot water delivery and consistent temperature hold as major pluses, with several noting the digital LED touch display is responsive and easy to read. A common caution is that the unit must be installed in a conditioned space — freezing temperatures will shut it down with an error code. For Southern homes or interior installations, the 27 kW unit delivers remarkable capacity, but it is overkill for smaller households or warmer climates where an 18 kW unit would suffice.
What works
- 6.3 GPM handles 3-4 fixtures simultaneously without temp drop
- ±1°F temperature stability is noticeable during long showers
- Compact wall-mount design saves significant floor space
What doesn’t
- Requires three 40A breakers; electrical setup is expensive and complex
- Overkill for small homes or warm climates
- Must be installed in conditioned space; not for unheated basements

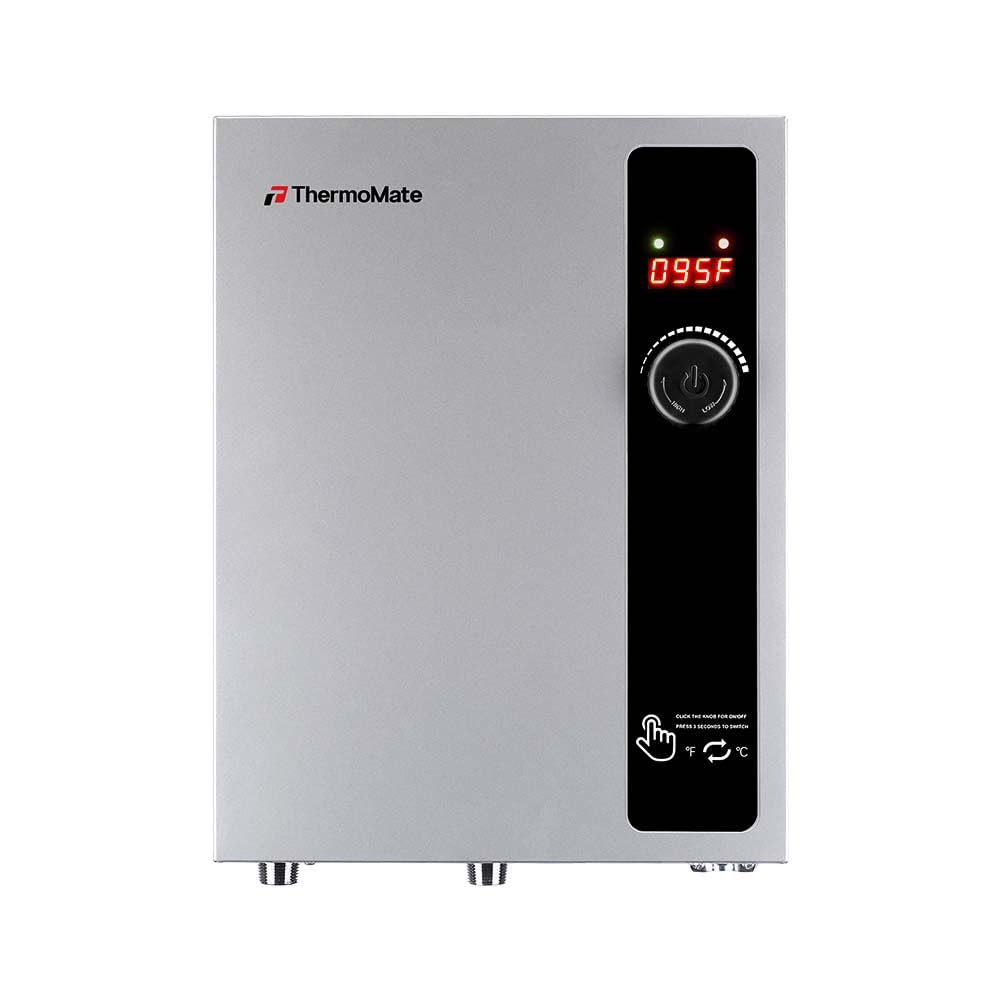

5. ThermoMate 18kW Tankless
The ThermoMate 18kW tankless electric heater offers the most cost-effective entry point into whole-house tankless water heating without sacrificing essential features. Rated at 18 kW and 240 volts, it delivers up to 4.4 GPM with self-modulating technology that adjusts power output based on incoming water temperature and flow rate, achieving 99.8% efficiency. The heating element is separated from the water tube to reduce scale buildup, a design choice that directly lowers long-term maintenance compared to traditional immersion elements.
Installation requires two 40-amp double-pole breakers with 8 AWG wire and 3/4-inch NPT connections — the standard electrical requirement for any 18 kW class unit. The unit measures just 3.12 inches deep, making it one of the slimmest options for tight wall spaces. The digital temperature display allows adjustment from 80°F to 140°F in 1°F increments. Owners in Central Florida report that the 18 kW unit handles two concurrent showers plus dishwasher and laundry without noticeable temperature drop, and several noted significant electric bill reductions — one owner reported a drop from to per month.
The ETL certification covers overheating protection and dry-fire prevention, and the unit will automatically stop heating if no water flow is detected. However, a known issue with this and many 18 kW units is LL error code shutdowns when incoming water temperatures drop below 50°F in winter — the unit simply cannot raise the temperature enough at full flow and shuts off as a safety measure. This is not a defect; it is a physics limitation of 18 kW with cold incoming water.
What works
- Strong 4.4 GPM handles two showers plus appliances in moderate climates
- Self-modulating technology reduces electric bills noticeably
- Separated heating element design reduces scale and maintenance
What doesn’t
- LL error code triggers with cold incoming water below 50°F
- Requires 2x 40A breakers; not an easy swap for most homes
- Long-term durability of electronics is unproven
6. CAMPLUX 18 Gallon
The CAMPLUX 18 Gallon electric storage heater is a point-of-use tank unit designed for situations where 120-volt power is the only option. With a single 1500-watt element, it requires only a 15-amp circuit and can be plugged into a standard wall outlet — a major simplification over the 240-volt hardwire required by tankless heaters. The 18-gallon capacity is enough for a short shower, washing dishes, or serving as a booster for a larger system in a pool house, RV, or remote cabin.
The tank features a triple-layer enameled inner liner with an INCOLOY 800 stainless steel heating element that is more corrosion-resistant than standard copper elements. The built-in T&P relief valve meets ASME and ANSI standards, and the unit is UL listed. Recovery time is slow — roughly 60 minutes to heat 18 gallons from cold — so consecutive showers are not practical. The adjustable thermostat ranges from 91°F to 150°F, and owners recommend setting it above 120°F to maximize the usable hot water draw before the tank refills with cold water.
Floor-mounted installation requires 3/4-inch NPT water connections, and the unit weighs about 100 pounds when full, so placement on a solid floor is necessary. Some owners reported an initial rotten egg smell after a few months of use, which suggests the anode rod may need replacement or the tank may be developing bacteria in settings with infrequent use. The 2-year parts and 3-year leak-free warranty is decent for this price tier, but the slow recovery makes it unsuitable as a primary heater for a busy household.
What works
- Runs on a standard 120V 15A circuit; no electrician needed for most
- 18-gallon capacity provides decent hot water for single-fixture use
- Enameled tank and stainless steel element resist corrosion
What doesn’t
- Very slow recovery — 60 minutes to reheat from cold
- Not suitable for consecutive showers or high-demand households
- Some owners report sulfur smell after a few months

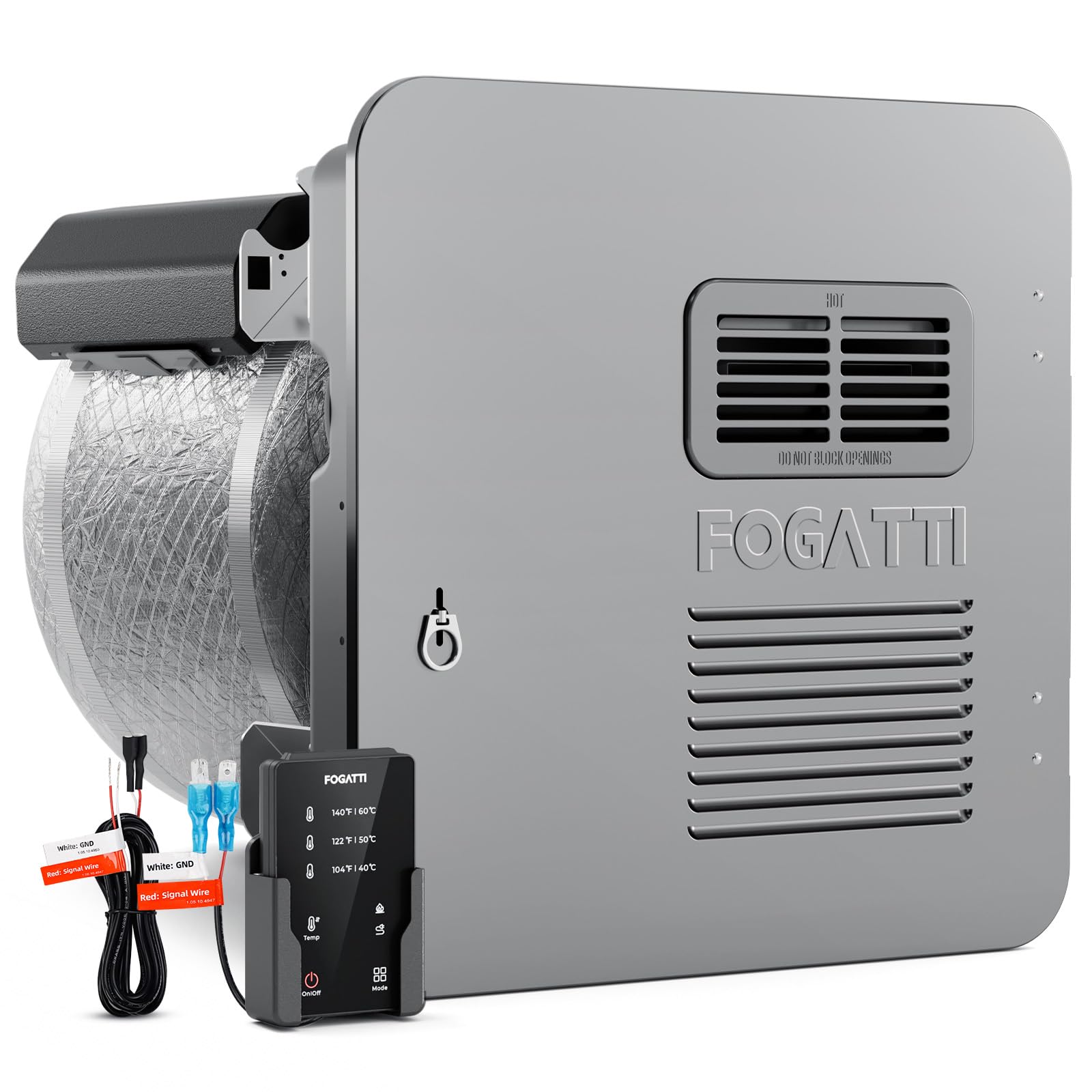

7. FOGATTI HybridShower 10 Ultra
The FOGATTI HybridShower 10 Ultra is a hybrid RV water heater that combines a 12,000 BTU propane burner with a 1440-watt electric heating element, giving you three operating modes: gas only, electric only, or hybrid (both running simultaneously). Designed to fit standard RV wall openings with compatibility for Suburban and Dometic 10-gallon tank replacements, it uses 12V DC DSI ignition and standard 1/2-inch NPT water connections. The hybrid mode is the key feature — running both gas and electric together delivers faster recovery than either source alone, though owners report it still runs out of hot water faster than expected under heavy use.
Construction uses alloy steel and titanium, with a 10-gallon tank rated to 150 PSI and 140°F maximum temperature. The extended depth design adds roughly three inches of rear clearance beyond the wall opening, so verifying your RV’s available depth before purchase is essential. The included wired controller provides temperature adjustment and mode selection, though the bright keypad lights may be distracting in a dark RV at night. The unit is designed for off-grid camping (gas mode), campground hookups (electric mode), and high-demand situations (hybrid mode).
Owner experiences are mixed. Several report easy DIY installation and consistent hot water with low propane consumption. However, recurring complaints include supplied fittings that leak (requiring NPT pipe fittings, gasket maker, and plumber’s tape to seal) and hot water running out quickly even in hybrid mode. One owner noted that it cannot run multiple hot faucets simultaneously without a noticeable drop in temperature. The 3- and 5-star reviews are split roughly evenly, suggesting quality control and realistic capacity expectations are the main issues.
What works
- Hybrid gas+electric mode provides faster recovery than either alone
- Designed to fit standard Suburban and Dometic RV openings
- Flexible operation for off-grid, campground, or combined use
What doesn’t
- Supplied water fittings are prone to leaking; replacements needed
- Runs out of hot water faster than expected even in hybrid mode
- Cannot support multiple hot water fixtures simultaneously
8. Reliance 6 SOMS K 6 Gallon
The Reliance 6 SOMS K is a 6-gallon point-of-use electric water heater designed for under-sink installation in RVs, cabins, or as a supplement to a larger whole-house system. Running on 120 volts with a 1650-watt element, it heats water reasonably fast for its size and provides enough hot water for two quick showers in an RV setting or for washing hands and dishes at a remote sink. The glass-lined tank with an anode rod offers basic corrosion protection, and the side-mounted connections allow it to fit into tight cabinet spaces.
Installation requires a dedicated 20-amp hardwired circuit — it does not come with a 120V plug, so a junction box and switch are needed. The 3/4-inch NPT water connections are standard, and the unit weighs about 100 pounds when full, so the mounting location must be solid. The maximum pressure rating is only 80 PSI, which is lower than most other units in this review, meaning a pressure-reducing valve may be necessary if your home’s water pressure exceeds that limit. The tank does not have an adjustable thermostat, so the outlet temperature is fixed.
Owner feedback is generally positive for its intended use case. Several praise it as an excellent inline supplement for a whole-house gas heater, providing instant hot water at distant fixtures without running long pipes. A recurring complaint is the poor packaging from the manufacturer — many units arrive with damaged outlet threads or T&P valves, requiring replacement of fittings before installation. The lack of thread protectors in the box seems like a glaring oversight for a product that ships nationwide.
What works
- Compact size fits under most sinks and cabinets
- Good as a supplemental heater for remote fixtures
- Glass-lined tank with anode rod offers basic protection
What doesn’t
- Poor packaging leads to damaged threads and T&P valves in transit
- No adjustable thermostat; fixed outlet temperature only
- Low 80 PSI maximum pressure may require a pressure-reducing valve

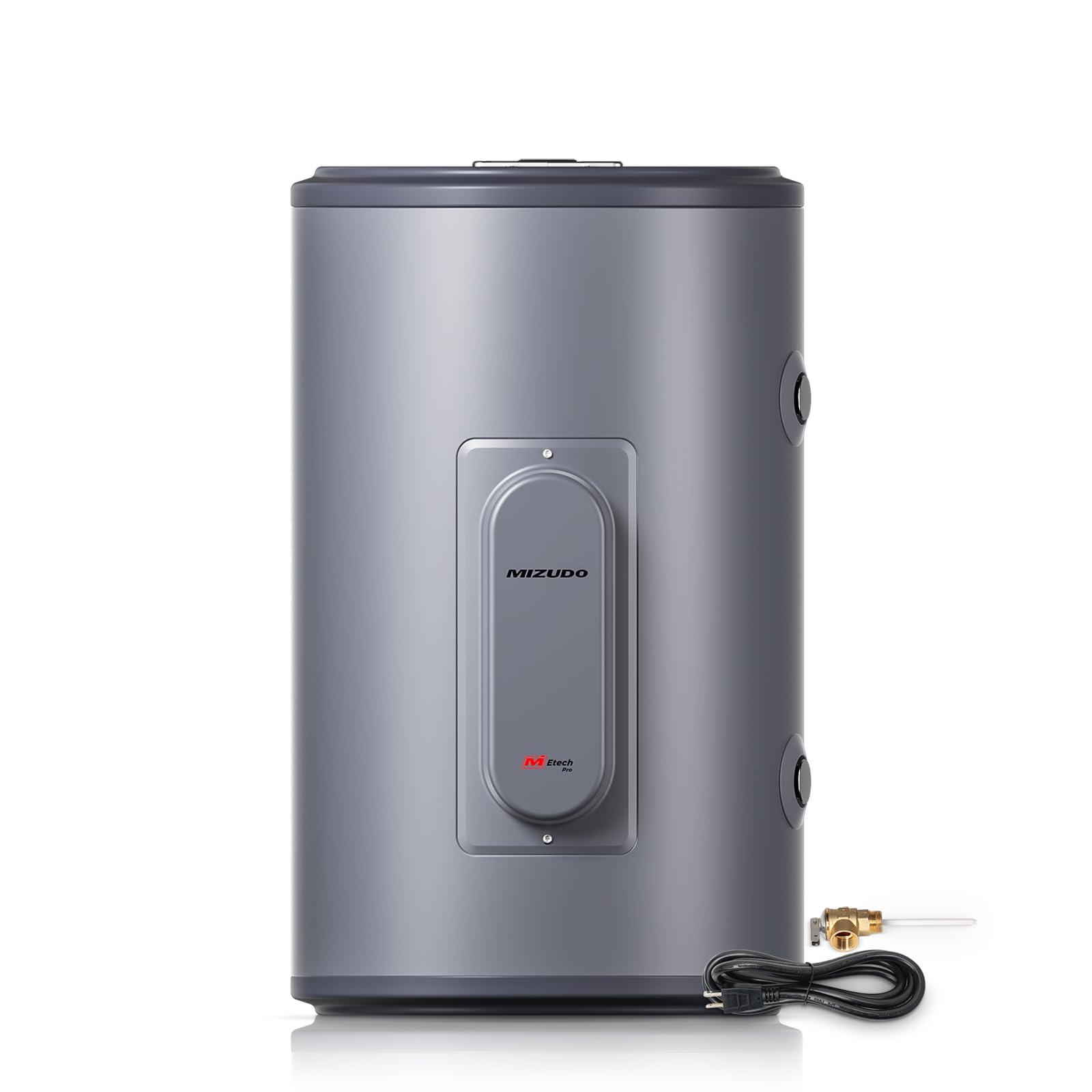

9. MIZUDO 10 Gallon Point of Use
The MIZUDO 10 Gallon electric water heater is a compact storage tank unit running on 120 volts with a 1500-watt element, designed for point-of-use installation in kitchens, bathrooms, RVs, boats, cabins, or shops. It heats 10 gallons to temperature in roughly 60 minutes and holds the water with insulation that minimizes standby heat loss. The adjustable thermostat ranges from 90°F to 150°F, giving you control over the outlet temperature to match your specific fixture needs. The enamel-coated tank interior with a replaceable anode rod aims to provide corrosion resistance and extend service life.
Installation is straightforward with 3/4-inch NPT water connections and 120V hardwiring on a 20-amp circuit. The unit measures 14.76 inches wide by 27.9 inches tall, which is compact enough for under-sink or cabinet mounting in most standard spaces. The UL certification and included T&P relief valve address safety concerns, with protections against dry combustion, overheating, high water pressure, and freezing. The maximum water pressure rating is 150 PSI, which is compatible with most residential systems without additional pressure regulation.
Owner reports are generally favorable for the price point, with many praising the easy installation and adequate hot water for a single sink or light use. Several owners noted the unit is nearly plug-and-play, though a dedicated circuit is required. Negative experiences include internal water leaking from the front panel cover after installation, suggesting a potential manufacturing defect in some units. One owner of a 4-gallon variant noted that the unit only provides 3-5 minutes of hot water for a shower before going cold, so the 10-gallon size is strictly for sink use or very short showers at best.
What works
- Easy installation on a standard 120V circuit
- Adjustable thermostat from 90°F to 150°F
- UL certified with multiple built-in safety protections
What doesn’t
- Some units arrive with internal leaks from the front panel
- 60-minute recovery time is slow for consecutive use
- 10-gallon capacity is only suitable for sink use or very short showers
Hardware & Specs Guide
kW Rating and Temperature Rise
The kilowatt rating of a tankless electric water heater directly determines how much it can raise the incoming water temperature at a given flow rate. The formula is: Temperature Rise (°F) = (kW × 3412) / (GPM × 500). For example, an 18 kW unit at 4.4 GPM can raise water temperature by roughly 28°F. If your ground water enters at 50°F, you get 78°F water — barely warm for a shower. At 3.0 GPM, the same unit delivers a 41°F rise, giving you 91°F water. Always calculate your required temperature rise from your local ground water temperature, not the advertised maximum GPM.
Breaker and Wire Sizing
Every tankless electric heater requires dedicated breakers sized at 125% of the continuous load. An 18 kW / 240V unit draws 75 amps (18,000W / 240V), requiring two 40-amp double-pole breakers (80 amps total capacity) and 8 AWG copper wire. A 27 kW unit draws 112.5 amps, requiring three 40-amp breakers. The National Electrical Code requires these circuits to be dedicated — no other loads can share them. Tank heaters are far less demanding: a 1500W / 120V unit draws 12.5 amps and fits on a standard 15- or 20-amp circuit with 14 or 12 AWG wire.
FAQ
Can an 18 kW tankless heater handle two showers at once in winter?
Why do some tankless units show an LL error code in winter?
Is a tankless electric heater more efficient than a storage tank heater?
Can I install an electric tankless heater myself, or do I need a professional?
Final Thoughts: The Verdict
For most users, the electric water heater winner is the Ecosmart ECO 24 because its 24 kW output and 99.8% efficiency provide the best balance of flow rate and energy savings for a standard whole-house installation without requiring the maximum electrical load of a 27 kW unit. If you want smart home integration and WiFi control, grab the Westinghouse 18kW for its Alexa and Google Home compatibility. And for a budget-friendly entry into tankless water heating that still delivers reliable 4.4 GPM performance, nothing beats the ThermoMate 18kW as a cost-effective solution for moderate climates.
