That moment the needle jumps or the display flickers — you need to trust the number, not hope for it. Whether you are tracing a short in an old furnace, verifying a panel is dead before you touch a wire, or diagnosing a parasitic drain on a modern car, an Electrical Multimeter is the one tool that separates guesswork from certainty. The market is flooded with options ranging from twenty-dollar specials to professional-grade instruments that cost ten times as much, but the real chasm is in safety certification, true RMS capability, and build integrity.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I have spent years breaking down hardware specifications and comparing the real-world performance claims of electrical test equipment against what the datasheets actually promise.
This guide walks through seven meters that cover the full scope of residential, automotive, and light-commercial work, so you can pick the best electrical multimeter for your specific troubleshooting needs without overpaying for features that will never touch your leads.
How To Choose The Best Electrical Multimeter
An Electrical Multimeter is not a set-and-forget purchase. The wrong choice can give you readings that drift by ten percent or expose you to arc-flash hazards on a 480V panel. Focus on four parameters that define real capability versus marketing fluff.
Safety Category Ratings
The IEC 61010 standard assigns CAT I through CAT IV based on the transient energy the meter can survive. CAT III 600V meters handle the spikes found on distribution panels and fixed-installation circuits. CAT II meters are fine for battery and appliance work but should never touch a mains panel. Always check the voltage rating paired with the category — a CAT III 300V meter is not the same as a CAT III 600V meter.
True RMS vs Average-Responding
Non-linear loads — variable frequency drives, LED drivers, switching power supplies — produce waveforms that average-responding meters read incorrectly. True RMS meters compute the heating value of the signal regardless of shape. If you plan to measure anything beyond a plain resistive heater or a sine-wave circuit, True RMS is non-negotiable.
Counts and Display Resolution
The count number — 2000, 4000, or 6000 — tells you the maximum digits the display can show. A 6000-count meter can resolve 0.001V on the 6V range, which matters for diagnosing sensor signals and voltage drops. Higher counts also mean the auto-ranging logic picks tighter ranges, giving you more decimal places without switching manually.
Clamp or Standard Form Factor
A standard handheld meter reads current by breaking the circuit and inserting the leads in series. A clamp meter reads current through the jaws around a single conductor without interrupting power. If you troubleshoot live panels, motors, or HVAC compressors regularly, the clamp form factor saves time and reduces risk.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Fieldpiece SC440 | Clamp Meter | HVACR / Pro Diagnostics | 600A AC clamp, 60MΩ, µA DC | Amazon |
| Fluke 15B+ | Handheld | General-Purpose / Home | 1000V AC/DC, 10A, CAT III 600V | Amazon |
| Klein CL320KIT | HVAC Kit | HVAC / All-In-One | 400A AC clamp, IR thermometer | Amazon |
| Klein MM420 | Handheld | Drop-Proof / Tight Spaces | 600V AC/DC, 10A, 6.6ft drop | Amazon |
| IDEAL 61-737 | Clamp Meter | AC-Only Clamp / Quick Checks | 400A AC clamp, NCV, CAT III 600V | Amazon |
| KAIWEETS HT118A | Handheld | Value / Feature-Packed | 6000 counts, 1000V DC, TRMS | Amazon |
| DEASOMIYE T28B | Handheld | Entry-Level / Magnetic Mount | 6000 counts, 1000V DC, NCV | Amazon |
1. Fieldpiece SC440 True RMS Clamp Meter
The Fieldpiece SC440 is the instrument you reach for when the service call involves a variable-frequency drive, a commercial refrigeration rack, or a rooftop gas pack. It packs a 600-amp AC clamp with inrush capture that grabs the starting surge on a compressor motor — a measurement that cheaper meters flat-out miss. The µA DC range lets you check flame-proving thermocouples on gas burners without adding a secondary microamp adapter.
Durability sets Fieldpiece apart from the mid-tier crowd. The housing absorbs repeated drops from ladder height, and the silicone test leads stay flexible down to cold-weather roof work. The NCV push-button saves you from cycling the rotary dial when you want a quick sanity check on a wire bundle. Auto and manual ranging give you the speed of automatic selection when you are in a hurry and the control of manual when you are chasing a drift in the tenths of a volt.
The carrying case holds the meter, leads, and thermocouple without bulging, and the detachable alligator probe tips allow one-handed testing on panel terminals. For techs who need one meter that covers electrical and thermal HVACR testing, the SC440 eliminates the second tool pouch.
What works
- Inrush current measurement captures motor start surges accurately
- µA DC range for gas valve flame diode testing
- Silicone leads stay supple in cold weather
- Rugged housing survives job-site drops
What doesn’t
- Must press the select button after power-on for continuity beep and amp readings
- Small tip covers can be easy to misplace
2. Fluke 15B+ Digital Multimeter
The Fluke 15B+ is the reference standard for homeowners and DIYers who want professional-grade reliability without the three-digit price tag of the 170-series. It measures up to 1000V AC and DC, so it handles everything from a 12V automotive circuit to a 480V three-phase panel safely. The input terminal for 10A current lets you verify motor draws and heater elements without needing an external shunt.
Fluke puts its safety engineering front and center with a CAT III 600V rating and overvoltage protection on every range. The display backlight is crisp enough to read in a dim crawlspace, and the continuity buzzer is loud enough to hear over a running generator. Auto-ranging is snappy and rarely hunts between ranges like budget meters do. The included test leads carry the same CAT III safety caps as Fluke’s pro models — no downgraded accessories to worry about.
Battery life is exceptional. Users report years of intermittent use on a single set of AAA cells. The molded yellow boot absorbs moderate drops and provides a secure grip even with oily hands. For a general-purpose meter that you can hand down to the next owner, the 15B+ is the safe bet.
What works
- Industry-leading safety engineering with CAT III 600V protection
- Loud, instant continuity buzzer
- Excellent battery life over years of intermittent use
- Clear, large-digit backlit display
What doesn’t
- No carrying case included
- No temperature measurement feature
3. Klein Tools CL320KIT HVAC Kit
The CL320KIT is not a single meter — it is a three-tool system designed specifically for HVAC technicians. The CL320 clamp meter handles AC current up to 400A through the jaws, plus DC microamps for flame sensor testing, and it includes a Type-K thermocouple input for duct temperature readings. The bundled IR07 infrared thermometer hits temperatures from -40 to 572°F without contact, while the NCVT3P voltage detector covers dual ranges from 12V to 1000V.
What makes this kit outperform buying separates is the organizational case. Every tool and probe has a molded slot, so you do not show up to a no-heat call missing the thermocouple adapter. The CL320 meter itself uses auto-ranging TRMS technology, which keeps readings accurate on the distorted waveforms produced by ECM blower motors and variable-speed compressors. The flashlight on the NCVT3P doubles as a work light for dark basements.
For residential HVAC service, this kit eliminates the extra trips to the truck for a dedicated thermometer or a separate voltage tester. Klein’s build quality matches the expectations of tradespeople who need tools that survive daily van life and rooftop exposure.
What works
- Complete HVAC kit with clamp meter, thermometer, and voltage tester in one case
- DC microamps range for flame sensor diagnostics
- Dual-range NCVT covers 12V to 1000V
- IR thermometer eliminates contact temperature measurement
What doesn’t
- Magnetic hanger for the clamp meter sold separately
- Push-on alligator clips not included

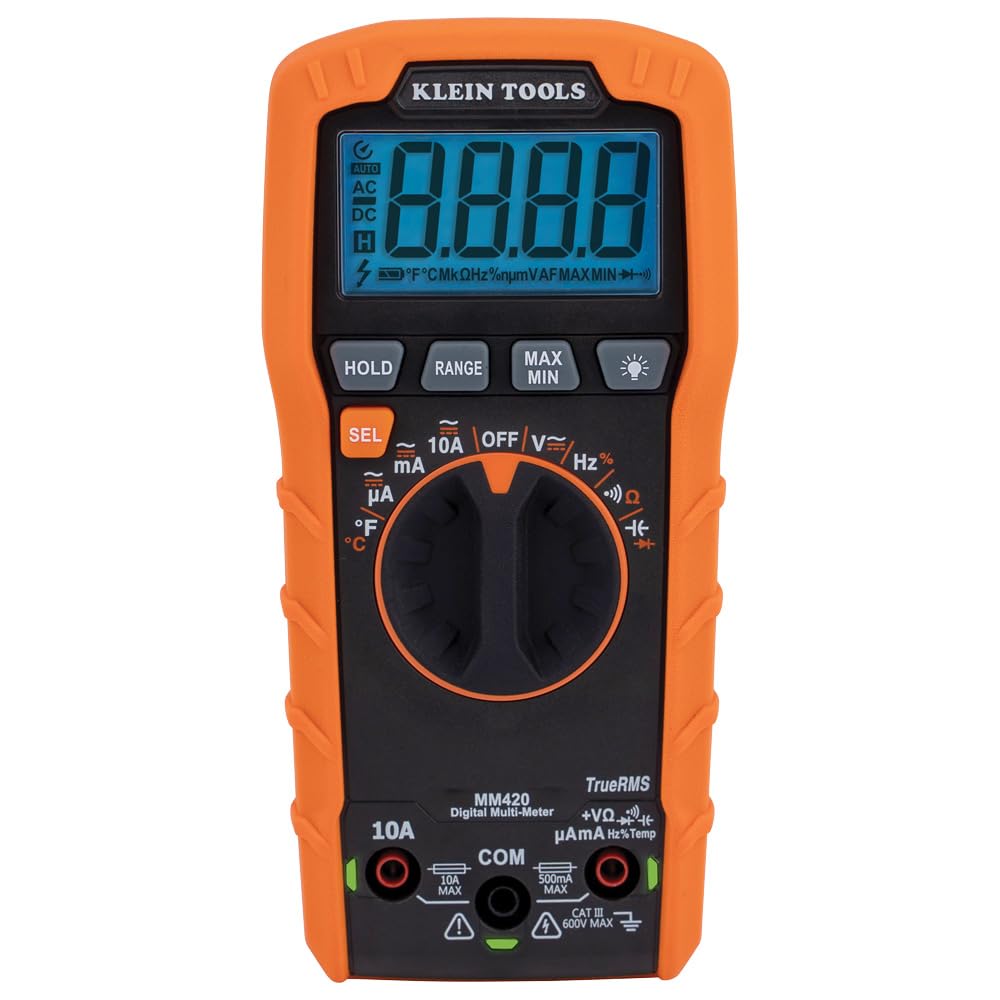

4. Klein Tools MM420 Auto-Ranging TRMS Multimeter
The MM420 is Klein’s answer to the working electrician who needs a handheld meter that can survive a fall off a ladder. Certified to withstand a 6.6-foot drop, it keeps working after impacts that would crack the case on less robust units. The Lead-Alert LEDs on the input jacks illuminate to show you exactly where to plug the test leads — a time-saver when you are working in low light and switching between voltage and current measurements.
Auto-ranging TRMS technology handles the non-sine-wave signals found on dimmer circuits and VFD outputs, and the 50MΩ resistance range is sufficient for most motor winding and sensor checks. The temperature function accepts a standard Type-K thermocouple, so you can measure duct or exhaust temperatures without a second instrument. The backlit LCD remains legible under direct sunlight or in a dark electrical closet.
The integrated test lead holders on the back and the optional magnetic hanger (sold separately) give you hands-free operation when you are probing a panel with both hands. Klein’s reputation for field durability — the same as their linesman pliers and screwdrivers — carries into the MM420. For residential, commercial, and light-industrial work where the meter lives in a toolbox with other heavy tools, this is a solid choice.
What works
- 6.6-foot drop rating for job-site durability
- Lead-Alert LEDs guide correct probe placement
- TRMS accuracy for distorted waveforms
- Temperature measurement via Type-K thermocouple
What doesn’t
- Magnetic hanger sold separately
- No low-impedance voltage detection feature

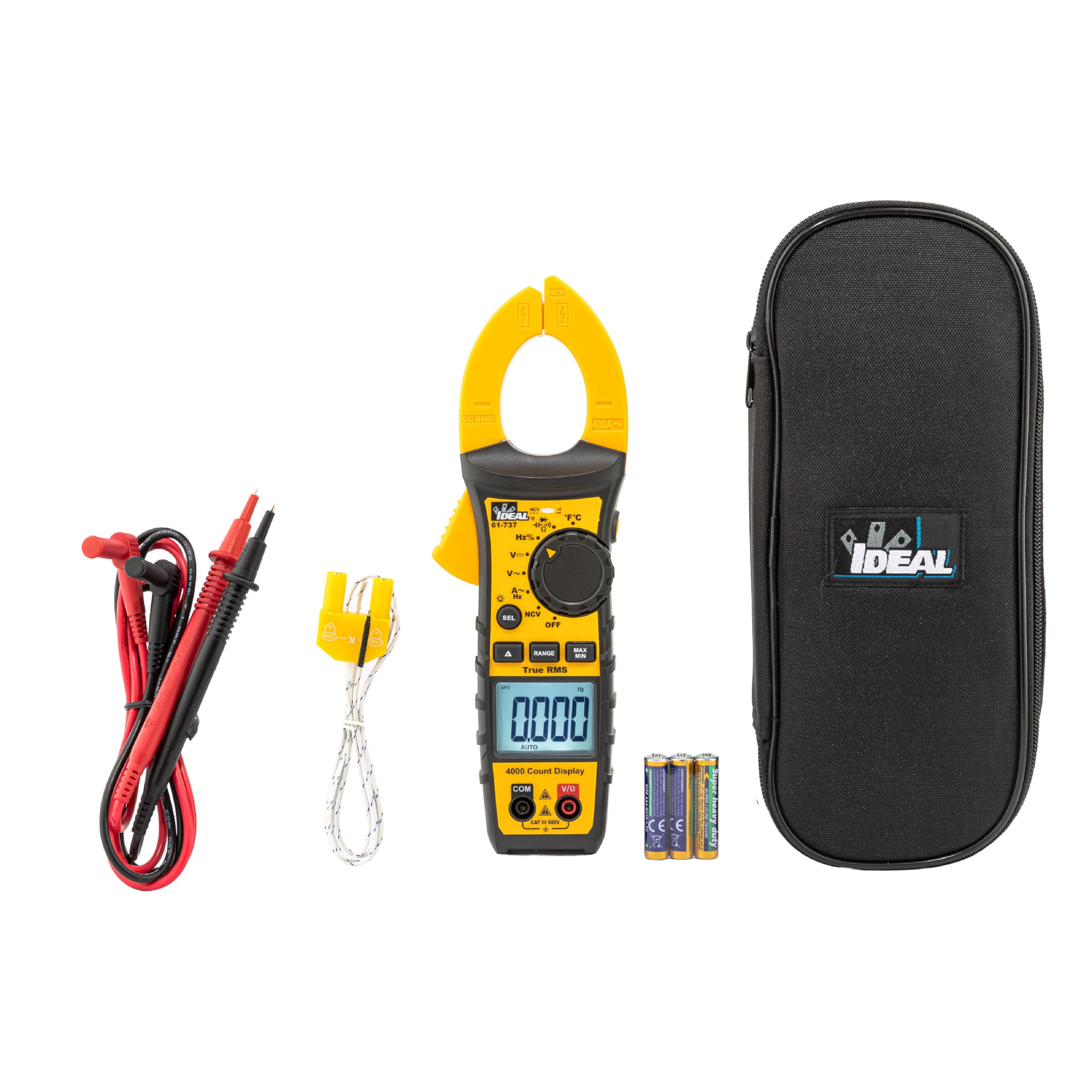

5. IDEAL INDUSTRIES 61-737 Digital AC Clamp Meter
The IDEAL 61-737 is a dedicated AC clamp meter built for electricians who need quick current readings without breaking the circuit. It measures up to 400A AC through the jaw and up to 600V AC/DC through the test leads. The True RMS engine keeps readings honest on variable-frequency loads, making it useful for checking motor drives and lighting ballasts.
One standout feature is the built-in probe tip holder on the side of the meter body. It stores the test probe tips securely when you are working with the clamp only, preventing the common frustration of dangling leads catching on panel edges. The non-contact voltage sensor provides audible and visual alerts across a 40V to 600V range, and the large backlit display is easy to read against bright sky or in a dim switchgear room.
This meter is AC-only on the clamp, so it will not measure DC current through the jaw — if you work on solar panels or battery banks, IDEAL makes a 747 model with DC clamp capability. The included storage pouch with a belt loop keeps the meter accessible all day. For an electrician focused on AC distribution and motor circuits, the 61-737 delivers professional clamp functionality at a mid-tier investment.
What works
- Built-in probe tip holder for tidy storage
- TRMS accuracy for AC motor and VFD loads
- NCVT with audible and visible alerts
- Rugged outer shell and belt-loop pouch included
What doesn’t
- AC-only clamp — no DC current measurement through jaw
- NCV sensor can be finicky and requires precise wire placement
6. KAIWEETS HT118A Digital Multimeter TRMS 6000 Counts
The KAIWEETS HT118A is the meter that punches above its weight class by offering a 6000-count display, True RMS, and a full slate of measurement functions — including capacitance, frequency, duty cycle, and temperature — at a price that competes with basic 2000-count units. The 6000-count resolution lets you read 0.001V on the millivolt range, which is critical for diagnosing oxygen sensor signals and thermocouple outputs in automotive work.
The user interface is deliberately beginner-friendly. The LED lights on the input jacks match the rotary dial position, so first-time users can see exactly where to plug the leads without second-guessing the manual. The backlit 2.9-inch display offers a wide viewing angle, and the built-in kickstand props the meter up on a bench or truck tailgate. The Min/Max/Average recording mode catches intermittent spikes on a 24V control circuit without staring at the screen for an hour.
Safety ratings reach CAT III 1000V and CAT IV 600V, with double ceramic fuses and thermistor protection against overload. KAIWEETS backs the HT118A with a 36-month after-sale service commitment. For a DIY enthusiast who wants pro-level features — capacitance, frequency, duty cycle — without the pro-level price, this is the strongest value proposition in the list.
What works
- 6000-count resolution for precise low-voltage readings
- LED jack illumination guides correct lead placement
- Min/Max/Average recording for intermittent fault capture
- 36-month after-sale service and lifetime technical support
What doesn’t
- No carrying case included
- Stiff PVC test leads out of the box
7. DEASOMIYE T28B True RMS Digital Multimeter
The DEASOMIYE T28B proves that a budget-friendly price does not have to mean sacrificing modern features. It packs a 6000-count display with True RMS capability, auto-ranging, and non-contact voltage testing into a compact body that weighs just over a pound. The magnetic back panel is the standout design choice — it attaches firmly to steel fuse boxes, panel covers, and ductwork, freeing both hands for probe manipulation.
Measurement ranges extend to 1000V AC/DC and 20A AC/DC, covering automotive, household, and light-industrial scenarios. The built-in flashlight illuminates dark breaker panels, and the large LCD backlit screen is legible even with bifocals. The auto-ranging logic works smoothly for voltage and resistance, so beginners do not need to understand range selection to get a valid reading.
Safety compliance meets 1000V CAT II and 600V CAT III standards, with two fuse positions protecting the 600mA and 20A ranges. The silicone protective case adds grip and shock absorption. For a first multimeter that covers basic electrical troubleshooting with zero learning curve — and stays put while you work — the T28B is a smart entry point.
What works
- Magnetic back panel for hands-free operation on metal surfaces
- 6000-count TRMS accuracy at an entry-level spend
- Built-in flashlight for dark panel and crawlspace work
- Includes storage bag, thermocouple, and batteries
What doesn’t
- CAT II rating limits safe use on high-energy industrial panels
- No temperature measurement function
Hardware & Specs Guide
CAT III vs CAT IV Safety Ratings
CAT III meters tolerate transients up to 600V or 1000V on fixed-installation circuits — think subpanels, lighting, and distribution boards. CAT IV meters add protection for utility-level connections like the main service entrance. Most residential and commercial work stays within CAT III territory. Never use a CAT II rated meter on a mains panel; the internal clearance and creepage distances are insufficient to survive a spike from a lightning strike or a capacitor bank switching.
True RMS vs Averaging
An averaging meter calculates the average rectified value of the incoming waveform and multiplies it by 1.1 — a correction that only holds for pure sine waves. Switching power supplies, variable frequency drives, and electronic ballasts produce pulsed or chopped waveforms that can be 30% higher than an averaging meter shows. True RMS meters digitize the waveform and compute the root-mean-square value directly, delivering correct readings regardless of shape. If your workload includes any modern electronics, True RMS is mandatory.
Auto-Ranging vs Manual Ranging
Auto-ranging meters select the best measurement range automatically, which speeds up troubleshooting when you have no idea whether you are measuring 5V or 500V. The trade-off is a slight lag as the meter hunts for the right range. Manual ranging gives you immediate, fixed-range readings and consumes less battery power, but it requires you to know the approximate voltage before you probe. Most modern meters offer both modes, letting you switch based on the task.
Clamp Meter Jaws: AC-Only vs AC/DC
AC-only clamp meters use a simple current transformer that cannot detect direct current. AC/DC clamp meters incorporate a Hall-effect sensor in the jaw, allowing them to measure DC current in battery banks, solar strings, and electric vehicle chargers. If you only work on AC distribution, AC-only clamps cost less and offer adequate performance. For automotive or renewable-energy diagnostics, AC/DC capability is essential.
FAQ
What does the count number mean on an Electrical Multimeter display?
Can I use a CAT II rated meter on a 240V household panel?
Final Thoughts: The Verdict
For most users, the best electrical multimeter winner is the Fluke 15B+ because it combines professional-grade safety engineering, reliable True RMS accuracy, and a measurement range that covers 99% of household and automotive tasks without the expense of a full pro-series meter. If you want dedicated HVAC capability with a clamp meter, infrared thermometer, and voltage tester in one organized kit, grab the Klein CL320KIT. And for the technician who needs a rugged, single-meter solution for commercial refrigeration and VFD diagnostics, nothing beats the Fieldpiece SC440.
