Whether you are tracing a dead outlet in a finished wall or verifying a three-phase motor disconnect, the difference between a reliable electrical tester and a cheap no-name meter is the fine line between a fast fix and a dangerous misread. Ghost voltage, false continuity tones, and fragile test leads waste time on commercial jobs and create real fire hazards at home.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years cross-referencing manufacturer datasheets, ANSI safety standards, and field-user failure reports to separate the meters that survive a drop from those that lie about a live circuit.
This guide compares seven units side by side, sorting them by real-world accuracy, build durability, and the specific diagnostic features that justify each price tier. If you need a trustworthy electrical tester for professional panel work or weekend troubleshooting, these picks remove the guesswork from your next purchase.
How To Choose The Best Electrical Tester
Selecting an electrical tester is about matching the meter’s safety envelope, measurement modes, and physical ergonomics to the specific circuits you touch daily. A general-purpose multimeter works for battery checks and low-voltage signal tracing, but a dedicated clamp meter with LowZ filtering is mandatory when diagnosing VFD-driven motors or long home runs that carry induced ghost voltages.
Safety Rating Hierarchy
The CAT rating defines transient-overvoltage protection. CAT II covers plug-connected appliances. CAT III handles distribution panels and fixed-installation circuits up to 600V. CAT IV applies to utility-level service entrances. For residential panel work, a CAT III 600V meter is the minimum — anything less risks arc flash during a transient spike from a lightning strike or utility switching.
True RMS vs. Average Sensing
Average-sensing meters only read pure sine waves accurately. Modern electrical environments are filled with variable-frequency drives, LED drivers, and switching power supplies that generate chopped or distorted waveforms. A True RMS (TRMS) electrical tester computes the actual heating value of any waveform, giving you correct voltage and current readings on non-linear loads where average-sensing meters can be off by 30% or more.
Form Factor and Specialty Functions
Clamp meters let you measure current without breaking the circuit — essential for live load checks on motors and panels. Non-contact voltage (NCV) pens provide a fast go/no-go safety check before you touch a wire. LowZ mode (sometimes called LoZ or auto-vloz) loads the circuit with a low impedance to drain phantom voltages and reveal only true mains power. A circuit breaker finder with GFCI test capability combines outlet wiring diagnosis with panel tracing in one tool, eliminating the need to carry three separate devices.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Crenova 606C+ | Clamp Meter | Industrial & HVAC | TRMS, 6000-count, LowZ, VFC | Amazon |
| Proster Digital Multimeter | Multimeter | Magnetic hands-free use | TRMS, CAT III 600V, magnetic back | Amazon |
| KAIWEETS KIT01 | Test Kit | DIY & HVAC diagnostics | Meter + NCV pen + GFCI tester | Amazon |
| Southwire 10037K | Test Kit | Home inspections | Manual-ranging, NCV, outlet tester | Amazon |
| KAIWEETS KT301P | Breaker Finder | Panel tracing & GFCI tests | LCD display, NCV, auto-hold | Amazon |
| Klein Tools 80064 | Breaker Kit | Professional circuit tracing | GFCI finder + NCV pen, zipper bag | Amazon |
| Fluke T+PRO | Voltage Tester | Daily commercial troubleshooting | OpenJaw current, SlimReach probes | Amazon |
In‑Depth Reviews
1. Crenova Clamp Meter Multimeter 606C+
The Crenova 606C+ packs more professional-grade features than any other clamp meter in its price band: True RMS for reading distorted waveforms on VFDs, LowZ mode to drain ghost voltages from long cable runs, and a VFC filter that stabilizes readings on variable-frequency drives without the bounce you see on cheaper meters. The 25mm jaw opens wide enough for a single 4/0 AWG conductor, and the 6000-count backlit LCD makes panel readings legible in dim basements.
Field reviewers consistently note the audible NCV alarm (48–250V) catches live wires before the probes touch, and the included K-type thermocouple extends diagnostic reach to motor winding temperatures up to 1832°F. The carrying pouch, alligator clips, and spare probe leads mean you can leave the accessory box in the truck and still have everything on-site for a full day of industrial maintenance.
For an electrician or HVAC tech who needs one meter that covers AC/DC clamp readings, inrush current capture, and temperature measurement without switching tools, this is the most versatile single-unit solution at this tier. The orange rubber overmold also handles a 4-foot drop onto concrete without cracking the housing.
What works
- True RMS with VFC filter for VFD work
- LowZ mode eliminates ghost voltage false reads
- 6000-count display with bright backlight and flashlight
What doesn’t
- Clamp jaw measures current only, not voltage
- Auto power-off can interrupt long monitoring sessions

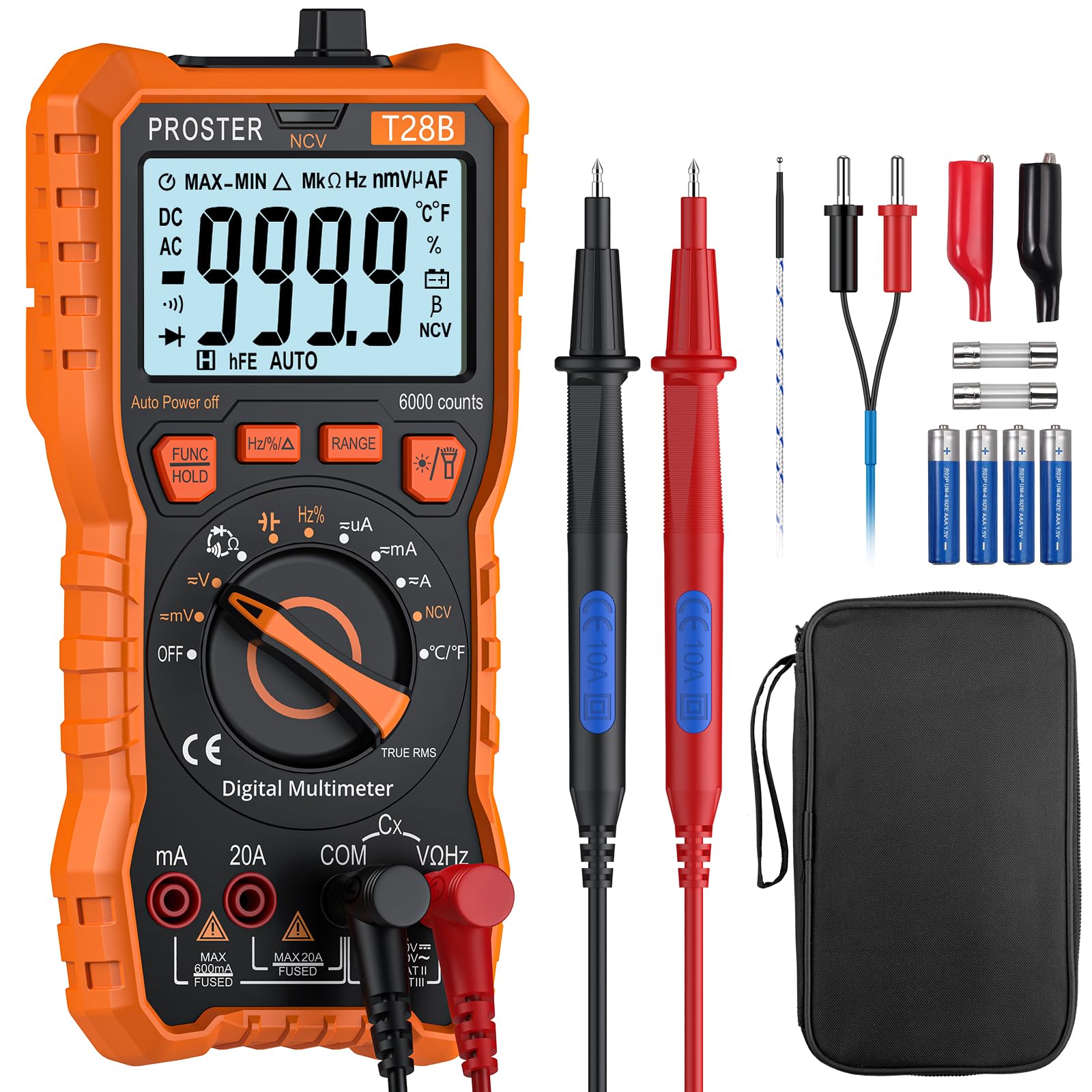

2. Proster Digital Multimeter with Magnetic Back
The Proster multimeter differentiates itself with a built-in rare-earth magnet on the back that sticks firmly to steel breaker panels, car chassis, and AC unit frames, freeing both hands for probe work. The fold-out kickstand angles the 6000-count display upward so you can read it while standing, and the probe storage slots on the back prevent the classic “lead dangling into live terminals” scenario that plagues magnetic-less meters.
Measuring AC/DC current up to 20A, resistance up to 60MΩ, capacitance, frequency, duty ratio, and temperature via the included K-type probe, this kit covers nearly every diagnostic scenario a maintenance tech or serious DIYer encounters. The silicone overmold and included spare fuses show attention to field durability, though the supplied test leads feel thinner than the premium silicone-jacketed leads on meters double the price.
For technicians who spend hours at breaker panels or under car dashboards, the magnetic mounting is a genuine productivity booster — you never set the meter down on a dusty surface or struggle to hold it while probing a cramped junction box. The COM port reliability concern reported by some long-term users suggests the spring contacts inside the input jacks may wear faster than on higher-end platforms.
What works
- Strong magnetic back for hands-free panel work
- TRMS with CAT III 600V / CAT II 1000V safety
- Complete kit with spare fuses and temperature probe
What doesn’t
- COM port reported intermittent after extended use
- Included leads feel entry-level for the feature set
3. KAIWEETS Electrical Test Kit KIT01
The KAIWEETS KIT01 bundles a digital multimeter, a smart non-contact voltage pen with LCD percentage readout, and a GFCI outlet tester into a single zippered carrying case, eliminating the need to buy three separate tools. The multimeter handles AC/DC voltage up to 600V, DC current to 10A, resistance to 20MΩ, continuity, diode checks, and battery testing for 1.5V and 9V cells — all backed by a CAT III 600V safety rating.
The NCV pen stands out with a color-coded LCD and numeric percentage display that shows relative field strength, plus dual-range sensitivity (12–1000V AC low range and 70–1000V AC high range) so you can detect low-voltage landscape wiring without false triggers near higher-energy lines. The GFCI tester automatically freezes its wiring-code result for five minutes, letting you walk back to the panel without losing the diagnosis.
For a homeowner or apprentice electrician building a first toolkit, this all-in-one package covers 90% of daily troubleshooting tasks — outlet wiring faults, tripped GFCIs, live-wire identification, and basic voltage checks — without the expense of separate meters. The three-year warranty adds confidence that the electronics will hold up through the learning curve.
What works
- Three essential testers in one organized case
- NCV pen with percentage readout and dual range
- GFCI tester auto-freezes results for five minutes
What doesn’t
- Multimeter lacks clamp capability for current
- Case is semi-rigid, not fully crush-proof
4. Southwire 10037K Electrical Test Kit
The Southwire 10037K takes a classic manual-ranging approach: you turn the dial to the expected voltage or resistance scale, and the needle-style LCD gives a clear, steady readout without the lag or range-switching confusion that sometimes trips up beginners on auto-ranging meters. The kit pairs the multimeter with a 90–1000V AC non-contact voltage detector and a standard 120V AC outlet tester, covering the three most common residential and light-commercial diagnostic scenarios.
The multimeter’s manual-ranging design forces you to think about the circuit you are testing — setting the dial to 200V AC before probing a live receptacle — which reinforces safe habits. The NCV pen’s tip glows red and beeps when it senses voltage inside insulated wires, and the outlet tester lights up to show correct wiring or identify open ground, reverse polarity, and other common faults.
For home inspectors and apartment maintenance techs who test hundreds of receptacles weekly, this kit’s simplicity and Southwire’s reputation for accuracy in the field make it a reliable daily-driver. The lack of a carrying case is the main drawback — you will need to supply your own pouch or bag to keep the three tools together.
What works
- Manual-ranging dial encourages deliberate safe testing
- NCV and outlet tester cover common inspection tasks
- Southwire’s brand reliability backed by years of field use
What doesn’t
- No carrying case included for the three tools
- Manual-ranging less convenient for quick pass/fail checks

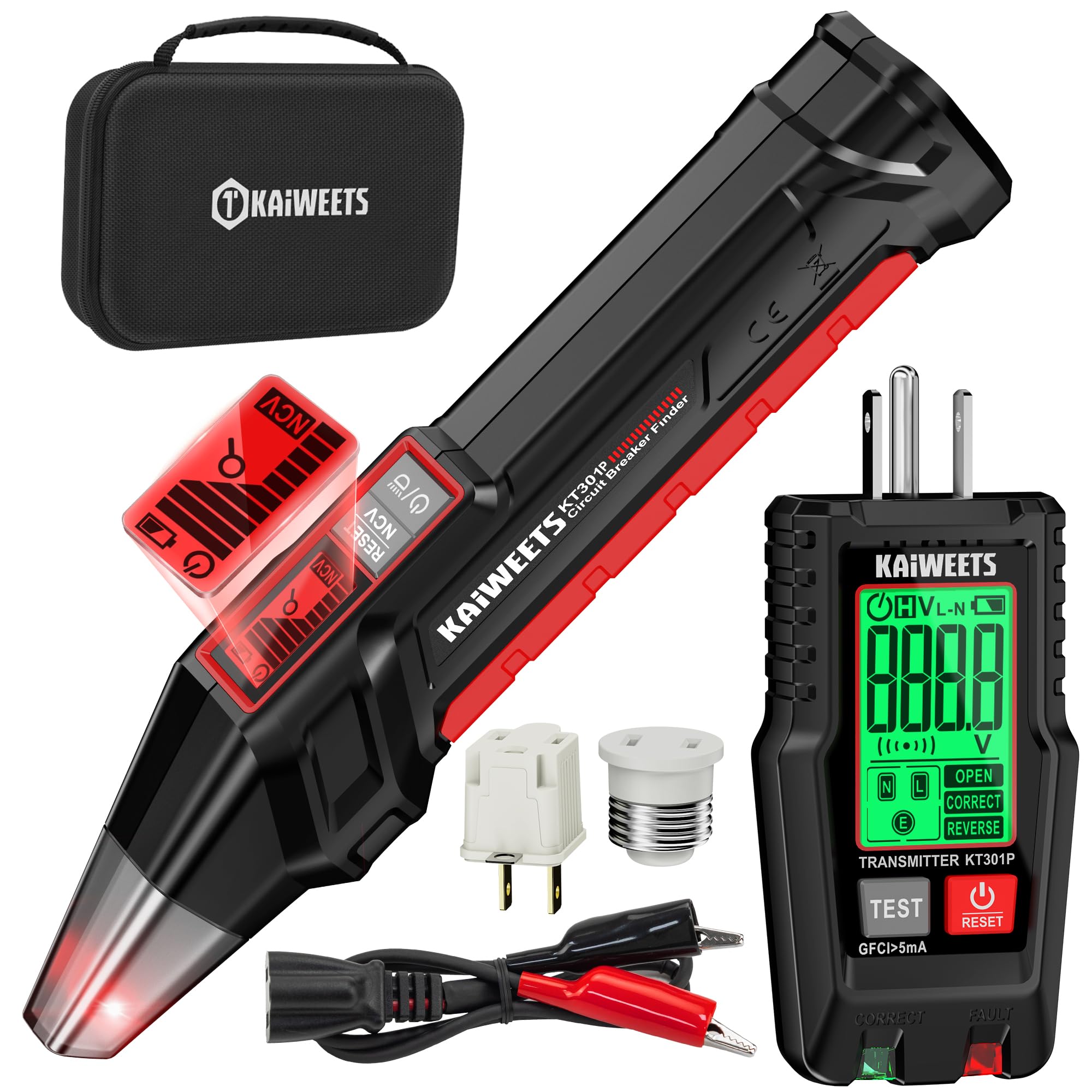

5. KAIWEETS KT301P Circuit Breaker Finder
The KAIWEETS KT301P is a specialized circuit breaker finder that combines a transmitter, receiver, and GFCI outlet tester into one tool with a large backlit LCD that shows real-time voltage (30–150V), outlet wiring status, and signal strength during panel scans. The receiver also functions as a non-contact voltage detector, so you can confirm a circuit is dead before removing the panel cover — all without switching tools.
The transmitter doubles as a GFCI outlet tester with automatic trip testing and red/green LED indicators, while the LCD displays seven common wiring fault codes. The included 3-prong to 2-prong adapter, light socket adapter, and alligator clip adapter let you trace circuits connected to switches, hardwired appliances, or older two-prong receptacles. The auto-hold function retains the last reading on the screen even after you unplug.
For electricians who need to map unlabeled breaker panels in commercial buildings or older homes, the two-pass scanning method (one pass to learn the panel, a second pass to identify the correct breaker) reliably eliminates the false positives that plague cheaper analog sniffers. The hard carrying case keeps the transmitter, receiver, and all adapters organized and ready.
What works
- Large LCD shows voltage, wiring status, and signal strength
- Includes adapters for 2-prong and light-socket circuits
- Auto-hold freezes GFCI results for later reference
What doesn’t
- Requires two passes for accurate breaker identification
- Must be reset between scans (not immediately intuitive)
6. Klein Tools 80064 AC Circuit Breaker Kit
The Klein Tools 80064 pairs a digital GFCI circuit breaker finder with a dedicated non-contact voltage tester pen, both packed into a contractor-grade zipper bag. The breaker finder transmitter plugs into the outlet under test and sends a digital signal that the receiver detects as you sweep across the breaker panel — visual and audible indicators ramp up in intensity when you pass over the correct breaker, making identification fast even in noisy electrical rooms.
The transmitter also functions as a standalone GFCI outlet tester: it detects correct wiring, open ground, reverse polarity, and other common faults, and tests GFCI trip functionality directly. The included NCV pen uses bright green power-on LEDs and red warning LEDs with an audible tone to indicate live voltage, and it fits easily into a shirt pocket for quick go/no-go checks throughout the workday.
Users report that the Klein tracer is more sensitive and more accurate than budget alternatives, with the caveat that a slow, deliberate scanning pattern and the two-pass method (learning pass then identification pass) are essential for reliable results. The zipper bag keeps the transmitter, receiver, and NCV pen organized without the bulk of a hard case — ideal for a service van with limited drawer space.
What works
- Higher sensitivity than budget breaker finders
- Integrated GFCI tester in the transmitter
- Compact zipper bag for van storage
What doesn’t
- Requires practice to avoid false positives on first pass
- No hard case for heavy-duty job site protection
7. Fluke T+PRO Electrical Tester
The Fluke T+PRO is the tool veteran electricians reach for when they need a fast, unambiguous voltage check without flipping through a multimeter manual. It automatically detects and displays AC or DC voltage with digital resolution, measures current via the OpenJaw clamp (no breaking the circuit), audibly beeps and vibrates when it senses live power, and even indicates three-phase rotation — all in a compact body that fits in a back pocket.
The detachable SlimReach probe tips are designed to fit tamper-resistant receptacles and recessed terminal blocks that standard probes cannot reach, and the leads accept Fluke’s full accessory line of test clips for specialized applications. The auto-off function preserves battery life, and the unit does not even need batteries to perform basic voltage detection — a critical fail-safe when you grab a tester that has been sitting in a service van for weeks.
For commercial electricians and industrial maintenance techs who test live circuits every single day, the T+PRO’s build quality, vibration alarm, and automatic range selection eliminate the mental overhead of manual meter setup. The non-repairable probe-to-lead connection is the one weakness — if the cord entry point breaks, the whole unit must be replaced, which is a known failure pattern after several years of heavy twisting.
What works
- Vibration and loud audible alarm for live circuit confirmation
- OpenJaw clamp measures current without breaking the circuit
- SlimReach probes access tamper-resistant receptacles
What doesn’t
- Non-repairable cord connection — replacement required if damaged
- Voltage only — no resistance, capacitance, or temperature measurement
Hardware & Specs Guide
True RMS (TRMS)
A TRMS meter calculates the heating value of any waveform shape — sine, square, triangle, or chopped — while an average-sensing meter only reads pure sine waves accurately. In electrical environments with variable-frequency drives, LED drivers, or switching power supplies, TRMS is essential for correct voltage and current measurements. All meters in this guide except the Southwire 10037K support TRMS.
CAT Safety Ratings
CAT III meters withstand transients up to 600V on distribution panels and fixed wiring. CAT IV meters handle higher energy at utility service entrances. Every meter in this guide carries at least CAT III 600V, with the KAIWEETS NCV pen and Fluke T+PRO offering CAT IV 600V and CAT III 1000V respectively for added headroom. Never use a meter rated below the circuit category you are testing.
LowZ Input Impedance
LowZ mode (also called LoZ or Auto-V/LoZ) places a low-impedance load on the circuit under test, draining capacitively-coupled ghost voltages that appear on long, unconnected runs of wire. Without LowZ, a standard high-impedance multimeter can read 50–80V AC on a dead wire, leading to unnecessary breaker flipping. The Crenova 606C+ is the only unit in this list with a dedicated LowZ mode.
Non-Contact Voltage (NCV)
NCV detection senses the electric field around a live conductor without requiring metal-to-metal contact. Sensitivity ranges from 12V up to 1000V depending on the model. NCV is a safety screening tool — it confirms a wire is likely live before you probe it — but it should never replace a direct contact voltage measurement for positively verifying a dead circuit.
FAQ
What does LowZ mode do on an electrical tester?
Can I use a clamp meter to measure DC current?
Why does the Klein Tools breaker finder give false positives on the first pass?
What is the difference between CAT III and CAT IV safety ratings?
Final Thoughts: The Verdict
For most users, the electrical tester winner is the Crenova 606C+ because it delivers True RMS, LowZ ghost-voltage elimination, VFC filter for VFD work, and a 6000-count display — all features that typically cost more than double. If you want hands-free panel work, grab the Proster With Magnetic Back. And for a break-resistant daily beater that does not need batteries for basic voltage checks, nothing beats the Fluke T+PRO.
