A riding mower engine swap is a commitment that either extends the life of your machine for years or becomes a frustrating saga of mismatched shafts and weak power bands. The difference often comes down to one overlooked detail: the crankshaft dimensions and the block’s material composition. The wrong choice leaves you bogged down in tall grass, while the right one transforms a tired chassis into a workhorse.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent the last decade analyzing power-equipment markets, tracking OEM replacement cycles, and dissecting the hardware specs that determine whether an engine fires on the first crank or burns oil before the season ends.
Choosing a replacement power plant requires more than matching horsepower numbers. This guide breaks down the specific displacement, shaft patterns, lubrication systems, and charging outputs that separate a seamless drop-in from a costly mistake — helping you select the right engine for riding lawn mower with confidence.
How To Choose The Best Engine For Riding Lawn Mower
Matching a replacement engine to your mower isn’t about grabbing the biggest horsepower number on the shelf. The critical starting point is your original engine’s mounting bolt pattern, the crankshaft diameter and length, and whether the PTO (Power Take Off) end is tapped for a bolt or uses a keyed taper. Measure these dimensions before you shop — measuring twice saves a return shipping headache.
Displacement and Torque Curve
Bigger cubic centimeters (cc) don’t always mean better performance if the torque peak comes at an RPM your deck never reaches. For most home-acreage mowing, the sweet spot lives between 500cc and 726cc. Larger V-twin designs (like the Kawasaki FS/FR series) produce usable torque at lower RPMs, letting you cut thick grass without constantly screaming the engine toward redline. Single-cylinder engines in the 500-570cc range can feel gutless in wet grass but work fine for flat, moderate lawns.
Crankshaft Configuration
The shaft is the non-negotiable interface between the engine and your blade deck. Two measurements matter: the shaft diameter (typically 1 inch or 1-1/8 inch) and the usable length (anywhere from 3-5/32 inches to 4-9/32 inches). A vertical shaft engine with the wrong length means the pulley won’t align with your belt guide. Some aftermarket engines lack the threaded hole in the shaft tip — you must tap it yourself or buy a bolt-on pulley adapter.
Lubrication and Cooling Systems
Full-pressure lubrication with a spin-on oil filter is the single biggest reliability differentiator between budget and premium tiers. Splash-lubricated engines starve on side slopes and accumulate wear faster. Look for overhead valve (OHV) designs that run cooler than flatheads, and Dura-Bore cast iron cylinder sleeves that resist bore scoring even after hundreds of hours. Oil capacity is another overlooked metric — engines that hold 48 ounces run hotter than those holding 60+ ounces.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Kawasaki FR730V (24hp, 1″ Shaft) | V-Twin | Direct replacement for zero-turns | 726cc / 1″ x 3-5/32″ shaft | Amazon |
| Briggs & Stratton Vanguard 18hp | Horizontal Shaft | Heavy-duty commercial replacement | 570cc / Full pressure lube | Amazon |
| Briggs & Stratton 44S977 25hp | Vertical V-Twin | High-power upgrade for ZTR mowers | 724cc / 16-amp charging | Amazon |
| Briggs & Stratton Intek 19hp | Single Cylinder | Affordable drop-in for Husqvarna/John Deere | 540cc / 9-amp charging | Amazon |
| Honda GX390 | Horizontal Single | Industrial / log-splitter conversions | 389cc / 1″ straight crank | Amazon |
| Kawasaki FR730V (24hp, 1-1/8″ Shaft) | V-Twin | Oversized shaft OEM replacements | 726cc / 1-1/8″ x 4-9/32″ shaft | Amazon |
| Husqvarna Z254F (Complete Mower) | Zero-Turn Machine | Turn-key new machine with Kawasaki | 54″ deck / 23hp Kawasaki | Amazon |
In‑Depth Reviews
1. Kawasaki FR730V (24hp, 1″ x 3-5/32″ Shaft)
The Kawasaki FR730V is the benchmark for residential zero-turn and rider replacements. With a 726cc V-twin displacement and a 1-inch crankshaft tapped 7/16-20, it matches the most common shaft configuration found on mid-size Husqvarna, John Deere, and Bad Boy mowers. The OHV V-twin design delivers a flat torque curve that keeps blade speed consistent even when you hit a patch of damp St. Augustine grass.
Buyers consistently report direct bolt-in fitment when replacing older FS730V engines — no wire splicing required because the harness connector matches the Kawasaki OEM standard. The revised air filter housing encloses the element more tightly, reducing dust ingestion in dry conditions. At 95 pounds, it’s manageable with a second person, and the crankshaft is pre-tapped, saving you from drilling and threading the PTO end yourself.
Shipping damage is the biggest variable — a few units arrive with cracked blocks or bent shafts due to UPS handling. Verify the packaging condition before signing. Overall, if your mower accepts a 1-inch shaft and you want a plug-and-play experience with proven reliability, this engine deserves the top slot.
What works
- Direct bolt-in for most FS/FR-series predecessors
- Revised air filter housing reduces dust entry
- Shaft pre-tapped with 1/4″ keyway
What doesn’t
- Shipping damage reported by several buyers
- Higher price point versus single-cylinder alternatives
2. Briggs & Stratton Vanguard 18hp (570cc Horizontal)
The Vanguard series sits at the top of Briggs & Stratton’s commercial lineup, and the 356447-0080-G1 proves why. This 570cc horizontal shaft engine packs a Dura-Bore cast iron cylinder sleeve and full-pressure lubrication with a spin-on oil filter — the same oiling system found in industrial-grade generators. Horizontal shaft engines are less common on riding mowers today (most use vertical shafts), but this unit is the go-to for custom builds, commercial walk-behind sulkies, and older Gravely tractors.
The advanced debris management system routes cooling air through a screened intake that reduces fire hazard from dry grass clippings. At 94.7 pounds, it uses cast iron construction that dampens vibration noticeably better than aluminum-block equivalents. The EPA-compliant carburetion is lean from the factory, which helps fuel economy but may require a minor carb adjustment for altitude above 5,000 feet.
The reliability reputation here is excellent, though a handful of owners report oil consumption that requires checking before every fifth hour of operation — a trait not uncommon in larger air-cooled singles.
What works
- Cast iron sleeve and full-pressure lubrication for long life
- Smooth, low-vibration operation
- Strong build quality with commercial-grade components
What doesn’t
- Oil consumption reported between changes
- Not a common vertical-shaft drop-in for most modern riders
3. Briggs & Stratton 44S977 25hp (724cc V-Twin)
The 44S977 is a brute of a vertical-shaft engine. At 724cc with a 16-amp charging system, it’s designed for zero-turn mowers in the residential-prosumer tier where consistent blade engagement and electrical accessory load (headlights, electric PTO clutches) demand more alternator capacity than the typical 9- or 10-amp system provides. The overhead valve architecture runs cooler than the old flatheads, and Dura-Bore cast iron sleeve protection is standard.
Replacement buyers report easy swaps into Husqvarna Z246 and John Deere LA-series tractors, though fuel line extensions are occasionally needed because the fuel pump sits farther from the tank than the original engine. Several owners upgraded from 20-22hp engines and noted a tangible improvement in thick Bahia grass — the extra displacement lets the blades spin at full speed without governor droop.
The chief caution is the PTO bearing — some units arrive without a properly seated bearing, resulting in vibration that must be addressed during installation. Double-check the bearing before mounting.
What works
- Significant power increase over 20-22hp OEM engines
- 16-amp charging supports high electrical loads
- Runs cool with OHV design and cast iron sleeve
What doesn’t
- PTO bearing seating may need adjustment
- Fuel line may require extension for some tractors
4. Briggs & Stratton Intek 19hp (540cc)
The Intek 19hp is the most common replacement single-cylinder vertical shaft engine on the market, and it earns that position through sheer ubiquity. It directly replaces a wide range of earlier Briggs & Stratton 33R777 and 33R877 models — bolt pattern and crankshaft dimensions typically match without adapter plates. The 540cc overhead valve design with full-pressure lubrication and an oil filter puts it a tier above splash-lubed bargain engines, while the 9-amp charging system is sufficient for basic battery maintenance and an electric PTO clutch.
Real-world installers praise the plug-and-play nature for popular chassis like the Husqvarna YTH18524 and John Deere LA-series. Some minor adaptations are common: the muffler mount position may differ (requiring a new exhaust kit), and owners of Exmark zero-turns may need to trim the fuel tank bracket for clearance. The Dura-Bore cast iron sleeve gives this engine a realistic service life of 800-1200 hours if oil changes are kept on schedule.
The documentation is thin. You’ll need to source a manual online for torque specs and valve lash adjustments. Not a dealbreaker for experienced hands, but first-time swappers should budget extra time to figure out the governor throttle linkage setup.
What works
- Widely compatible bolt pattern with multiple OEM chassis
- Full-pressure lubrication with spin-on filter
- Reliable electric start and steady idle
What doesn’t
- Minimal documentation included in box
- Muffler orientation may require replacement kit

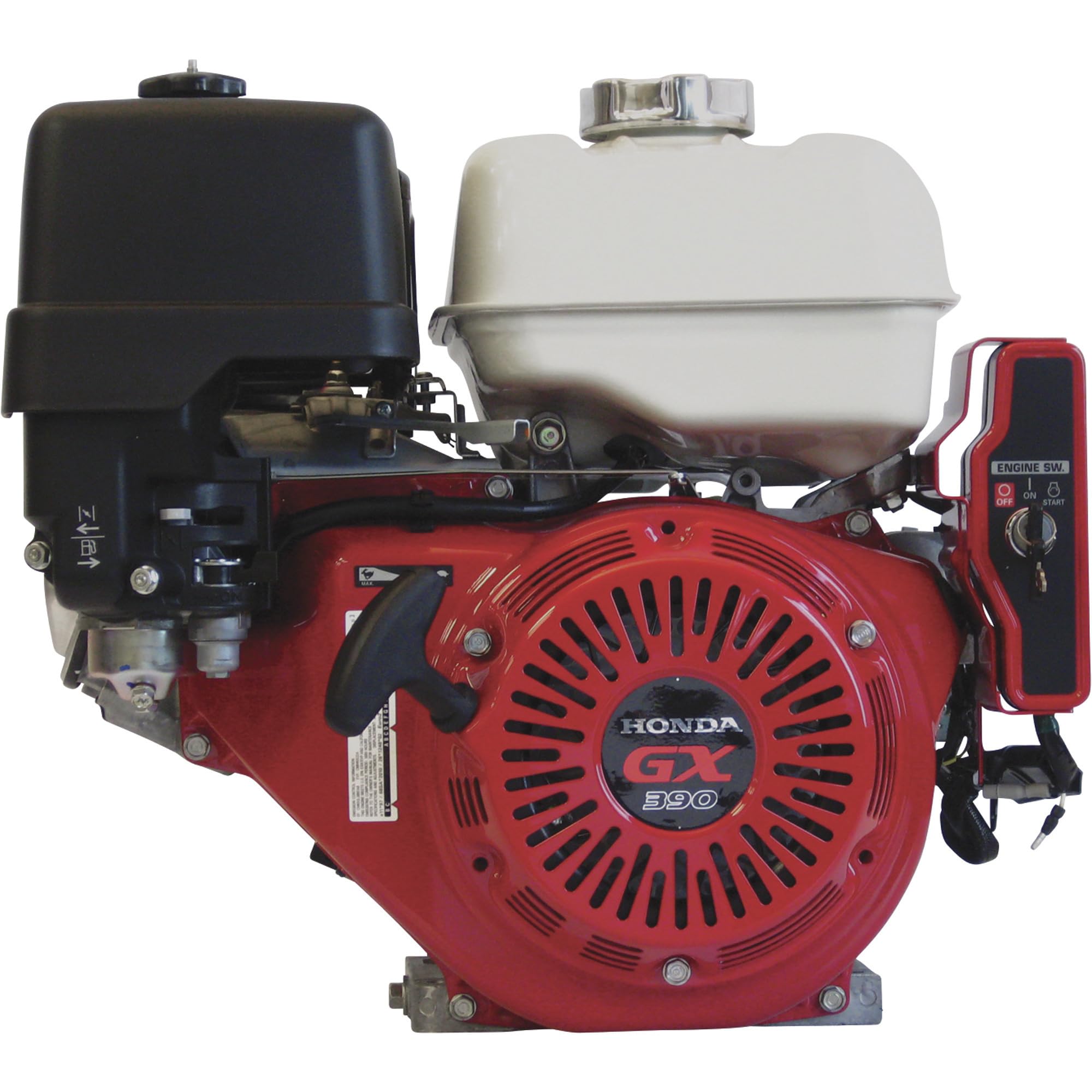

5. Honda GX390 (389cc Horizontal)
The Honda GX390 is a horizontal-shaft industrial engine that is rarely a direct fit for modern residential riding mowers (which have largely standardized on vertical crankshafts), but it holds strong relevance for custom conversions, older Simplicity/Allis-Chalmers tractors, and secondary power equipment like pumps and generators. The 389cc OHV design delivers 11.7 hp at 3600 RPM with the legendary Honda reliability that makes the GX series the gold standard for commercial duty cycles.
The 1-inch diameter straight shaft with a 1/4-inch keyway and 2-7/8 inch usable length fits many older pulley systems. The dual-start system (electric starter + heavy-duty recoil) means you never get stranded with a dead battery. The 3-amp charging system is modest — fine for maintaining a battery, but don’t expect to run LED light bars or high-draw accessories.
This engine demands realistic expectations: it’s not a drop-in for your Husqvarna Z254. It’s a premium choice for someone building a custom mower from scratch or replacing an expired engine on a vintage tractor where horizontal shaft configuration is required.
What works
- Legendary Honda reliability and parts availability
- Dual-start system eliminates dead-battery worry
- Smooth, quiet operation compared to Chinese clones
What doesn’t
- Horizontal shaft limits compatibility with modern riders
- Only 3-amp charging output
6. Kawasaki FR730V (24hp, 1-1/8″ x 4-9/32″ Shaft)
This is the same 726cc V-twin Kawasaki as the Best Overall pick, but configured with the less common 1-1/8-inch diameter shaft and a longer 4-9/32-inch usable length. This variant is essential for specific OEM models from Bad Boy, Bob-Cat, and certain Scag zero-turn mowers that spec the thicker shaft to handle heavier deck loads. The 1/4-inch keyway and 7/16-24 tapped tip are retained, so pulley mounting is straightforward if your machine matches the spec.
The wire harness connector may differ from your original — several buyers report needing to swap the old harness onto the new engine because Kawasaki updated the connector design. This is a 20-minute job if you have basic crimp tools. The engine itself fires immediately and idles smoothly, with the V-twin balance reducing vibration to a low hum even at full blade engagement.
At around 95 pounds, the physical installation is manageable, but the shaft length makes it less forgiving of misaligned deck plates — measure existing pulley stack height precisely.
What works
- Direct replacement for 1-1/8″ shaft OEM mowers
- Smooth V-twin power delivery
- Excellent build quality and parts support
What doesn’t
- Harness connector may not match older models
- Limited compatibility — only 1-1/8 shaft machines
7. Husqvarna Z254F (Complete Zero-Turn Mower with 23hp Kawasaki)
The Z254F represents the option of buying a complete mower rather than swapping an engine — relevant when the chassis of an old mower has rust, deck issues, or transmission wear that make a new engine a poor investment. This Husqvarna zero-turn packs a 23hp Kawasaki V-twin (the same proven FR-series design) mated to hydrostatic transmissions with no-maintenance oil baths. The 54-inch ClearCut deck uses a deep-profile shell with high-velocity blades for consistent discharge and bagging performance.
Assembly is straightforward: attach the seat, install the battery, and connect the control arms. The Kawasaki engine starts reliably even after winter storage, and the 6.5 mph ground speed covers acreage quickly at full throttle. Owners running lawn care businesses report dependable daily use across multiple seasons with routine oil changes the only required maintenance.
The 54-inch deck can struggle in narrow gates and tight landscaping beds — measure your property access points before committing. And the stock seat, while adequate for small properties, may leave commercial operators wanting more lumbar support after a full day of cutting.
What works
- Proven Kawasaki V-twin engine from the factory
- Deep ClearCut deck provides excellent bagging and discharge
- Hydrostatic transmissions require no maintenance
What doesn’t
- Large 54-inch deck limits access to narrow gaps
- Standard seat comfort is adequate but not commercial-grade
Hardware & Specs Guide
OHV vs. Flathead Valvetrain
Overhead valve (OHV) engines position the valves in the cylinder head rather than alongside the cylinder wall, which allows a more efficient combustion chamber shape. OHV engines run 30-40 degrees cooler than flatheads, burn fuel more completely, and typically last hundreds of hours longer before requiring a valve job. Every engine reviewed here uses OHV architecture — avoid flathead designs for riding mower replacements unless you’re restoring a vintage model where authenticity matters more than longevity.
Full Pressure vs. Splash Lubrication
Full-pressure lubrication circulates oil through a pump and filter before reaching the crankshaft bearings and connecting rods. Splash lubrication relies on a dipper scoop that throws oil upward — adequate for small displacement engines but insufficient for sustained operation on uneven terrain where oil can pool away from the dipper. For a riding mower that climbs slopes, full-pressure lube with a spin-on oil filter is the bare minimum for long-term reliability.
Crankshaft Diameter and Keyway
The crankshaft is the single point of failure if the engine and deck don’t match. Residential mowers typically use a 1-inch diameter shaft, while heavier commercial decks often require 1-1/8-inch. The shaft length matters for pulley alignment — a shaft that’s too short won’t fully engage the pulley, and one that’s too long can interfere with the blade housing. Measure your existing shaft with calipers before ordering. The keyway (1/4-inch or 3/16-inch) must also match your pulley’s key.
Charging System Capacity
The alternator mounted under the flywheel recharges the battery while the engine runs. A 3-amp system (like the Honda GX390) is only suitable for machines with minimal electrical draw — just the starter and a small ignition coil. A 9-amp system supports an electric PTO clutch and basic headlights. The 16-amp system on the Briggs 44S977 can handle LED accessory lighting, auxiliary fans, and high-draw clutches without draining the battery. If your mower has multiple electrical accessories, prioritize the higher-amperage systems.
FAQ
Can I upgrade from a single-cylinder to a V-twin engine without modifying the frame?
Which engine has the highest oil capacity and does that matter for longevity?
What is Dura-Bore cast iron sleeve and why should I look for it?
Why does the Kawasaki FR730V have two different shaft size versions?
Do I need to tap the crankshaft if I buy a bare replacement engine?
Final Thoughts: The Verdict
For most users, the engine for riding lawn mower winner is the Kawasaki FR730V (24hp, 1″ Shaft) because it combines 726cc V-twin torque, a pre-tapped shaft, and direct plug-and-play compatibility with the widest range of popular zero-turn and tractor chassis. If you need a larger 1-1/8-inch shaft for a commercial deck, grab the alternate FR730V variant. And for the best value in a single-cylinder replacement that still delivers full-pressure lubrication, nothing beats the Briggs & Stratton Intek 19hp.
