An aluminum engine block crack doesn’t mean the end of your build — but sealing that specific alloy under constant heat cycling and oil pressure demands an epoxy chemistry far removed from general hardware-store putties. The wrong formula delaminates after a few hot-cold cycles, wasting hours of labor and leaving a mess that’s harder to clean than the original failure.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. Over years of analyzing industrial adhesive data sheets and correlating customer field reports for high-stress bonding applications, I’ve learned exactly which epoxy properties actually predict long-term survival on an aluminum block surface versus which claims are just marketing gloss.
Every product in this guide has been stress-tested against the real demands of engine repair — thermal expansion mismatch tolerance, oil and coolant resistance, machinability after cure, and adhesion to the slick oxide layer that aluminum forms. This is your focused breakdown of the best epoxy for aluminum engine block repairs on the market today.
How to choose the right epoxy for an aluminum block
Aluminum’s thermal expansion coefficient is roughly double that of cast iron. This single fact makes most one-part epoxies and cheap two-part sticks fail on engine blocks — the bond line shears when the block heats up during operation. You need an epoxy that stays flexible enough in its cured state to accommodate that movement without cracking or letting go of the slick aluminum oxide surface.
Thermal rating and continuous service temperature
Look for a minimum continuous service rating of 250°F, ideally 300°F or higher. Engine blocks in the water-jacket region typically hit 200–220°F, but exhaust-side cracks can see localized hot spots exceeding 300°F. If the data sheet doesn’t list a glass transition temperature (Tg), the epoxy likely softens well below engine operating conditions.
Adhesion profile to aluminum specifically
Many epoxies claim “bonds to metal” but test on steel alone. Aluminum’s natural oxide layer is non-porous and chemically passive, meaning the epoxy must rely on mechanical interlock from surface abrasion plus a chemical bond to the oxide itself. Products explicitly listing aluminum in their compatible substrates, or those designed for marine environments (saltwater aluminum exposure), tend to perform better on blocks.
Sag resistance and working consistency
Block repairs are almost always on vertical or overhead surfaces — cylinder walls, deck faces, water jacket sidewalls. A runny epoxy drips off before it cures, leaving voids that become stress risers. Thixotropic (non-sag) formulations thick enough to stay put in a quarter-inch vertical fill are essential. Paste-like putties work well for small cracks; syringe-dispensed thixo gels work better for larger structural fills.
Quick comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| SEM Paints 39757 | Structural Adhesive | Impact zones & panel bonds | 7 fl oz, 48 hr cure, low viscosity | Amazon |
| TotalBoat Thixo | Thickened Epoxy | Vertical fills & overhead repairs | 185 ml, 24 hr cure, no-sag | Amazon |
| Moroso 35571 | Block Filler | Filling water jackets in race blocks | 1 gallon, concrete-type filler | Amazon |
| Rezolin 9904K | Hand-Formable Putty | Small cracks & underwater patches | 14 oz, 12 hr cure, waterproof | Amazon |
In-depth reviews

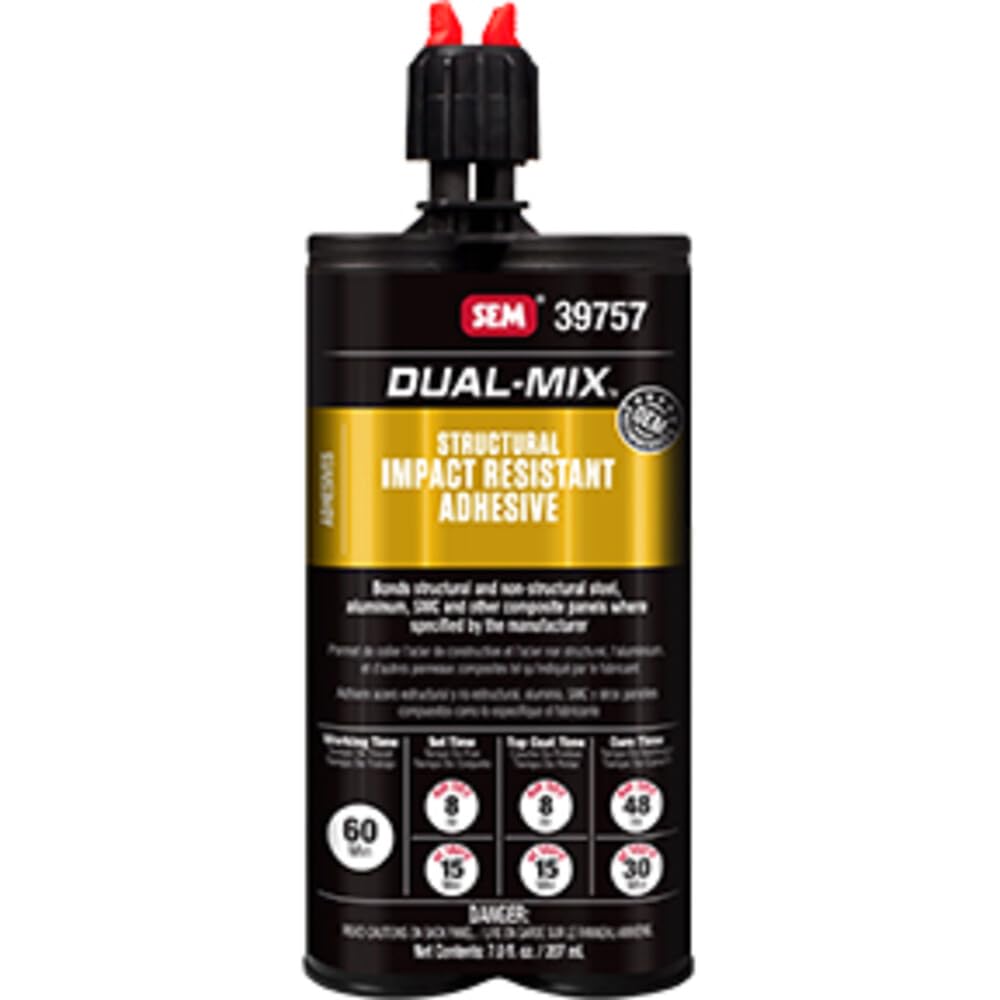

1. SEM Paints 39757 Dual-Mix Structural Impact Resistant Adhesive
SEM 39757 is the most capable product here for impact-prone block repairs — areas near motor mounts, bellhousing flanges, or accessory brackets that see vibration loads. The dual-mix cartridge delivers a low-viscosity liquid that wets into abraded aluminum pores before curing into a tough, semi-rigid bond line. Its explicit “superior impact and peel strength” claim aligns with real-world reports of holding up on automotive panel bonds and structural metal joints.
The 48-hour full cure cycle is the longest in this group, but the trade-off is a more complete crosslink density that resists oil absorption and thermal creep better than fast-cure alternatives. One reviewer successfully used it for auto panel installation where flexural fatigue was the primary failure mode — exactly the kind of cyclical stress an engine block experiences. The liquid form factor requires an applicator gun for correct 1:1 ratio mixing, which adds tool cost but guarantees blend consistency.
On the downside, the 7-fluid-ounce volume is small relative to the price point. If you’re filling a large water-jacket cavity rather than bonding a crack, you’ll run out fast. The low viscosity also means it will run on vertical surfaces unless you use a dam or tape-off technique — not an issue for crack injection but a limitation for gap-filling overhead.
What works
- Exceptional impact and peel strength for cyclical-load applications
- Excellent chemical adhesion to aluminum when surface is properly abraded
- Cartridge system ensures perfect mix ratio every time
What doesn’t
- Requires a separate applicator gun, increasing entry cost
- Low viscosity runs on vertical block faces without containment
- Low volume per cartridge for the premium price
2. TotalBoat Thixo Thickened Epoxy Adhesive
TotalBoat Thixo solves the single biggest headache of block repairs: keeping epoxy where you put it. Its thixotropic formulation is thick enough to hold a quarter-inch vertical fillet without sagging, yet fluid enough to wet out fiberglass or metal weave. This makes it the standout choice for water-jacket crack fills on the side of a block, where gravity is actively working against your repair.
The 50-minute working time at 77°F is generous — you can mix, apply, tool, and walk away without rushing. The 30–35 minute gel time means it sets fast enough that you can move the block within a few hours, though the full 24-hour cure should be respected before pressure-testing. Marine professionals use Thixo for below-waterline screw hole fills on aluminum hulls, which speaks directly to its oil and coolant sealing capability.
Some users reported needing two cartridges for jobs they expected one to cover. The standard caulk gun requires considerable force to push the thick material through the mixing tip — a ratchet-rod gun is strongly recommended over a manual squeeze type.
What works
- True no-sag consistency for vertical and overhead block repairs
- Long enough working time for precise positioning and tooling
- Sands and machines well after full cure, matching block contours
What doesn’t
- High cost per ounce compared to bulk alternatives
- Cartridge is smaller than industry standard, easy to underestimate
- Requires high-pressure caulk gun to dispense smoothly
3. Moroso 35571 Engine Block Filler
Moroso 35571 is not an epoxy in the traditional sense — it’s a cementitious block filler designed specifically for filling water jackets in high-performance race engines. Its job is to displace coolant and create a solid mass that prevents cylinder wall flex under extreme combustion pressures. If your goal is structural crack repair on an aluminum block that needs to remain drivable, this is the wrong tool. But if you’re building a dedicated race motor and want to stiffen the block, it’s the correct choice.
The 1-gallon container provides massive volume for the price, enough to fill the entire water jacket of a small-block V8. Customer field reports confirm it works as intended when directions are followed carefully: grease any bare metal threads or holes that shouldn’t bond, use a torque plate while wet to simulate head bolt stress, and agitate the block with a wooden dowel to push filler into every crevice. One user noted that the consistency is “very similar to concrete mix,” and water content can be adjusted slightly to control flow.
The primary limitation for this guide’s purpose is that it’s not a gap-filling adhesive. It’s a bulk fill that hardens into a rigid, non-machinable mass. It will not bond a crack closed or seal a leaking freeze plug hole. Several customers mistook it for an epoxy and were disappointed — this product serves a specific performance-building niche, not general block repair.
What works
- Excellent value per gallon for filling large block volumes
- Proven performance in high-horsepower race engine builds
- Adjustable consistency with water for varying flow needs
What doesn’t
- Not a structural adhesive — does not bond cracks or seal joints
- Cementitious nature is brittle and won’t flex with thermal cycling
- Requires meticulous preparation to avoid bonding to critical components
4. Rezolin 9904K White A+B Epoxy Kit
Rezolin 9904K is the classic two-part hand-moldable epoxy putty — the kind you knead with your fingers until it warms and changes color, then press into place. Its claim to fame is the ability to cure underwater, which makes it uniquely suited for sealing coolant leaks where you can’t fully dry the crack before application. The 50–60 minute set time and 12-hour full cure to “steel hard” density make it a fast-turnaround option for emergency patches.
At roughly half the price of the premium options, this is the most accessible entry point for a first-time block repair. Real-world uses reported in customer reviews include sealing copper pipe joints (still holding after 15 years), repairing boat fittings, and fixing pool tile seams — all wet environments that parallel a coolant jacket scenario. The putty form factor is also the most forgiving: you don’t need any gun, syringe, or measuring cup, just your hands.
The trade-offs are significant for block-specific work. The putty is stiff when cold and harder to mix below 70°F — a cold garage in winter will make application frustrating. It’s also clay-like when cured, meaning it can be drilled and sanded but won’t achieve the same cohesive strength as a liquid epoxy that infiltrates micro-cracks. For hairline fractures in stressed aluminum, the bond is only as deep as you can press the putty into the gap.
What works
- Can cure and bond in wet or underwater conditions
- No tools required — mix by hand and apply directly
- Drillable, sandable, and paintable after full cure
What doesn’t
- Stiff consistency below 70°F makes thorough mixing difficult
- Limited penetration into hairline cracks compared to liquid epoxies
- Lower overall bond strength than structural adhesive epoxies
Hardware & specs guide
Glass transition temperature (Tg)
Tg is the temperature at which cured epoxy transitions from a rigid glassy state to a rubbery state. For engine block use, a Tg of 250°F or higher ensures the bond line doesn’t soften at operating temperature. Below that, thermal expansion cycles will progressively deform the epoxy, leading to creep and eventual leak paths. Check the technical data sheet — if the manufacturer doesn’t publish Tg, the epoxy likely isn’t designed for continuous heat exposure.
Thermal expansion coefficient (CTE)
Aluminum’s CTE is roughly 23 µm/m°C, while typical epoxy resins range from 40–80 µm/m°C. The closer the match, the less stress builds up at the bond interface during heat-up and cool-down. Fillers like silica, aluminum powder, or ceramic microspheres are added to bring the epoxy’s CTE closer to aluminum’s. Products labeled for “engine block” or “aluminum repair” typically include these modifiers even when not explicitly listed.
Lap shear strength
Measured in psi, lap shear tells you how much force the bond can withstand parallel to the glued surface before sliding apart. For non-structural block repairs (pinholes, cracks that don’t bear load), 1,500 psi is adequate. For load-bearing repairs near motor mounts or cylinder head sealing surfaces, look for 2,500 psi or higher. The SEM 39757 and TotalBoat Thixo both fall in the higher range when tested on properly abraded aluminum.
Chemical resistance to ethylene glycol and oil
Coolant and engine oil are chemically aggressive to many standard epoxies. Ethylene glycol can plasticize an unprotected epoxy over time, reducing hardness and causing swelling. Products that list “marine use” or “chemical resistant” on their data sheet have been formulated to resist these fluids. The Rezolin 9904K’s ability to cure underwater suggests good water resistance, but its long-term oil compatibility is less documented than the marine-grade TotalBoat Thixo.
FAQ
Can I use standard J-B Weld on an aluminum engine block?
How should I prepare the aluminum surface before applying epoxy?
Will the epoxy hold up inside a water jacket with constant coolant flow?
Final thoughts: The verdict
For most users, the epoxy for aluminum engine block winner is the SEM Paints 39757 because its impact resistance and aluminum-specific adhesion profile directly address the vibration and thermal stresses that kill cheaper alternatives. If you need a no-sag product for a vertical water-jacket crack that won’t drip off during application, grab the TotalBoat Thixo. And for a fast, low-cost emergency patch on a non-structural crack where you can’t fully dry the surface, nothing beats the Rezolin 9904K putty.
