Steam showers generate a dense, heavy fog that settles on every surface, turns mirrors opaque, and seeps into drywall if not pulled out fast enough. The difference between a bathroom that clears in under a minute and one that stays hazy for hours comes down to a single decision: the exhaust fan’s ability to move wet air through a 4-inch or 6-inch duct before condensation becomes damage.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve analyzed over fifty exhaust fan models across Panasonic, Air King, Broan-NuTone, and Fantech, matching CFM ratings, sone levels, and housing depths against real-world steam loads in finished bathrooms.
Rated only the models that can clear a sealed steam shower enclosure without turning your ceiling into a rain cloud, this guide ranks the best exhaust fan for steam shower performance across mid-range and premium tiers.
How To Choose The Best Exhaust Fan For Steam Shower
Steam showers trap moisture inside a sealed space. A fan that works fine for a standard bathroom will struggle to clear the dense, warm vapor before it condenses on ceilings and light fixtures. Three specifications determine whether a fan can handle the load: CFM, duct diameter, and noise profile.
CFM Requirements for Steam Shower Spaces
The Home Ventilating Institute recommends at least 8 air changes per hour for bathrooms. A standard 50-square-foot half-bath needs 50 CFM. A steam shower enclosure, however, fills with vapor faster than a standard room. You need 110 CFM minimum to pull steam out before it settles on every surface. Fans rated below 100 CFM will leave condensation on walls and mirrors even after the shower turns off.
Duct Diameter and Static Pressure
A 4-inch duct restricts airflow dramatically compared to a 6-inch duct. Fans rated above 130 CFM require a 6-inch duct to deliver their rated volume; forcing that much air through a 4-inch pipe increases backpressure and reduces effective CFM by as much as 30 percent. If your existing ductwork is 4 inches, choose a fan that stays below 110 CFM or plan to retrofit the duct run.
Noise Floor and Continuous-Run Capability
Steam showers are high-humidity environments where the fan often runs for 20 minutes or longer. Fans that hum loudly at 2.5 sones become irritating during every shower. Look for fans rated at 1.5 sones or lower — Panasonic and premium Air King models hit under 1.0 sone, which means the fan is barely audible over running water. Continuous-duty motors and corrosion-resistant housing also extend the fan’s life in steam-heavy conditions.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Panasonic 1.0-Sone 110-CFM | Premium Mid-Range | Steam removal with near-silent operation | 110 CFM / 1.0 Sone | Amazon |
| Air King AK150LS Energy Star | Premium Mid-Range | Large bathroom steam clearance | 150 CFM / 0.8 Sone | Amazon |
| Air King E Series E130S | Mid-Range | Ultra-quiet continuous run | 130 CFM / 0.3 Sone | Amazon |
| Air King AK100L | Mid-Range | Balanced steam and light combo | 100 CFM / 2.5 Sones | Amazon |
| Broan-NuTone 744 | Entry-Level | Recessed light and vent in one | 70 CFM / 1.5 Sones | Amazon |
| Fantech DBF 110 | Specialty | Duct booster for long vent runs | 167 CFM / 30 dB | Amazon |
| Panasonic FV-10VE2 Intelli-Balance | Premium | Whole-home ventilation with ERV | 100 CFM / ERV Core | Amazon |
In‑Depth Reviews
1. Panasonic 1.0-Sone 110-CFM White Bathroom Fan LED Energy Star
The Panasonic 110-CFM fan runs at just 1.0 sone — quiet enough that users report forgetting it is on entirely. This is the exact noise profile needed for a steam shower where the fan runs throughout the entire shower and often 15 minutes after. The 110-CFM rating meets the minimum threshold for pulling steam out of a sealed enclosure before fog forms on mirrors. It includes an integrated LED light and supports separate wiring for a night light, giving you layered bathroom lighting without an extra fixture.
The adjustable CFM setting lets you dial airflow down for smaller rooms or up for full steam clearance, a flexibility most fixed-speed fans lack. The plastic blower wheel is lighter than steel but holds up to continuous moisture exposure without corrosion. Users consistently praise the whisper-quiet operation, and several note that the fan is so quiet it eliminates the “bathroom sounds” masking effect some people rely on. That same silence, however, means you may want to pair it with a timer switch to avoid leaving it running all day.
Installation takes about two hours in a retrofit scenario, and the housing fits standard 2×8 ceiling joists. The light output is adequate for ambient use but not blinding — buyers who want a brighter downlight should supplement with a secondary fixture. For steam shower applications where noise matters as much as airflow, this fan sets the benchmark.
What works
- Near-silent 1.0-sone operation ideal for long steam sessions
- Adjustable CFM tuning matches room size precisely
- Integrated LED and night light in single housing
What doesn’t
- LED may be dim for users wanting a primary light source
- So quiet it can be left running accidentally without a timer
2. Fantech DBF 110 Dryer Booster Fan 4″ Duct 167 CFM
The Fantech DBF 110 is an inline duct booster, not a ceiling-mount fan, making it a unique solution for steam showers with long or complex duct runs. Rated at 167 CFM with a noise level of just 30 dB, it pushes massive airflow through a 4-inch duct while staying quieter than most bath fans. This unit installs inside the duct line itself — typically in the attic or a dropped ceiling — and activates via a pressure switch that senses when the main exhaust fan or dryer turns on.
In a steam shower setup, the DBF 110 solves the problem of duct runs longer than 25 feet or runs with multiple 90-degree bends that kill static pressure. Without a booster, even a high-CFM ceiling fan loses half its effective airflow after fighting through a 40-foot duct. The Fantech compensates by adding positive pressure, ensuring steam is evacuated fully to the exterior. Users with long runs reported drying times dropping from three cycles to one after installation. The rubber grommets isolate vibration, so the fan body doesn’t transmit hum through the ceiling joists.
Annual lint or dust cleaning is required because the internal impeller can accumulate debris over time. The pressure switch needs a clear sensing tube; any blockage will prevent the fan from activating. The mounting bracket also tends to sag slightly, though the rubber mounts keep it stable enough. For steam shower renovations where duct relocation is impossible, this booster turns an underperforming duct into a high-flow steam extractor.
What works
- Recovers airflow lost through long or bent duct runs
- Very quiet inline operation at 30 dB
- Pressure switch enables automatic on/off with main fan
What doesn’t
- Requires inline duct installation, not ceiling-mount
- Needs periodic cleaning to prevent lint buildup
3. Air King AK150LS Energy Star Deluxe Quiet Series Bath Fan
The Air King AK150LS delivers 150 CFM at a rated 0.8 sones — enough airflow to clear steam from a room up to 150 square feet, which covers most master bathrooms with walk-in steam showers. The 6-inch duct connector is critical here: moving 150 CFM through a 4-inch pipe creates backpressure that reduces real-world airflow by roughly 30 percent. This fan needs a 6-inch duct to perform as advertised, and buyers who install it on existing 4-inch ductwork will notice significantly less steam clearance.
The centrifugal blower wheel and insulated housing keep motor noise low, though some users report the fan sounds closer to 1.5 sones in practice — still quieter than the 3-sone average of budget models. The contoured low-profile grill blends into the ceiling and the adjustable hanging brackets make retrofit installation easier than fixed-frame units. Several reviewers noted the fan cleared steam from two connected rooms in under ten minutes, and the 5-year limited warranty provides long-term coverage against motor failure in high-humidity conditions.
The main drawback is that the “Quiet Series” branding overpromises slightly: users expecting library-level silence may find the whirring audible during quiet showers. For steam shower owners who prioritize raw CFM over absolute silence, this fan offers the highest airflow-to-noise ratio in the mid-range price bracket. Pair it with a humidity-sensing wall switch to automate post-shower steam extraction.
What works
- 150 CFM clears steam from large bathrooms rapidly
- Low-profile grill integrates cleanly into ceilings
- 5-year limited warranty covers continuous humidity use
What doesn’t
- Requires 6-inch duct; underperforms on 4-inch runs
- Audible hum at 0.8 sones, not truly silent

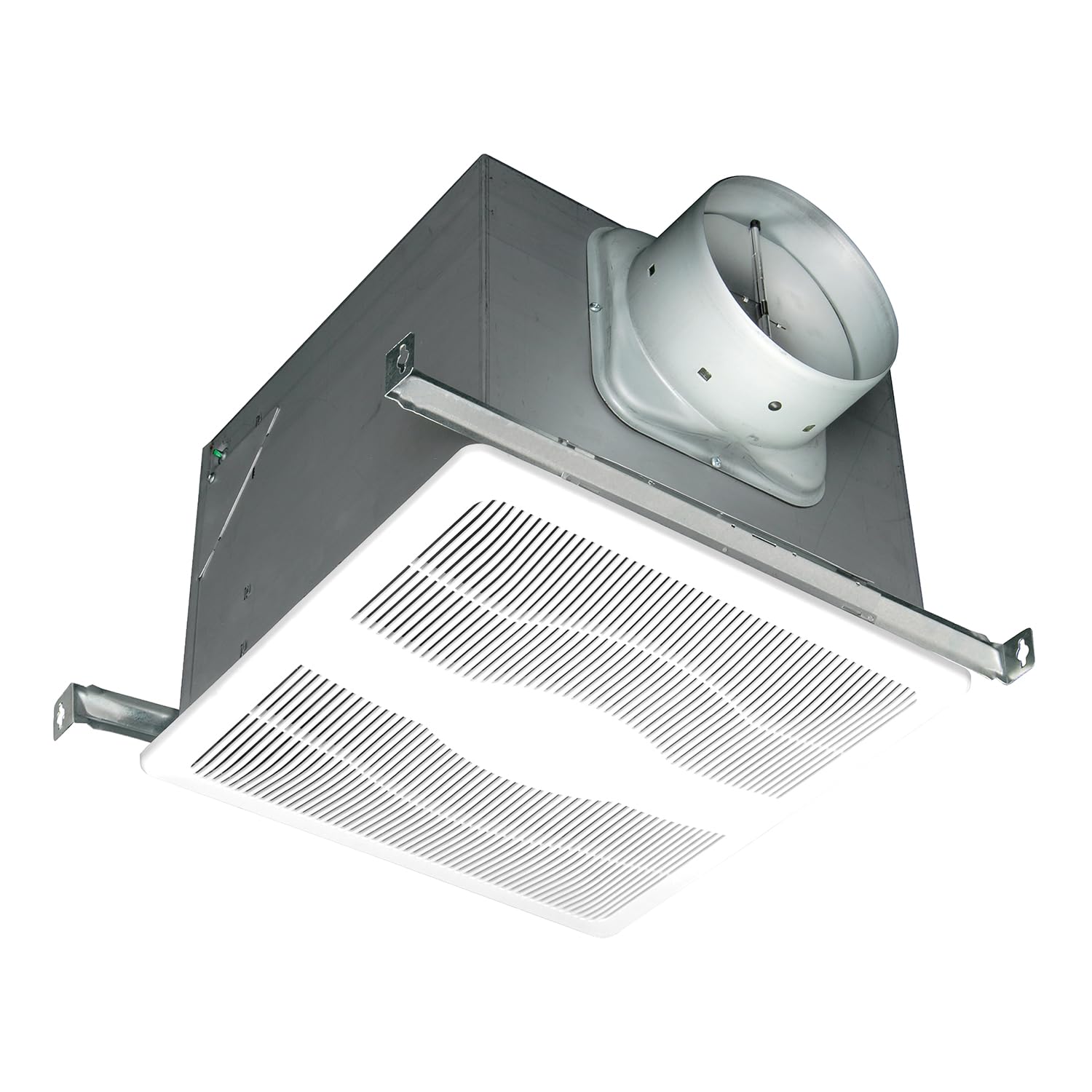

4. Air King ENERGY STAR Certified E Series 130 CFM Bathroom Exhaust Fan E130S
The Air King E130S is one of the quietest ducted fans on the market at a claimed 0.3 sones — low enough that human hearing barely registers it at all. This makes it the ideal choice for steam showers where you want ventilation without noise intrusion. The 130-CFM rating requires a 6-inch round duct connector, and the included spring-loaded metal damper provides backdraft protection so steam-laden air doesn’t flow back into the room after the fan shuts off. The ENERGY STAR certification also means it can run continuously without driving up electricity bills.
The low-profile grill sits nearly flush with the ceiling, and the side access panel allows wiring from inside or outside the housing — a small detail that simplifies retrofit installations where attic access is tight. The galvanized steel construction resists the corrosion that plagues cheaper plastic housings in steam-heavy environments. Users who installed this fan in closets for server exhaust ran it 24/7 for years without motor failure, which speaks to the continuous-duty reliability needed for steam shower applications.
The single-speed design disappointed some buyers who expected two-speed operation from the marketing copy, and a few units arrived with welding defects or missing grille brackets. Air King’s customer service handles warranty replacements, but the quality-control variance means you should inspect the unit immediately upon delivery. For steam shower owners willing to check for manufacturing defects, the E130S delivers near-silent steam extraction that won’t interfere with conversation or relaxation.
What works
- 0.3-sone operation is virtually silent during steam sessions
- Galvanized steel housing resists moisture corrosion
- Continuous-run ENERGY STAR motor for extended humidity clearing
What doesn’t
- Single-speed only despite some marketing confusion
- Occasional quality-control issues with welding and brackets

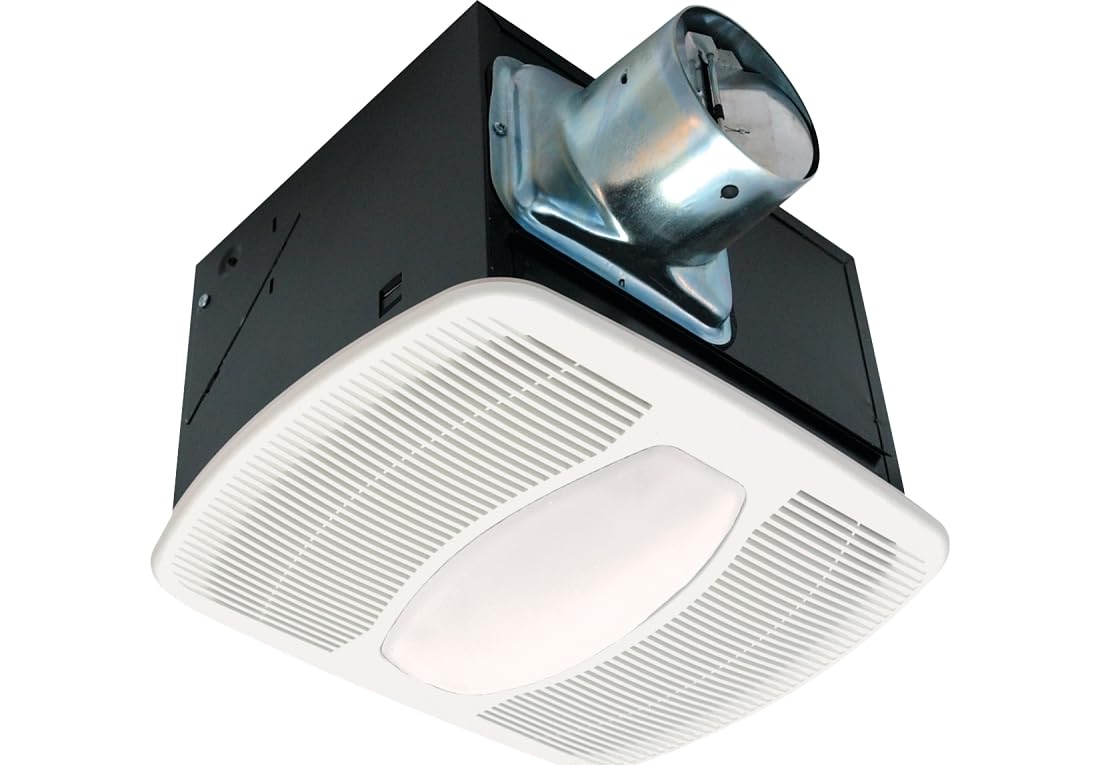

5. Air King AK100L Exhaust Fan with Light, Clear
The Air King AK100L combines a 100-CFM exhaust fan with a frosted moonstone glass light cover that won’t yellow like plastic lenses. At 2.5 sones, it is louder than premium options, but the sound is a smooth fan hum rather than the rattling whine of budget models. The 100-CFM rating works for small to medium steam shower enclosures up to about 80 square feet, though it struggles to clear larger rooms as quickly as the 130-CFM and 150-CFM options above. The squirrel-cage blower produces strong air movement for its size, and users consistently report that it eliminates mirror fogging entirely.
The glass cover accepts a standard 100-watt bulb (not included) and works with dimmer switches, giving you adjustable light levels for post-shower ambiance. The adjustable hanging brackets simplify new-construction installation, and the 4-inch duct connector fits standard residential ductwork without adapters. The night-light feature allows separate control for a secondary low-level light, which is useful for nighttime bathroom visits without turning on the main shower lights. The 1-year parts-only warranty is shorter than competitors, so consider this a mid-range option rather than a long-term investment.
Some buyers received units that were bent or damaged as returns, and a few reported the spring-loaded cover clips breaking during installation. Buy new, not warehouse-damaged, to avoid this issue. The AK100L is a solid choice for steam showers where you want a combined light and fan in a single fixture and the room size matches the 100-CFM output, but buyers with larger steam enclosures should step up to the AK150LS.
What works
- Integrated frosted glass light that won’t yellow over time
- 100 CFM clears steam from small to medium enclosures
- Dimmer-compatible bulb for adjustable light output
What doesn’t
- 2.5 sones is noticeably louder than premium options
- 1-year warranty is shorter than industry average
6. Broan-NuTone 744 Recessed Light Ventilation Fan, 70 CFM
The Broan-NuTone 744 fits into a standard recessed can light opening, making it the easiest retrofit option for homeowners replacing an old fixture. The 70-CFM rating and 4-inch duct connector are at the low end of what works for steam showers — this fan is best suited for small steam enclosures under 50 square feet or as supplementary ventilation alongside a higher-CFM primary fan. The centrifugal fan design keeps the sone rating at 1.5, which is quieter than budget models but still audible as a steady low hum. The 75-watt bulb socket accepts R30 or BR30 bulbs for integrated lighting.
The housing is only 6.87 inches tall, allowing installation in 2×8 ceiling joists where deeper fans won’t fit. The trim matches major recessed light manufacturers, so the finish blends with existing fixtures. Users report that the fan prevents mirror fogging in small bathrooms and that wiring the fan and light independently or together gives flexibility for single-switch or dual-switch setups. The recessed design keeps the fixture flush with the ceiling, avoiding the bulky look of older bath fans.
The 70-CFM output is insufficient for larger steam showers — steam will linger on mirrors and walls longer than with higher-rated fans. The exhaust outlet louver doesn’t always snap in fully and the sharp metal edges inside the housing require care during installation. For a small powder room or half-bath that doubles as a light-steam space, the Broan 744 is a budget-friendly drop-in replacement, but dedicated steam shower owners should look at the 110-CFM Panasonic instead.
What works
- Fits existing recessed can openings for easy retrofit
- Low 6.87-inch housing fits 2×8 ceiling joists
- Quieter than most budget bath fans at 1.5 sones
What doesn’t
- 70 CFM is underpowered for medium to large steam showers
- Sharp casing edges and finicky louver attachment
7. Panasonic FV-10VE2 Ventilator Intelli-Balance 100
The Panasonic FV-10VE2 is an Energy Recovery Ventilator, not a standard exhaust fan. It exchanges stale indoor air with fresh outdoor air while transferring heat and humidity through a core. For a steam shower in a tightly sealed home, this prevents the negative pressure that a standard exhaust fan creates — instead of pulling moisture-laden air out and depressurizing the room, the ERV balances intake and exhaust to maintain indoor air quality. The 100-CFM rating applies to balanced ventilation, meaning the actual steam extraction rate is lower than a dedicated 110-CFM exhaust fan.
The Intelli-Balance 100 series is designed for continuous whole-home ventilation, meeting ASHRAE 62.2 standards for new construction. In a steam shower context, the ERV core recovers heat from the exhaust air and pre-conditions incoming fresh air, reducing the energy cost of running ventilation during winter months. Users in sealed tiny homes reported CO2 levels dropping from nearly 2000 ppm to under 800 ppm after installation. The low-profile ceiling or wall mount design fits modern interiors and the fan operates quietly enough for set-and-forget use.
Installation requires significant DIY knowledge — this is not a drop-in replacement for a standard bath fan. The “Temperate” version is not suitable for all climates; choose the “Cold Climate” variant for universal use. The price point reflects whole-home ventilation technology, not just steam shower exhaust. For homeowners building or renovating a steam shower as part of a tightly sealed house, the FV-10VE2 solves interior air quality holistically rather than just pulling steam out of one room.
What works
- Heat and humidity recovery reduces energy loss during ventilation
- Balanced intake/exhaust prevents negative pressure in sealed homes
- Extremely quiet continuous operation suitable for bedrooms
What doesn’t
- Complex installation requires advanced mechanical skills
- Premium price reflects whole-home system, not point-source exhaust
Hardware & Specs Guide
CFM and Duct Diameter
Cubic Feet per Minute (CFM) measures how much air the fan moves. For steam showers, 110 CFM is the effective minimum because the dense vapor load requires rapid air exchange to prevent condensation. Duct diameter directly impacts CFM delivery: a 4-inch duct can carry up to about 110 CFM before backpressure reduces flow, while a 6-inch duct handles 150 CFM or more without restriction. Always match the fan’s rated CFM to the existing duct size or plan a duct upgrade.
Sone Rating and Perceived Loudness
Sones measure sound pressure as humans perceive it. One sone is roughly equivalent to a quiet refrigerator humming in a kitchen. A fan rated at 0.3 sones is virtually inaudible from a few feet away; 1.5 sones is noticeable but not intrusive; 3.0 sones or higher becomes a distraction during a shower. Steam sessions often run 20-30 minutes, so a low-sone fan prevents noise fatigue over extended use.
Backdraft Damper Types
A backdraft damper prevents outside air from flowing backward through the duct when the fan is off. Spring-loaded metal dampers seal more reliably than gravity-flap plastic dampers, especially in windy conditions. For steam showers, a tight-sealing damper also prevents cold air from rushing into the warm, humid bathroom during winter, reducing condensation inside the duct itself.
Motor Duty Cycle and Humidity Resistance
Standard bathroom fans are rated for intermittent use — typically 30 minutes on, then a cool-down period. Steam shower fans benefit from continuous-duty motors that run indefinitely without overheating. Look for ENERGY STAR certification or manufacturers that explicitly state continuous-run capability. Galvanized steel or powder-coated housings resist the rust that forms when moisture condenses inside the fan housing over years of steam exposure.
FAQ
Can I use a standard 50-CFM bathroom fan for a steam shower?
What size duct do I need for a 130-CFM steam shower fan?
What is the quietest exhaust fan for a steam shower?
Do I need a humidity sensor for a steam shower fan?
Final Thoughts: The Verdict
For most users, the best exhaust fan for steam shower winner is the Panasonic 1.0-Sone 110-CFM Fan because it balances near-silent operation with enough airflow to clear a sealed steam enclosure before condensation forms, all in a single housing with integrated LED lighting. If you want raw airflow for a large bathroom with an extended steam session, grab the Air King AK150LS. And for a tightly sealed home where whole-home ventilation and heat recovery matter alongside steam extraction, nothing beats the Panasonic FV-10VE2 Intelli-Balance ERV.
