Your laptop’s headphone jack is a noisy afterthought, injecting electrical hum and a flattened soundstage into every track. An external DAC bypasses that polluted internal circuitry entirely, handing the digital-to-analog chore to a purpose-built chip isolated from the motherboard’s radio interference. The difference between that built-in port and even an entry-level desktop DAC isn’t subtle—it is the difference between listening to music and hearing the recording.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. My research focuses on decoding chipset specifications, output power curves, and Bluetooth codec support so you can match a DAC to your actual headphones without wasting money on overkill or buying a bottleneck.
After comparing seven of the most compelling options across portable and desktop categories, the best external dac for your setup depends entirely on whether you are untethering from a phone, upgrading a PC gaming rig, or building a stationary listening station with balanced, high-impedance headphones.
How To Choose The Best External DAC
An external DAC is defined by three hard specs: the DAC chip, the analog power stage, and the output interface. Missing the interplay between them leads to purchasing a device that either starves your headphones or overwhelms your IEMs with noise. A systematic approach eliminates the confusion.
Output Power and Impedance Matching
The single most important spec is how much power the amp stage delivers at the impedance of your headphones. A high-impedance headphone like the Sennheiser HD 650 at 300 ohms requires voltage swing, not current. A portable DAC with 80mW into 32 ohms may sound loud enough, but it clips the transients on peak drum hits. Desktop units delivering north of 1000mW into 32 ohms or 200mW into 300 ohms give genuine headroom for dynamic swings. Low-impedance planar magnetic headphones need high current, not just voltage. Check the power rating at both 32 ohms and 300 ohms to match your specific driver type.
Balanced vs Single-Ended Outputs
A 4.4mm or 2.5mm balanced connection doubles the voltage swing compared to a 3.5mm single-ended output by using a separate ground for each channel. This yields crosstalk figures well below -120dB and a noticeably blacker background behind the instruments. If your headphones have a balanced cable option or an aftermarket upgrade path, prioritize a DAC with a native balanced output. Skipping this means leaving audible detail on the table, especially in the lower noise floor that reveals micro-dynamics.
Bluetooth Codec Support
Bluetooth DACs reduce cable clutter, but the codec determines fidelity. LDAC at 990 kbps is the only wireless codec that approaches lossless CD quality over short distances. aptX Adaptive negotiates between 279 kbps and 420 kbps depending on signal strength. AAC is the ceiling for iOS devices and runs at 256 kbps. If you intend to use a portable DAC primarily over Bluetooth, verify that your source device natively transmits LDAC or at least aptX HD. Using a Bluetooth DAC with an iPhone caps you at AAC, and the DAC chip’s potential is wasted.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| FiiO K11 Titanium | Desktop | Versatile desk setup with balanced power | 1400mW @ 32Ω Balanced | Amazon |
| FiiO K11 Black | Desktop | Desktop neutral reference | 1400mW @ 32Ω Balanced | Amazon |
| Qudelix-5K | Portable | Bluetooth PEQ and IEM tuning | 2.5mm Balanced 4V RMS | Amazon |
| JadeAudio JM21 | DAP | Android streaming with high power | Dual CS43198 + 700mW Balanced | Amazon |
| Fosi Audio K7 | Desktop | Versatile connectivity with mic input | AK4493S + 2100mW @ 32Ω | Amazon |
| FiiO BTR7 | Portable | MQA rendering and voice calls | Dual ES9219C + MQA 8x | Amazon |
| HIFI WALKER H2 | DAP | Dedicated offline music player | ESS ES9018K2M + 128GB Storage | Amazon |
In‑Depth Reviews

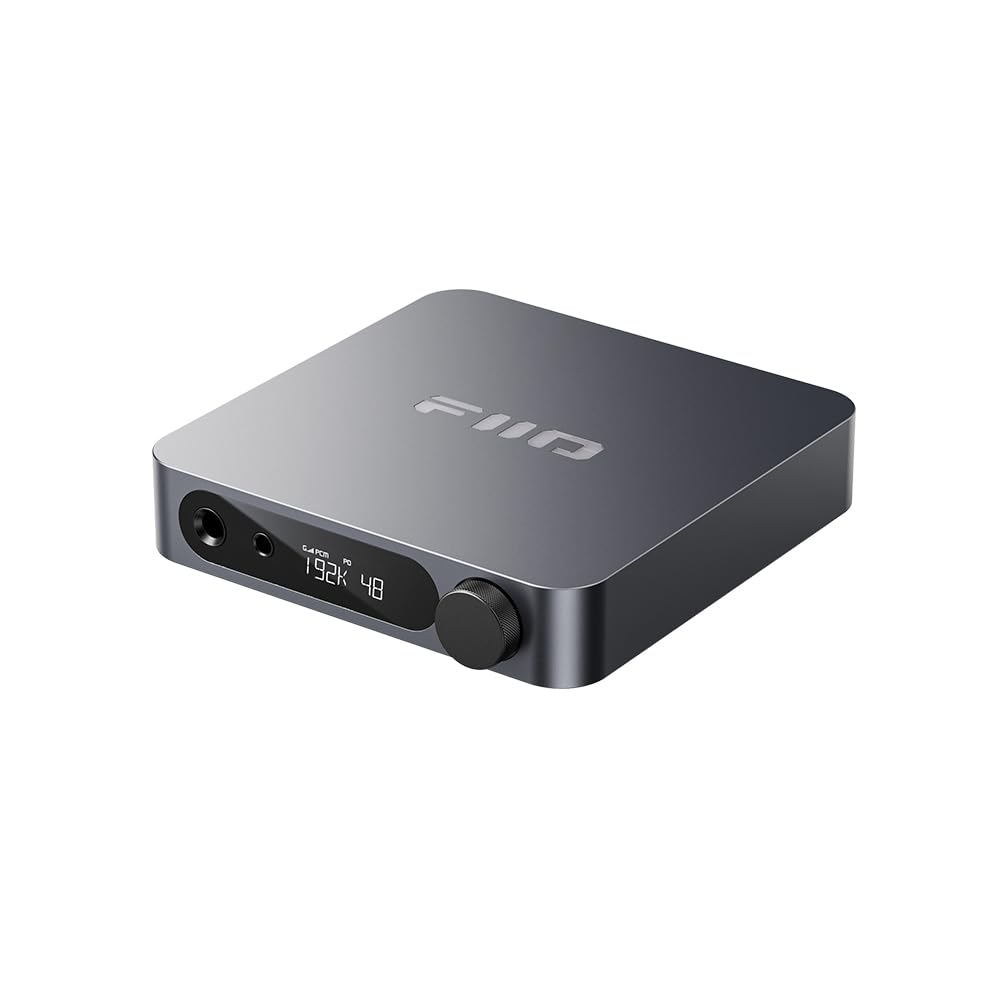

1. FiiO K11 Desktop DAC and Headphone Amplifier (Titanium)
The FiiO K11 titanium variant brings the exact same 1400mW balanced output as the black model but adds a refined metallic finish that resists fingerprints better on a desk. The core appeal remains the same: a 1400mW into 32 ohm balanced output stage that drives planar headphones like the Hifiman Sundara and even the hungry 300 ohm Sennheiser HD 600 series to realistic volume levels with transient headroom to spare. The 4.4mm balanced output is the star, delivering better channel separation than the 6.35mm single-ended output.
Input selection covers USB, coaxial, and optical, with coaxial and optical supporting up to 192kHz sampling rates. The high-definition VA display shows sample rate, volume, gain state, and output mode in crisp text, making it trivial to confirm you are getting native DSD256 playback. The external 12V power supply keeps the analog stage isolated from any USB bus noise, a critical detail often overlooked in budget desktop DACs that rely entirely on USB power.
Multiple low-noise LDOs regulate the internal rails, which translates to a black noise floor even at high gain with efficient IEMs. The titanium finish is purely cosmetic, but it aligns with the K11 overall design language that prioritizes clean, neutral sound over colored tuning. For a desktop user who wants one box that handles everything from sensitive IEMs to power-hungry planars, the K11 is a remarkably complete package.
What works
- 1400mW balanced output provides genuine headroom for high-impedance and planar headphones
- Clear VA display with real-time sample rate and gain status
- Multiple input options including coaxial and optical for sources beyond USB
What doesn’t
- No Bluetooth input for wireless streaming
- Titanium finish adds no functional benefit over the standard black model
2. FiiO K11 Desktop DAC and Headphone Amplifier (Black)
This is the standard black K11, and it delivers the exact same 1400mW balanced output and VA display as the titanium sibling at a slightly lower entry point. The aluminum alloy chassis is compact enough to fit under a monitor riser without dominating the desk. The 6.35mm and 4.4mm headphone outputs, plus RCA line-out and coaxial out, give you a hub that can feed both headphones and active speakers simultaneously.
One nuance that separates this from cheaper DACs is the digital filter implementation. The K11 offers multiple filter modes accessed through the menu. Filter 4 provides the most natural transient response, while the default filter can sound slightly compressed or plastic on percussion-heavy tracks. Users familiar with Sabre-based DACs will appreciate being able to dial in the filter that matches their preference rather than being locked into one correction curve.
The USB input is class-compliant, meaning no drivers are needed for macOS, Linux, or Android. Windows users benefit from the dedicated ASIO driver for lower latency playback in music production or critical listening software. Powering the HD 650s on the 4.4mm output leaves the volume knob at roughly 30% for a normal listening level, confirming the ample headroom reserve. For under , the K11 black sets a benchmark that few competitors match.
What works
- Powerful 4.4mm balanced output that handles high-impedance headphones easily
- Adjustable digital filters let you tune the transient response
- Class-compliant USB on Mac and Linux, ASIO driver for Windows
What doesn’t
- Digital filter options can be confusing for a new user
- LED lighting on top is more cosmetic than functional
3. Qudelix-5K Bluetooth USB DAC AMP
The Qudelix-5K has earned legendary status among portable DAC enthusiasts for a single reason: the onboard parametric EQ that stores profiles directly on the device. Unlike competitors that only apply EQ through a companion app that must remain running on your phone, the Qudelix-5K processes EQ entirely on its own dual ES9219 Sabre chips. You can dial in a Harman target curve for your IEMs, enable crossfeed, and have those settings persist even when paired with a non-phone source like a laptop or a DAP.
The Bluetooth stack supports LDAC, aptX Adaptive, aptX HD, and AAC, covering the full bandwidth of wireless codecs across Android and iOS. Over LDAC at 990 kbps, the Qudelix-5K approaches the fidelity of a wired USB connection. The 2.5mm balanced output delivers 4V RMS or 240mW into 32 ohms, which is enough to drive the Hifiman Ananda and similar planar headphones to satisfying volume levels. The 3.5mm unbalanced output offers 2V RMS for more sensitive IEMs where you want a lower noise floor.
Battery life reaches around 10 hours with IEMs and drops to about 6 hours when driving demanding full-size headphones via the balanced output. The clip-on design with UV-coated plastic body weighs just 25 grams, making it genuinely pocketable. The physical buttons are small and unlabeled, which is the main ergonomic compromise. The companion app compensates by allowing full control over volume, filter settings, and EQ from your phone without touching the device itself.
What works
- Device-stored parametric EQ profiles work independently of the phone app
- Full LDAC and aptX Adaptive codec support for wireless high fidelity
- 2.5mm balanced output provides real power for planar headphones
What doesn’t
- Buttons are unlabeled and awkward for blind operation
- Bluetooth mode is limited to 16/44.1 on the wireless link
4. JadeAudio/FiiO JM21 Android 13 Music Player
The JM21 is essentially a full Android 13 DAP that also functions as a USB DAC for your computer. The Qualcomm Snapdragon 680 processor provides smooth scrolling through streaming apps like Spotify, Apple Music, and Tidal, while the dual Cirrus Logic CS43198 DACs handle the actual decoding. The balanced output delivers a legitimate 700mW per channel into 32 ohms, which means it competes with desktop class A/B amps when driving demanding headphones.
At just 13mm thin and weighing 156 grams, the JM21 is surprisingly portable for a device with this much power. The 4.7-inch touchscreen is responsive, though its 720p resolution and limited brightness can be difficult to see outdoors. The self-developed DAPS digital audio purification system bypasses the Android sample rate conversion, preserving the original sampling rate from streaming apps all the way to the DAC outputs. This is a critical engineering detail—most Android devices resample everything to 48 kHz, but the JM21 avoids that degradation.
Battery life runs about 8 to 10 hours of mixed playback depending on whether you are using the 4.4mm balanced output or the 3.5mm single-ended. The SD card slot supports up to 2TB of expansion, and the USB-C port can output digital audio to an even higher-end external DAC if you eventually upgrade. The main downside is the all-plastic build and matte finish that can peel after weeks of use, plus reports of the balanced port failing on early units. For the performance per dollar, however, it is hard to beat.
What works
- Snapdragon 680 makes Android streaming fast and responsive
- Dual CS43198 DACs with 700mW balanced output rival desktop power
- DAPS system preserves original sample rate from streaming apps
What doesn’t
- Plastic build with matte coating prone to peeling after months of use
- 720p screen has limited brightness in outdoor conditions
5. Fosi Audio K7 DAC Headphone Amp
The Fosi Audio K7 is the most feature-loaded desktop DAC in this comparison thanks to an AK4493S DAC chip paired with an XMOS XU208 USB processor and TPA6120 headphone amps. The headline spec is 2100mW of output power into 32 ohms through the 4.4mm balanced output, which makes it one of the most powerful units in this roundup. It drives the Sennheiser HD 650s comfortably at under 50% volume, leaving enormous overhead for dynamic peaks in orchestral or electronic music.
What truly distinguishes the K7 is the connectivity set. Beyond the standard USB-C, coaxial, and optical inputs, it includes Bluetooth 5.0 with aptX HD and aptX LL for low-latency wireless streaming. The 3.5mm microphone input lets you connect a headset microphone, making the K7 a genuine gaming hub rather than just a pure music DAC. The dual large control knobs and five shortcut buttons on the angled chassis add tactile control that many desktop DACs skip entirely.
The solid aluminum alloy build provides effective EMI shielding, which keeps the noise floor dead silent even at maximum gain. The display is informative but suffers from poor viewing angles, and the volume knob uses 3dB increments that lack fine precision for subtle volume adjustments. The onboard EQ is limited to bass and treble shelves, so if you need full parametric EQ you will need to use a software solution. For a desktop all-rounder that handles music, gaming, and calls, the K7 is hard to match.
What works
- 2100mW balanced output provides the highest power in this lineup
- 3.5mm microphone input enables gaming headset integration
- Bluetooth aptX HD and LL for wireless without latency
What doesn’t
- Display has poor viewing angles that wash out off-axis
- Volume knob lacks fine precision with 3dB steps
6. FiiO BTR7 Headphone Amp Bluetooth Receiver
The FiiO BTR7 is the MQA-capable Bluetooth DAC that competes directly with the Qudelix-5K but adds a 4.4mm balanced output and built-in microphone for voice calls. The dual ES9219C DAC chips decode MQA up to 8x rendering when used as a USB DAC, making it one of the few portable options that can unfold MQA files fully. The XMOS XUF208 chip handles the USB data stream with support for PCM up to 384kHz and native DSD256.
The battery life is the BTR7 most debated characteristic. Early units had a battery that drained in under three hours with the balanced output driving high-impedance headphones, but firmware updates and replacement units have pushed real-world runtime to around four to five hours on balanced and up to eight hours on the 3.5mm single-ended output with efficient IEMs. The titanium-and-glass build provides a premium feel that the plastic Qudelix-5K lacks, but the BTR7 is noticeably larger and heavier when clipped to a collar.
The cVc 8.0 microphone is a genuine differentiator. You can take phone calls while the music pauses and resume playback seamlessly, which the Qudelix-5K cannot do as reliably. The companion app is functional but visually rough, and the lack of robust customer support from FiiO is a recurring complaint in user reviews. For users who need MQA support and a microphone for conference calls without sacrificing Bluetooth codec quality, the BTR7 fills a specific niche.
What works
- MQA 8x rendering for Tidal users with full unfold support
- 4.4mm balanced output with solid power for demanding headphones
- Built-in microphone with cVc 8.0 for voice calls
What doesn’t
- Battery life is limited to around 4-5 hours on balanced output
- Large form factor compared to competitors like the Qudelix-5K
7. HIFI WALKER H2 HiFi MP3 Player
The HIFI WALKER H2 is a dedicated digital audio player with a built-in ESS ES9018K2M DAC that decodes 32-bit/384kHz PCM and native DSD128. The 128GB included microSD card is pre-installed and supports expansion up to 256GB for a total of around 15,000 FLAC files. The ALPS scroll wheel provides tactile physical navigation that is more satisfying than tapping a small touchscreen, while the zinc alloy shell feels sturdy and dense at 150 grams.
The Bluetooth 5.2 with aptX works in two directions—the H2 can transmit to Bluetooth headphones or act as a receiver for a Bluetooth source. As a USB DAC for a PC, it outputs decoded audio with lower noise than typical onboard sound cards. The 70mW output into 32 ohms through the 3.5mm jack is modest but adequate for IEMs and low-impedance over-ear headphones like the Beyerdynamic DT 770 Pro. Users with high-impedance 300 ohm headphones will find the H2 wanting in volume headroom, but that is an expected trade-off at this power level.
The battery delivers 8 to 10 hours of continuous playback, which is solid for a device in this segment. The user interface is basic and somewhat clunky, with several reports of the RockBox custom firmware offering a significantly better experience at the cost of losing Bluetooth functionality. The most significant durability concern is the visible seam around the chassis, which can let sweat ingress during exercise use, leading to early failure for some users. For an offline, distraction-free music player with good sound quality, the H2 offers strong value if kept away from moisture.
What works
- ESS ES9018K2M DAC decodes DSD128 and 384kHz PCM
- 128GB included storage with expansion to 256GB
- Zinc alloy build and ALPS scroll wheel feel premium
What doesn’t
- Visible chassis seam allows sweat ingress, leading to failures during exercise
- User interface is clunky and benefits from RockBox custom firmware
Hardware & Specs Guide
DAC Chip Architecture
The DAC chip converts digital audio bits into analog voltage. The best external DACs use flagship chips from ESS Sabre (ES9219 series) or AKM (AK4493 series). Dual-chip designs dedicate one chip per channel, improving channel separation to below -120dB by eliminating shared voltage references. Single-chip designs save space and power but cannot achieve the same imaging precision. Look for THD+N figures below 0.0005 percent as a confidence benchmark for clean conversion.
Output Power and Headroom
Measured in milliwatts into a given impedance load, output power determines whether the DAC can drive your headphones to realistic listening levels with dynamic peaks intact. A portable DAC delivering 80mW into 32 ohms works for IEMs but may clip complex transients. A desktop DAC with 1400mW into 32 ohms provides 12dB of headroom above normal listening levels, ensuring orchestral crescendos never distort. Always compare power claims at the same impedance—a 300 ohm rating is more relevant for high-impedance headphones.
Bluetooth Codec Comparison
LDAC at 990 kbps is the closest wireless codec to CD quality, but requires both source and DAC to support it natively. aptX Adaptive scales between 279 and 420 kbps depending on RF conditions and is common on modern Android devices. aptX HD locks at 576 kbps with improved bit depth. AAC runs at 256 kbps and is the default for iOS, but the quality difference between LDAC and AAC is audible as reduced treble air and narrower soundstage on transparent headphones.
Balanced vs Single-Ended Outputs
A balanced connection uses three wires per channel (positive, negative, ground) instead of two. This doubles the voltage swing available, delivering roughly four times the power into the same impedance compared to a single-ended output, assuming equal voltage rails. Balanced also cancels common-mode noise picked up by the cable, resulting in a lower noise floor. The practical consequence is that a 2.5mm or 4.4mm balanced output will make your headphones sound subjectively more powerful and the background quieter.
FAQ
Does a higher output power always sound better?
Can I use a portable Bluetooth DAC with a gaming console?
Final Thoughts: The Verdict
For most users, the external dac winner is the FiiO K11 Titanium because it delivers desktop-class balanced power, a clean noise floor, and versatile inputs at a price that undercuts most competitors while handling both efficient IEMs and hungry planars. If you need wireless flexibility and parametric EQ that persists without the phone app, grab the Qudelix-5K. And for a streaming-friendly all-in-one that replaces both your phone and a separate DAC, nothing beats the JadeAudio JM21.
