An external hard drive enclosure is the difference between a dead drive full of irreplaceable files and a functioning backup device. Whether you are resurrecting an old laptop drive, setting up a media server, or cloning a failing HDD, the enclosure determines transfer stability, heat management, and long-term data integrity — and too many cheap plastic shells deliver none of the above.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend weeks analyzing customer feedback and spec sheets on storage accessories to separate enclosures that protect your data from ones that cook your drive or drop mid-transfer.
This guide covers five proven models that handle everything from legacy IDE recovery to modern USB-C workflows so you can confidently buy the right external hard drive enclosure without gambling on build quality or compatibility.
How To Choose The Best External Hard Drive Enclosure
The right enclosure is about more than just fitting a drive inside. Three factors determine whether your setup runs cool, transfers fast, and stays reliable during extended use.
Interface and Protocol Support
Look for enclosures that support UASP (USB Attached SCSI Protocol). A standard USB 3.0 connection transfers at roughly 5 Gbps, but UASP reduces overhead so the same hardware can push data 20-30% faster during large sequential reads. For 3.5-inch drives, USB 3.2 Gen 2 offers up to 10 Gbps, though the drive’s own speed is often the real bottleneck.
Build Material and Heat Dissipation
Aluminum enclosures act as passive heatsinks, pulling heat away from the drive during sustained read/write sessions. Plastic enclosures trap heat — users frequently report drive temperatures climbing past safe thresholds during multi-hour transfers. For any enclosure used as a NAS or backup destination running 24/7, metal construction is a non-negotible requirement.
Form Factor and Drive Compatibility
2.5-inch enclosures are bus-powered over USB, meaning no wall plug required. 3.5-inch enclosures need a separate 12V power adapter because the larger mechanical spindle motors draw more current. Some enclosures support both sizes, but always check whether the included power brick is rated for 3.5-inch use — many cheap units under-spec the adapter, causing intermittent dropouts.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ACASIS 6Gbps | Mid-Range | USB-C workflow, long backups | Aerospace aluminum / 6 Gbps | Amazon |
| SABRENT USB-DS12 | Premium | Multi-format recovery, IDE | SATA/IDE/5.25-inch / USB-C | Amazon |
| Unitek USB 3.0 Adapter | Mid-Range | Simultaneous IDE + SATA | Dual drive support / 6 Gbps | Amazon |
| SABRENT EC-DFLT | Budget | Quick drive swaps, data recovery | Lay-flat dock / UASP | Amazon |
| Mackertop 3.5-inch | Budget | Basic external HDD use | Tool-free install / 5 Gbps | Amazon |
In‑Depth Reviews

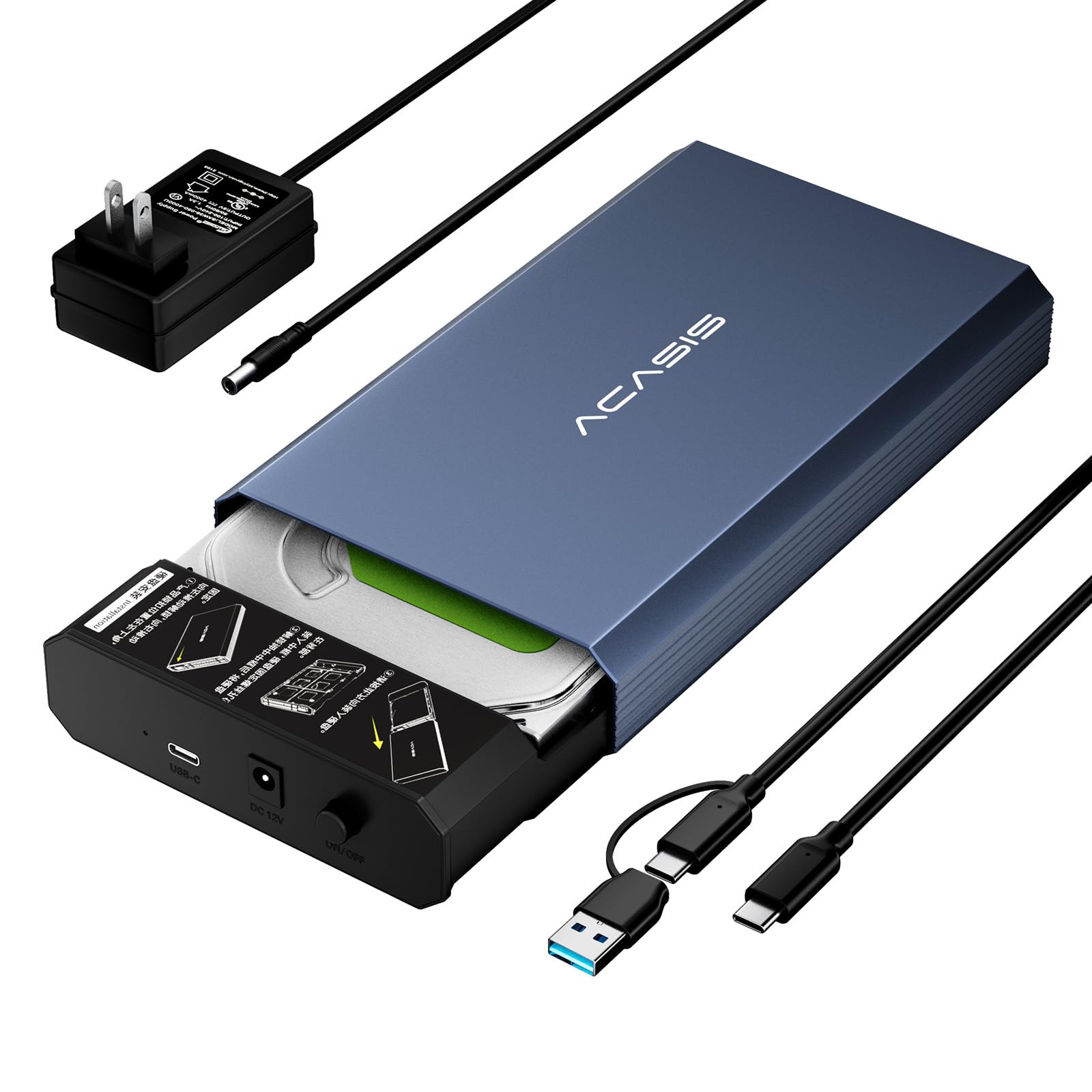

1. ACASIS 6Gbps Hard Drive Enclosure
The ACASIS enclosure uses aerospace-grade aluminum across the entire shell, which pulls heat away from the drive far more effectively than any plastic alternative. Combined with a hollow inner tray that promotes airflow, this unit keeps drives cool even during marathon backup sessions — a critical advantage over sealed plastic shells where internal temps can climb above 50°C.
USB 3.2 Gen 2 connectivity delivers up to 6 Gbps and the included USB-C to C/A cable means it works with modern MacBooks and legacy PCs out of the box. The independent on/off switch removes the need to yank the cable to power down, and the 10-minute smart sleep mode stops the drive from spinning needlessly overnight. Assembly requires four screws, but the toolkit is included.
One user reported data corruption from an unexpected mid-transfer disconnection, which suggests the USB controller may not handle power dips gracefully. For always-on use as a Time Machine or NAS backup target, pair this with a quality USB-C cable and a stable power source to avoid dropouts.
What works
- Excellent passive cooling via thick aluminum shell
- USB-C connectivity with 6 Gbps throughput
- Independent power switch and smart sleep timer
What doesn’t
- Plastic inner tray limits direct heat conduction from drive
- Occasional mid-transfer disconnection reported
2. SABRENT USB-C to SATA/IDE Converter (USB-DS12)
The Sabrent USB-DS12 is not an enclosure in the traditional sense — it is a universal adapter cable that connects bare SATA, IDE, and even 5.25-inch optical drives directly to a computer via USB-C. This makes it the single most useful tool in any data recovery arsenal because it bypasses the drive bay entirely, handling PATA and SATA from the same compact cable set.
The controller supports up to SATA 3 Gbps (SATA-II speeds), which is sufficient for mechanical drives and most SSDs. Included 12V power adapter with a 4-pin Molex connector powers 3.5-inch and optical drives, while 2.5-inch SATA drives run off USB bus power. The blue activity LED gives clear visual feedback, and the design is plug-and-play with no drivers on Windows, macOS, or Linux.
Several users noted that the USB-C connector feels fragile and can bend if the cable is stressed at an angle. The short rubber feet on the adapter body restrict airflow when used as a dock, though this is less of an issue for intermittent recovery work than for continuous use.
What works
- Works with SATA, IDE, and 5.25-inch optical drives
- Reliable controller handles marginal drives other docks reject
- Compact cable design is highly portable
What doesn’t
- USB-C connector feels physically delicate
- Runs warm due to small enclosure and limited airflow
3. Unitek USB 3.0 to IDE and SATA Converter
The Unitek adapter targets users who need to access both SATA and legacy IDE drives, including 40-pin and 44-pin IDE connectors. It can connect one IDE and one SATA drive simultaneously, making it ideal for batch data migration from old PCs or external drives that use different interfaces. The SATA III interface supports up to 6 Gbps for modern SSDs.
A dedicated one-touch backup button on the adapter body lets you clone or back up a connected drive without software. The included 12V/2A power supply is generous enough to power a 3.5-inch IDE drive plus a SATA drive at the same time without brownouts. The on/off switch protects the drive from accidental hot-plug damage during installation.
Multiple users confirmed the adapter does not support 3.5-inch SATA drives reliably, only 2.5-inch SATA and IDE in both sizes. The USB-A connector limits compatibility with modern laptops that only have USB-C ports unless you add an adapter. Instructions are minimal, but the layout is intuitive enough for anyone comfortable removing a drive from its bay.
What works
- Simultaneous IDE + SATA drive support
- One-touch hardware backup button
- Stable power delivery for dual drives
What doesn’t
- Does not support 3.5-inch SATA drives
- USB-A connector only, no USB-C option
4. SABRENT Lay-Flat Docking Station (EC-DFLT)
The Sabrent EC-DFLT is a single-bay lay-flat docking station that accepts both 2.5-inch and 3.5-inch SATA drives without any screws or trays. The drive slides directly into the rear slot and sits flat on the desktop, making it the fastest option for anyone who swaps drives frequently — data recovery techs, system builders, and home users pulling files from old laptops.
UASP support enables above-average transfer speeds for a USB 3.0 dock, and the included external power adapter handles 3.5-inch desktop drives reliably. It supports up to 20 TB per drive, which covers practically any consumer HDD or SSD on the market. Windows 11 recognized it as plug-and-play immediately, and Mac users reported zero-configuration compatibility.
The main trade-off is physical: removing a 2.5-inch SSD from the slot requires some wiggling because there is no ejection lever. The dock has no active cooling, so extended transfers with a 3.5-inch drive will cause the drive to run warm, though most users reported no heat-related failures during normal recovery sessions.
What works
- Instant tool-free drive insertion and removal
- UASP protocol for faster transfer speeds
- Supports both 2.5 and 3.5-inch SATA drives
What doesn’t
- Removing small SSDs from the slot is tight
- No active cooling for prolonged transfers
5. Mackertop 3.5 Inch Hard Drive Enclosure
The Mackertop enclosure delivers a genuine tool-free experience for 3.5-inch SATA drives: slide the case down, open the back cover, align the drive, close it, and connect power. No screwdriver required. Transfer rates hit up to 5 Gbps over USB 3.0 with UASP, and the unit is backward compatible with USB 2.0 ports for older systems.
It is one of the most affordable enclosures that still includes a proper 12V/2A power adapter rather than an undersized brick. The compact dimensions (7.68 x 4.53 x 1.34 inches) fit into most laptop bags, and the 39.4-inch cable gives decent reach to a desktop tower. Users successfully mounted drives up to 6TB without issues.
The plastic shell lacks ventilation holes and a fan, which leads to significant heat buildup during transfers longer than an hour. The power switch is momentary rather than a toggle — if power is cut or flickers, the drive stays powered off until you manually press the button again. A few users also noted the drive rattled slightly inside the case and had to add felt pads to silence it.
What works
- Completely tool-free drive installation
- Includes full 12V/2A power adapter for 3.5-inch drives
- Very low entry cost for basic external storage
What doesn’t
- Plastic case traps heat with no ventilation
- Momentary switch leaves drive off after power restoration
Hardware & Specs Guide
UASP (USB Attached SCSI Protocol)
UASP reduces command overhead compared to the older BOT (Bulk-Only Transport) protocol. In real-world terms, an enclosure with UASP can transfer a 10 GB file roughly 20-30% faster over the same USB 3.0 connection. All five products reviewed here support UASP, but it requires a host controller that also supports UASP — most Intel and AMD chipsets from 2012 onward do, while some older budget laptops may not.
3.5-inch vs 2.5-inch Power Requirements
2.5-inch SATA drives draw less than 5V from the USB bus, so enclosures for this form factor never need an external power brick. 3.5-inch drives require a 12V rail for the spindle motor, meaning any 3.5-inch enclosure must include a power adapter. Always verify the adapter is rated at least 12V/2A — undersized adapters cause drive dropouts during spin-up, especially with high-capacity drives above 8 TB.
FAQ
Can I use a 3.5-inch enclosure with a 2.5-inch drive?
What is the maximum drive capacity supported by these enclosures?
Why does my enclosure disconnect during large file transfers?
Do I need a separate fan for my external enclosure?
Final Thoughts: The Verdict
For most users, the external hard drive enclosure winner is the ACASIS 6Gbps because its aluminum body keeps drives cool under load while USB 3.2 Gen 2 delivers the fastest transfer speeds in this roundup. If your workflow involves salvaging data from old PCs with IDE drives, grab the SABRENT USB-DS12 for its unmatched format support. And for quick, tool-free drive swaps at the lowest entry cost, nothing beats the SABRENT EC-DFLT lay-flat dock.
