Finding a cooler that fits inside a cramped mini-ITX chassis without blocking RAM slots or overheating under sustained load is the single biggest headache of small-form-factor PC building. The wrong choice means throttled performance, obnoxious fan noise, or a cooler that simply doesn’t fit between the motherboard and the side panel.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve analyzed hundreds of CPU cooler specifications, clearance charts, and socket compatibility tables to identify which low-profile air coolers actually deliver on their thermal claims inside space-constrained builds.
After comparing seven top contenders from ID-COOLING, Noctua, and ARCTIC, these are the models that earn a spot in any serious guide to the best fan cooler for pc builds with tight height restrictions.
How To Choose The Best Fan Cooler For PC
Selecting the right low-profile air cooler means understanding three non-negotiable measurements: total height, socket compatibility, and motherboard clearance. Specs like heatpipe diameter and fin stack density separate adequate cooling from thermal throttling.
Total Height: The Hard Ceiling
Measure the distance between your CPU socket and the side panel of your case, then subtract 2-4mm for motherboard standoff height and thermal paste gap. Coolers at 37mm (Noctua NH-L9 series) fit ultra-slim cases like the Fractal Terra or Velka 3, while 65-77mm towers work in larger SFF enclosures like the Cooler Master NR200 or the IQUNIX ZX-1. Go over by even 2mm and the side panel won’t close.
Heatpipe Count and Fin Density
Six copper heatpipes (as seen on the ID-COOLING IS-77-XT) transfer more thermal energy to the fin stack than four-pipe designs, which matters when cooling 65W+ TDP processors. Denser fin arrays increase surface area but require higher static pressure from the fan to push air through — a cheap fan on a dense radiator can actually reduce performance.
RAM and VRM Clearance
A cooler that overhangs the RAM slots forces you into low-profile memory, limiting future upgrades and overclocking potential. The Noctua NH-L9x65 series uses a 95x95mm footprint that stays entirely clear of adjacent slots, while deeper coolers like some 120mm-top-flow designs may block the first DIMM slot or interfere with VRM heatsinks on ITX boards.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ID-COOLING IS-77-XT | Air Cooler | Value SFF with 6 heatpipes | 77mm / 6 heatpipes | Amazon |
| Noctua NH-L12S | Air Cooler | Top-flow 120mm in ITX | 70mm / 120mm fan | Amazon |
| Noctua NH-L9x65 chromax.Black | Air Cooler | Premium 65mm with quiet fan | 65mm / 23.6 dBA | Amazon |
| Noctua NH-L9x65 (Brown) | Air Cooler | 65mm proven workhorse | 65mm / 57.5 CFM | Amazon |
| Noctua NH-L9i-17xx chromax.Black | Air Cooler | Ultra-low 37mm for Intel | 37mm / 92mm fan | Amazon |
| Noctua NH-L9a-AM5 | Air Cooler | Ultra-low 37mm for AMD | 37mm / 23.6 dBA | Amazon |
| ARCTIC Liquid Freezer III Pro 360 | Liquid Cooler | High-end 360mm AIO | 360mm rad / 77 CFM | Amazon |
In‑Depth Reviews

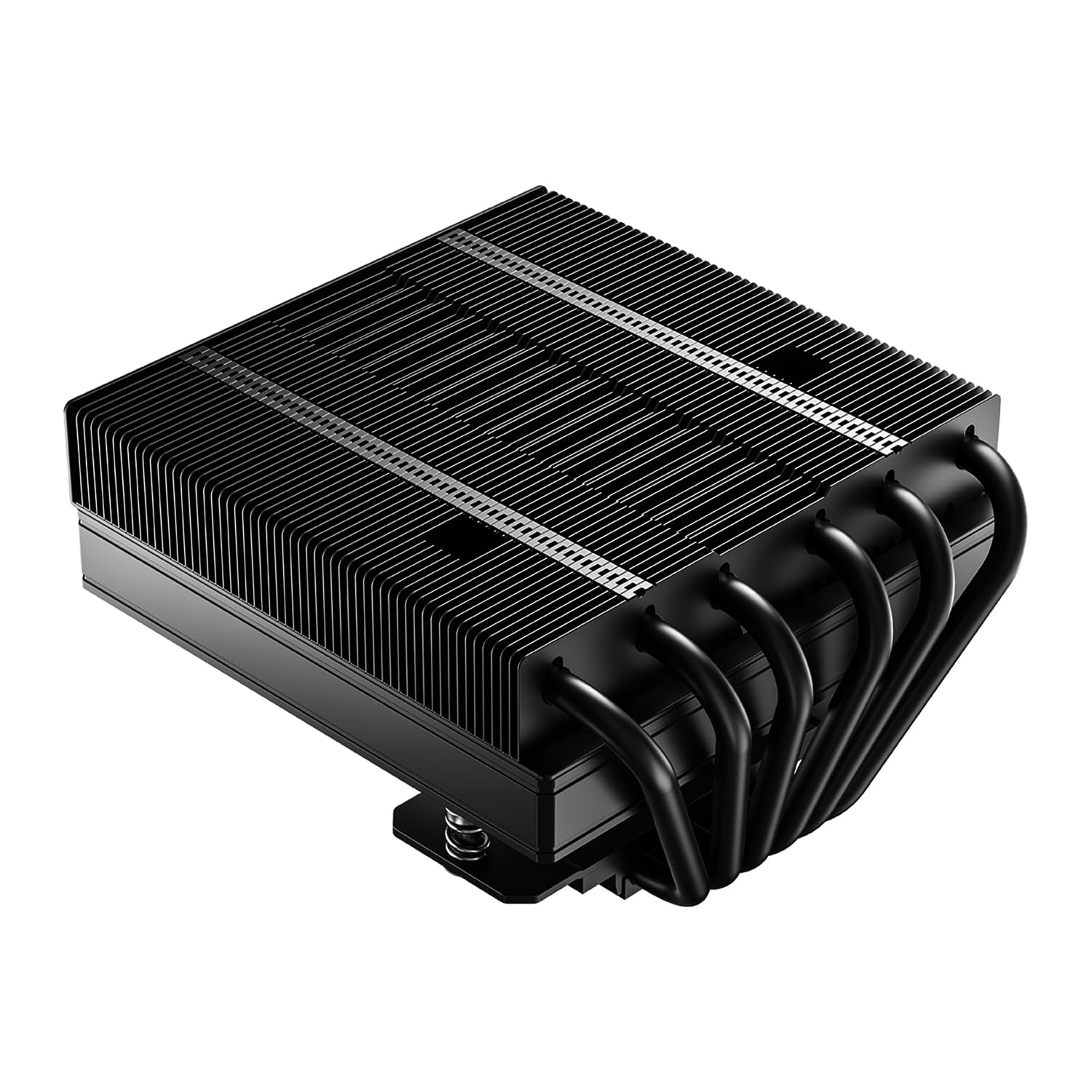

1. ID-COOLING IS-77-XT Black
The ID-COOLING IS-77-XT delivers six copper heatpipes and a 120mm slim PWM fan inside a 77mm total height envelope — a spec combination that typically costs significantly more from premium brands. Users report cooling an AMD 9800X3D during gaming without thermal throttling, and the all-black coating integrates cleanly into any build without the tan-and-brown aesthetic some builds reject.
At 65.2 CFM and 1850 RPM max speed, the stock fan moves respectable air but runs audibly at full tilt. Several buyers swapped the included fan for a Noctua NF-A12x15 to drop noise levels while keeping thermal performance identical. The heatsink itself uses a wide aluminum fin array that provides better motherboard clearance than the competition in the same height class.
Installation requires modest pressure to seat the mounting hardware, and the backplate works with both Intel LGA1700/1200/115X and AMD AM5/AM4 sockets. For builders on a mid-range budget who want 6-heatpipe density without stepping up to premium pricing, this cooler is the stand-out choice in the sub-80mm category.
What works
- Six heatpipes at a competitive price point
- All-black finish matches most SFF builds
- Fits tight cases without blocking RAM slots
What doesn’t
- Stock fan can be loud at higher RPMs
- Mounting requires firm pressure
2. Noctua NH-L12S
The Noctua NH-L12S stands apart by fitting a full 120mm fan in top-flow orientation under a 70mm height ceiling. That larger fan moves more air at lower RPM than any 92mm option, translating to a nearly silent experience during desktop use and moderate gaming loads. One builder reported dropping idle temps on a Ryzen 7 5700X from 55°C to 32°C after switching from a 92mm cooler.
This cooler is the improved successor to the award-winning NH-L12, with a revised fin stack and the NF-A12x15 fan that delivers consistent airflow even against high static pressure. The included Low-Noise Adaptor caps fan speed at roughly 1200 RPM for near-silent operation when the CPU isn’t under full load, while PWM ramps up automatically during heavy workloads.
Clearance is excellent on most ITX and mATX boards — the 70mm height fits cases like the Cooler Master NR200 and SSUPD Meshlicious, and the offset mounting option on AMD AM5 moves the cold plate toward the hotspot for better heat transfer. The brown color scheme divides opinion, but the performance makes it easy to overlook.
What works
- 120mm fan delivers superior airflow and low noise
- Dramatic temperature improvement over smaller coolers
- Versatile mounting for both Intel and AMD
What doesn’t
- Premium pricing compared to similar-height alternatives
- Brown fan color doesn’t match all build aesthetics
3. Noctua NH-L9x65 chromax.Black
The chromax.Black edition of the NH-L9x65 brings Noctua’s proven 65mm copper-base design into a fully blacked-out package that blends into any dark-themed build. The NF-A9x14 92mm fan operates at 23.6 dBA in low-noise mode — virtually inaudible in a typical room — yet still manages to keep a Ryzen 7 7700X at roughly 75°C during sustained gaming sessions according to verified purchasers.
What makes this cooler special for SFF builders is its 95x95mm footprint, which sits entirely clear of RAM slots and PCIe connectors. No low-profile memory required, no awkward VRM heatsink conflicts. Four copper heatpipes and a nickel-plated copper base transfer heat efficiently into the aluminum fin stack, and the SecuFirm2 mounting system includes offset brackets for AM5 that shift the cold plate toward the CPU hotspot.
The 65mm height fits cases that can’t accommodate 70mm towers, including the IQUNIX ZX-1 and many Fractal Terra configs. Thermal paste (NT-H1) and a Low-Noise Adaptor are included in the box. One caution: pushing a 125W+ TDP processor like the 14700K under all-core AVX loads will hit thermal limits — this cooler is optimized for chips with moderate heat output.
What works
- All-black design matches modern components
- Zero RAM or PCIe slot interference
- Extremely quiet at idle and moderate loads
What doesn’t
- Not suitable for high-TDP overclocked CPUs
- Premium price for aesthetic upgrade
4. Noctua NH-L9x65 (Brown)
The original Noctua NH-L9x65 in its classic brown-and-beige livery is the cooler that defined the low-profile segment. Its 65mm height, four heatpipes, and copper base deliver consistent results: one owner reported a 50% drop in both idle and load temperatures when replacing a stock Intel cooler, with an i5-2500K overclocked staying at roughly 50°C during gaming.
The included NF-A9x14 fan runs up to 2500 RPM when needed, but the bundled Low-Noise Adaptor drops that to around 1800 RPM for near-silent operation. At stock settings with the LNA, the cooler is essentially inaudible during normal desktop work and light gaming, only becoming noticeable under sustained all-core loads like video encoding or Cinebench runs.
Compatibility spans both Intel LGA1851/1700/1200/115x and AMD AM5/AM4 sockets, with offset mounting on AMD boards to improve heat transfer. The cooler fits inside 2U server chassis and ultra-compact cases where height is under 70mm. While the brown aesthetic is polarizing, the six-year warranty and decades of reliability make this a safe choice for builders who prioritize function over flash.
What works
- Proven thermal performance in tight spaces
- Includes NT-H1 thermal paste and Low-Noise Adaptor
- Broad socket compatibility with offset mounting
What doesn’t
- Brown fan color doesn’t suit all builds
- Cannot handle high-TDP overclocked CPUs
5. Noctua NH-L9i-17xx chromax.Black
At only 37mm tall, the NH-L9i-17xx chromax.Black is the go-to cooler for the tightest Intel-based SFF enclosures — cases where even a 40mm cooler won’t fit. The all-black finish includes a black NF-A9x14 fan, black mounting hardware, and a black badge, making it a natural fit for monochrome builds like the Velka 3 or the Joyjom chassis.
Thermal performance is respectable for CPUs with moderate heat output. One verified reviewer paired it with an i5-13500 and reported a significant noise reduction compared to the stock Intel cooler, with idle temps dropping from roughly 85°C to the high 30s/low 40s°C in a compact NZXT H1 v1 case. Another builder running an i5-12400 in a mini-ITX case with only 5mm clearance above the cooler described operation as silent.
Installation requires access to the back of the motherboard for the SecuFirm2 mounting bracket, which can be tricky in cases where the motherboard tray is not removable. The package includes NT-H1 thermal paste and a Low-Noise Adaptor. This cooler is not suited for high-power chips like the i9-13900K or i9-14900K, as the fin stack and 92mm fan cannot dissipate 200W+ loads without thermal throttling.
What works
- Incredibly low 37mm height for tight cases
- Near-silent operation with low-noise adaptor
- All-black design suits modern aesthetics
What doesn’t
- Limited to CPUs with moderate TDP only
- Installation can require motherboard removal
6. Noctua NH-L9a-AM5
The NH-L9a-AM5 is the AMD-specific version of Noctua’s 37mm ultra-low-profile cooler, optimized for the AM5 (LGA1718) socket layout. Its tailored footprint ensures 100% RAM and PCIe compatibility on every ITX, micro-ATX, and ATX AM5 motherboard, which is critical when the cooler sits only 1.46 inches above the board surface.
Performance is well-documented for Ryzen chips with moderate heat loads. An owner running a Ryzen 9 7900X (non-overclocked) reported excellent cooling and silent operation during normal use, though thermal throttling occurred under 100% CPU load — an expected limitation given the 37mm height constraint. For gaming and daily workloads on chips like the 7600, 7700, or 7900, the cooler stays well within thermal limits without audible fan noise.
The included NF-A9x14 fan spins to 2500 RPM at full speed, but the Low-Noise Adaptor caps it for whisper-quiet performance during standard tasks. The mounting system is specific to AM5 and uses threaded inserts that require smaller, longer screws than typical cooler mounts — some users found the initial installation fiddly until they realized the unique hardware. At under 50mm total height with no RAM conflicts, this is the definitive solution for AMD builds in the thinnest cases available.
What works
- Perfect RAM and PCIe clearance on all AM5 boards
- Whisper quiet during typical workloads
- Fits the tightest AMD SFF configurations
What doesn’t
- Cannot sustain heavy all-core workloads
- Installation hardware is fiddly for first-timers
7. ARCTIC Liquid Freezer III Pro 360 A-RGB
The ARCTIC Liquid Freezer III Pro 360 is not a low-profile air cooler — it’s a 360mm all-in-one liquid cooler designed for cases that accommodate a full-thickness 38mm radiator. For builders who have moved beyond SFF constraints and need to cool high-TDP chips like the Ryzen 9 9900X or Intel Core Ultra 9 series, this AIO delivers industrial-grade thermal overhead: one buyer reported keeping a 9900X at roughly 62°C under AVX stress testing.
What sets this ARCTIC model apart from other 360mm AIOs is the integrated VRM fan mounted on the CPU block, which actively cools the voltage regulator modules around the socket. The P12 Pro fans are a notable upgrade over the standard P12, providing higher static pressure and lower noise at equivalent RPM. The 77 CFM maximum airflow per fan moves substantial heat through the thick radiator.
Installation has a quirk: the included MX-6 thermal paste can arrive dried and hardened straight from the box, forcing users to purchase separate paste if they want optimal performance. Once properly pasted, the cooler drops idle temps to the high 20s and gaming loads to the low 60s on recent Ryzen processors. The integrated cable management routes all fan wires through the tube sleeve for a clean install, and the A-RGB lighting is vibrant and responsive.
What works
- Exceptional thermal headroom for high-TDP CPUs
- Integrated VRM fan improves motherboard component temps
- P12 Pro fans balance high static pressure with low noise
What doesn’t
- Requires a large case with 360mm radiator support
- Included thermal paste sometimes arrives dried out
Hardware & Specs Guide
Heatpipe Count and Diameter
The number and diameter of copper heatpipes directly determines how much thermal energy can be transferred from the CPU IHS to the fin stack. Six 6mm heatpipes (as seen on the ID-COOLING IS-77-XT) offer roughly 30-40% more total cross-sectional area than four 6mm pipes, meaning higher heat flux capacity. For CPUs above 65W TDP, six-pipe designs provide a meaningful safety margin against thermal throttling during sustained loads.
Fan Size and Static Pressure
Low-profile coolers use either 92mm or 120mm slim fans. A 120mm fan (like the Noctua NF-A12x15) can move significantly more air at lower RPM than a 92mm fan, which directly translates to quieter operation for the same thermal load. However, 120mm fans require more total cooler height — typically 70mm versus 37-65mm for 92mm designs. Choose based on your case’s clearance rather than pure performance.
Socket Offset Mounting
Modern AMD AM5 and Intel LGA1700/1851 sockets place the CPU hotspot slightly off-center from the socket’s geometric center. Offset mounting systems (included with Noctua NH-L12S and NH-L9x65) shift the cold plate by 5-7mm toward the hotspot, improving thermal transfer by 1-3°C under load. This feature is worth seeking out for Ryzen 7000/9000 and Intel 13th/14th-gen chips.
FAQ
Can a 37mm cooler handle a Ryzen 7 7700X or Intel i5-13500?
How do I measure if a low-profile cooler fits my SFF case?
Why do some low-profile coolers block the first RAM slot?
Is a 360mm AIO better than a low-profile air cooler for SFF builds?
Final Thoughts: The Verdict
For most users building a compact PC, the fan cooler for pc winner is the ID-COOLING IS-77-XT because it offers six heatpipes and a 120mm fan at a compelling price point without sacrificing clearance or thermal performance. If you want maximum quiet operation and a premium all-black aesthetic in a 65mm envelope, grab the Noctua NH-L9x65 chromax.Black. And for CPU-focused builds that prioritize raw thermal headroom and have the space for a 360mm radiator, nothing beats the ARCTIC Liquid Freezer III Pro 360.
