The sharp, crisp detail of a 28mm scale space marine’s helmet grille or the fine texture on a dragon’s scale—these are the make-or-break details that separate a display-worthy miniature from a failed print that ends up in the trash. FDM printing for miniatures has been dismissed for years as too crude, but modern machines have closed the gap with finer nozzles, vibration compensation, and tighter tolerances that can actually produce tabletop-ready figures.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent the last several months parsing through build plate specs, layer height minimums, and nozzle geometry from over a dozen current FDM printers to find which ones genuinely deliver the sub-0.1mm layer lines required for miniatures without constant tinkering.
After filtering for reliable auto-leveling, enclosed chambers, and proven customer feedback, this guide ranks the machines that can consistently handle the tiny overhangs and fine details of wargaming figurines. Here is the definitive, data-backed list of the absolute best fdm printer for miniatures you can buy right now based on real-world results.
How To Choose The Best FDM Printer For Miniatures
Selecting an FDM machine for figurines isn’t the same as choosing one for functional brackets or lithophanes. Miniatures demand dimensional accuracy at the sub-millimeter scale, clean overhangs, and minimal visible layer adhesion lines. Here are the four specs that separate a miniature-capable printer from one that will leave you sanding every surface.
Minimum Layer Height and Nozzle Compatibility
The physical limit of detail in an FDM print is the layer height combined with the nozzle diameter. For miniatures, you need a printer that can reliably run a 0.2mm nozzle at layer heights of 0.08mm or lower. Check that the hotend design allows easy swapping of a 0.2mm nozzle — some proprietary quick-swap systems don’t offer that option. A standard 0.4mm nozzle at 0.12mm layers works for larger terrain pieces, but faces and weapon details benefit massively from the finer tip.
Motion System: CoreXY vs. Cartesian Bed-Slinger
Bed-slingers move the build plate on the Y-axis, which introduces momentum that shakes loose small details and creates ringing artifacts on thin vertical features. CoreXY machines keep the print head as the only moving mass, drastically reducing vibration frequency artifacts (VFA) at the speeds required to print a full squad in reasonable time. For miniature work, CoreXY or a heavily braced i3 design is the safer bet for crisp corners and consistent extrusion on tiny layer surfaces.
Automatic Bed Leveling and First Layer Consistency
Miniatures use every millimeter of the build plate, so a first layer that is off by even a few microns will ruin the base of your figure. Look for printers with nozzle-as-sensor leveling or inductive probes that measure at least 16 points. Avoid machines that only probe three corners — they can’t compensate for a warped plate that will ruin small, detailed footprints. Consistent first layers are the difference between a miniature that snaps off the plate cleanly and one that delaminates at the ankles.
Part Cooling Capability
Small features with steep overhangs — like a cloak hem or a raised weapon arm — require aggressive part cooling to solidify the plastic before gravity pulls it down. A dual-fan setup that blows from both sides of the nozzle is ideal. Check whether the printhead shroud directs airflow evenly; single-fan designs often leave one side of a miniature stringy while the other side looks clean. Insufficient cooling is the most common cause of failed overhangs on small-scale prints.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Bambu Lab A1 | FDM Bed-Slinger | Beginner-friendly detail at speed | 0.4mm nozzle, 10k accel, 256mm³ build | Amazon |
| ELEGOO Centauri Carbon | CoreXY Enclosed | Carbon fiber minis & functional parts | 320°C nozzle, enclosed, 500mm/s | Amazon |
| FLASHFORGE Adventurer 5M Pro | CoreXY Enclosed | Enclosed quiet operation | 600mm/s, 280°C nozzle, 0.25mm nozzle available | Amazon |
| Creality K1C | CoreXY Enclosed | Carbon fiber & high-temp materials | 600mm/s, 300°C nozzle, AI camera | Amazon |
| Creality SPARKX I7 Combo | CoreXY Multi-Color | Multi-color out-of-the-box | 500mm/s, CFS Lite, AI detection | Amazon |
| Anycubic Kobra S1 Combo | CoreXY Multi-Color | 4-color minis with filament drying | 600mm/s, 250mm³, ACE Pro dryer | Amazon |
| QIDI Q2 | CoreXY Pro Enclosed | Engineering-grade materials & warpage control | 65°C chamber, 370°C nozzle, 270mm³ | Amazon |
| ELEGOO Saturn 4 Ultra 16K | MSLA Resin | Ultra-fine pre-supported miniatures | 16K LCD, 150mm/h, 30°C tank heater | Amazon |
| Phrozen Sonic Mini 8K S | MSLA Resin | Budget-friendly resin miniatures | 22µm XY, 8K mono LCD | Amazon |
| Prusa MINI+ | i3 DIY Kit | Tinkering & open-source modding | 7in³ build, 280°C nozzle, Prusa Connect | Amazon |
| Creality K2 Pro Combo | CoreXY Multi-Color | Large-scale multi-color & engineering filaments | 600mm/s, 300°C, 12in³, 16-color CFS | Amazon |
In‑Depth Reviews
1. Bambu Lab A1
The Bambu Lab A1 redefines what a bed-slinger can do for miniatures. Its active flow rate compensation algorithm reads real-time extrusion data to eliminate the under-extrusion blobs that ruin a miniature’s face, and the 10,000 mm/s² acceleration means a full 28mm squad finishes in hours, not days. Over 1,500 hours of customer-reported heavy use with no hardware failures indicates a reliability level that budget machines rarely touch.
Swapping to a 0.2mm nozzle is straightforward thanks to the 1-Clip quick-swap system, and the ≤48 dB noise floor means you can run it overnight in a shared apartment without complaints. The full-auto calibration handles mesh bed leveling and Z-offset without any manual probing, so the first layer on a tiny base adheres perfectly every time. For a beginner who wants tabletop-ready miniatures without a resin cleanup workflow, this is the easiest path.
The trade-off is the open frame: without an enclosure, drafts can cause warping on larger terrain pieces, and high-temperature materials like ASA are out of reach without an aftermarket tent. The A1 is also a bed-slinger, so very tall slender miniatures may show Y-axis ghosting at high speeds. Still, for pure plug-and-play miniature detail, none of the competitors undercut it.
What works
- Exceptionally quiet operation at any hour
- Active flow compensation handles intricate geometries
- Rapid setup and nearly zero maintenance
What doesn’t
- Open frame susceptible to ambient drafts
- Bed-slinger motion can ghost tall vertical features
- No support for carbon fiber or other abrasives
2. Creality K2 Pro Combo
The Creality K2 Pro Combo is the heavy artillery for miniature painting enthusiasts who also want functional parts. Its 12-inch cubed build volume fits entire wargaming terrain boards in one piece, while the dual AI cameras monitor for spaghetti failures on tiny support structures. The active chamber heating up to 60°C eliminates corner warping on large flat bases printed in ASA or PA-CF, a common failure point when printing a solid 6-inch diorama base.
The CFS system allows up to 16 colors, meaning you can assign different filament colors to different parts of a multi-part miniature to avoid post-print painting entirely. The 350°C hardened steel nozzle is overkill for standard PLA miniatures, but it enables printing with filled filaments that add a stone texture to castle walls without any post-processing. Industry-grade 3-step-servo motors in the extruder and X/Y axes keep extrusion consistent across high-speed rapid direction changes.
The downsides are weight and cost: at over 52 pounds and the highest price tier in this list, it is a permanent fixture on a heavy table. Some early units required bed replacement due to warping, though Creality’s support resolved those cases. For the dedicated miniature studio printing large terrain sets with multi-color detail, the capacity justifies the premium.
What works
- Massive build volume for full terrain pieces
- 16-color CFS eliminates painting for multi-part models
- Active chamber heating prevents warping on large bases
What doesn’t
- Very heavy and requires a sturdy workbench
- Early batches had bed flatness issues
- Premium price point is a major commitment
3. ELEGOO Saturn 4 Ultra 16K
The Saturn 4 Ultra is a resin printer, but any miniature-focused FDM discussion must acknowledge the resolution ceiling that LCD printing shatters. The 16K monochrome LCD delivers individual pixel visibility approaching the diffraction limit, meaning any detail you can model—a chainmail weave, engraved runes, eye sockets—prints as sharp geometry without FDM layer stepping. The built-in 30°C tank heater keeps resin at optimal viscosity even in cold basements, drastically reducing print failures caused by temperature swings.
The tilt release mechanism is the standout feature for mini painters: instead of the entire build plate peeling vertically (which stresses thin supports), the vat tilts to release the print, allowing lighter supports that snap off cleanly without scarring the model. The AI camera watches for empty build plates and warped detachments, issuing alerts so you don’t waste a 6-hour print on an empty vat. For users who want museum-grade detail with minimal support cleanup, this machine sets the standard.
Working with resin requires gloves, wash stations, and proper ventilation—it is a messy process compared to FDM. The Saturn 4 Ultra also has a learning curve for exposure settings per resin type. If you are willing to invest in the post-processing workflow, the detail output is unmatched by any FDM machine at any price.
What works
- 16K resolution captures sub-micron details
- Tilt release allows lighter, cleaner supports
- Built-in heater stabilizes print success rate in cold rooms
What doesn’t
- Requires full PPE, wash, and cure station
- Exposure tuning needed per resin batch
- Not suitable for functional or load-bearing parts
4. FLASHFORGE Adventurer 5M Pro
The Adventurer 5M Pro is the best option for printing miniatures in a noise-sensitive environment. Its fully enclosed CoreXY frame with a dual circulation system reduces dust infiltration and keeps the chamber stable, and the 35-second heat-up to 200°C means you can start a small figure in under a minute from cold startup. The pressure sensing auto-leveling detects platform height at multiple points, ensuring a flawless first layer that grips even small footprints like a 25mm base.
The ability to swap to a 0.25mm nozzle gives you the fine tip needed for 0.06mm layers on faces, while the dual-sided PEI platform allows tool-less removal without scraping the underside of thin figures. The enclosed HEPA filtration and carbon filter make ABS miniatures a realistic option without gassing out the room. For users who want an all-in-one enclosed system that ships ready-to-print in 10 minutes, this machine delivers.
Software compatibility can be a hurdle—the FlashPrint and Orca-FlashForge slicers have a learning curve, and the mobile app has inconsistent connectivity. A small number of customer units developed extruder clicking after two months of use, though replacement support was responsive. For the price, the combination of speed, enclosure, and fine-nozzle adaptability is hard to beat.
What works
- Rapid heating and high-speed CoreXY motion
- Enclosed filtration enables ABS printing indoors
- Interchangeable nozzles down to 0.25mm
What doesn’t
- Slicer and app software can be glitchy
- Some units developed extruder wear over time
- Proprietary ecosystem limits third-party mods
5. QIDI Q2
The QIDI Q2 is the first printer at this price that uses the nozzle itself as the leveling sensor, eliminating the offset errors common with inductive probes. This is critical for miniatures: when the build plate is loaded with a dozen tiny bases, each at a slightly different Z-height, the nozzle-as-sensor compensates for every local deviation, resulting in a perfect first layer across the entire plate. The 65°C actively heated chamber prevents ABS and nylon miniatures from lifting at the corners, a problem that plagues lower-end enclosed printers.
The upgraded 1.5GT synchronous belt reduces vibration frequency artifacts (VFA) far better than the belts on most competitors in this range. On a 0.2mm nozzle with 0.06mm layers, miniature surfaces come out visibly smoother without the faint parallel lines that cheaper belts leave behind. The triple filtration system (G3 pre-filter, H12 HEPA, activated carbon) makes it safe to run in a bedroom or office without VOC concerns. For users printing with engineering-grade materials like PA-CF for durable game components, the 370°C all-metal hotend opens possibilities unavailable on lower-temp machines.
The firmware is polished but still shows some language localization gaps, with a few menu items in Mandarin on some units. The AI spaghetti detection triggers too many false positives, pausing prints unnecessarily. The Q2 also requires the optional QIDI BOX for multi-color, which isn’t included. For a prosumer who wants heated-chamber reliability and the best first-layer detection available, it is a strong contender.
What works
- Nozzle-as-sensor leveling perfect for multi-base plates
- 65°C active chamber enables warp-free ASA/ABS
- Low-VFA belt drive for ultra-smooth surfaces
What doesn’t
- AI detection has too many false alarms
- Some firmware screens not fully translated
- Multi-color requires an expensive separate box
6. ELEGOO Centauri Carbon
The Centauri Carbon enters the market with a CoreXY enclosure at a price point previously occupied by open-frame i3 machines. The enclosed die-cast aluminum frame minimizes vibrations so effectively that even at 500 mm/s and 20,000 mm/s² acceleration, the print quality on small geometries holds up well. The 320°C hardened steel nozzle opens the door to printing carbon-fiber-reinforced PLA for miniature parts that need extra stiffness, such as thin weapon shafts that would snap in standard PLA.
The automatic vibration compensation and pressure advance algorithm work in tandem to eliminate ring artifacts on vertical columns—a direct benefit for printing the legs and torsos of humanoid figures. The built-in camera and dual LED lighting provide real-time monitoring and time-lapse capture, which is especially useful for documenting long multi-part print jobs. The PLA-specific surface on the dual-sided build plate provides excellent adhesion at lower bed temperatures, reducing energy costs during overnight runs.
The main limitation is the slicer: the proprietary ElegooSlicer struggles with some complex STLs and crashed on older laptops during slicing. The printer is also heavy at 38.5 pounds, and the included enclosure lacks a HEPA filter for fume-sensitive environments. For the price, the feature set—CoreXY, enclosure, high-temp nozzle, auto-compensation—is the best value-to-performance ratio currently available for miniature FDM printing.
What works
- Die-cast CoreXY frame eliminates ringing on tall parts
- 320°C nozzle handles carbon-fiber filaments
- Automatic compensation for first-layer perfection
What doesn’t
- Proprietary slicer has stability issues
- No HEPA filter for ABS printing
- Heavy, not easily portable
7. Anycubic Kobra S1 Combo
The Kobra S1 Combo brings a genuine multi-color solution with its ACE Pro filament dryer and 4-color printing at a price that undercuts Creality’s K2 ecosystem. The included filament drying module is not a gimmick—moisture in PLA is a silent killer of miniature detail, causing popping that leaves pits in exposed skin surfaces. The 360° hot air circulation keeps even opened spools perfectly dry for the entire print session. The enclosed CoreXY design operates fast enough that a four-color, 28mm squad can be completed overnight without layer timing issues
The Anycubic Kobra OS implements flow compensation that reduces zits and blobs at layer change points, a frequent problem on multi-color prints where filament swapping introduces pressure variations. The downloadable app allows multi-plate document parsing, which is valuable for managing multiple miniature components (torsos, arms, heads) on one build plate and remotely initiating the print. For a tabletop wargamer who wants to print color-coded factions without painting, the S1 Combo is a logical step.
First-unit quality control has been inconsistent: some customers received units with clogged hotends or missing USB drives, though Anycubic’s support replaced them without pushback. The slicer defaults to the wrong printer profile on occasion, requiring manual correction. When it works—which is most of the time after the initial setup—the combination of enclosed multi-color and filament drying is a major convenience.
What works
- ACE Pro dryer prevents moisture popping on fine details
- Quiet enough for shared office printing
- Good value for an enclosed multi-color CoreXY
What doesn’t
- Inconsistent first-unit quality control
- Slicer occasionally defaults to wrong printer profile
- Mobile app integration needs improvement
8. Creality K1C
The K1C is the upgrade path for users who outgrew an Ender 3 and want high-speed CoreXY performance without moving to the Bambu ecosystem. The tri-metal nozzle—a steel tip bonded to a brass body—provides the abrasion resistance needed for carbon-fiber filaments while maintaining the thermal conductivity of brass for even melting. The AI camera monitors for under-extrusion and spaghetti failures on tiny supports, alerting the user before a six-hour miniature print becomes a plastic blob.
The integrated activated carbon filter reduces fumes enough to run PLA and PETG in a living area, though ABS still produces noticeable odor. Input shaping and pressure advance are pre-configured in the Creality OS, which is an Orca fork that offers direct control over retraction settings needed for fine detail work. The silent mode reduces noise to around 45 dB, making it feasible to run during a D&D session. For users who print both functional parts and miniatures, the K1C’s 300°C max temp and carbon-fiber support offer a versatile single-machine solution.
The included smooth build plate requires glue stick for PLA adhesion, and the textured PEI “B plate” is sold separately—a frustrating omission. The air filter is marginal for ABS, and some units experienced filament jams that were difficult to clear due to glued connectors. Regular maintenance is required to keep the extruder reliable.
What works
- High-speed CoreXY with excellent stock part cooling
- Tri-metal nozzle resists carbon-fiber abrasion
- Open-source Klipper firmware allows deep tuning
What doesn’t
- Smooth plate requires glue stick for PLA grip
- Air filter underperforms for ABS printing
- Some units prone to filament clogging
9. Phrozen Sonic Mini 8K S
The Sonic Mini 8K S is the entry-level resin printer that challenges the assumption that you need to spend premium money for miniature detail. At 22 microns XY resolution, the pixel grid is so fine that layer lines are invisible to the naked eye on a primed figure. The compact 6.5 by 6.7 by 2.8 inch build volume is small but perfectly sized for a dozen 28mm bases at once or a single large bust. The open-source slicer compatibility with Lychee, Chitubox, and Tango means no vendor lock-in—you can use the community profile databases for precise exposure tuning.
The precise Z-axis calibration ensures consistent layer alignment on thin vertical features like spear shafts and antennae. Multiple customers report printing “a wide range of toys and appliance parts” with impressive detail, confirming the reliability of the z-axis leadscrew. For a first-time resin user, the value proposition is hard to beat: the step into 8K resolution at a budget-friendly tier gives you professional detail without the professional price tag.
The printer only reads files via USB—no WiFi, no app control—which feels dated in 2025. The build plate is relatively small, so terrain tiles or larger monsters must be split into segments and glued. The included scraper can damage the build plate finish if used carelessly. For users willing to accept the trade-offs of small build volume and USB-only transfer, the price-to-detail ratio is unbeatable.
What works
- Exceptional 22-micron XY detail for the price
- Compatible with all major third-party slicers
- Compact footprint fits on a desk corner
What doesn’t
- No WiFi or app connectivity
- Small build volume limits larger models
- Build plate finish can scratch easily

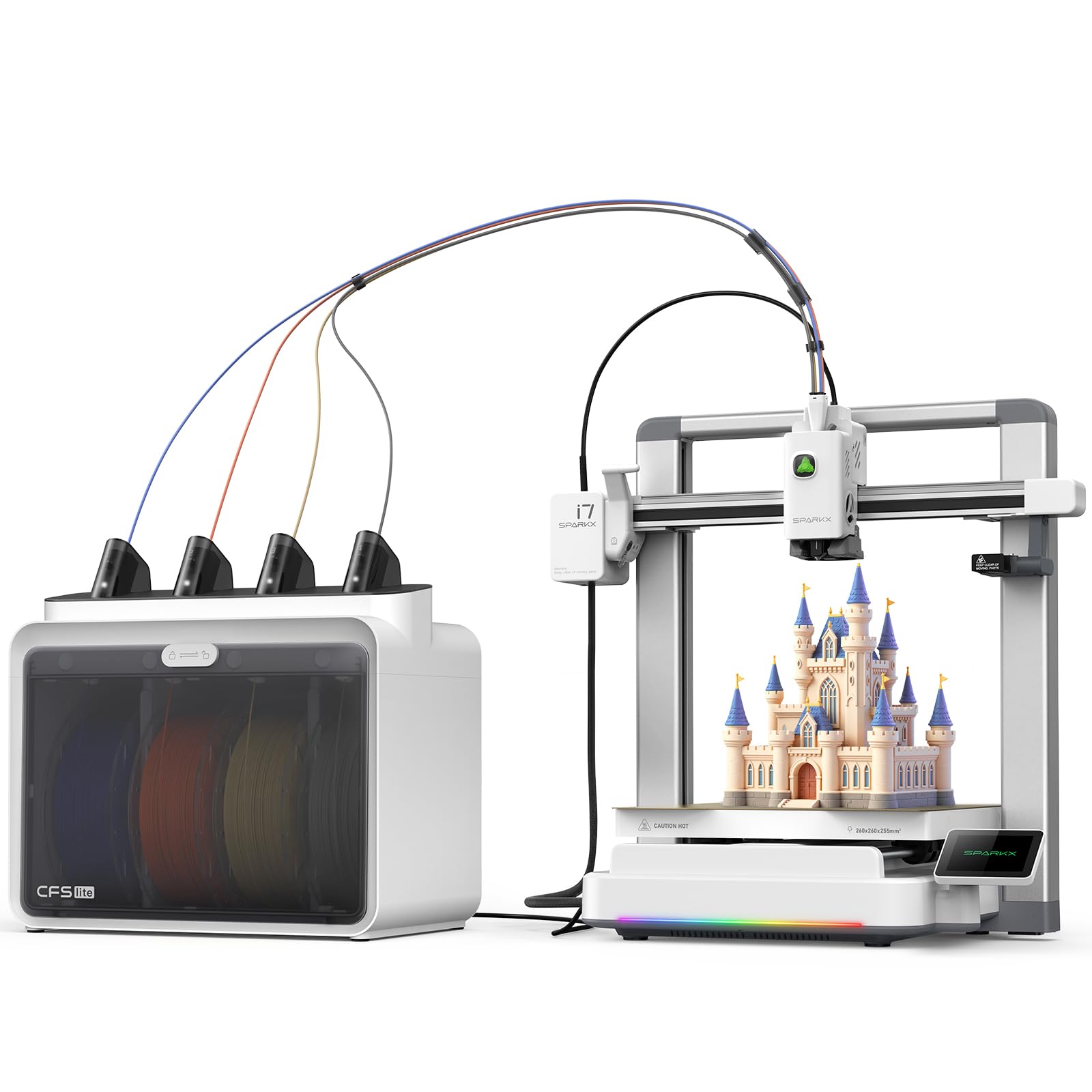

10. Creality SPARKX I7 Combo
The SPARKX I7 Combo is built for users who want to jump straight into multi-color printing without assembling a separate filament system. The CFS Lite system automatically reads filament information and applies optimal print settings in the slicer, reducing the friction of setting up a multi-color miniature. The 50 percent less purging waste compared to older multi-color systems means you aren’t throwing away half a spool of plastic just to print a color-swapped cape on a superhero figure.
The built-in AI camera watches for spaghetti failures, air printing, and build plate positioning, which is especially useful when printing multiple small components across a full plate. The real-time Pressure Advance technology minimizes the oozing and blobs that otherwise ruin sharp color transitions on small parts. The RGB lighting is a cosmetic bonus, but the status-indication function—color changes signal print progress—is genuinely useful for monitoring overnight runs without opening the app.
Early adopters reported that the printer was not yet in the Creality Print app, making WiFi setup and remote starts impossible. The USB drive shipped with some units was also faulty, indicating rushed packaging. These issues may be resolved by firmware updates, but at the current stage the I7 feels like a promising platform with unpolished software integration. For risk-tolerant users who want multi-color detail immediately, it is a compelling option.
What works
- Reduced purging waste saves filament over multiple prints
- Auto filament detection simplifies multi-color setup
- Zero assembly required out of the box
What doesn’t
- App integration was incomplete at launch
- USB drive included with some units is faulty
- No built-in filament drying
11. Prusa MINI+
The Prusa MINI+ in its DIY kit form is the right choice for the user who values repairability and community support over raw speed. The assembly process itself teaches you the mechanical fundamentals—belt tension, lead screw alignment, hotend wiring—which pays off when you need to swap nozzles to a 0.2mm for finer miniature detail. Prusa’s firmware updates are legendary for longevity: the same printer that shipped in 2022 received OTA updates that doubled its print speed via Input Shaper improvements.
The open-source, modder-friendly design means you can add a custom enclosure, a dual-Z upgrade, or a filament runout sensor that works with any filament standard. The included Prusament PLA sample is a nice touch, and the Prusa Slicer profiles for miniatures (0.05mm Detail preset) produce some of the most consistent layer lines of any FDM machine in this list when tuned. The community support through Prusa Forum and Printables is unmatched—any miniature-specific issue has a thread with a solution.
The MINI+ is slow by modern standards: a single 28mm figure can take 4-5 hours at 0.05mm layers, whereas a CoreXY machine might finish in under two. The 7-inch cubed build volume is restrictive for terrain tiles or large monsters. The DIY assembly requires a few hours of careful work, and some users reported extruder jams after a month of use with cheap filaments. For the patient enthusiast who wants a rock-solid foundation for learning, the MINI+ is a trusted platform that teaches you everything.
What works
- Open-source, endlessly repairable and upgradable
- PrusaSlicer profiles deliver precise 0.05mm layers
- Active community support for any 3D printing issue
What doesn’t
- Slow compared to modern CoreXY printers
- Small build volume limits terrain and large miniatures
- DIY assembly takes time and mechanical patience
Hardware & Specs Guide
Layer Height and Nozzle Diameter
The single most important specification for miniature FDM printing is the achievable layer height. Miniature-quality prints typically require layer heights between 0.05mm and 0.1mm. To achieve consistent extrusion at these thin layers, a 0.2mm or 0.25mm nozzle is recommended because it provides enough backpressure to keep the flow stable at such low volumetric rates. Standard 0.4mm nozzles can technically print at 0.08mm layers, but the detail on faces and small armor details will lack crispness without a finer opening.
Vibration Frequency Artifacts (VFA)
VFA are the faint, evenly spaced horizontal lines that appear on vertical walls when the printer’s motor drivers resonate with the frame’s natural frequency. On a miniature’s shoulder pad or helmet dome, these lines ruin the illusion of smoothness. Printers that use 1.5GT synchronous belts (common on higher-end CoreXY machines like the QIDI Q2) reduce VFA significantly compared to the 2GT belts found on budget i3 machines. CoreXY design inherently reduces VFA because the moving mass is lower and more evenly balanced.
FAQ
Can FDM printing really match resin detail for 28mm miniatures?
What does a 16K LCD resin printer give me that a high-end FDM cannot?
Should I buy a resin printer or an FDM printer for my first miniature machine?
Final Thoughts: The Verdict
For most users, the best fdm printer for miniatures winner is the Bambu Lab A1 because it combines unmatched ease-of-use, active flow compensation, and quiet operation that delivers tabletop-quality miniatures straight out of the box. If you want the strongest heated chamber and the ability to print engineering-grade materials alongside your miniatures, grab the QIDI Q2. And for large-scale multi-color terrain and figures without the resin cleanup, nothing beats the Creality K2 Pro Combo.
