The average espresso machine takes up more counter space than a microwave, and even a “slim” model often leaves you wedging the portafilter handle against the backsplash. A small espresso machine solves that geometry problem — but shrinking the housing can’t shrink the boiler duty, pump pressure, or steam dryness required for real café-grade shots.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent five years mapping the trade-offs between footprint and brew physics, digging through thermoblock heat-exchanger curves, 58mm group-head tolerances, and the real-world pull consistency across the narrow sub-12-inch width segment.
This guide compresses that research into a direct comparison of nine different engineering approaches to the small espresso machine category — from capsule shortcuts to 20-bar semi-automatics and fully-integrated grinders, each with concrete spec-level strengths you can verify before buying.
How To Choose The Best Small Espresso Machine
Brewing real espresso in a compact frame depends on three non-negotiable hardware decisions: the pump pressure, the portafilter diameter, and the heating system layout. The label “small” tells you about the outer shell — not the extraction quality inside it.
Pump Pressure: The 9-Bar Myth vs. 15/20-Bar Marketing
Optimal espresso extraction happens at roughly 9 bars of pressure at the puck. A machine labeled “15 bar” or “20 bar” uses a higher-rated pump to overcome internal losses — the real puck pressure is often regulated down. What matters is whether the machine uses an over-pressure valve (OPV) to cap the pressure around 9–10 bar. Machines without an OPV (most budget units) force you to rely on pressurised basket inserts rather than true crema from a single-wall basket.
Portafilter Size and Basket Type
A 58mm portafilter holds roughly 16–20 grams of ground coffee, matching commercial dosing. Smaller 51mm or 54mm baskets hold less and produce thinner shots with less headspace for even saturation. A single-wall (non-pressurized) basket allows the water to push through the puck at full depth — this is the only way to get real crema from fresh beans. Pressurized baskets use a spring-loaded trick to fake crema, which works with pre-ground supermarket coffee but caps your ceiling.
Thermoblock vs. Traditional Boiler
Compact machines often use a thermoblock — a metal block with a heating channel — because it eliminates a large boiler tank. Thermoblocks heat water on demand, reaching brew temperature in 30 seconds or less, but they struggle to maintain thermal stability during back-to-back shots. Traditional boilers (brass or aluminum) hold more thermal mass and produce steadier temperatures, but they delay heat-up and increase footprint. The best small machines balance a compact boiler with PID digital temperature control to lock in extraction consistency.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Gaggia RI9380/46 E24 | Semi-Auto | Real crema without electronics | 58mm commercial portafilter | Amazon |
| Breville Bambino Plus | Semi-Auto | 3-second heat-up / auto steam | 54mm portafilter + PID | Amazon |
| Philips Barista Brew | Semi-Auto | Built-in grinder + dual bean hopper | 58mm portafilter + 280g hopper | Amazon |
| Terra Kaffe Demi | Fully Auto | Bean-to-cup in 7.5″ width | Integrated conical burr grinder | Amazon |
| Nespresso Pixie | Capsule | One-button simplicity / tiny footprint | 4.6″ width / capsule system | Amazon |
| SHARDOR 20-Bar | Semi-Auto | Temp display / fast heat-up | 30-second thermoblock / 1350W | Amazon |
| Gevi 58mm | Semi-Auto | Commercial 58mm at mid-range price | 58mm portafilter / pre-infusion | Amazon |
| XIXUBX 20-Bar | Semi-Auto | Budget pressure gauge + stainless build | Visible pressure gauge / 42 oz tank | Amazon |
| Calphalon Compact | Semi-Auto | Low-profile starter for espresso beginners | 15-bar pump / thermoblock heating | Amazon |
In‑Depth Reviews
1. Gaggia RI9380/46 E24 Espresso Machine
The Gaggia Classic Pro lineage remains the low-cost entry point into a real, serviceable 58mm commercial group head with a brass boiler and an over-pressure valve that actually delivers 9 bars at the puck. The E24 version keeps the same solid steel chassis and three-way solenoid valve that dries the puck instantly after the shot ends — a feature absent from almost every other machine at this size.
The 58mm portafilter accepts standard commercial baskets, so you can swap in a VST or IMS precision basket for higher extraction yields. The steam wand is commercial-grade but fixed in a single position — you’ll want to mod it with a Rancilio Silvia wand for better articulation. There is no PID, no pre-infusion, and no programmable shot timer; this machine expects you to manage the pull manually with a scale and a stopwatch.
At roughly 8 inches wide and 14 inches deep, it fits most counters, but the solid steel housing makes it heavier than any plastic-bodied unit. Experienced home baristas who want a repairable, modifiable platform with decades of community support will find no better option in the sub-8-inch width class.
What works
- Real 58mm commercial group with standard basket compatibility
- Three-way solenoid valve for dry pucks and clean portafilter removal
- Fully serviceable brass boiler with available spare parts
What doesn’t
- No temperature control or PID — requires a separate brew thermometer or PID kit
- Fixed steam wand position limits pitcher angles for microfoam
- No pressure gauge on the front panel — external manometer needed to dial in OPV
2. Breville Bambino Plus BES500BSS
The Bambino Plus delivers third-wave coffee performance in a chassis that measures just 7.7 inches wide — narrower than most toasters. Its ThermoJet heating system reaches brew temperature in three seconds, making it the fastest heat-up machine in this entire lineup. The 54mm portafilter holds 19 grams of coffee, which is slightly smaller than the 58mm commercial standard but large enough to produce balanced 1:2 ratio shots.
PID digital temperature control keeps water delivery within a 0.5-degree tolerance, eliminating the temperature inconsistency that plagues most thermoblock machines. The auto steam wand uses a thermistor probe to stop texturing at the set temperature and texture level — four temperature settings and three texture levels are accessible through the control panel. The wand self-purgs after steaming to prevent milk buildup in the boiler circuit.
The lightweight plastic body and shallow drip tray are the main compromises. The machine needs to be held down when locking the portafilter, and the tray fills quickly during back-to-back drinks. The compact footprint also means the steam wand has limited reach into tall pitchers. For the user who wants a fast, temperature-stable shot and automated microfoam without sacrificing counter space, the Bambino Plus is the most refined package in the sub-8-inch segment.
What works
- Three-second ThermoJet heat-up with PID stabilization
- Automated steam wand with adjustable temperature and texture
- Auto-purge cycles the boiler after steaming for shot consistency
What doesn’t
- Lightweight body slides during portafilter locking — requires counter grip
- 54mm portafilter limits third-party basket and accessory options
- Steam wand auto-purge splatters milk residue onto the drip tray
3. Philips Barista Brew PSA3228/41
The Philips Barista Brew bridges the gap between a basic semi-automatic and an integrated grinder solution. It uses a 58mm stainless steel portafilter with both single-wall and dual-wall baskets, so you can progress from supermarket pre-ground (pressurized basket) to fresh ground specialty beans (single-wall basket) without replacing the machine. The 280-gram dual bean hopper has a divider that lets you store two bean types — handy for caf/decaf households.
The integrated grinder runs a full conical burr set with adjustable grind size running from fine to coarse, though the step increments are wide compared to a dedicated standalone burr grinder. The calibrated tamper docks into a counter-safe platform on the machine, ensuring a level tamp every time — a real help for beginners who struggle with uneven pressure. The steam wand is a single-hole commercial-style unit, not an auto-frother, so you control the aeration manually.
The machine’s footprint stretches to 13 inches wide and 16 inches deep, which makes it the largest machine in this lineup. The built-in grinder also adds plastic static that can scatter grounds onto the counter. For users who want a single-appliance solution with a 58mm group and the freedom to use both fresh and pre-ground coffee, the Barista Brew reduces gear count without locking you into capsules.
What works
- 58mm portafilter with dual-wall and single-wall baskets included
- Dual 280g bean hopper permits two bean varieties in one machine
- Calibrated tamper docking system ensures level compression
What doesn’t
- Wide 13-inch depth makes it one of the largest in this category
- Grinder steps are coarse — minor grind adjustments between beans are hard
- Static buildup from the grinder creates coffee dust on the counter

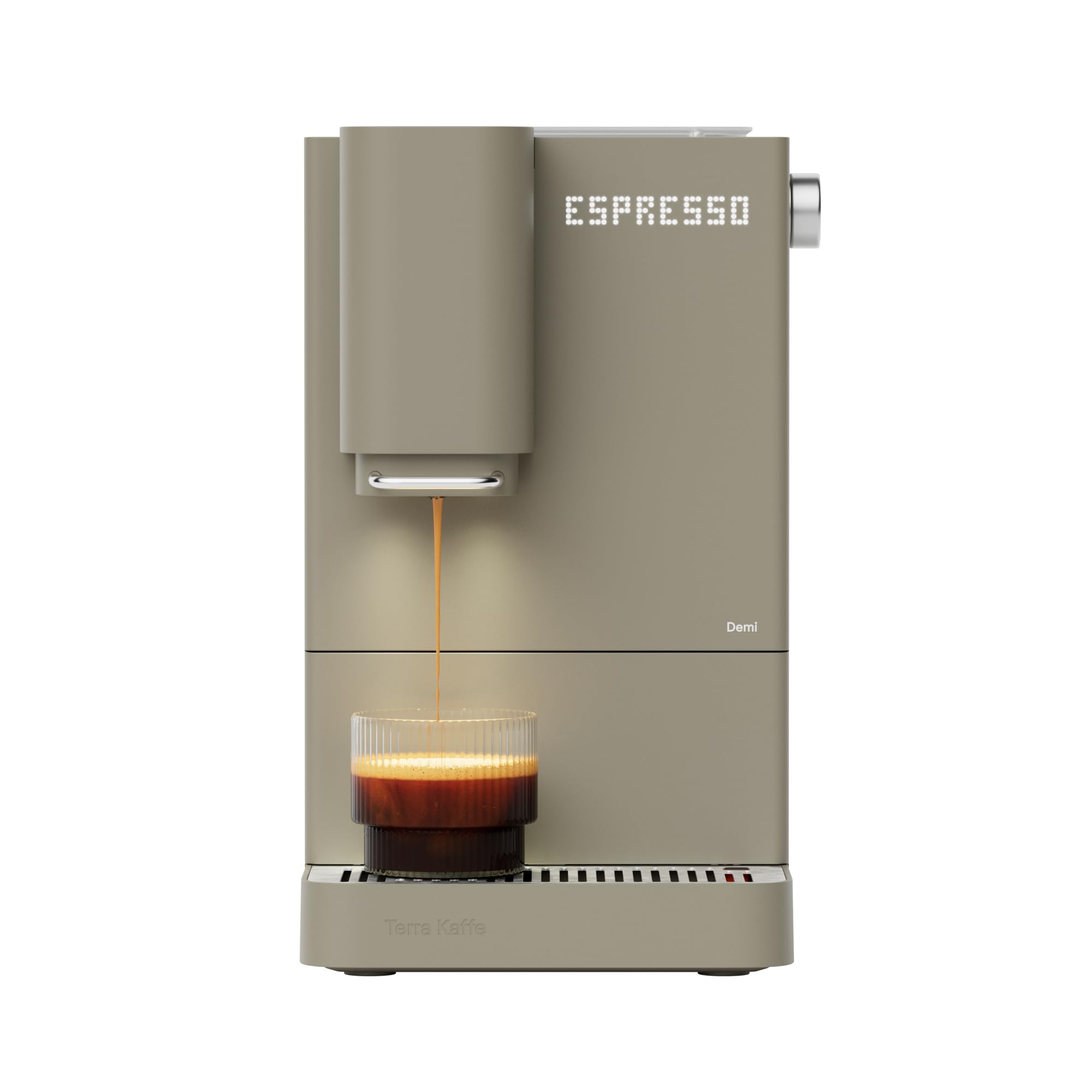

4. Terra Kaffe Demi
The Terra Kaffe Demi is the only fully automatic bean-to-cup machine in this roundup that fits within a 7.5-inch width — roughly the same counter footprint as a loaf of bread. It integrates a precision conical burr grinder that doses fresh grounds directly into the brewing chamber for every shot, eliminating the need for a separate grinder and manual dosing. The machine offers four brew types: espresso, lungo, Americano, and drip-style coffee, all adjustable via a stainless steel dial that controls strength, water temperature, and drink volume.
The self-cleaning system runs a rinse cycle automatically, and the front-loading drip tray and waste bin make daily maintenance straightforward. The Demi uses a thermoblock to reach brew temperature in about 30 seconds — slower than the Bambino Plus, but reasonable for a full automatic. The customization dial provides more granularity than most super-automatics, allowing users to tweak yield and temperature without diving into hidden menus.
Reliability has been mixed in early feedback — several units have exhibited internal leaks and inconsistent puck saturation. The waste hopper is small and requires emptying after roughly 8–10 drinks. For the user who prioritizes a fully automatic workflow in the narrowest possible footprint and is willing to accept the trade-offs of an early-stage product ecosystem, the Demi is a forward-looking machine with a premium feel.
What works
- Ultra-compact fully automatic with integrated conical burr grinder
- Customizable strength, temperature, and volume via physical dial
- Self-cleaning rinse cycle reduces daily manual flushing
What doesn’t
- Reported reliability issues with internal leaks and puck moisture
- Small waste bin and drip tray require frequent emptying
- Significant price premium for the fully automatic convenience
5. Nespresso Pixie by De’Longhi
The Nespresso Pixie occupies the smallest physical footprint in this entire comparison — just 4.6 inches wide, with hammered metal side panels that give it an industrial aesthetic. It runs exclusively on Nespresso Original capsules, which use a centrifugal extraction method that spins the coffee bed at high RPM to produce a thick crema layer. The machine offers two presets: Espresso (40ml) and Lungo (110ml), with a simple two-button interface.
The 19-bar high-pressure pump is proprietary to the Nespresso system and is not user-servicable, but capsule-based brewing eliminates the need for a grinder, tamper, or puck prep entirely. The Pixie heats up in about 25 seconds and automatically shuts off after two minutes of inactivity, saving power in a small kitchen or office. Used capsules eject into an internal bin that holds roughly 10 spent pods before needing to be emptied.
Because the Pixie relies entirely on aluminum capsules, you are locked into Nespresso’s ecosystem — there is no way to brew fresh ground coffee. The crema is aerated by the spin mechanism, not by espresso pressure on a coffee puck, so the mouthfeel is lighter than a real 9-bar pull. For a user whose absolute priority is counter space and speed, and who accepts the per-cup capsule cost, the Pixie is the smallest functional espresso machine available.
What works
- Tightest footprint in the category at 4.6 inches wide
- Consistent one-button operation with no grind, tamp, or clean-up
- Rapid 25-second heat-up and auto-shutoff for energy savings
What doesn’t
- Locked into Nespresso Original capsules — no fresh bean option
- Crema texture is centrifugal-frothed, not espresso-pressure derived
- Per-cup cost exceeds fresh-ground espresso by a wide margin
6. SHARDOR 20-Bar Espresso Machine
The SHARDOR 20-Bar machine brings a dedicated LCD temperature display to the budget segment — a feature rarely seen below the mid-range threshold. The display shows the actual boiler temperature in real time, allowing you to wait until the water hits the optimal 198–200°F range before brewing. The 1350W thermoblock reaches that temperature in roughly 30 seconds, and the 20-bar pump delivers enough headroom for consistent pressure even with finer grinds.
The steam wand is manually adjustable and capable of producing dry microfoam for latte art, though it lacks the auto-texturing found on pricier machines. The integrated cup warming tray on top is a practical addition that maintains mug temperature during the brew cycle. The water reservoir is removable and holds 60 ounces — enough for multiple drinks without frequent refilling.
The main durability concern is the customer support response time, which several users have flagged as slow when warranty issues arise. The machine uses a pressurized basket system out of the box, so beginners will get drinkable crema from pre-ground coffee, but the ceiling is lower than a single-wall basket machine. For the user who wants temperature visibility and fast heat-up at an accessible price point, the SHARDOR offers the best spec-to-dollar ratio in the thermoblock subcategory.
What works
- Real-time LCD temperature display shows brew-ready status
- Quick 30-second thermoblock heat-up and 1350W power draw
- Large 60-ounce removable water reservoir
What doesn’t
- Pressurized baskets limit true espresso extraction potential
- Customer service response reported as slow
- Steam wand is manual with no auto-shutoff or texture adjustment
7. Gevi Espresso Machine with 58mm Portafilter
The Gevi machine is one of the few sub- options that ships with a 58mm commercial-grade portafilter. Combined with a pre-infusion system that gradually ramps up pressure before full extraction, it reduces the risk of channeling and produces a more balanced shot than many entry-level machines. The 20-bar Italian pump and 1350W boiler maintain consistent pressure for both the brew and steam phases.
The steam wand is a 360-degree rotating unit with a single-hole tip that produces acceptable microfoam for cappuccinos and lattes. The water tank sits at 50.7 ounces and is removable for filling and cleaning. The brushed stainless steel body gives it a sturdy feel that matches machines costing several times more, though the internal components are built to a mid-range standard.
Some units have arrived with cosmetic defects such as scratches on the water tank, and the brewing group can be finicky about grind coarseness — too fine and the flow stalls, too coarse and the shot runs sour. For the buyer who wants a 58mm group on a strict budget and is willing to spend time dialing in the grind, the Gevi provides a foundation that can be improved with aftermarket baskets.
What works
- 58mm commercial portafilter at a budget price point
- Pre-infusion system reduces channeling and improves extraction
- Compact brushed stainless steel body matches premium aesthetics
What doesn’t
- Finicky grind tolerance — narrow sweet spot for consistent flow
- Water tank cosmetic defects reported out of box
- Lacks a three-way solenoid valve — wet pucks after extraction
8. XIXUBX 20-Bar Espresso Machine
The XIXUBX 20-Bar machine packs both a visible pressure gauge and a full stainless steel body into a unit that measures just 5 inches wide and 11.8 inches deep. The pressure gauge gives live feedback on extraction pressure, helping you adjust the grind and tamp to hit the ideal 9-bar zone — a rare tool at this tier. The 42-ounce water tank supports over ten consecutive shots, reducing refill frequency during multiple drink sessions.
The 360-degree detachable steam wand produces dense microfoam and disconnects for easier cleaning, which is a design detail usually reserved for higher-end machines. The included stainless steel milk frothing pitcher, tamper, and 51mm pressurized portafilter mean the machine is fully functional out of the box with no additional purchases required. The 20-bar pump provides overhead pressure that compensates for the pressurized basket’s limitations.
The 51mm portafilter is smaller than the 58mm standard, which restricts dose capacity and limits the ability to upgrade to precision baskets. The pressurized baskets produce a drinkable shot with pre-ground coffee but will not yield the same depth of flavor as a non-pressurized setup. For the user seeking a complete bundle with a pressure gauge at the lowest entry cost, the XIXUBX is the most feature-complete option in the budget segment.
What works
- Visible pressure gauge provides real-time extraction feedback
- Detachable steam wand improves daily cleaning access
- Complete accessory kit includes pitcher, tamper, and filters
What doesn’t
- 51mm portafilter limits dose capacity and aftermarket upgrades
- Pressurized baskets cap the ceiling for true espresso potential
- Water tank capacity printed in ounces on tank is not calibrated
9. Calphalon Compact Espresso Machine
The Calphalon Compact is purpose-built for counter space optimization — its 5.74-inch width makes it one of the slimmest semi-automatic machines on the market. It uses a 15-bar Italian pump and thermoblock heating with low-pressure pre-infusion to deliver consistently flavored shots in a minimal footprint. The volumetric control system dispenses single or double shots with push-button repeatability, reducing the guesswork for new espresso drinkers.
The steam wand is a powerful single-hole unit that produces creamy microfoam for latte art — several users have noted the steamer performance outpaces the brew quality. The included stainless steel milk jug, tamper, and dual-wall filter baskets provide a starter kit that requires no immediate upgrades. The warming tray on top brings cups to temperature, though it relies on passive heat dissipation from the thermoblock rather than an independent heating element.
Long-term durability is a concern: multiple owners have reported the steam wand failing after several months, and the descaling process has been described as cumbersome. The machine also has a tendency to feel top-heavy due to the low weight distribution, so it may slide on the counter when locking the portafilter. For the user who values the slimmest possible form factor and is comfortable with a learning curve for maintenance, the Calphalon Compact delivers a functional espresso experience in a space-saving design.
What works
- Ultra-slim 5.74-inch width fits tight counter corners
- Volumetric shot control for repeatable single and double pulls
- Included accessories cover immediate entry-level needs
What doesn’t
- Steam wand durability has shown failure after a few months
- Top-heavy balance requires counter grip during portafilter lock
- Descaling process is more involved than similar-tier machines
Hardware & Specs Guide
Portafilter Diameter and Basket Type
The portafilter diameter directly determines your maximum dose weight and the evenness of water distribution through the puck. A 58mm basket accepts 16–20 grams of coffee and matches the commercial standard, giving access to precision baskets from VST, IMS, and Pullman. The smaller 54mm basket used by Breville holds about 19 grams but has narrower aftermarket support, while the 51mm basket in budget machines limits dose to 12–14 grams and relies on pressurized inserts that create fake crema by forcing foam through a single small hole.
Boiler vs. Thermoblock Heating
Traditional espresso machines use a brass or aluminum boiler that holds hot water and maintains thermal mass for temperature stability. Compact machines often switch to a thermoblock — a metal channel with a resistive heater — that heats water on demand. Thermoblocks heat up in 30 seconds but lose temperature during back-to-back shots because there is no stored water. A boiler takes 2–5 minutes to heat but stays stable through multiple pulls. PID controllers can stabilize either system by cycling the heater based on a thermocouple reading, which is essential for thermoblock machines that tend to drift.
FAQ
Do I need a separate grinder for a small espresso machine?
Why does my small espresso machine produce sour or bitter shots?
Can I fit a small espresso machine under standard upper cabinets?
How often should I descale a compact espresso machine?
Will a 58mm portafilter machine fit on a small counter?
Final Thoughts: The Verdict
For most users, the small espresso machine winner is the Breville Bambino Plus because it combines a 3-second heat-up PID temperature control with automated microfoam in a 7.7-inch footprint. If you want the fully manual, repairable path to true 58mm commercial-grade shots, grab the Gaggia Classic Pro E24. And for a fully automatic bean-to-cup workflow with a built-in grinder that fits tighter spaces than any other super-automatic, nothing beats the Terra Kaffe Demi.
