A water heater thermocouple is a flame-sensing probe that makes millivolts to hold the gas valve open while the pilot is burning.
Gas storage heaters with a standing pilot use a small metal probe that sits in the pilot flame. That probe is the thermocouple. It keeps gas flowing to the burner only when a flame is present. If the pilot goes out, the signal drops and the safety magnet in the gas control snaps shut. No flame, no gas.
This guide explains what the part does, where it lives, how it works, test steps, and quick fixes that save time. You will also see how a thermopile and an electronic flame rod differ.
Water Heater Thermocouple Meaning And Purpose
A thermocouple is two dissimilar metals joined at the tip. Heat at that junction creates a tiny voltage known as the Seebeck effect. In a gas water heater, that voltage energizes a safety magnet in the gas control. When the pilot flame touches the tip, the magnet stays latched and the main burner can light when the thermostat calls. When the flame goes out, voltage falls, the magnet drops, and gas to the pilot stops. That tiny signal does not run your house; it only holds a safety latch. The latch is the gatekeeper that lets the burner receive gas when heat is called. Lose the signal and the gas path closes until a flame is proven again.
Placement is straightforward. The probe sits in the pilot flame, the copper lead runs to the gas control, and a small threaded connector ties in at the control. The pilot flame should wrap the top third of the tip with a steady blue shape. Sooty yellow tips point to a dirty orifice or poor air mix. Fix the flame first, then judge the sensor. For meter numbers and flame shape tips, see this short overview of the thermocouple millivolt range.
Table 1. Thermocouple At A Glance
| Topic | Plain Answer | Quick Check |
|---|---|---|
| Function | Flame sensor that keeps gas on only with fire present | Pilot stays lit only when you hold the knob? Suspect the sensor |
| Where It Sits | Tip in pilot flame; lead to gas control | Look for a small copper lead to the control |
| How It Works | Heat at the tip makes millivolts that power a safety magnet | Flame must hit the tip squarely |
| Output (mV) | Commonly around 25–35 mV in a healthy flame | Measure with a meter set to DC mV |
| When Flame Dies | Voltage falls and the magnet releases to shut gas | Pilot will not stay lit after you release the button |
| Typical Lifespan | Often 3–7 years in daily service | Heavy soot or a roaring flame shortens life |
| Classic Symptoms | Pilot won’t stay lit, weak blue flame, sooty tip | Test before buying parts |
| Serviceability | Low cost, easy to replace on many models | Match length and connector |
| Notes | Older tanks use them; some newer use thermopiles | Read the rating plate before ordering |
Parts, Placement, And How It Works
Probe And Tip
The hot end is a small bulb that sits where the pilot flame is most stable. The flame should envelop the tip, not blast past it. A sharp, roaring flame can damage the tip over time. A soft blue flame gives a steady signal.
Lead And Connector
The lead looks like small copper tubing. The threaded end seats at the gas control. Tighten snug by hand, then a light wrench touch. Do not kink the lead.
Gas Control Magnet
Inside the gas control is a latch pulled in by the millivolt signal. Hold the pilot button to start. Once hot, the probe’s voltage holds the magnet. Lose flame and the magnet drops.
Thermocouple Vs Thermopile Vs Flame Rod
Thermocouple
One hot junction, tiny power. Think tens of millivolts. It powers only the safety magnet. Many older water heaters use this setup.
Thermopile
Many junctions in series, more power. Think hundreds of millivolts. It can power a gas valve circuit without house power. Some newer tank heaters use a thermopile paired with electronic controls that run on that larger output.
Flame Rod (Ionization)
No millivolts created. The control sends a small current and the flame conducts it. You see this on direct vent or sealed combustion units with electronic ignition. The idea is the same: prove flame before gas flows.
When You Might See Each
Standing pilot tank heaters built years ago often have thermocouples. Models with “FVIR” doors and combo gas controls may have a thermopile. Direct vent or power vent units often use flame rods. Check the rating plate and the control model before buying parts.
Common Signs A Thermocouple Is Failing
- Pilot only stays on while you hold the button
- Burner lights, then everything dies a few minutes later
- Tip looks crusted or sooty after cleaning the pilot orifice
- Multimeter reads low millivolts even with a good flame
- Lead sheath is kinked or scorched near the burner area
Quick, Safe Checks Before Replacing
- Look At The Pilot Flame
The flame should be steady and blue. If it lifts off the tip or spits, clean the pilot orifice and confirm combustion air openings are open. A blue flame that wraps the upper part of the tip gives the best signal. - Confirm Tip Position
Slide the probe so the hot spot of the flame hits the top third of the tip. Do not jam the tip directly into the orifice stream. - Tighten The Connection
A loose connector at the gas control can drop the signal. Snug, not cranked. - Clear Dust And Lint
Vacuum around the burner door and air screen. Dust can distort the flame and overheat the tip.
How To Test With A Multimeter
You need a digital meter that reads DC millivolts.
- Turn the gas control to pilot.
- Disconnect the thermocouple from the gas control.
- Clip the meter leads to the thermocouple: red to the copper probe lead, black to the threaded nut.
- Hold the pilot button and light the pilot while keeping the tip in the flame.
- After a minute, read the meter. A healthy probe in a proper flame often shows about 25–35 mV.
- If the reading is far lower, cool the tip, polish the contact points, reseat, and test again.
- Still low? Replace the part. If the reading is good yet the pilot drops when connected, suspect the gas control.
When Replacement Makes Sense And What To Buy
Replace the sensor if it fails the meter test, the lead is damaged, or the tip will not hold a pilot in a verified blue flame. Choose a length that fits your burner assembly and a connector that matches your gas control. Common lengths range from 18 to 36 inches. A universal 30 mV unit fits many older tanks.

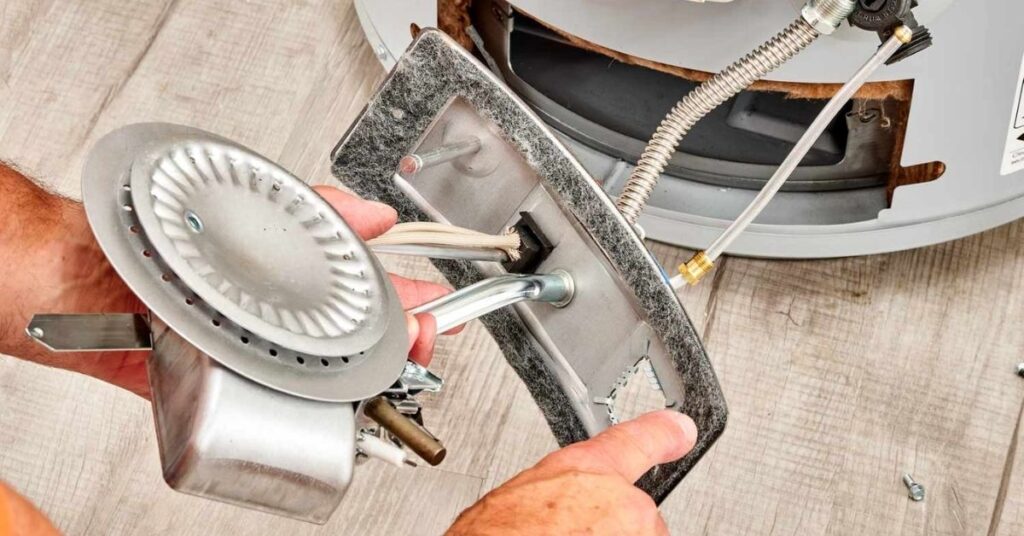

Step-By-Step Replacement Overview
- Set the gas control to OFF and wait for the burner area to cool.
- Shut the manual gas valve at the supply line.
- Loosen the pilot tube fitting and the thermocouple connector at the control.
- Withdraw the burner assembly as the manual shows.
- Free the old probe from its clip or bracket. Note routing.
- Install the new probe so the tip sits in the hot spot of the pilot flame path.
- Route the lead without sharp bends and seat the connector by hand, then a light wrench touch.
- Reinstall the burner assembly.
- Open the manual gas valve and check joints you disturbed with a soapy water test. Bubbles mean a leak that must be fixed before lighting.
- Relight the pilot per the lighting label and watch the flame hit the tip.
Care And Prevention
- Keep the area around the heater clean and free of paint cans or aerosols.
- Raise garage heaters per local rules so the pilot sits above floor level fumes.
- Vacuum dust from the burner door screen and intake grills.
- Once a year, watch the pilot flame and clean the orifice if it looks lazy or yellow.
- For broader maintenance tips, see the U.S. DOE water heating guidance.
- If you ever smell gas, stop, shut the valve, leave the area, and call your gas supplier from outside.
Table 2. Symptoms, Likely Causes, And Simple Tries
| Symptom | Likely Cause | What To Try |
|---|---|---|
| Pilot Goes Out Often | Drafts, dirty pilot, weak thermocouple | Fix drafts, clean pilot, test sensor |
| Pilot Stays Lit But Burner Drops | Failing gas control or thermostat issue | Meter test passes? Suspect the control |
| Yellow, Lazy Flame | Dirty orifice, blocked air screen | Clean orifice, clear intake |
| Soot On Tip | Flame too sharp or misdirected | Adjust tip position, fix flame shape |
| No Millivolt Reading | Broken lead or bad meter clips | Check connections, retest with new clips |
Frequently Mixed-Up Problems
A weak pilot can mimic a bad sensor. Dirt at the pilot orifice, a pinched pilot tube, or a clogged air screen can starve the flame. Fix the flame first. Good millivolts with dropouts point to the control.
Safety Notes You Should Not Skip
Work with gas calls for care. Follow the lighting label and the manual for your exact model. Use a soapy water test on any joint you opened. Never use an open flame for a leak check. If you smell gas, close the valve, step outside, and call your supplier right away.
Smart Next Steps
If your pilot will not stay lit, start with the flame. Clean it, place the tip well, and snug the connector. Run the millivolt test. Replace the part if it fails. If it passes yet the pilot drops when reconnected, the gas control likely needs service by a licensed tech.
