Every e-bike rider knows the sinking feeling when the assist cuts out halfway up a hill or miles from home. That moment is dictated entirely by one component: the battery. The difference between a leisurely pedal and a long-haul commute comes down to amp-hours, cell quality, and the management system protecting those cells from heat and current spikes.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent the last several years analyzing battery chemistry, BMS specifications, and real-world cycle-life data from hundreds of e-bike riders to separate reliable power packs from short-lived disappointments.
This guide breaks down nine of the most compelling options on the market, covering form factors from dolphin-style to Reention Dorado, voltage platforms from 36V to 52V, and capacities from 13Ah up to 22.4Ah. By the end, you’ll know exactly which e-bike battery fits your bike, your range needs, and your budget without wasting money on a mismatched cell configuration.
How To Choose The Best E-Bike Battery
Choosing an e-bike battery isn’t like picking a phone charger. The wrong voltage can kill your controller, an undersized BMS can trip on every hill, and a mismatched case shape simply won’t lock into your frame. Here are the four specifications you need to nail before you click buy.
Voltage Matching: 36V vs 48V vs 52V
Your motor and controller are tuned for a specific nominal voltage. A 36V battery powers most entry-level hub motors up to 350W. A 48V system is the dominant standard for 500W to 1000W motors — almost every mid-range bike in this guide runs on 48V. A 52V battery pushes peak power higher and extends the voltage drop curve, giving you stronger acceleration deeper into the discharge cycle. Never install a battery whose nominal voltage exceeds your controller’s rated input — you risk blowing the capacitors on the first full charge.
Capacity Versus Real-World Range
A 48V 14Ah pack stores 672Wh of energy. That same 14Ah label on a 52V pack jumps to 728Wh. More watt-hours generally means more miles, but rider weight, terrain incline, PAS level, and tire pressure each shave off or stretch that number by 20-40 percent. Treat manufacturer range claims (like “40-150km”) as ideal-condition estimates. Look at the actual Ah and Wh figures, then mentally cut the optimistic number in half for mixed riding.
BMS Current Rating and Motor Compatibility
The Battery Management System (BMS) limits how much current — measured in amps — the battery can safely discharge. A 20A BMS supports motors up to roughly 750W. A 30A BMS feeds motors up to 1000-1200W. A 50A BMS is built for 1500W+ setups. If your motor draws more peak amps than the BMS allows, the BMS will trip into protection mode and cut power mid-ride. Check your motor’s peak current draw before picking a BMS rating.
Physical Form Factor and Mounting
E-bike battery cases come in several standard shapes: dolphin/silverfish (curved top, slides onto a base mounted on the downtube or seat tube), shark (rectangular, mounts on the downtube with a locking cradle), Reention Dorado (aluminum case, slides into a horizontal or vertical receiver), and bottle-style (cylindrical, mounts in water bottle cage screw holes). Measure your existing battery’s length, width, height, and mounting hole spacing. Most replacement batteries list these dimensions explicitly — ignore them at your own risk of buying a pack that won’t physically latch onto your frame.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Joyisi 48V 20AH | Premium | High-mileage commuters | 65 LG/Samsung cells, 40A BMS | Amazon |
| Varstrom 52V 20Ah | Premium | High-power 1500W builds | 52V nominal, 30A continuous | Amazon |
| SDTYYP Reention Dorado 17.5Ah | Mid-Range | Premium OEM replacement | Aluminum shell, 30A BMS | Amazon |
| YS YOSE POWER 48V 15Ah Silverfish | Mid-Range | Fat tire and step-through bikes | Seat-tube mount, 30A BMS | Amazon |
| ShunTongDa 48V 14Ah (Rad Power) | Mid-Range | Rad Power bike upgrades | ≥80% after 800 cycles, XT-60 | Amazon |
| PLXNYLB 48V 22.4Ah | Mid-Range | Extended range on universal frames | 50A BMS, curved parrot-style case | Amazon |
| YS YOSE POWER 48V 13Ah Silverfish | Mid-Range | Universal 48V replacements | 2-pin discharge, 30A BMS | Amazon |
| ShunTongDa 48V 14Ah (Lectric XP) | Value | Lectric XP Step-Thru owners | Folding-case 467x102x42mm | Amazon |
| YS YOSE POWER 36V 13Ah | Value | Jasion EB5 replacement | 20A BMS, 481Wh capacity | Amazon |
In‑Depth Reviews

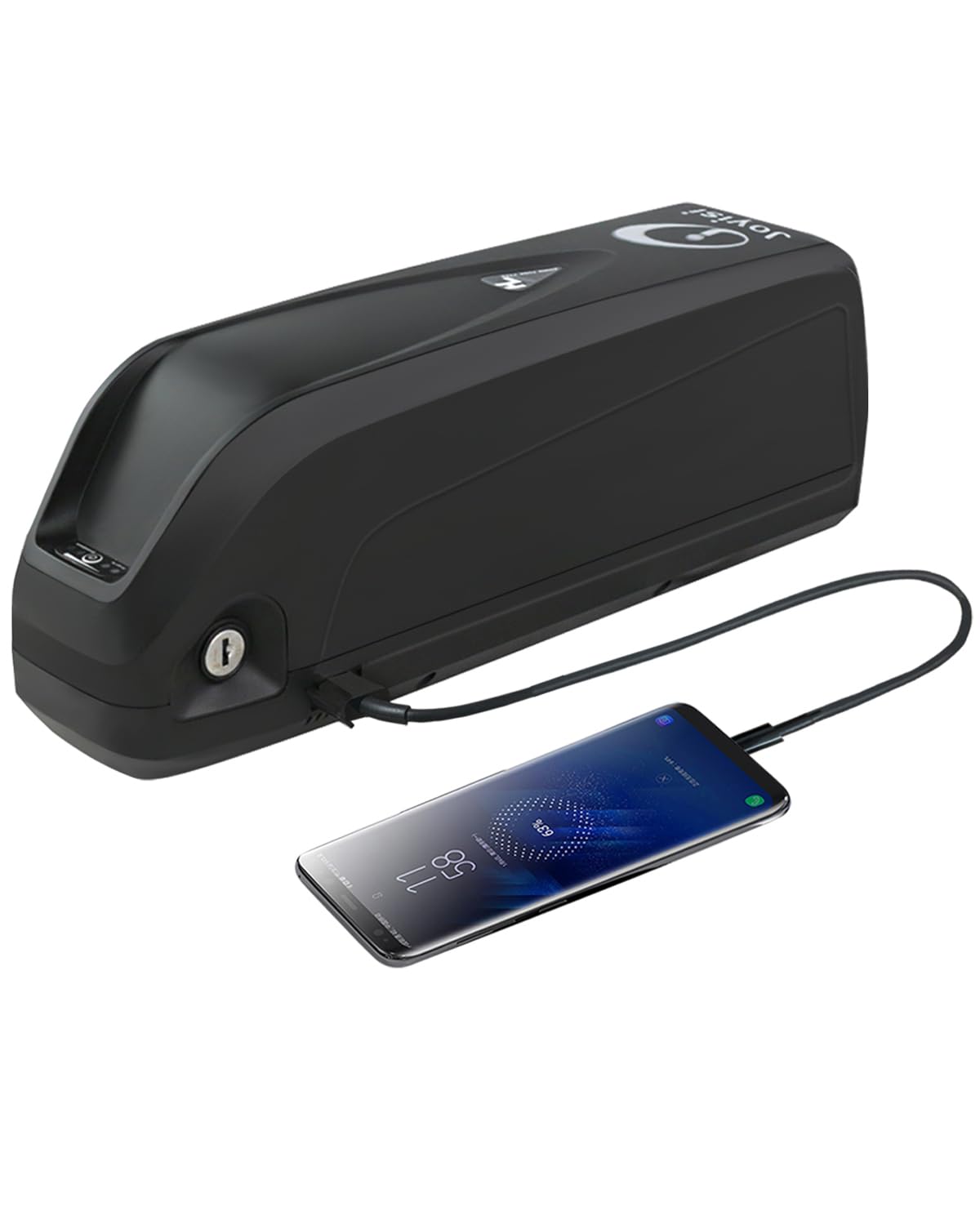

1. Joyisi 48V 20AH Ebike Battery
The Joyisi pack is the closest thing to a universal high-capacity upgrade that doesn’t require a second mortgage. It houses 65 genuine LG or Samsung 2600mAh cells — that’s verified buyer data, not marketing copy — inside a hard plastic bottle-style shell that weighs roughly 8.9 pounds. The 40A BMS is unusually generous for this form factor, meaning it can comfortably supply a 1500W motor without tripping into protection mode. That BMS headroom alone puts this pack ahead of most bottle-type batteries, which typically cap out at 20A or 30A.
Range reports from real users consistently land around 35 miles on 1000W rigs in hilly terrain, and several owners have confirmed they see 20+ miles even at full throttle on higher-power builds. The included XT60 connectors give you a solid base for soldering in your preferred connector type, though the included 2A charger is slower than some competitors who ship a 3A unit. The mount design requires three rivnut holes for a rock-solid install — many buyers mod the bracket with a Grin Tech Double-bob mount for odd-shaped frames.
Customer service is a repeat standout: the few DOA units reported were replaced promptly by Joyisi support. The integrated USB port lets you charge a phone on the go, a small but real convenience for long tours. If you want a single battery that will feed a 48V motor anywhere from 500W to 1500W with genuine cell quality, this is the most versatile choice on this list.
What works
- Genuine LG/Samsung cells verified by teardown photos
- 40A BMS supports high-draw motors without cutouts
- Excellent customer support for warranty replacements
What doesn’t
- Mount requires drilling additional holes for solid fit on some frames
- Comes with 2A charger, not 3A
- Bottle-style case may not fit every downtube
2. Varstrom 52V 20Ah Ebike Battery
The Varstrom battery breaks from the 48V crowd by offering a true 52V (58.8V full-charge) platform, which delivers a measurable performance advantage for riders running 1500W mid-drives like the Bafang BBSHD. Real-world data from a buyer who tested this pack on a volcanic climb — 50km with 1000m of elevation gain — burned only about half the total capacity, suggesting an effective range of roughly 96 miles at moderate assist levels. The proprietary CNC cell holder and individual cell fuses are uncommon safety touches at this price point.
The downtube-style case (368mm x 95mm x 125mm) uses a 5-pin base connector and XT60 discharge lead. It includes a theft-resistant lock system and a power switch that prevents parasitic drain when the bike is parked. Several buyers have confirmed it works flawlessly with Biktrix Juggernaut frames and other bikes that accept standard water-bottle-mount cradles. The included 3A charger speeds up refueling compared to the 2A chargers many competitors ship.
One caveat: the battery level indicator on a small number of units has failed to illuminate, though this appears to be a rare assembly issue rather than a widespread defect. The warranty covers 30 days for returns and 365 days for repair or replacement, which gave multiple buyers confidence to keep the pack. If your bike can run 52V and you want more torque and top-end speed than any 48V pack can offer, this is the strongest contender in the list.
What works
- 52V platform provides noticeable power and speed boost over 48V
- Individual cell fuses add layer of safety
- 3A charger included for faster charging
What doesn’t
- Some units reported non-functional battery indicator
- Mounting bracket needs separate purchase for some frames
- Not compatible with 48V controllers
3. YS YOSE POWER 48V 15Ah Silverfish Battery
The 48V 15Ah version of YOSE POWER’s silverfish battery sits at a sweet spot between capacity and physical size. It stores 720Wh total, which translates to a manufacturer claim of 50-175km per charge, and the 30A BMS supports motors up to 1000W. The silverfish case (also known as the “dolphin” style) mounts to the seat tube via a locking base, making it a direct swap for a wide range of fat-tire and step-through bikes from brands like ECOTRIC and Rattan. The 2-pin discharge port is standard for this case style.
Buyers have successfully installed this pack on Rattan 750W bikes with minor bracket modification — drilling oblong holes to align the baseplate and extending the discharge wires with soldered connections. One owner reported a noticeable speed increase from 21 mph to 29 mph after swapping to this battery, which suggests the original pack was voltage-sagging heavily under load. The built-in lock and indicator light work reliably, though the indicator only stays lit for two seconds after pressing the button, a minor inconvenience.
The 18-month warranty is longer than the industry standard of 12 months, and the pack ships with a charger, keys, and extra fuses. The main risk is compatibility: this style does not fit Nakto, Heybike, or some older step-through frames without structural modification. Measure your original case dimensions (14 x 3 x 4.3 inches) and verify the 2-pin layout before ordering.
What works
- Large 720Wh capacity for extended rides
- 18-month warranty exceeding usual 12-month terms
- Compatible with many fat-tire and step-through frames
What doesn’t
- May require bracket drilling on certain e-bike models
- Indicator lights turn off after two seconds
- Not compatible with Nakto or Heybike frames without heavy mods
4. YS YOSE POWER 48V 13Ah Silverfish Battery
This 48V 13Ah silverfish battery is the lowest-capacity 48V entry in YOSE POWER’s lineup, but it punches above its weight in value and compatibility. The 13Ah (624Wh) rating supplies enough juice for 40-150km at PAS, and the 30A BMS provides headroom for motors up to 700W. The silverfish/dolphin case is one of the most common formats in the entry-to-mid-range market, so this battery fits a broad cross-section of e-bikes including MiFa, Rex, Prophete, Aldi, Avocet, and Viking models. It expressly does not fit Heybike frames, which use a different baseplate pattern.
Real-world feedback from buyers who replaced degraded batteries on Cheetah e-bikes reports a significant improvement: where the original pack would die at 28 miles, the YOSE replacement keeps going past 35 miles. One buyer used it as a second battery for an e-trike but discovered the 2-pin outlet lacked the separate positive/negative terminals his trike required — a critical detail for anyone whose bike uses a dual-outlet wiring harness. The connector size also caused fitment issues on a Magnum Premium 3, requiring the owner to file down the plug base to fit through the frame hole.
For the price, you get an 18-month warranty, a charger, keys, and a holder base. The USB port is absent on this model, unlike some competitors, so plan for a separate power bank if you need phone charging on rides. If your bike uses a standard silverfish connection and you don’t need the highest capacity available, this is a reliable, well-supported entry point into the 48V platform.
What works
- Solid 624Wh capacity at a budget-friendly entry point
- Fits a huge range of silverfish-compatible e-bikes
- 18-month warranty is better than most at this tier
What doesn’t
- Only 2-pin discharge — not compatible with dual-outlet harnesses
- Connector diameter may need filing on some frame holes
- No USB charging port
5. SDTYYP 48V 17.5Ah Reention Dorado Battery
The Reention Dorado form factor is a step up in build quality from the plastic silverfish or bottle-style cases. This SDTYYP pack uses a CNC aluminum alloy shell with a spring-loaded carry handle, a security lock, and a four-LED battery indicator. At 48V and 17.5Ah (840Wh), it offers more usable energy than a typical 14Ah pack while staying within the Dorado receiver format used by brands like Ride1Up and Eahora. The 30A BMS supports motors from 250W to 1000W.
Multiple buyers confirmed a plug-and-play fit on Ride1Up 500 series and Eahora XT10 bikes — the seller even asked for photos to verify compatibility before shipping, which reduced the chance of a return. Owners upgrading from a worn 10.5Ah original report doubling their range with accurate battery level readings on the bike display. The aluminum casing dissipates heat more effectively than plastic, a meaningful advantage during sustained climbs where the cells can heat-soak and degrade faster in standard cases.
The major unknown is the cell brand — SDTYYP doesn’t advertise LG or Samsung cells, and the “automotive-grade A+” claim is unverifiable without disassembly. The included 2A charger is adequate for overnight charging but slow for a 17.5Ah pack that needs roughly 9 hours from flat. If your bike takes a Dorado battery and you prioritize a rigid, heat-shedding case with solid real-world range, this is a well-constructed upgrade path.
What works
- Aluminum alloy case for durability and heat dissipation
- Verified plug-and-play fit for Ride1Up and Eahora models
- 840Wh capacity doubles range for many OEM packs
What doesn’t
- Cell brand not disclosed — unknown cell quality
- 2A charger is slow for 17.5Ah capacity
- Dorado format limited to bikes with compatible receivers
6. PLXNYLB 48V 22.4Ah Ebike Battery
No other battery on this list packs as many watt-hours as this PLXNYLB 22.4Ah unit. At 48V, it stores roughly 1075Wh — more than enough to push a 2000W motor for extended periods or give a 500W commuter bike a range that comfortably exceeds 60 miles on moderate assist. The built-in 50A BMS is the highest current rating among the nine products here, meaning this pack can feed the thirstiest hub and mid-drive motors without the BMS limiting performance.
The case uses a curved “parrot-style” form factor with an integrated LED battery indicator and a security lock. Physical dimensions are 14.47 x 3.7 x 4.17 inches, and the battery weighs 8.95 pounds — reasonable for a 22.4Ah pack. The package includes a 3A charger, a mounting plate with a 5-pin connector, and two keys. Buyers report that installation is straightforward on frames with standard battery mounts, and the seller has a track record of proactive customer service when shipping carriers miss delivery windows.
The trade-off is longevity concerns: one buyer reported noticeable capacity fade after only a few dozen full cycles, suggesting that the cells may not maintain their initial energy density as well as packs using branded LG or Samsung cells. The “power equalization chip” described in the listing is vague, and the cell source isn’t specified. If your priority is absolute maximum range per charge and you accept that the battery’s cycle life may be shorter than premium alternatives, this pack offers unbeatable capacity for the money.
What works
- Industry-leading 1075Wh capacity for extreme range
- 50A BMS handles high-draw motors without limiting
- Includes 3A charger for faster charging
What doesn’t
- Undisclosed cell brand with reported capacity fade after few cycles
- Parrot-style case may not fit all frame types
- Warranty is only 1 year despite premium-tier capacity
7. ShunTongDa 48V 14Ah External Pack for Rad Power Bikes
This ShunTongDa battery was engineered specifically for Rad Power’s external battery platform — RadExpand 5, RadWagon, RadRunner 2, RadWagon 4, and RadRover 4. It matches the original battery’s physical footprint (380 x 89 x 95mm) and uses the same keyed lock mechanism and baseplate pattern, which means you slide it in, lock it, and ride. The 48V 14Ah (672Wh) capacity is a direct replacement for the OEM pack, and multiple buyers confirmed it fits the RadRunner 2 and RadRover 4 without any modifications.
The pack ships with a 30A BMS, a new charger with an internal cooling fan, and XT-60 connectors. The claim of ≥80% capacity retention after 800 cycles is ambitious but aligns with the use of automotive-grade A cells in the construction. One buyer noted that this battery plus charger was roughly cheaper than buying a replacement directly from Rad Power — a significant saving for a drop-in upgrade that includes a newer, faster charger than the original.
One unit out of 23 reported was non-functional out of the box, which is an acceptable failure rate for this price range, though it highlights the importance of testing immediately upon arrival. The 12-month cell warranty covers manufacturing defects. If you own a Rad Power bike and want to avoid the OEM markup while maintaining perfect fitment, this is the most straightforward option available.
What works
- Exact drop-in replacement for several Rad Power models
- Comes with upgraded charger featuring active cooling fan
- Significant savings compared to OEM replacement
What doesn’t
- Rare DOA unit reported by one buyer
- Only 672Wh — not an upgrade over stock capacity
- Limited to Rad Power bike compatibility only
8. ShunTongDa 48V 14Ah Folding Battery for Lectric XP
Lectric XP Step-Thru 1.0 and 2.0 owners have a notoriously difficult time finding drop-in replacement batteries because of the folding frame’s unique case dimensions. This ShunTongDa pack matches the factory 467 x 102 x 42mm case size and uses the same 5-pin discharge port, which means it slides into the frame without filing or bracket modification. The 48V 14Ah (672Wh) capacity equals the OEM spec, and the 30A BMS supports motors up to 1000W — more than enough for Lectric’s factory 500W or 750W hubs.
Buyers have confirmed this battery works with Lectric XP 3.0 and Lectric XP Step-Over models in addition to the listed Step-Thru versions. One reviewer reported it as a “great price and works great” for their Lectric XP 3.0, and another replaced a dead Series 2.0 battery without any wiring modifications. The 18650 lithium-ion cells and 1000+ recharge cycle rating suggest reasonable longevity, with a 1% monthly self-discharge rate that allows the pack to sit unused for a season without draining flat.
The package includes the battery, two keys, and the lock mechanism pre-installed. The 12-month warranty is standard, but the support team provides 24/7 online service. The main limitation is that this battery is a like-for-like replacement — it doesn’t increase your range beyond the original 14Ah. If your XP battery has degraded and you want a drop-in fix without paying Lectric’s full retail price, this is your best option.
What works
- Exact case dimensions for Lectric XP folding frames
- 5-pin connector matches factory port perfectly
- Compatible with XP 1.0, 2.0, and 3.0 models
What doesn’t
- Same capacity as OEM — no range improvement
- Only 12-month warranty
- Limited to Lectric XP compatibility only
9. YS YOSE POWER 36V 13Ah Battery for Jasion EB5
This 36V 13Ah pack is purpose-built for the Jasion EB5 electric bicycle, one of the most popular entry-level e-bikes on the market. The case dimensions (367.5 x 95 x 89mm) match the EB5’s battery cradle exactly, allowing a seamless hot-swap that eliminates range anxiety for owners who previously had to wait 7 hours between rides. The 20A BMS is sufficient for Jasion’s stock 350W motor, and the single-charge range of 47-156km (at PAS) aligns with real-world reports from owners who now complete trips that previously required charging a second battery.
Several verified buyers reported the battery arrived with a factory charge and was ready to ride out of the box. One owner who purchased the pack as a backup specifically mentioned hot-swapping during a long ride — sliding the depleted battery out and the fresh one in without tools. The packaging includes spare fuses, a detailed manual, and contact information for support. The 18-month warranty is one of the longest on this list, especially for a 36V battery in the entry-level segment.
The main limitation is the 36V voltage floor. You cannot use this battery on any 48V bike, and the 20A BMS maxes out at 750W motor support — not an issue for the EB5 but a hard ceiling if you ever upgrade to a higher-power system. One buyer mentioned the battery appeared smaller than expected, so verify the listed dimensions against your current pack if you’re not 100 percent certain it’s the EB5 model. For Jasion EB5 owners needing a reliable, affordable second battery, this is the safest buy.
What works
- Perfect drop-in fit for Jasion EB5 cradle
- Hot-swap capability for extended rides
- 18-month warranty beats most competitors
What doesn’t
- 36V voltage only — not transferable to 48V bikes
- 20A BMS limits motor compatibility to 750W max
- Case size may look small compared to other batteries
Hardware & Specs Guide
Lithium-Ion 18650 Cells
Almost every modern e-bike battery uses 18650-format lithium-ion cells — the same cylindrical size found in power tools and laptop packs. What distinguishes a premium battery from a cheap one is the cell brand and quality. LG, Samsung, Panasonic, and Sanyo cells are the gold standard; they undergo tighter manufacturing tolerances and maintain capacity for 500-1000 full cycles before dropping below 80 percent of original capacity. No-name cells often fail after 200-300 cycles and may show voltage sag under load well before that. If the listing doesn’t name the cell brand, assume generic cells unless independent teardowns prove otherwise.
BMS Current Limits and Voltages
The Battery Management System (BMS) is the electronic circuit that monitors each cell group, balancing charge levels and cutting power if any cell exceeds safe voltage, temperature, or current limits. A 30A BMS can deliver about 1440W peak from a 48V pack (30A × 48V = 1440W). A 50A BMS pushes that to 2400W. Always select a BMS whose continuous current rating exceeds your motor’s peak draw by at least 20 percent to avoid nuisance trips on steep hills or hard acceleration. Higher BMS ratings also require thicker discharge wires and better cell cooling — components not visible in the Amazon photo but critical for long-term reliability.
FAQ
Can I use a 52V battery on my 48V e-bike controller?
What does the amp-hour (Ah) rating actually mean for my range?
How do I know if a replacement battery case will physically fit my bike?
Why does my new battery cut out power when I accelerate hard up a hill?
Final Thoughts: The Verdict
For most users, the e-bike battery winner is the Joyisi 48V 20AH because it combines verified LG/Samsung cells, a 40A BMS, and a bottle-style form factor that adapts to more frames than any other pack here. If you own a Rad Power bike and want the easiest drop-in upgrade, grab the ShunTongDa 48V 14Ah Rad-compatible pack. And for extreme range or high-power 1500W builds, nothing beats the Varstrom 52V 20Ah for raw energy density and BMS headroom.
