Tight eaves and shallow joist bays make installing full-size can lights a headache, leaving your home’s exterior looking dark or unevenly lit. The right exterior LED soffit light solves that by packing bright, weather-resistant illumination into a wafer-thin housing that fits where traditional fixtures won’t.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend my time dissecting lumens-per-watt curves, IC-rating standards, and gimbal rotation angles so you don’t have to guess which downlight survives damp conditions and actually aims where you need it.
Whether you’re illuminating a wraparound porch, a covered patio, or the underside of a second-story overhang, this guide strips away the hype and delivers the exterior led soffit lights that perform best in real-world installations.
How To Choose The Best Exterior LED Soffit Lights
Selecting the right soffit light comes down to three factors: environmental sealing, fitting within the shallow eave cavity, and controlling beam direction. Most DIY mistakes happen when buyers ignore wet location ratings or pick a housing that’s too deep for their joist space.
Wet Location & IC Contact Rating
Soffits are semi-exposed to rain splash, humidity, and condensation. A fixture that lacks wet or damp location certification risks internal corrosion and premature failure. IC (Insulation Contact) rating is just as critical when soffit insulation sits directly against the light — a non-IC fixture can overheat and create a fire hazard. Always look for UL-Listed wet/damp labeling plus IC-rated junction box certification before mounting.
Beam Direction & Gimbal Flexibility
Fixed downlights cast a straight downward cone. If you need to wash a wall, accent architectural details, or light a doorway, a gimbal design that tilts 90° and rotates 360° is far more versatile. For covered patios where uniform floodlighting is the goal, a fixed baffle trim with a wide 120° beam is cleaner and more affordable. Identify your primary use case before buying the trim type.
Selectable Lumen and Color Temperature
Fixed 3000K fixtures lock you into a warm white that may feel too yellow on a dark-painted soffit. Switches that let you toggle between 2700K, 3000K, 4000K, and 5000K allow you to match the light to the actual paint color and trim. Selectable lumen output (800, 1000, or 1200 lumens) is a bonus when you have varying ceiling heights across the same run.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CycevSun 3in 12pk | Premium | Night light ambiance | 540 Lumen / 2000K amber | Amazon |
| VOLISUN 4in 12pk | Premium | Large area coverage | 810 Lumen / night light | Amazon |
| POPANU 3in Gimbal | Mid-Range | Directional accent lighting | 90° tilt / 360° rotation | Amazon |
| Adetu 4in Gimbal | Mid-Range | Adjustable eyeball trim | 982 Lumens / 5%-100% dim | Amazon |
| NUWATT 4in 6pk | Mid-Range | Damp rated soffit use | 630 Lumens / CRI 90+ | Amazon |
| Sunco 6in Black | Value | Existing can retrofits | 965 Lumens / baffle trim | Amazon |
| HALO HLB 6in | Value | Ultra-thin direct mount | 1200 Lumens max / wet rated | Amazon |

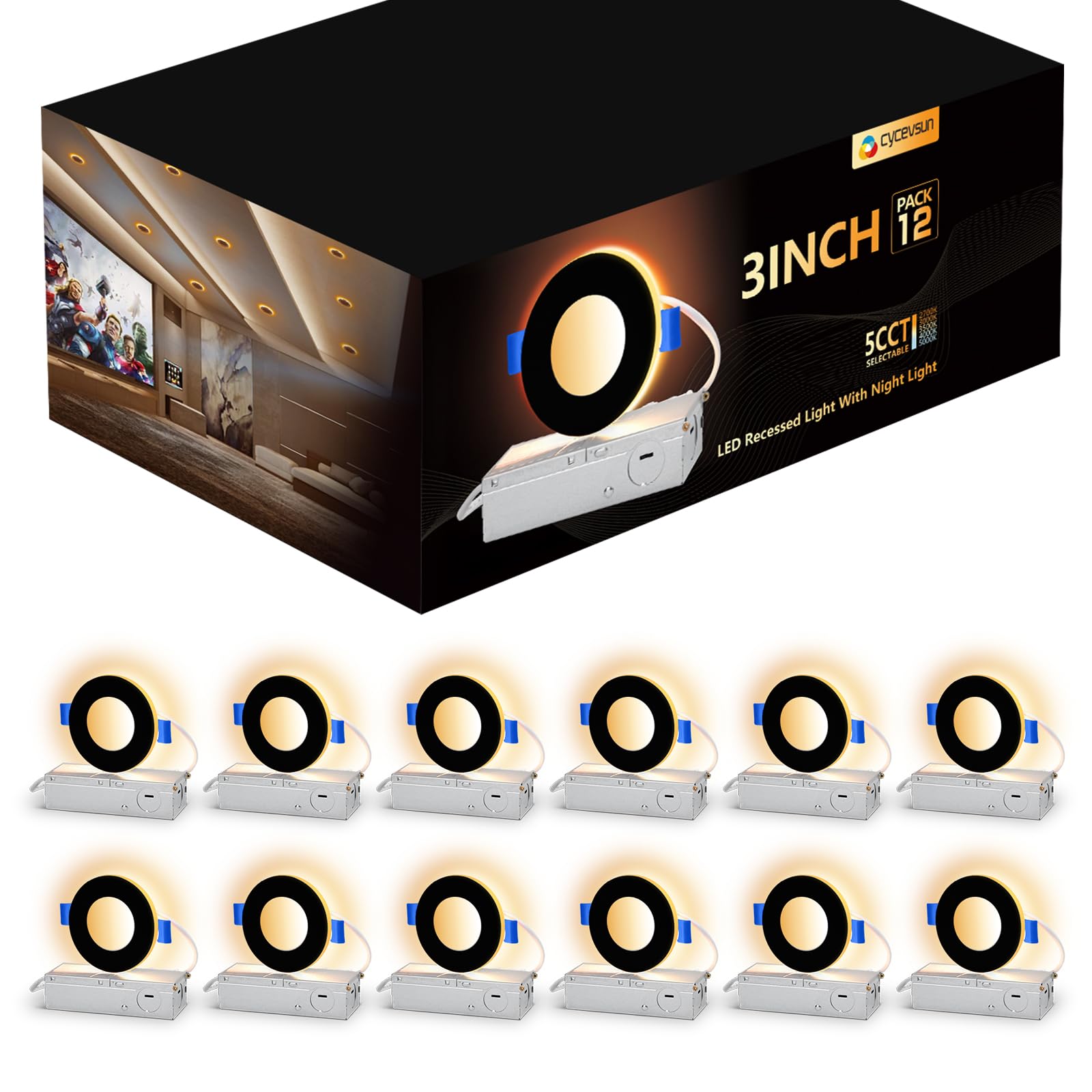

1. CycevSun 3 Inch Black Recessed Lights with Night Light (12 Pack)
The CycevSun 3-inch delivers a unique dual-mode system: a full 540-lumen downlight for general illumination and a 2000K amber glow ring that turns the trim itself into a subtle night light. For soffit installations over patios or entryways, that warm amber glow eliminates the need for a separate midnight fixture. The 3-inch diameter keeps the footprint minimal on narrow eaves, and the IC-rated junction box lets you bury it in insulation without worry.
Sync and reset functionality is baked in — if multiple lights get out of phase, powering off for 8 seconds and back on resets them to downlight mode. Users report easy fitment with a 3.5-inch hole saw and smooth dimming down to 5% with no audible buzz. The 5CCT selector (2700K to 5000K) covers warm porch tones through crisp security lighting.
One compromise: at 540 lumens, these won’t wash a large two-story facade. They’re built for ambient accent and pathway glow, not floodlight replacement. A few reviews note the 5000K setting looks slightly warm relative to other brands’ pure daylight.
What works
- Dual downlight / amber night light mode
- Ultra-low 0.39-inch profile fits tight eaves
- Smooth 100%-5% dimming without flicker
- Reset sync function keeps all units aligned
What doesn’t
- Lower lumen output (540 lm) limits coverage
- 5000K setting isn’t a pure cool white
- Larger hole saw required vs 4-inch wafers
2. VOLISUN 12 Pack 4 Inch Black Recessed Light with Night Light
The VOLISUN 4-inch steps up the lumen count to 810 lumens per unit, making it a strong candidate for covering larger soffit runs with fewer fixtures. Its signature feature is the amber night light ring that illuminates the trim edge in a soft 2000K glow — activated by toggling the switch on-off. That dual personality makes it excellent for front porch eaves where you want dramatic overhead light when entertaining but a dim, welcoming glow for late arrivals.
Installation requires a 4.25-inch hole saw and the included push connectors speed up daisy-chaining. The synchronization reset works reliably — turning off for 7 seconds and back on locks all units into downlight mode. The IC rating and ETL certification mean it’s safe for direct insulation contact in unconditioned attic eaves. Dimmability ranges from 100% down to 5% with no flicker reported on leading-edge dimmers.
Two nuances: the 5CCT slider switch on the junction box is small and easy to overshoot during selection. And the night light effect, while beautiful, reveals every ceiling scratch and patch because the light comes from the trim edge, not the aperture. Some users received DOA units, though the 5-year warranty covers replacements.
What works
- Integrated amber night light trim for ambiance
- 810 lumens per unit for solid area coverage
- ETL certified with IC-rated junction box
- 5CCT selectable from 2700K to 5000K
What doesn’t
- Color selector switch is easy to overshoot
- Night light mode highlights ceiling imperfections
- Requires separate romex connectors

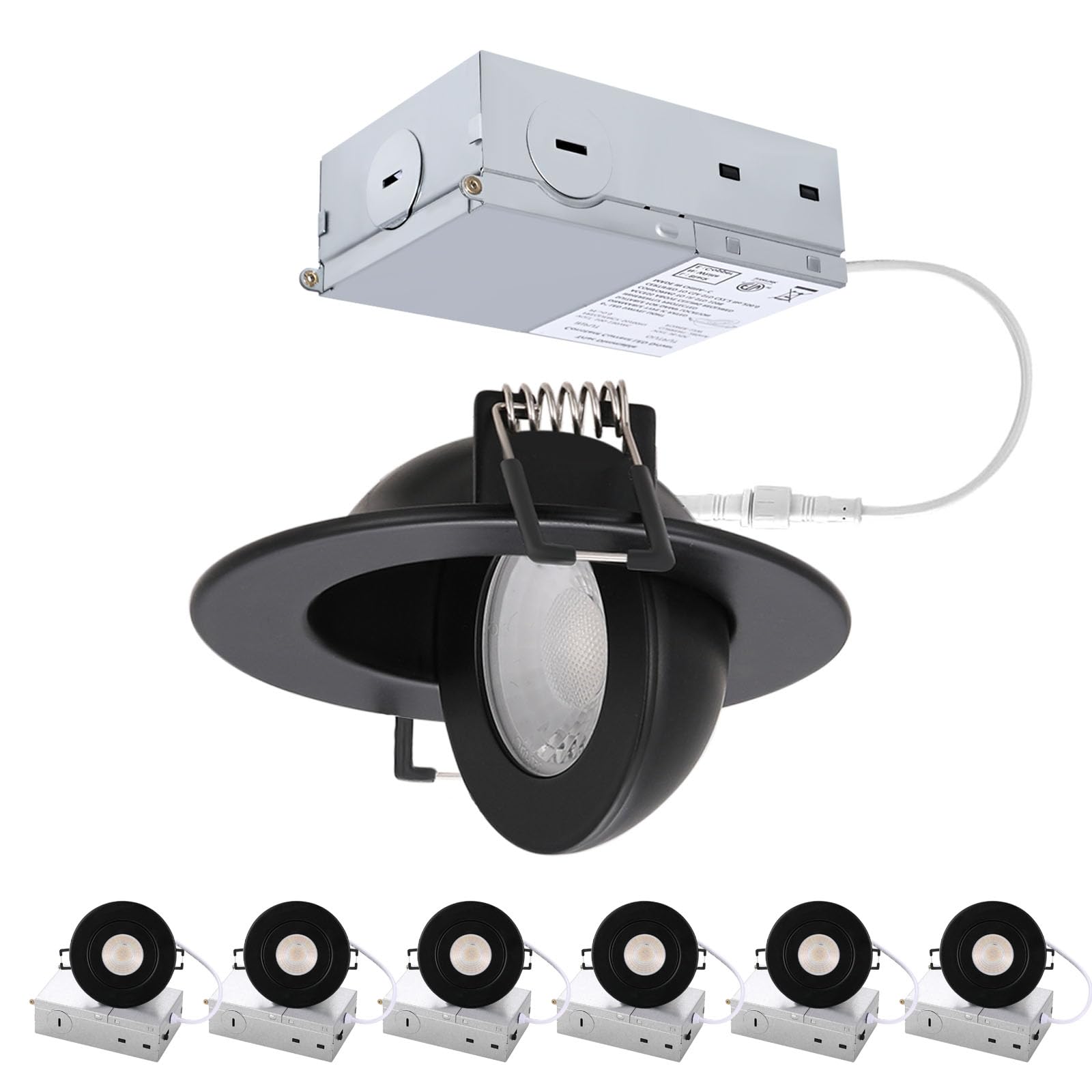

3. POPANU 3 Inch Black Recessed Lights, Canless Gimbal Soffit Lighting (6 Pack)
When the soffit overhang is seven feet high and you want to highlight brick texture or a door frame, a fixed downlight just dumps light straight down. The POPANU 3-inch gimbal changes that with 90° tilt and full 360° rotation, letting you aim the 700-lumen beam exactly where it’s needed. The powder-coated black finish blends into dark soffit material without protruding, and the wafer-thin 1-inch height slides into shallow joist bays easily.
The 5CCT switch is on the junction box body, selectable before the fixture is snapped into the ceiling. Daisy chain capability is a standout for long soffit runs — you can wire multiple units in sequence without extra junction boxes. Build quality feels stout; the gimbaling mechanism uses a friction ball joint that holds position without sagging over time. At 100 lumens per watt, the efficiency is among the best in this group.
One trade-off: the 700-lumen maximum is a tier below larger 4-inch options, so don’t expect to flood a 20-foot porch. Also, the junction box connectors accept standard 14/2 Romex but the box itself could be slightly more spacious for heavy-gauge wire.
What works
- Full 90° tilt and 360° rotation for precision aiming
- Daisy chain capable for efficient wiring runs
- High efficiency at 100 lumens per watt
- Solid, powder-coated black construction
What doesn’t
- 700 lumens is modest for large areas
- Junction box feels snug with thick wiring
- Not ideal if you need straight flood coverage
4. Adetu 4 Inch 5CCT Gimbal LED Recessed Lights (6 Pack)
The Adetu 4-inch gimbal combines the directional flexibility of an eyeball trim with a lumen punch that’s rare at this price tier — 982 lumens from a 10-watt draw, which translates to an 88% energy saving versus halogen alternatives. The gimbal ring rotates a full 360° and tilts up to 90°, so you can angle light across an entire soffit surface or pinpoint a specific zone below. The white painted finish integrates neatly into light-colored soffit panels.
Five color temperatures are selectable via a slider on the junction box, covering 2700K soft white through 5000K daylight. Dimming performance is smooth down to 5% without hum, and the ETL/Energy Star certifications confirm thermal protection. The IC-rated housing prevents heat buildup in insulated ceilings. Users report installation is straightforward with a 4-inch hole saw, and the spring clips hold firm in drywall and wood alike.
A minor knocks: the junction box uses push-in connectors but doesn’t include grommets for the incoming wire knockout, so you may need to add a snap-in Romex connector. A few users note the housing could be built with thicker gauge metal, though no failures have been reported.
What works
- High 982 lumens at only 10W power draw
- Full gimbal range for directional accent lighting
- 5CCT slider with smooth 5%-100% dimming
- IC rated and ETL/Energy Star certified
What doesn’t
- No wire grommets included for metal box
- Junction box feels slightly lightweight
- Not available in black trim finish

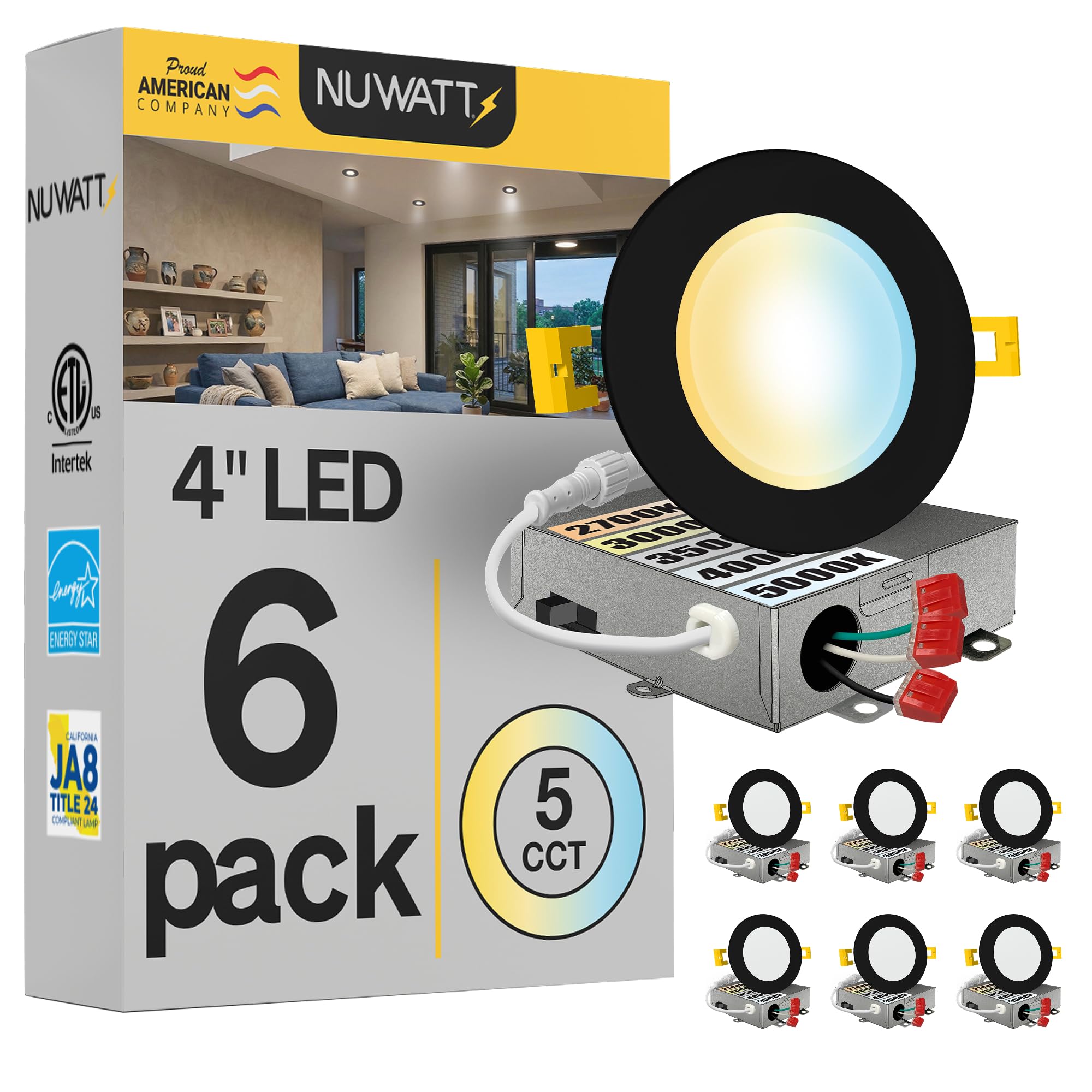

5. NUWATT 6 Pack, 4 Inch Ultra-Thin LED Recessed Lighting Black (6 Pack)
NUWATT’s 4-inch wafer light is specifically damp-rated, making it a natural fit for soffit zones where rain splash and humidity are routine. The 1-inch profile slips into the shallowest of eave cavities, and the IC rating allows direct insulation contact without derating. With 630 lumens per fixture and a CRI of 90+, the color rendering is noticeably better than budget alternatives — brick, wood, and trim colors look accurate rather than washed out.
The 5CCT selector is accessible on the junction box, and the 10%-100% dimming range handles most standard dimmers smoothly. Matte black trim keeps glare down from street level. Users consistently highlight easy installation and clean daytime appearance — the black frame doesn’t protrude or catch the eye when the lights are off. The 5-year warranty and US-based customer support reduce the risk of buying in bulk.
630 lumens is adequate for small to medium soffit areas but may feel dim in a 30-foot continuous run. A few users wish the junction box was roomier for pushing excess wire back in. The beam angle is not adjustable, so it’s a fixed downlight — not for accenting specific facade features.
What works
- Damp rated for direct soffit exposure
- CRI 90+ ensures true color rendering
- Ultra-thin 1-inch profile for tight spaces
- 5-year warranty with responsive support
What doesn’t
- 630 lumens per unit is modest for large areas
- Fixed downlight — no tilt or rotation
- Junction box could use more wire room

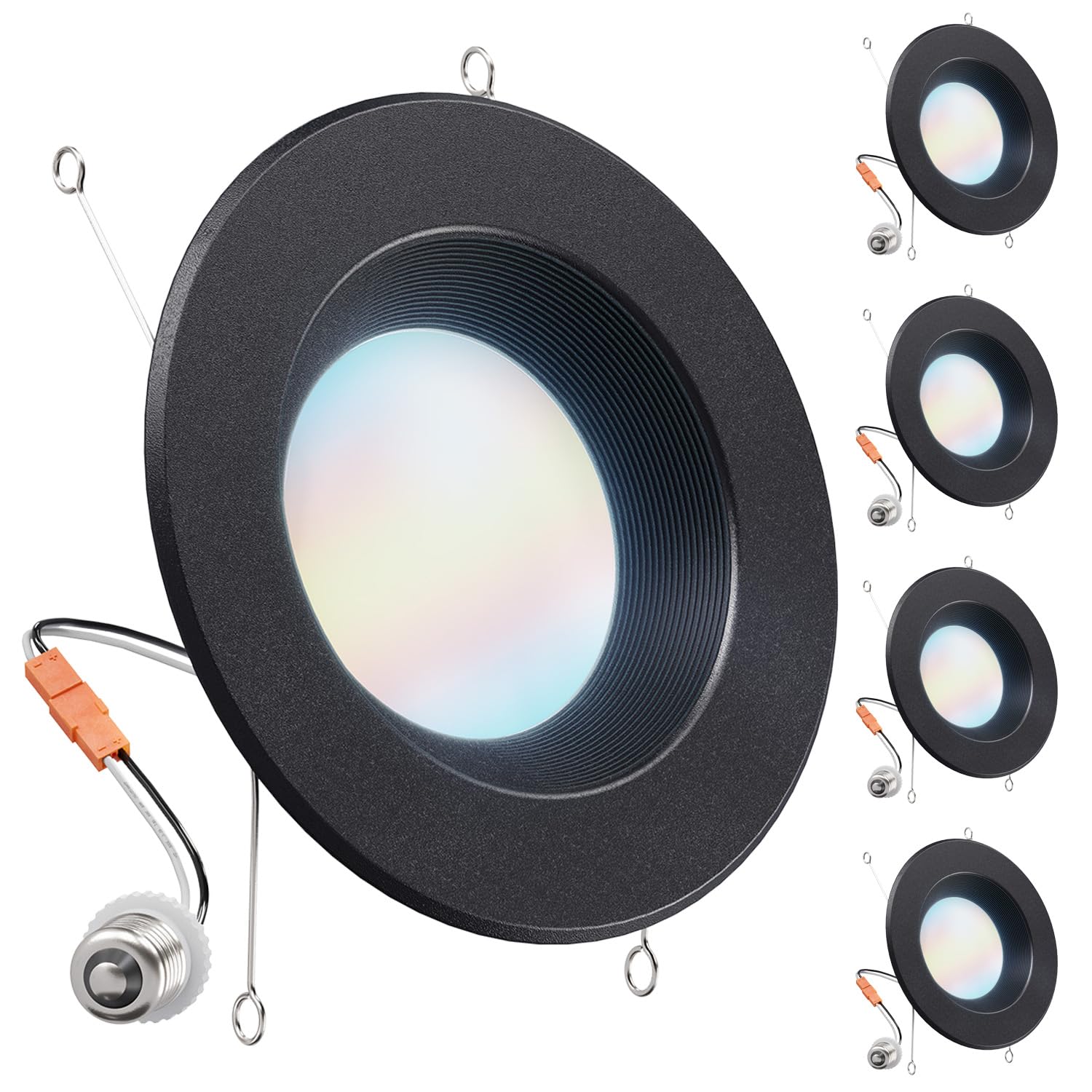

6. Sunco 4 Pack 6 Inch LED Black Recessed Light, Baffle Trim
If your soffit already has 5-inch or 6-inch can housings from a previous generation, buying complete wafer kits means ripping out old cans and patching holes. The Sunco retrofit fits directly into existing housing with a simple E26 bulb-base adapter and a TP24 connector, saving hours of demo work. The black baffle trim controls glare and gives a finished look that contrasts cleanly against white soffit panels.
At 965 lumens with 5CCT selectability (2700K-5000K) and 10%-100% dimming, the brightness rivals dedicated new-construction wafers. The 7-inch diameter trim flange covers existing cutout imperfections, a common headache when switching between fixture generations. The 7-year warranty from Sunco is among the longest in the category, adding confidence for outdoor installations where moisture can shorten lifespan.
You’re limited to damp-rated locations — not full wet-rated — so direct rain exposure on an unenclosed soffit is a risk. Also, the toggle switch for color temperature is on the fixture body, so you must select CCT before mounting, and the touch controller means no remote or wall-switch cycling for modes.
What works
- Direct retrofit into existing 5/6-inch can housings
- Baffle trim reduces glare from street level
- 965 lumens with smooth 10%-100% dimming
- 7-year warranty backs the investment
What doesn’t
- Damp rated only — not for direct rain
- CCT must be selected before installation
- Flange is 7 inches; won’t fit a smaller can
7. HALO HLB 6 Inch LED Recessed Lighting Canless, Wet Location Rated
The HALO HLB 6-inch is one of the few fixtures in this list with full wet location certification, meaning it can withstand direct rain and snow runoff — crucial for soffits with zero overhang protection. It delivers selectable lumen output (800/1000/1200 lumens) plus selectable color temperature (2700K-5000K), giving you the most adjustable range of any unit here. The canless design is under 1/2 inch thick, so it fits into the tightest of eave cavities without interfering with rafters.
Installation is straightforward for a 6-inch wafer: cut a 6 1/8-inch hole, connect the junction box (four available ports), and secure with spring clips. The IC rating and airtight design prevent conditioned air loss and maintain insulation contact safety. Build quality is what you expect from the HALO brand — the junction box feels more robust than generic alternatives, and the quick-connect adapters speed up multi-unit jobs.
One headache: the junction box mounting screws are tiny (M3x4) and easy to lose if dropped. A few users wished the junction box was slightly larger to accommodate wire management, though the four port knockouts help. The 1200-lumen max output is nearly double that of smaller wafers, but the 6-inch size means you need more clearance between joists.
What works
- Full wet location rating for unprotected eaves
- Selectable lumen and CCT in one fixture
- Under 1/2 inch profile for tight joist bays
- Energy Star listed with IC airtight rating
What doesn’t
- Tiny M3x4 mounting screws are easy to drop
- Junction box feels cramped for wire bundling
- 6-inch size needs larger hole and clearance
Hardware & Specs Guide
Lumen Output and Beam Spread
For soffit lighting, aim for at least 700-900 lumens per fixture if the overhang is 8-10 feet off the ground. A tight, focused 60° beam works for accenting doors and windows, while a wider 120° beam floods larger patio areas. Selectable lumen drivers (800-1200 lm) offer flexibility if your soffit height varies across the house.
IC Rating and Wet Location Markings
An IC-rated junction box is required by code when insulation sits directly above the fixture. Without it, the trapped heat can cause the thermal cutoff to trip or, worse, create a fire risk. Wet location rating (UL 1598) ensures the gasket and electronics survive rain, snow, and condensation. Damp rating is acceptable under a 2-foot covered overhang, but bare eaves demand wet-rated fixtures.
Selectable Color Temperature (5CCT)
Sliding a switch on the junction box to change from 2700K (warm incandescent) to 5000K (daylight) lets you match the light to your home’s exterior paint and trim in minutes. This eliminates the guesswork of ordering fixed-CCT lights and returning them when the tone feels wrong. Most soffit lights offer this via a tiny switch — just make sure you can access it before the fixture is fully mounted.
Gimbal vs Fixed Trim
Gimbal (eyeball) trims allow up to 90° tilt and 360° rotation, making them essential for accenting architectural details like columns, gable windows, or entry doors. Fixed baffle trims are cleaner, cheaper, and more efficient for general ambient flooding. If your soffit run is straight and you just want even light on a patio below, a fixed trim is simpler and less prone to misalignment over time.
FAQ
Can I use interior recessed lights in an exterior soffit?
What size soffit light should I choose — 3 inch, 4 inch, or 6 inch?
Do exterior LED soffit lights require special dimmer switches?
How do I wire multiple soffit lights in a daisy chain?
Final Thoughts: The Verdict
For most users, the exterior led soffit lights winner is the POPANU 3-inch Gimbal (6 Pack) because it combines directional flexibility, efficient 700-lumen output, and a low profile that fits any eave — all without breaking the budget for a full 6-pack run. If you want integrated night light ambiance for late-night porch access, grab the VOLISUN 4-inch (12 Pack). And for wet-rated durability in exposed eaves with the highest lumen ceiling, nothing beats the HALO HLB 6-inch.
